Toyota Corolla Sed/WG (JPP)

2001-10 → 2006-10 · chassis CDE120,NDE120,ZZE12# · catalogue 151550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

13 part groups · 3 illustrations

Illustrations

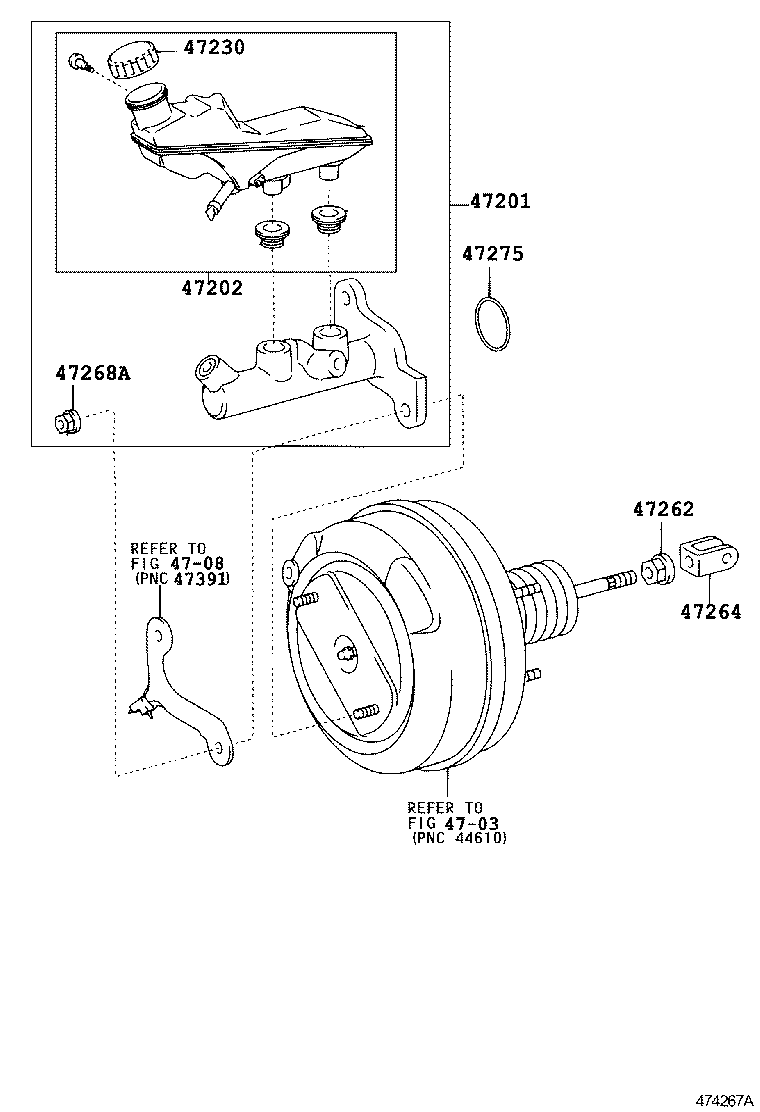

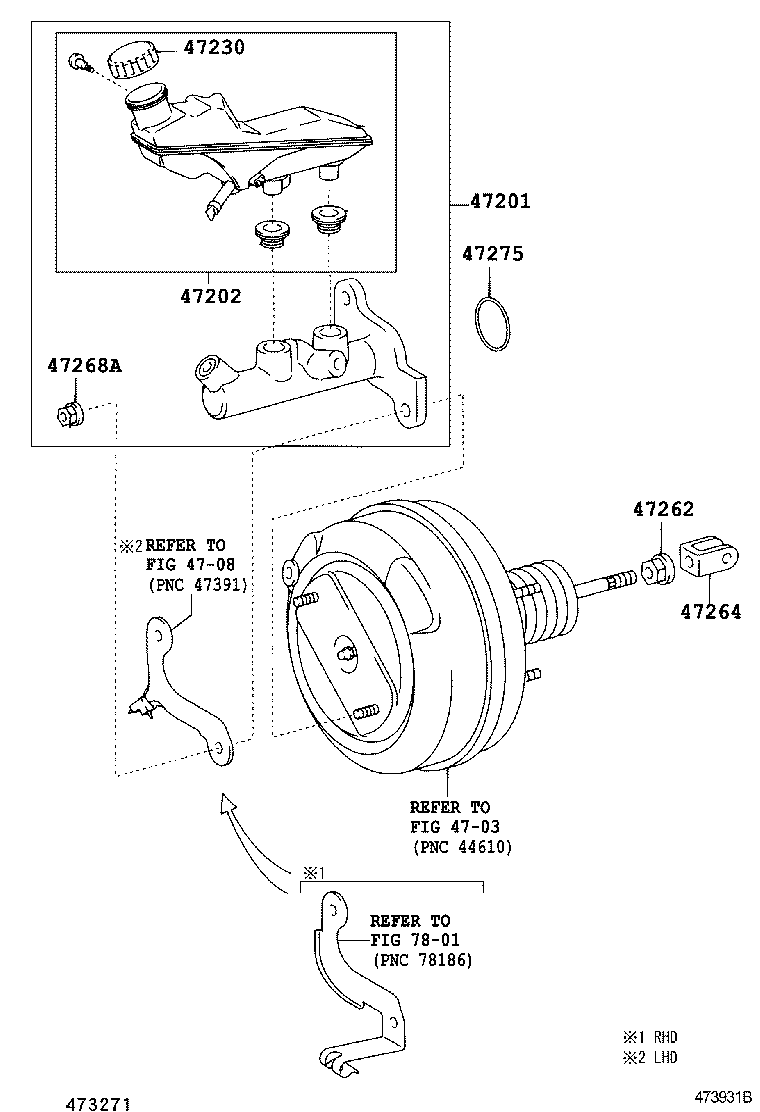

Figure 472751B 472751B 2001-10 → 2004-05 Figure 473931B 473931B 2004-05 → — Figure 474267A 474267A 2004-08 → —

Part groups

PNCDescription
04493 Cylinder Kit, Brake Master
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47202 Reservoir Sub-assy, Brake Master Cylinder
47210J Gasket(FOR MASTER CYLINDER)
47210T Bolt(FOR BRAKE MASTER CYLINDER)
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47255 Grommet, Master Cylinder Reservoir
47262 Nut, Master Cylinder Push Rod
47264 Clevis, Master Cylinder Push Rod
47268A Nut, Brake Master Cylinder
47275 Gasket, Brake Master Cylinder
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
