Toyota Corolla Sed/WG (JPP)

2001-10 → 2006-10 · chassis CDE120,NDE120,ZZE12# · catalogue 151550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

18 part groups · 7 illustrations

Illustrations

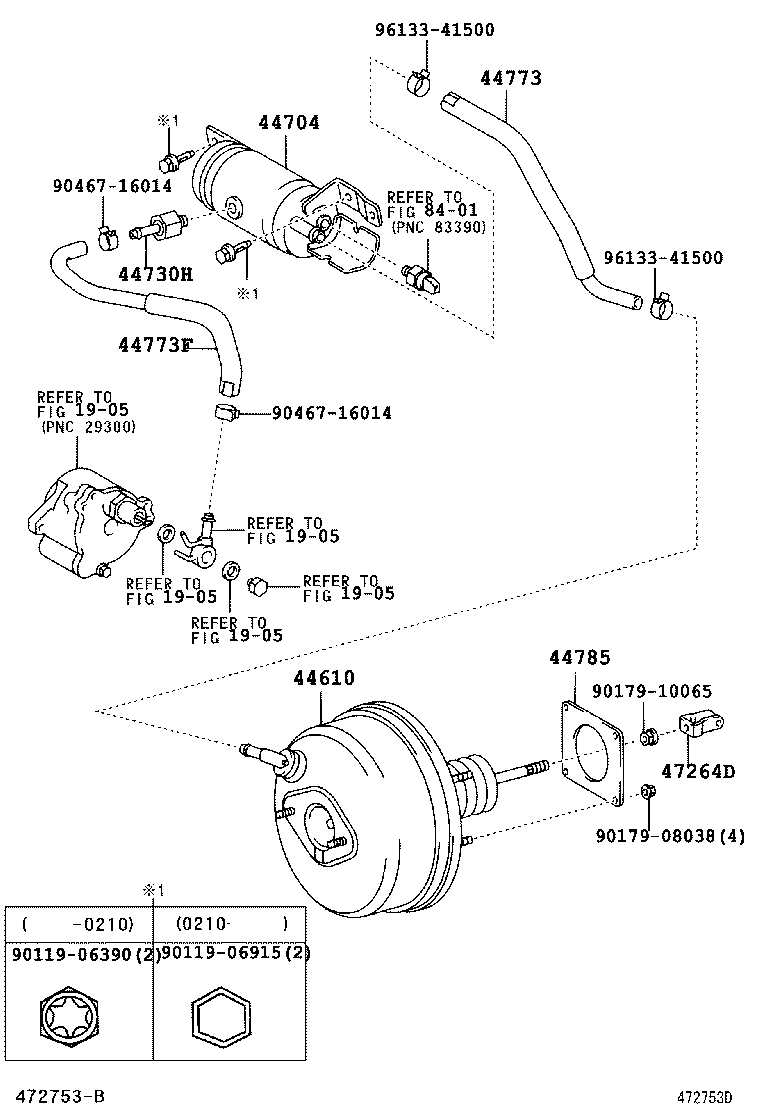

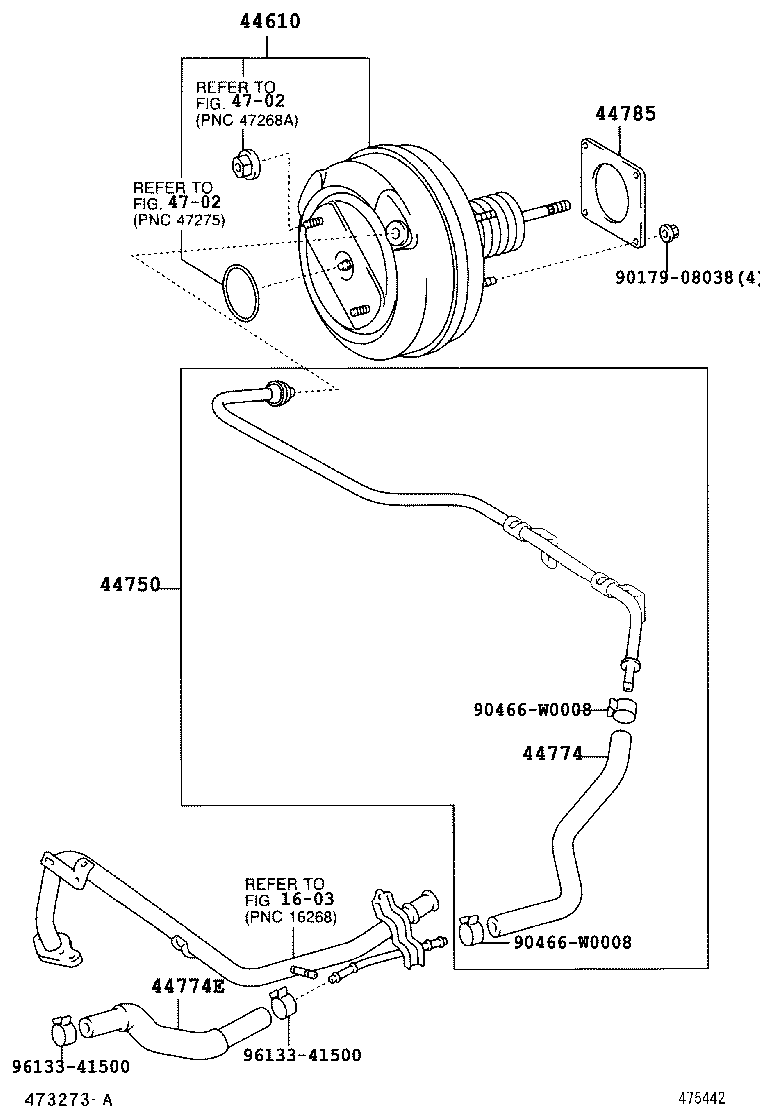

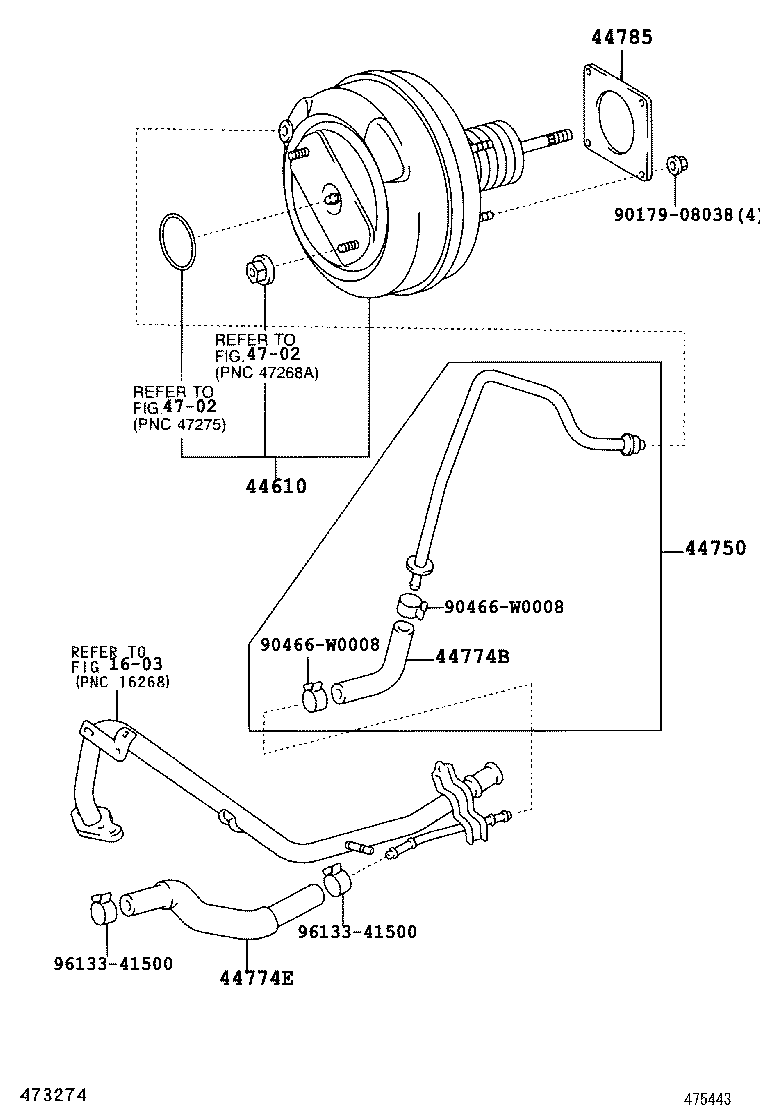

Figure 472752D 472752D 2001-10 → 2004-05 Figure 472753D 472753D 2001-10 → 2004-05 Figure 472754B 472754B 2001-10 → 2004-05 Figure 475442 475442 2004-05 → — Figure 472755B 472755B 2001-10 → 2004-05 Figure 475443 475443 2004-05 → — Figure 474270B 474270B 2004-08 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730H Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR)
44750 Hose Assy, Vacuum
44758 Bracket, Vacuum Check Valve
44763A Tube, Hose TO Hose, NO.1
44764R Tube, Connector TO Vacuum Reservoir
44773 Hose, Vacuum, NO.2
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44774B Hose, Union TO Connector Tube
44774E Hose, Union TO Connector Tube
44774G Hose, Union TO Solenoid
44776A Hose, Vacuum Reservoir TO Brake Booster
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
