Toyota Corolla Sed/WG (JPP)
2001-10 → 2006-10 · chassis CDE120,NDE120,ZZE12# · catalogue 151550 · Europe
Discontinued model
Data version 2007-09

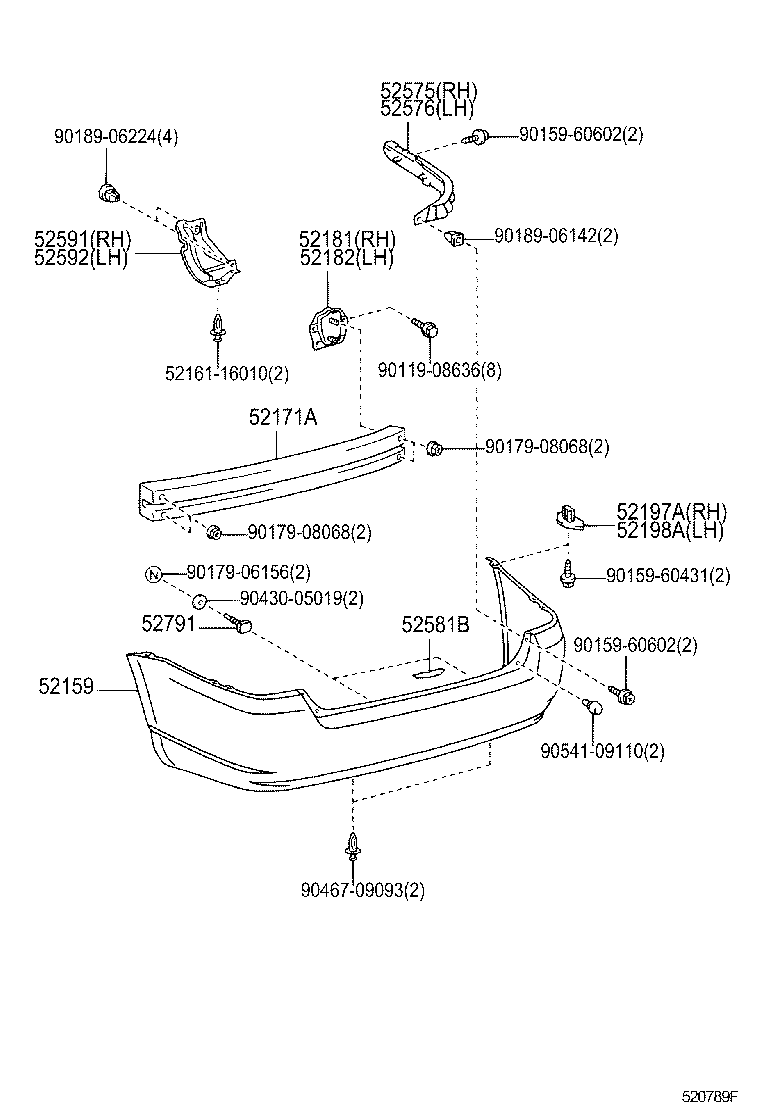

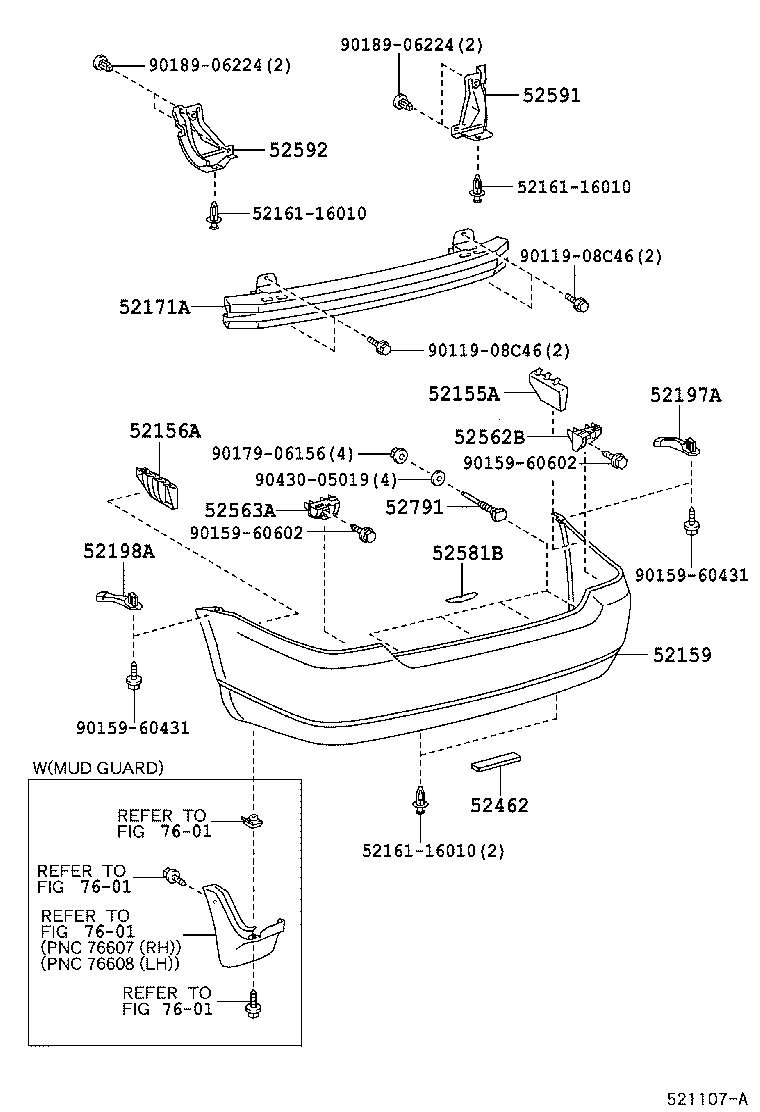

Rear Bumper & Bumper Stay
17 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52155A | Support, Rear Bumper Side, RH |
| 52156A | Support, Rear Bumper Side, LH |
| 52159 | Cover, Rear Bumper |
| 52171A | Reinforcement, Rear Bumper, NO.1 |
| 52181 | Arm, Rear Bumper, RH |
| 52182 | Arm, Rear Bumper, LH |
| 52197A | Bracket, Rear Bumper Seal, RH |
| 52198A | Bracket, Rear Bumper Seal, LH |
| 52462 | Pad, Rear Bumper, RH |
| 52562B | Retainer, Rear Bumper, Upper RH |
| 52563A | Retainer, Rear Bumper, Upper LH |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52581B | Protector, Rear Bumper |
| 52591 | Seal, Rear Bumper Side, RH |
| 52592 | Seal, Rear Bumper Side, LH |
| 52791 | Bolt, Bumper Moulding Set, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
