Toyota Corolla Sed/WG (JPP)

2001-10 → 2006-10 · chassis CDE120,NDE120,ZZE12# · catalogue 151550 · Europe

Discontinued model Data version 2007-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

86 part groups · 5 illustrations

Illustrations

611497F 2001-10 → 2004-05

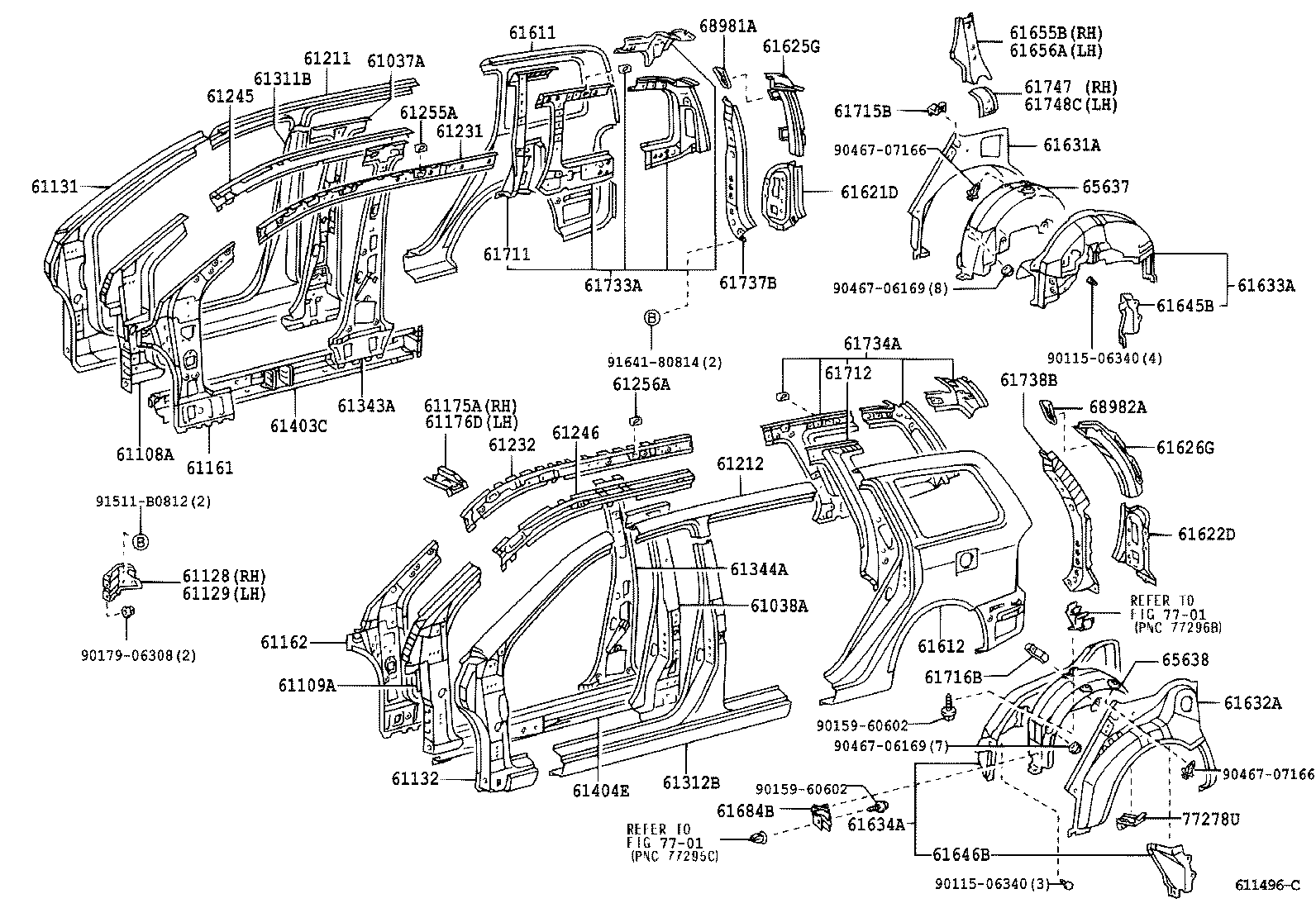

611496C 2001-10 → 2004-05

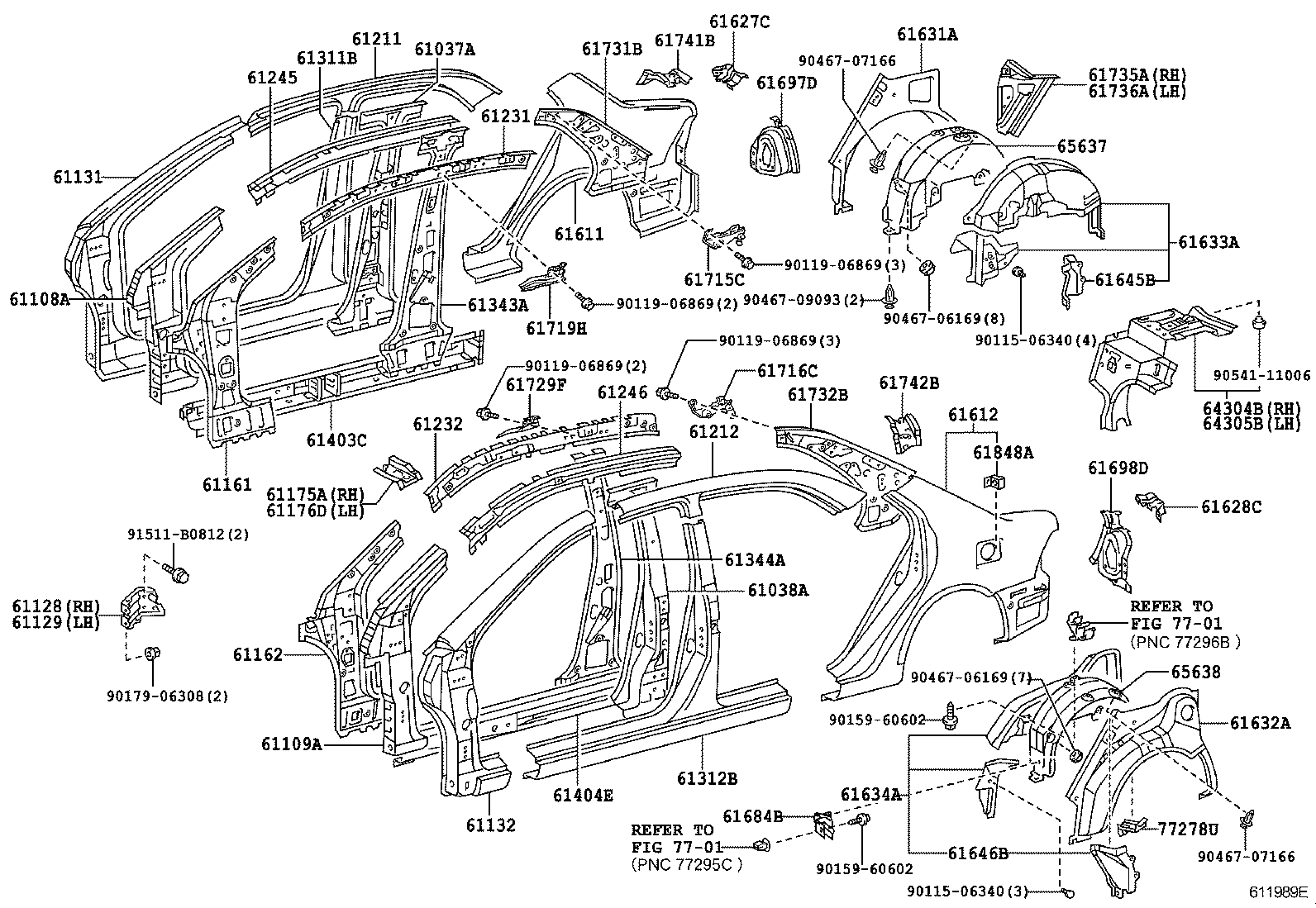

611989E 2004-05 → 2005-12

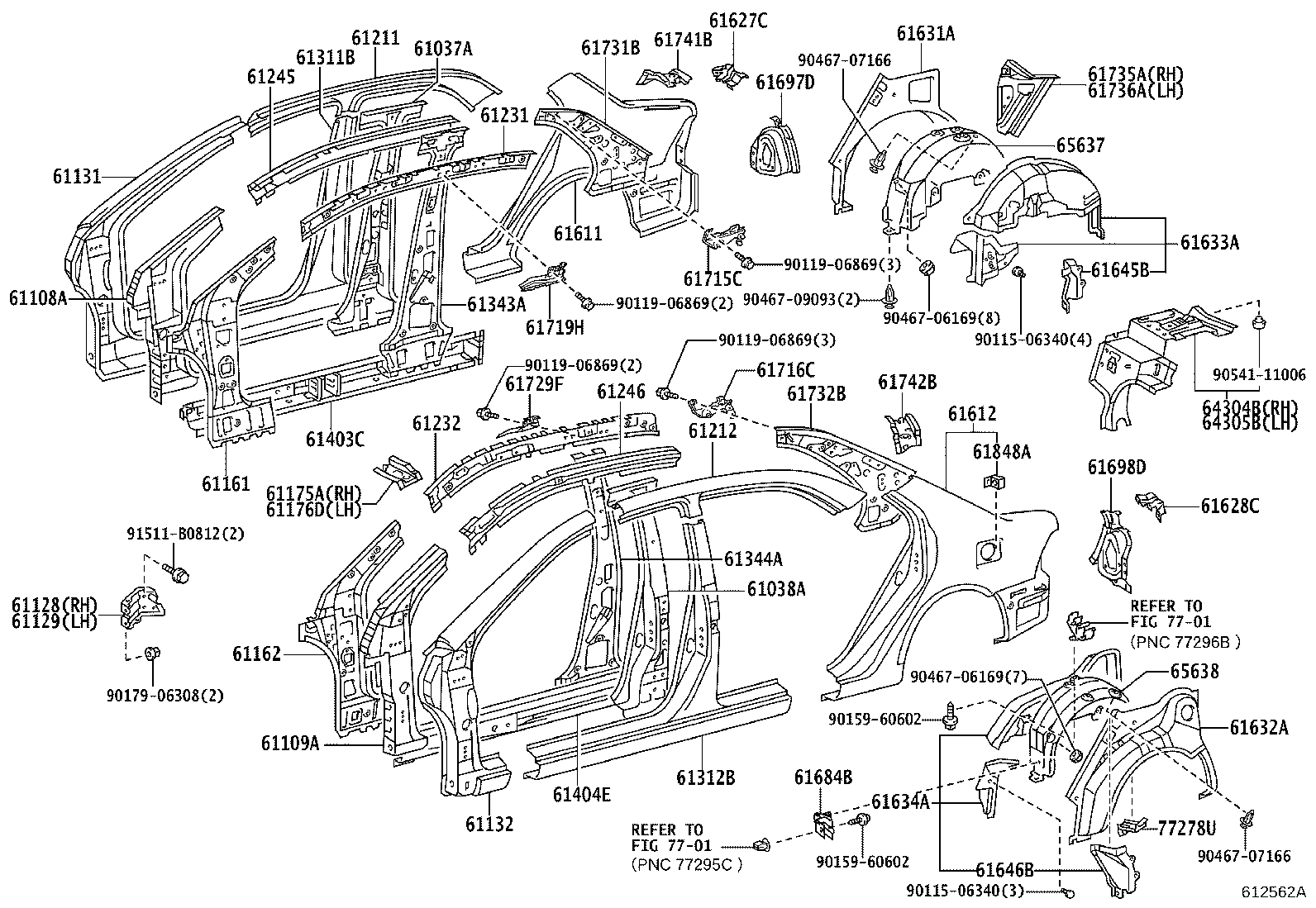

612562A 2005-12 → —

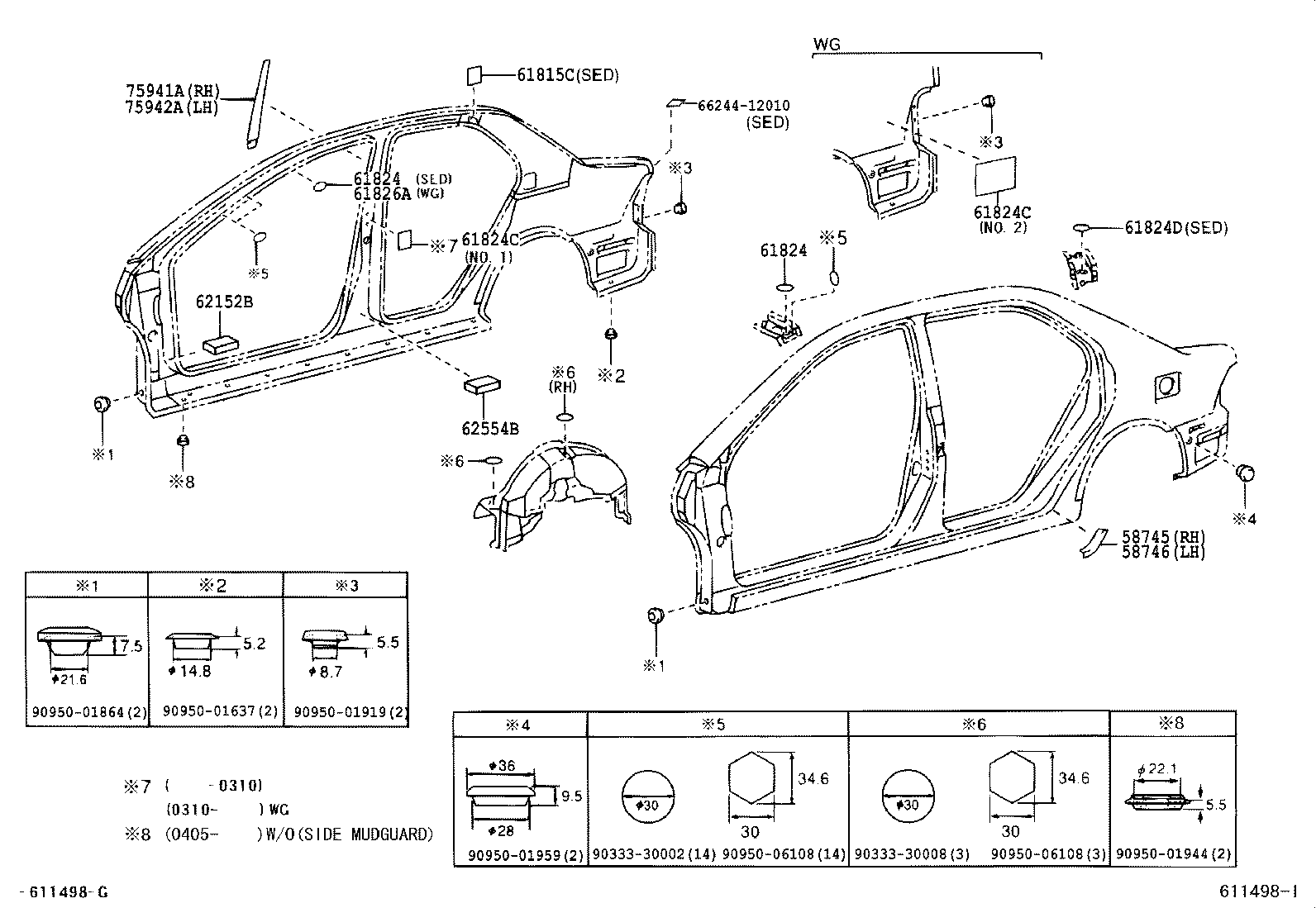

611498I 2001-10 → —

Part groups

PNC	Description
52562D	Retainer, Rear Bumper, Upper Side, RH
52563C	Retainer, Rear Bumper, Upper Side, LH
58745	Protector, Quarter Panel, Front RH
58746	Protector, Quarter Panel, Front LH
61037A	Reinforcement Sub-assy, Center Body Pillar, RH
61038A	Reinforcement Sub-assy, Center Body Pillar, LH
61108A	Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A	Reinforce Sub-assy, Front Body Pillar, Lower LH
61128	Reinforcement, Cowl Side Panel, RH
61129	Reinforcement, Cowl Side Panel, LH
61131	Pillar, Front Body, Upper Outer RH
61132	Pillar, Front Body, Upper Outer LH
61161	Pillar, Front Body, Upper Inner RH
61162	Pillar, Front Body, Upper Inner LH
61175A	Reinforcement, Front Pillar, Upper Outer NO.2 RH
61176D	Reinforce, Front Body Pillar, Upper Out NO.2 LH
61211	Rail, Roof Side, Outer RH
61212	Rail, Roof Side, Outer LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61245	Reinforcement, Roof Side Rail, Outer RH
61246	Reinforcement, Roof Side Rail, Outer LH
61255A	Plate, Roof Side Rail, Outer RH
61256A	Plate, Roof Side Rail, Outer LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61343A	Pillar, Center Body, Inner RH
61344A	Pillar, Center Body, Inner LH
61403C	Reinforce Sub-assy, Rocker, Outer RH
61404E	Reinforce Sub-assy, Rocker, Outer LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61621D	Trough, Back Door Opening, RH
61622D	Trough, Back Door Opening, LH
61625G	Extension, Quarter Panel, Rear RH
61626G	Extension, Quarter Panel, Rear LH
61627C	Reinforcement, Quarter Inner Panel, RH
61628C	Reinforcement, Quarter Inner Panel, LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61645B	Gusset, Quarter Wheel House, Rear RH
61646B	Gusset, Quarter Wheel House, Rear LH
61655B	Gusset, Quarter Wheel House, Inner RH
61656A	Gusset, Quarter Wheel House, Inner LH
61684B	Bracket, Rear Wheel Opening, NO.1 LH
61697D	Housing, Quarter Panel End, RH
61698D	Housing, Quarter Panel End, LH
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61715B	Extension, Roof Side, Inner Front RH
61715C	Bracket, Roof Side, RH
61716B	Extension, Roof Side, Inner Front LH
61716C	Bracket, Roof Side, LH
61719H	Bracket Sub-assy, Roof Side Rail, RH
61729F	Bracket Sub-assy, Roof Side Rail, LH
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61733A	Panel, Roof Side, Inner Front RH
61734A	Panel, Roof Side, Inner Front LH
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61737B	Panel, Roof Side, Inner Lower RH
61738B	Panel, Roof Side, Inner Lower LH
61741B	Reinforcement, Back Window Opening, RH
61742B	Reinforcement, Back Window Opening, LH
61747	Brace, Roof Side Inner TO Wheel House, RH
61748C	Brace, Roof Side Inner TO Wheel House, LH
61815C	Cover, Roof Side, Inner Upper
61824	Plate, Noise Control, NO.1
61824C	Pad, Noise Shutter, NO.1
61824D	Plate, Noise Control, NO.1
61826A	Plate, Noise Control, NO.3
61848A	Retainer, Quarter Panel, LH
62152B	Pad, Cowl Side Silencer, NO.2
62554B	Pad, Pillar, NO.4
64304B	Reinforce Sub-assy, Package Tray Bracket, RH
64305B	Reinforce Sub-assy, Package Tray Bracket, LH
65637	Liner, Rear Wheel House, RH
65638	Liner, Rear Wheel House, LH
68981A	Retainer, Back Door Stay, RH
68982A	Retainer, Back Door Stay, LH
75941A	Stripe, Center Pillar, RH
75942A	Stripe, Center Pillar, RH
77278U	Bracket, Fuel Tank Filler Pipe Protector

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
