Toyota Corolla Sed/WG (JPP)

2001-10 → 2006-10 · chassis CDE120,NDE120,ZZE12# · catalogue 151550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

19 part groups · 3 illustrations

Illustrations

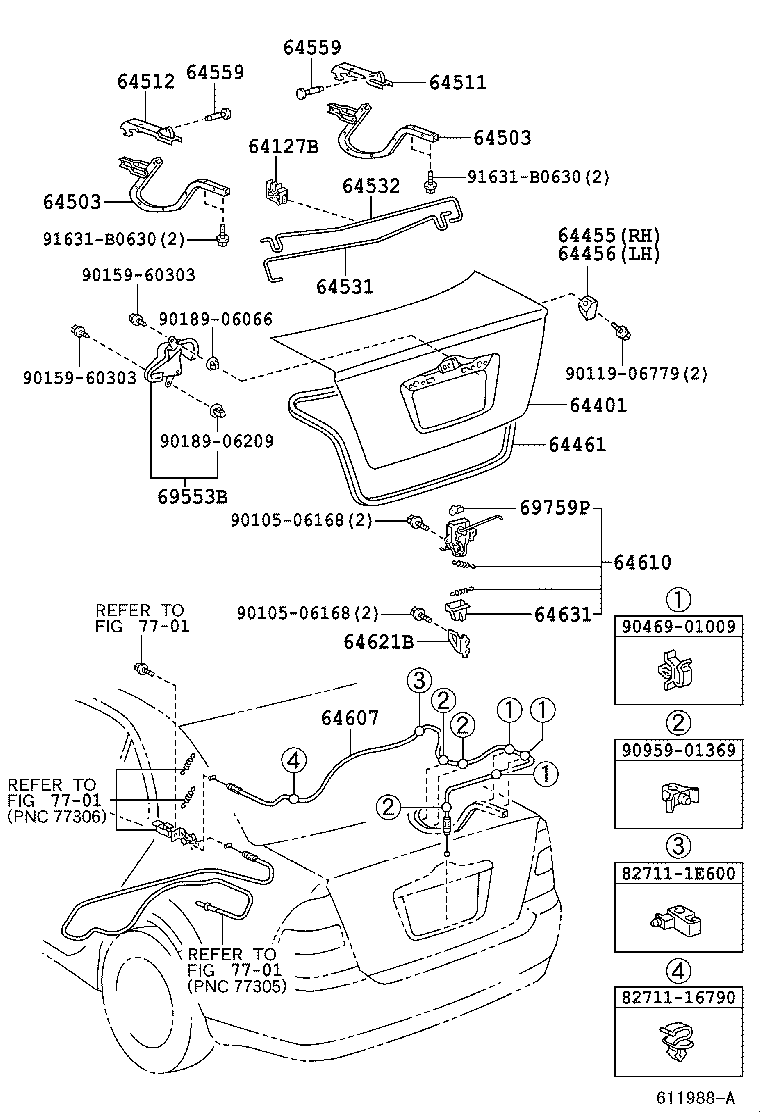

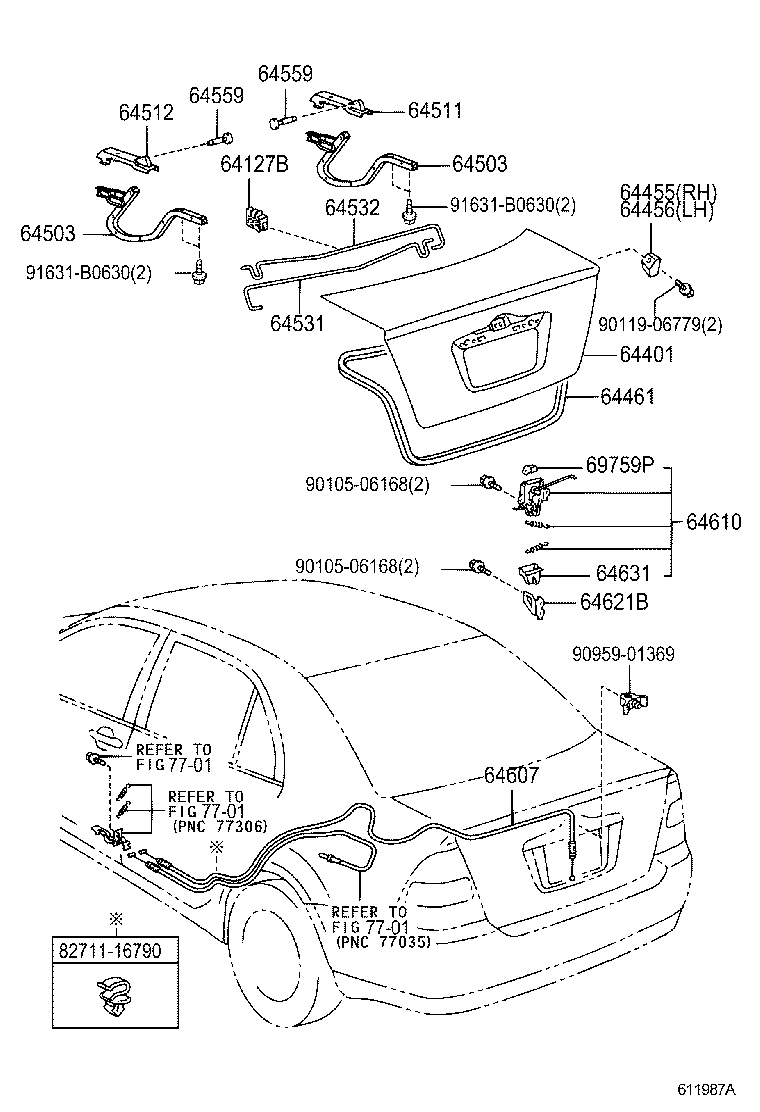

Figure 611485B 611485B 2001-10 → 2004-05 Figure 611987A 611987A 2004-05 → — Figure 611988A 611988A 2004-05 → —

Part groups

PNCDescription
64127B Support, Luggage Compartment Door Torsion Bar
64401 Panel Sub-assy, Luggage Compartment Door
64455 Cushion, Luggage Compartment Door Side, RH
64456 Cushion, Luggage Compartment Door Side, LH
64461 Weatherstrip, Luggage Compartment Door
64503 Arm Sub-assy, Luggage Compartment Door Hinge, RH
64504 Arm Sub-assy, Luggage Compartment Door Hinge, LH
64511 Support, Luggage Compartment Door Hinge, RH
64512 Support, Luggage Compartment Door Hinge, LH
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64559 Pin, Luggage Door Hinge
64607 Cable Sub-assy, Luggage Door Lock Control
64610 Lock Assy, Luggage Compartment Door
64610B Spring, Tension(FOR LOCK)
64621B Striker, Luggage Compartment Door Lock
64631 Protector, Luggage Door Lock
69553B Protector, Luggage Compartment Key Cylinder
69759P Snap, Door Lock Control Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
