Toyota Corolla Sed/WG (JPP)
2001-10 → 2006-10 · chassis CDE120,NDE120,ZZE12# · catalogue 151550 · Europe
Discontinued model
Data version 2007-09
Caution Plate (EXTERIOR & INTERIOR)

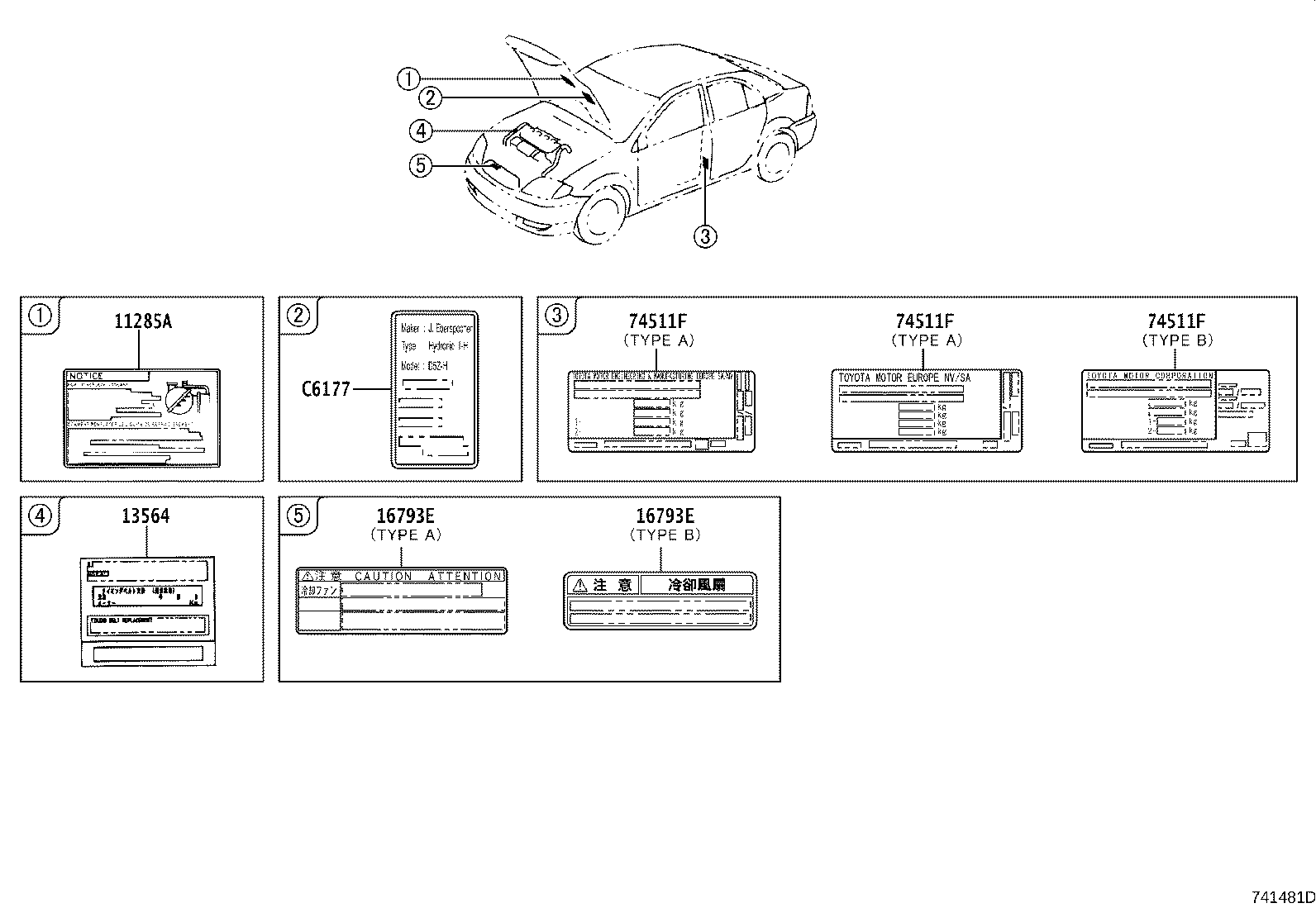

17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11296C | Label, Engine Service Information |
| 13564 | Label, Timing Belt Replacement Information |
| 16793E | Label, Cooling Fan Caution |
| 69339C | Label, Child Protector Information |
| 73794 | Label, Rear Seat Belt Notice |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515A | Plate, Theft Warning |
| 74541 | Plate, Tire Pressure Caution |
| 74559A | Plate, Fuel Caution |
| 74567A | Plate, E.C.E Approved Number |
| 74571 | Plate, Brake Fluid Caution |
| 74579A | Label, Unleaded Fuel Information |
| 74596A | Label, Side Airbag Caution |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
| C6177 | Label, Heater Notice |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
