Toyota Corolla Sed/WG (JPP)

2001-10 → 2006-10 · chassis CDE120,NDE120,ZZE12# · catalogue 151550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

35 part groups · 16 illustrations

Illustrations

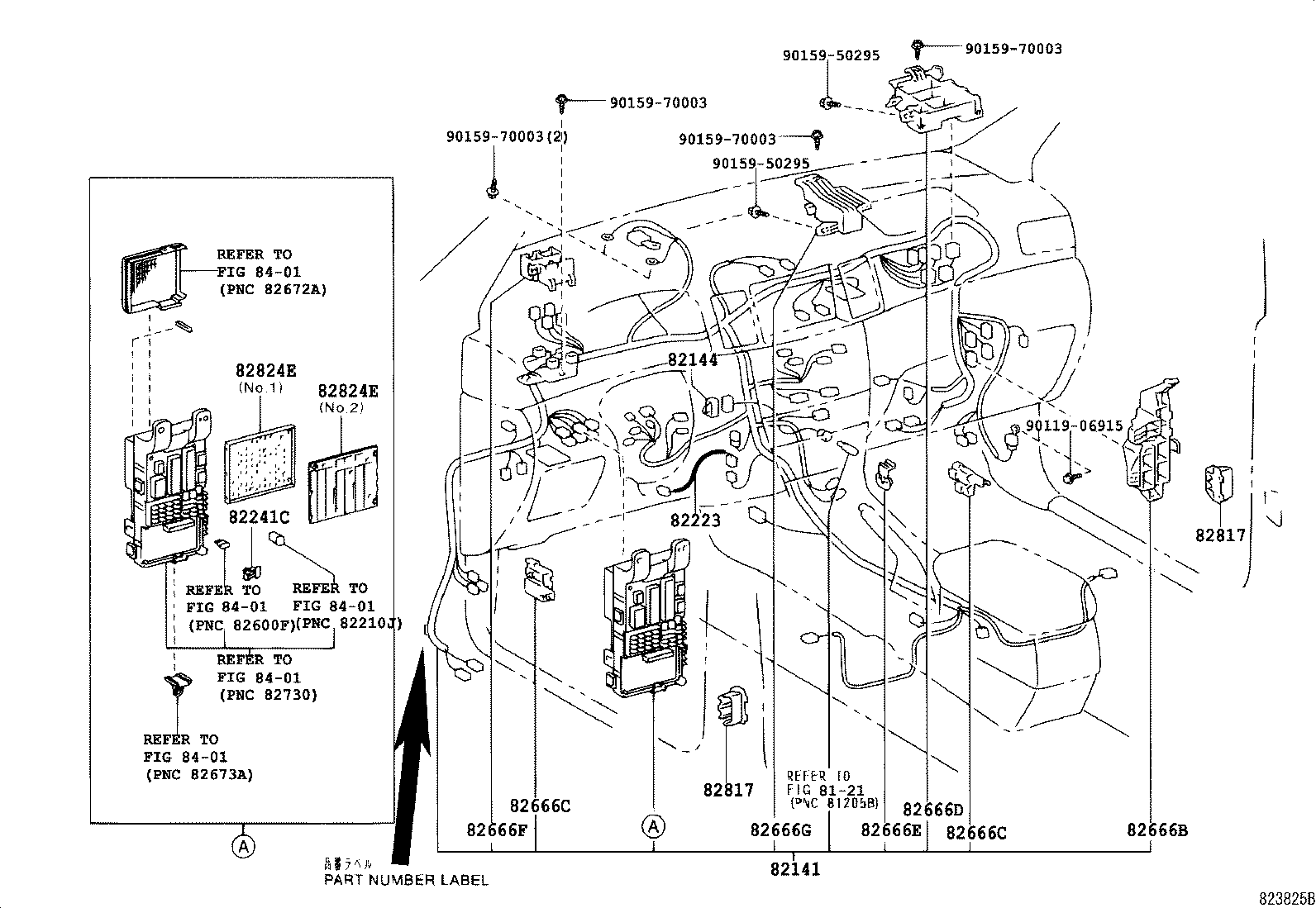

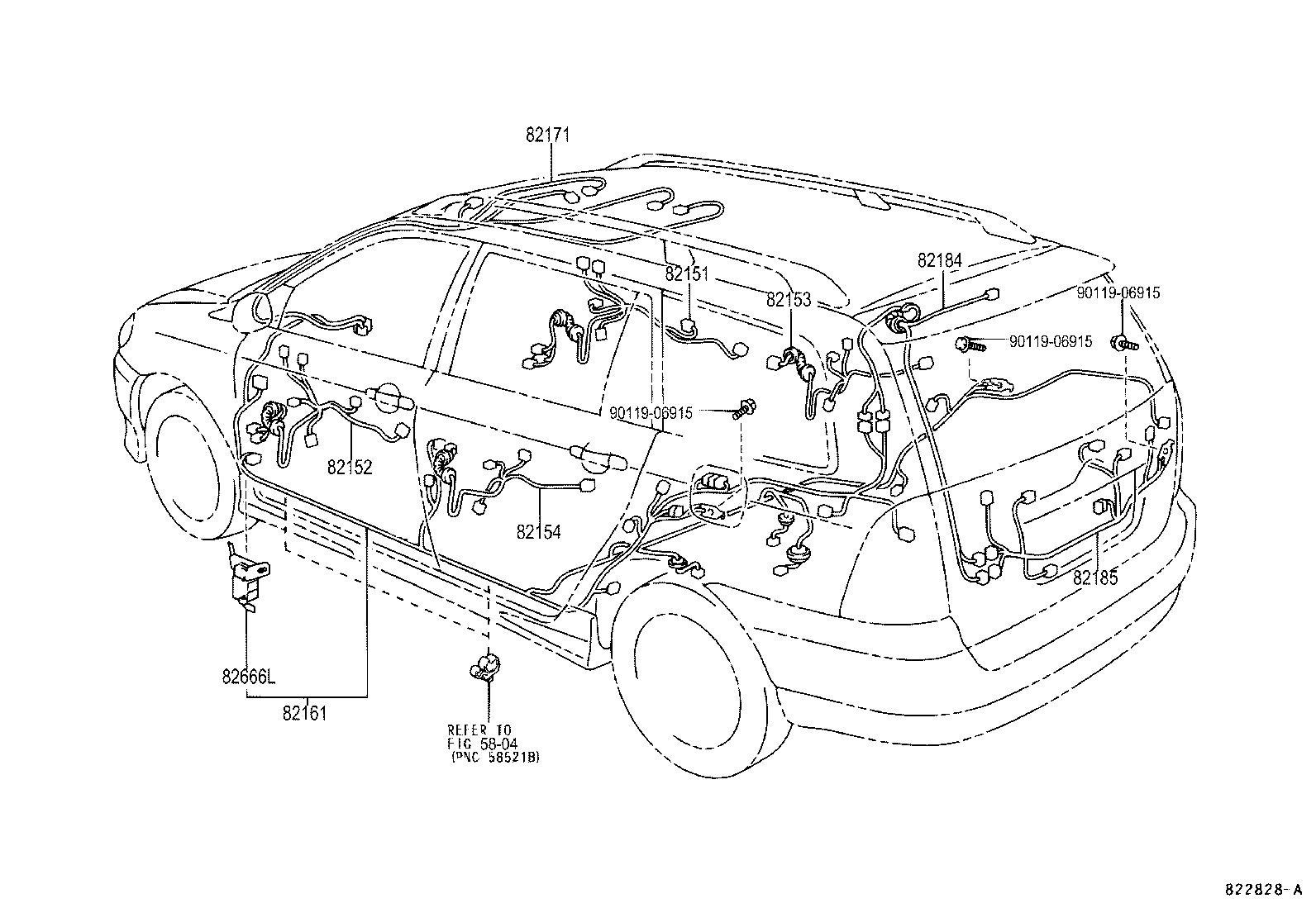

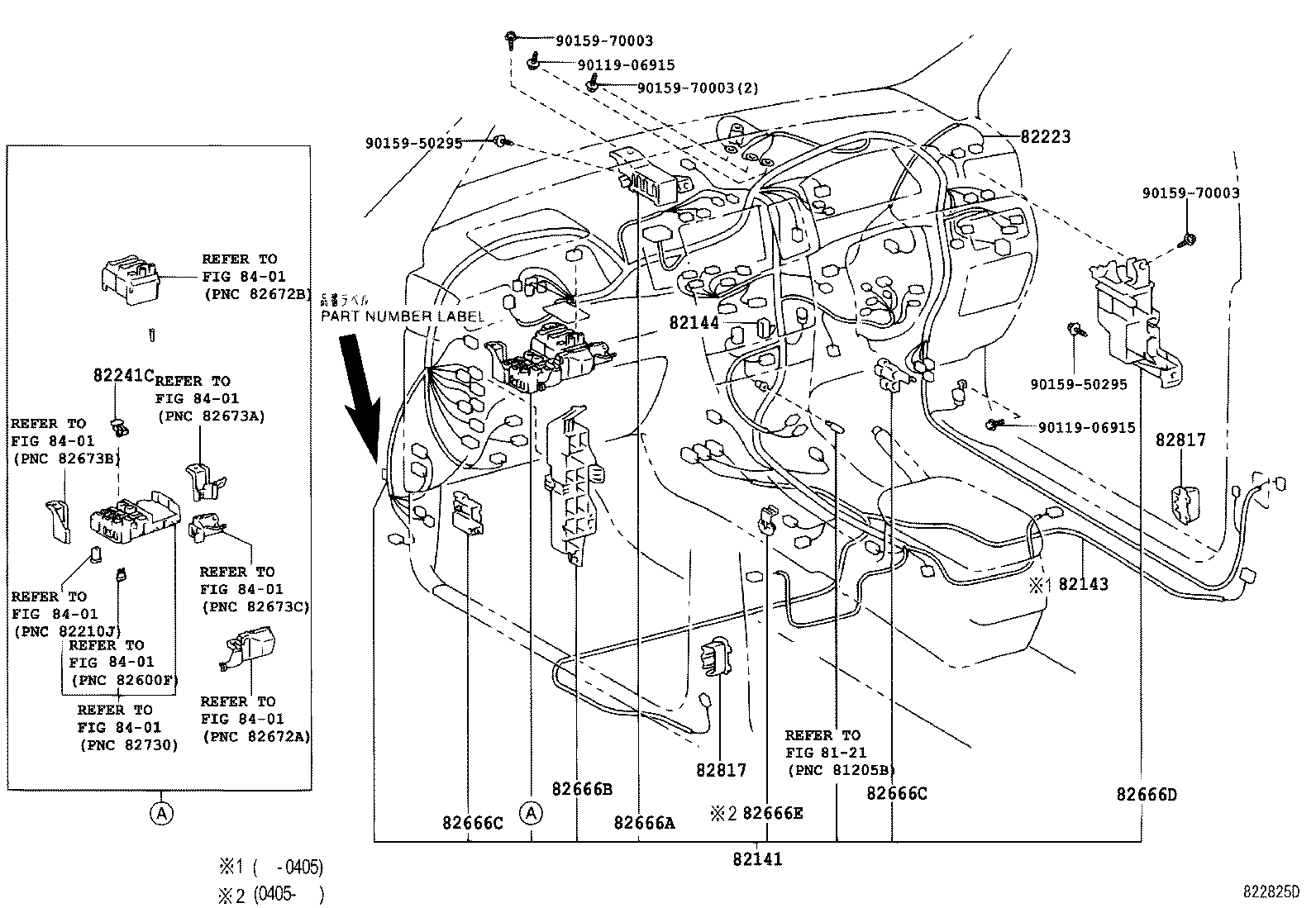

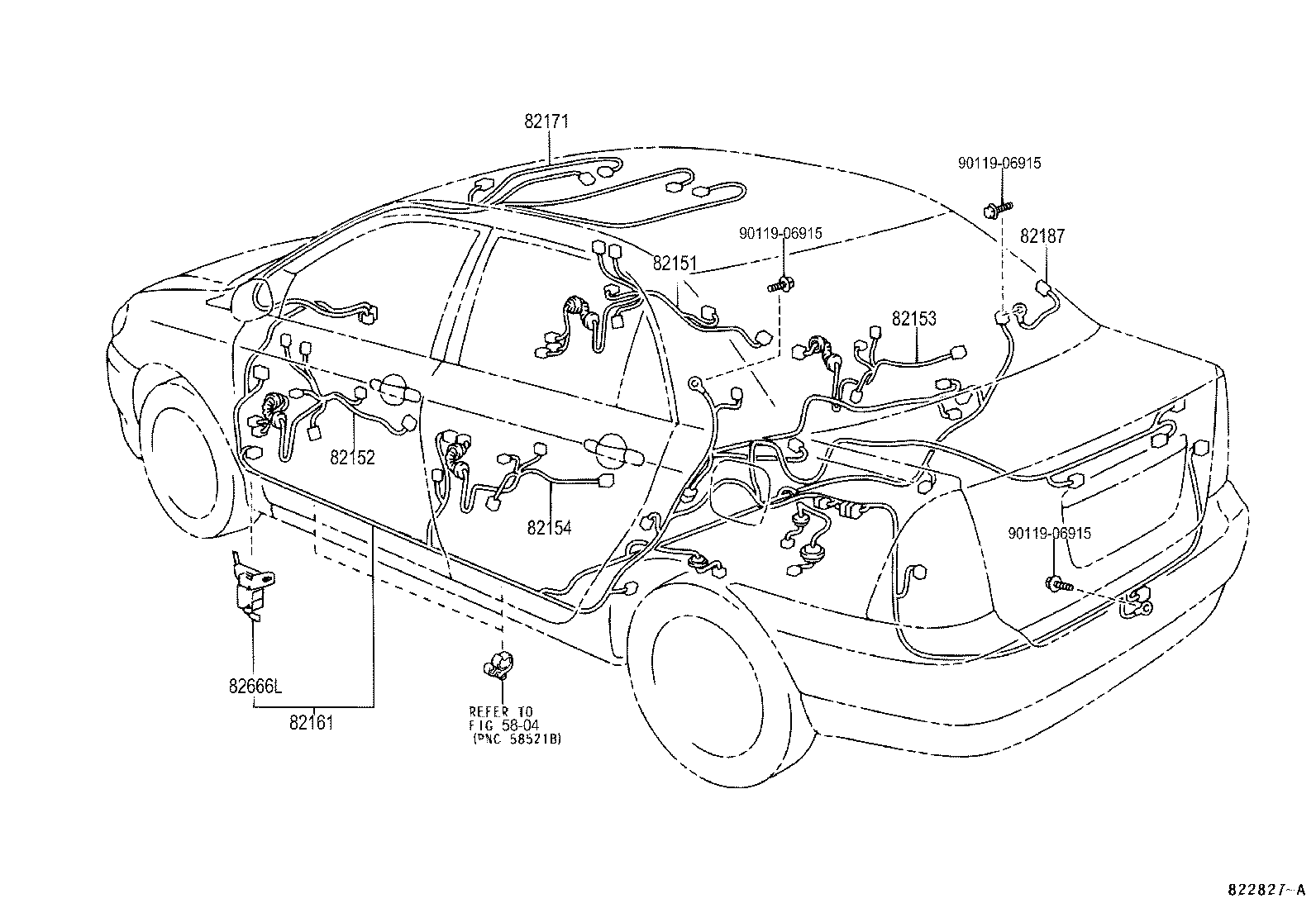

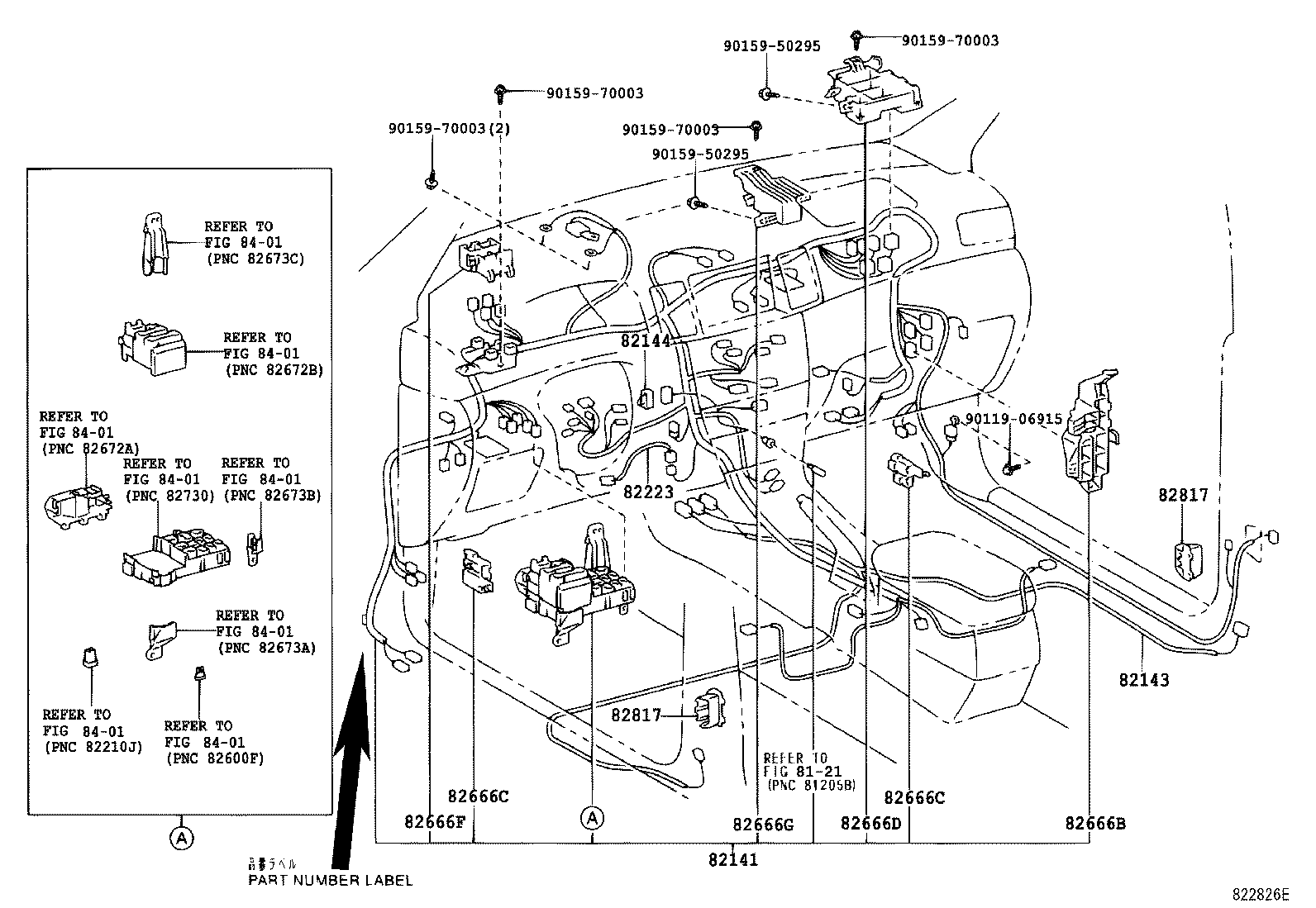

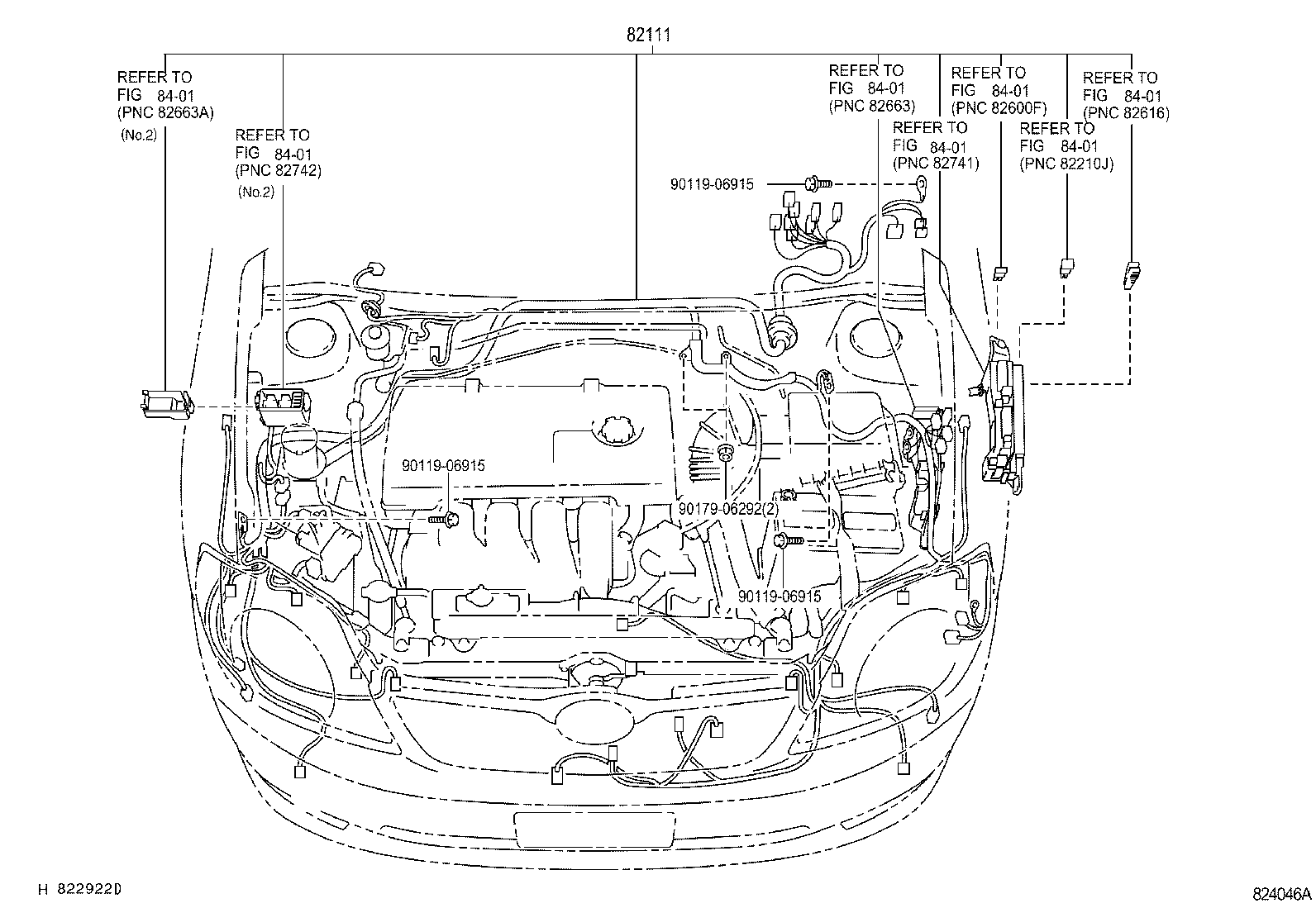

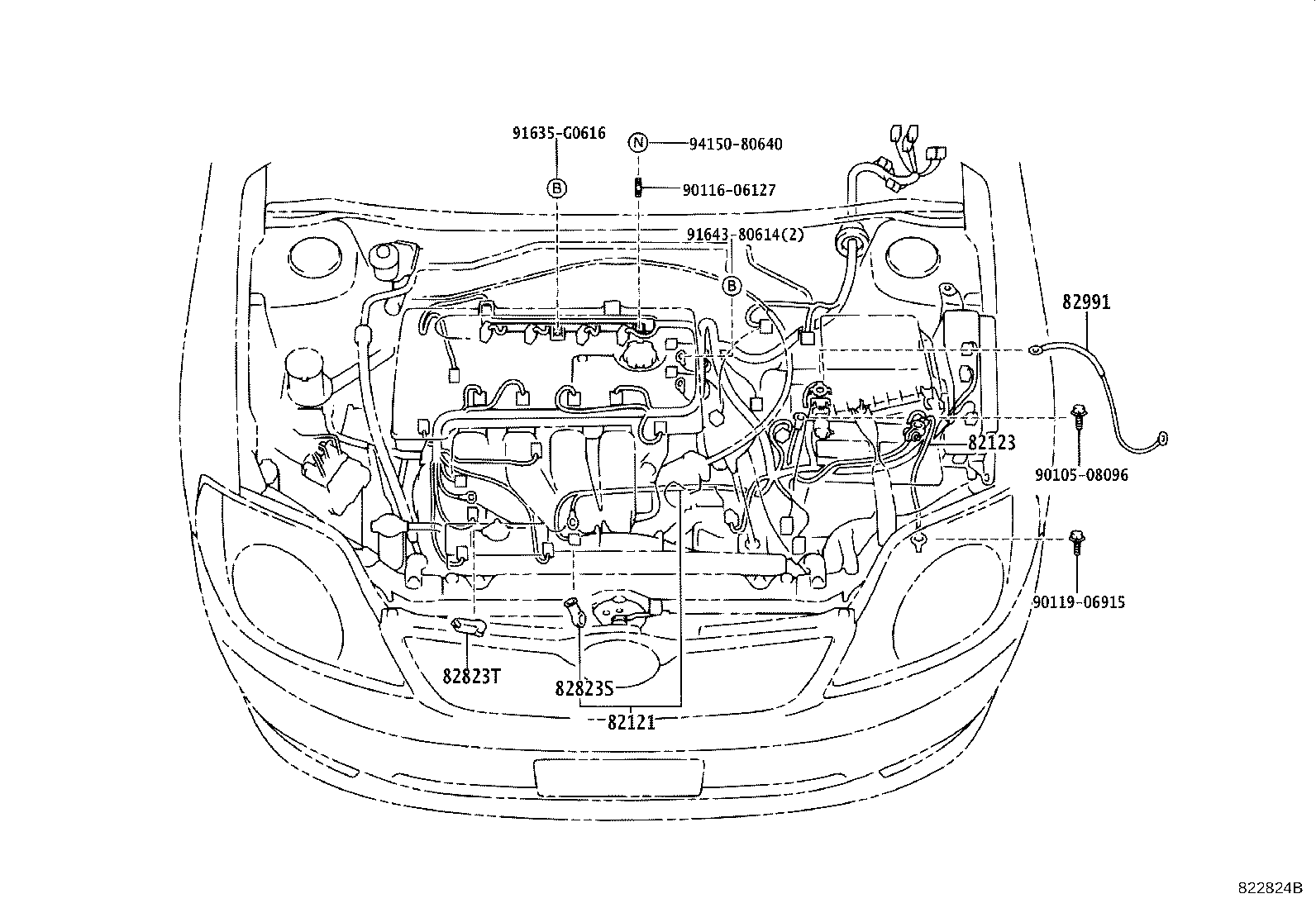

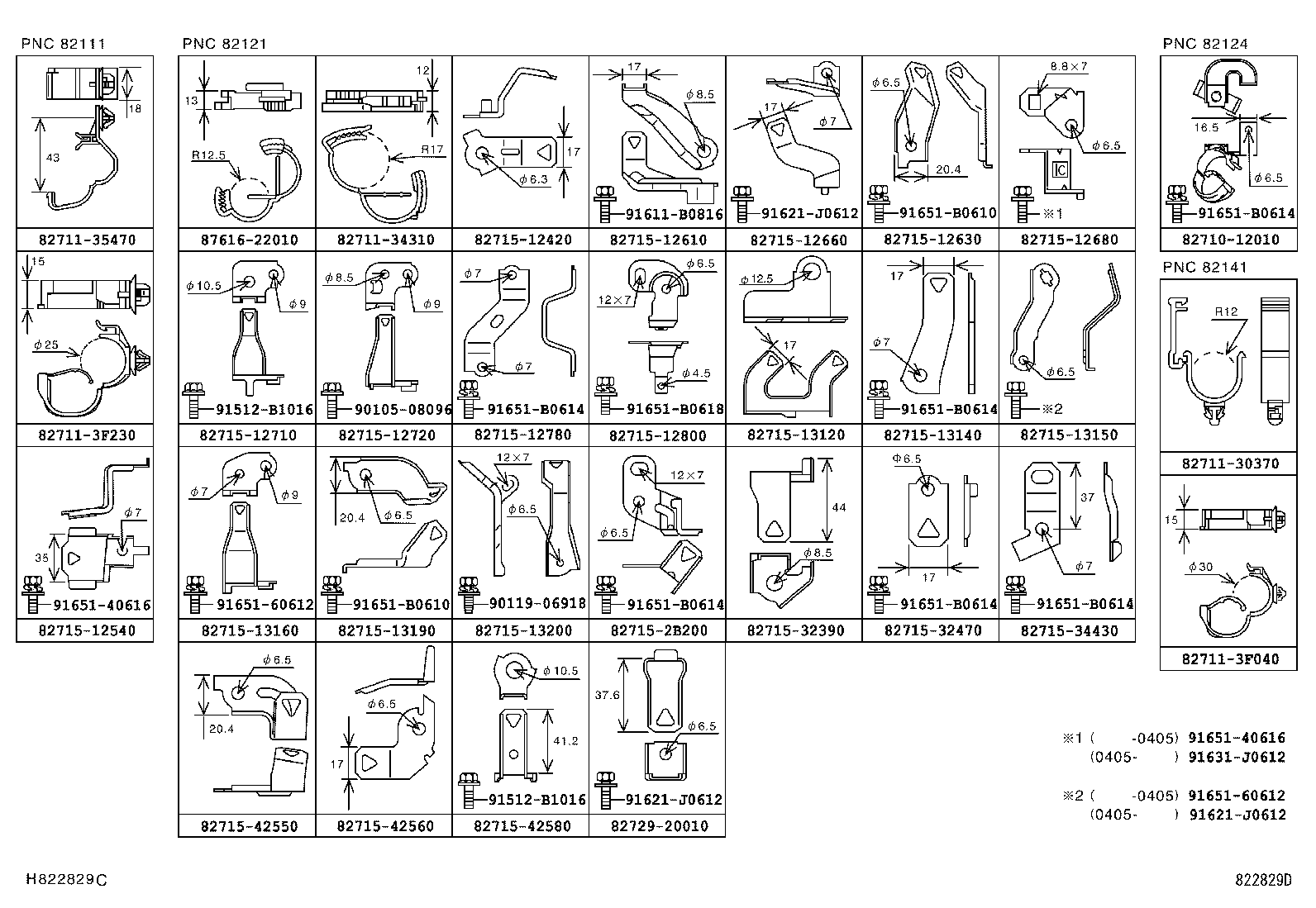

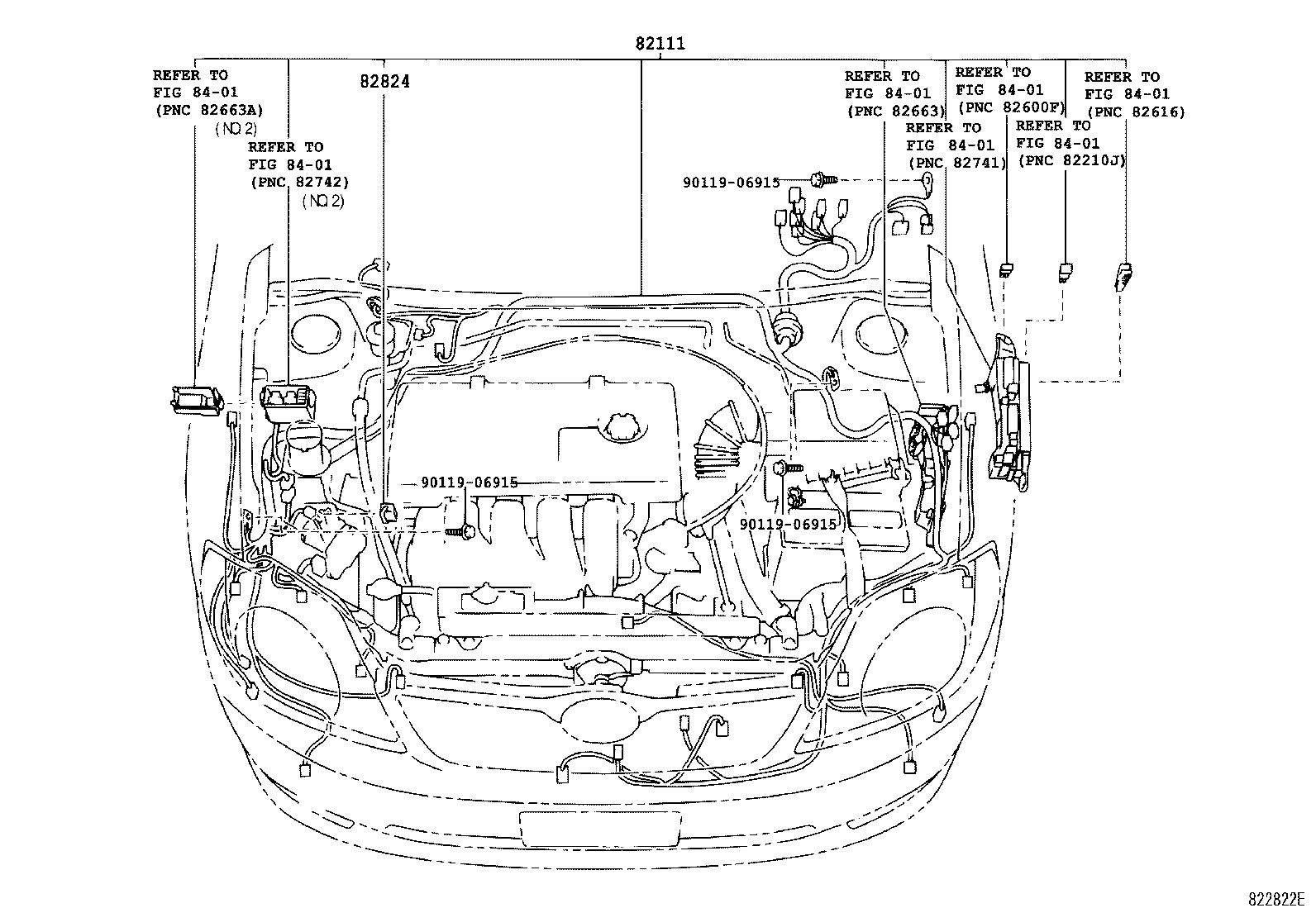

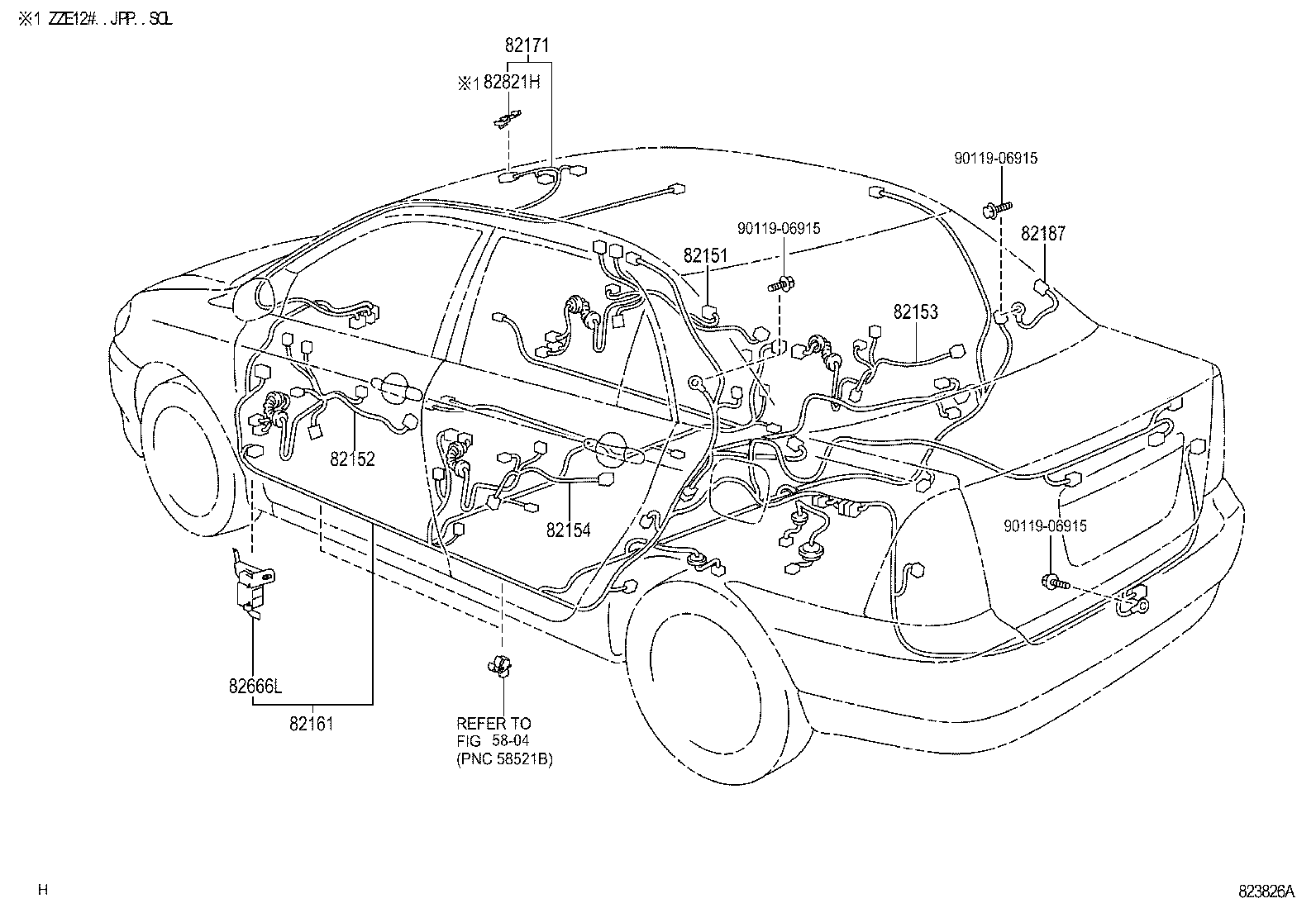

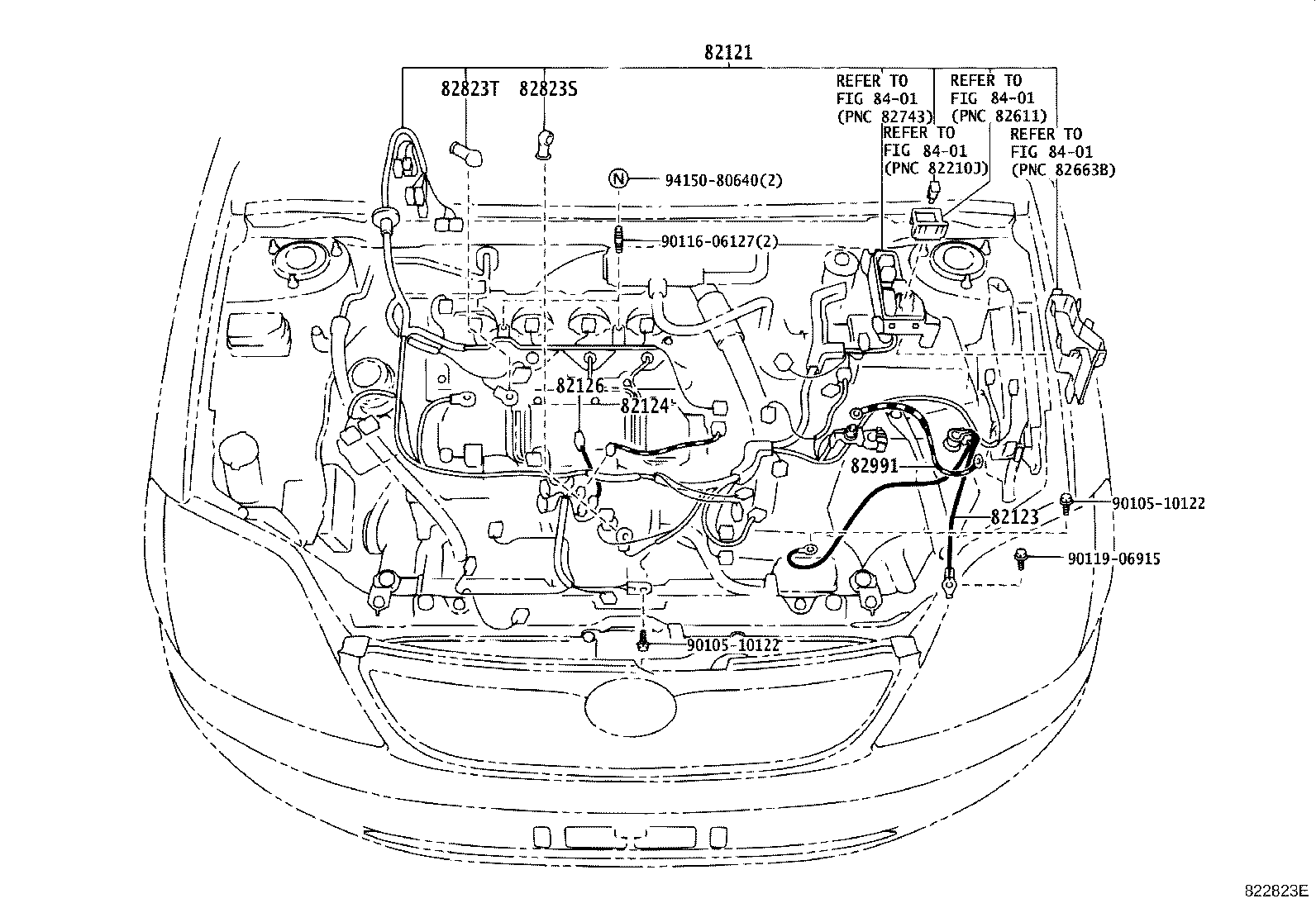

Figure 822821D 822821D 2001-10 → 2004-05 Figure 822822E 822822E 2001-10 → 2004-05 Figure 824046A 824046A 2004-05 → — Figure 824072 824072 2004-08 → — Figure 822823E 822823E 2001-10 → 2004-05 Figure 822824B 822824B 2001-10 → — Figure 824073A 824073A 2004-08 → — Figure 822825D 822825D 2001-10 → — Figure 822826E 822826E 2001-10 → 2004-05 Figure 823825B 823825B 2004-05 → — Figure 822827A 822827A 2001-10 → 2004-05 Figure 822828A 822828A 2001-10 → 2004-05 Figure 823826A 823826A 2004-05 → — Figure 822829D 822829D 2001-10 → — Figure 824074B 824074B 2001-10 → — Figure 822830B 822830B 2001-10 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82126 Wire, Engine
82141 Wire, Instrument Panel
82143 Wire, Instrument Panel, NO.3
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82187 Wire, Rear Window, NO.2
82223 Wire, Switch
82241C Wire, Relay
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82817 Protector, Wiring Harness, NO.1
82821H Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824E Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
