Toyota Corolla Sed/WG (JPP)

2001-10 → 2006-10 · chassis CDE120,NDE120,ZZE12# · catalogue 151550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 3 illustrations

Illustrations

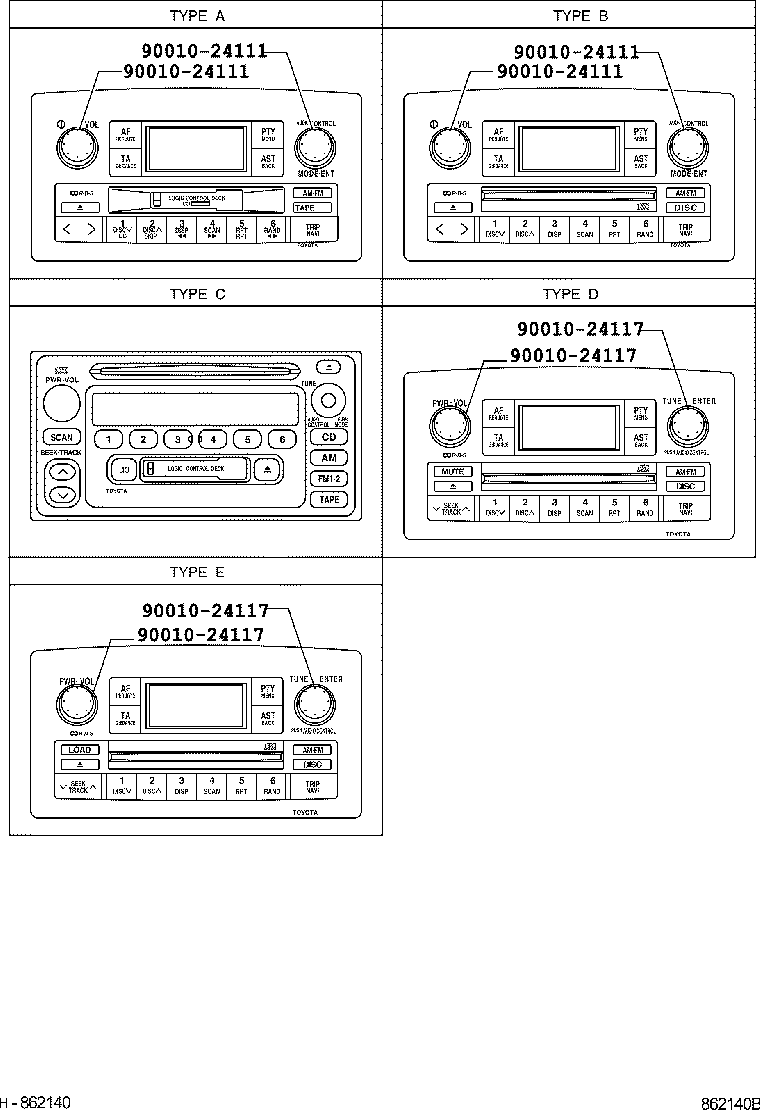

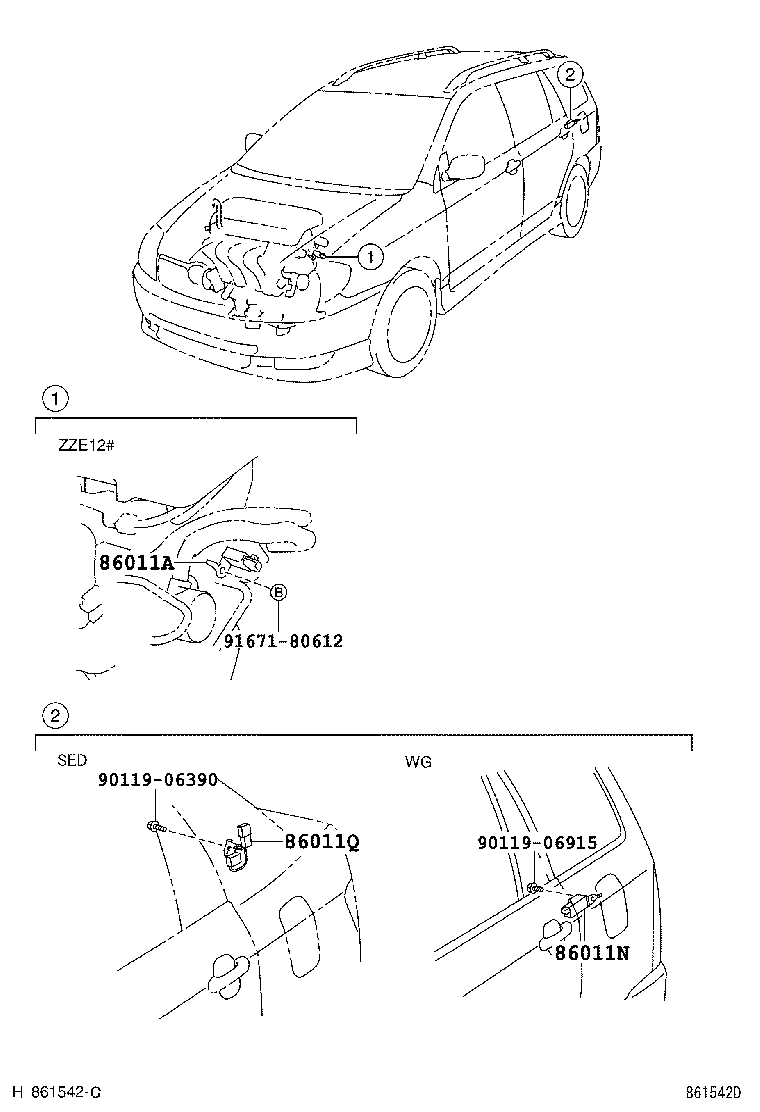

Figure 861541D 861541D 2001-10 → — Figure 862140B 862140B 2001-10 → — Figure 861542D 861542D 2001-10 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011N Filter, Noise
86011Q Condenser, Radio Setting
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
86221D Panel, Radio Receiver
86230 Controller Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
