Toyota Corolla Sed/WG (JPP)

2001-10 → 2006-10 · chassis CDE120,NDE120,ZZE12# · catalogue 151550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

11 part groups · 12 illustrations

Illustrations

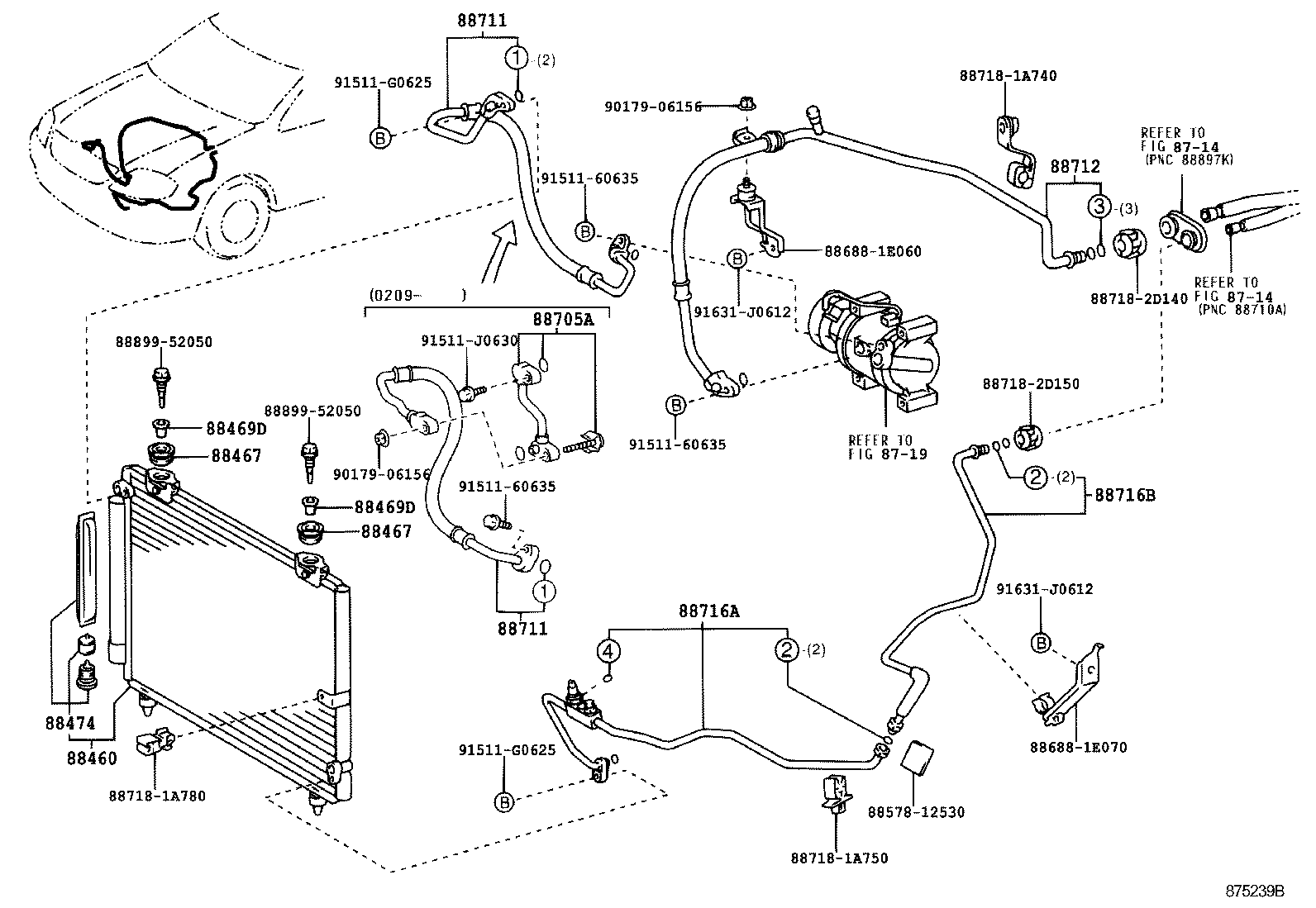

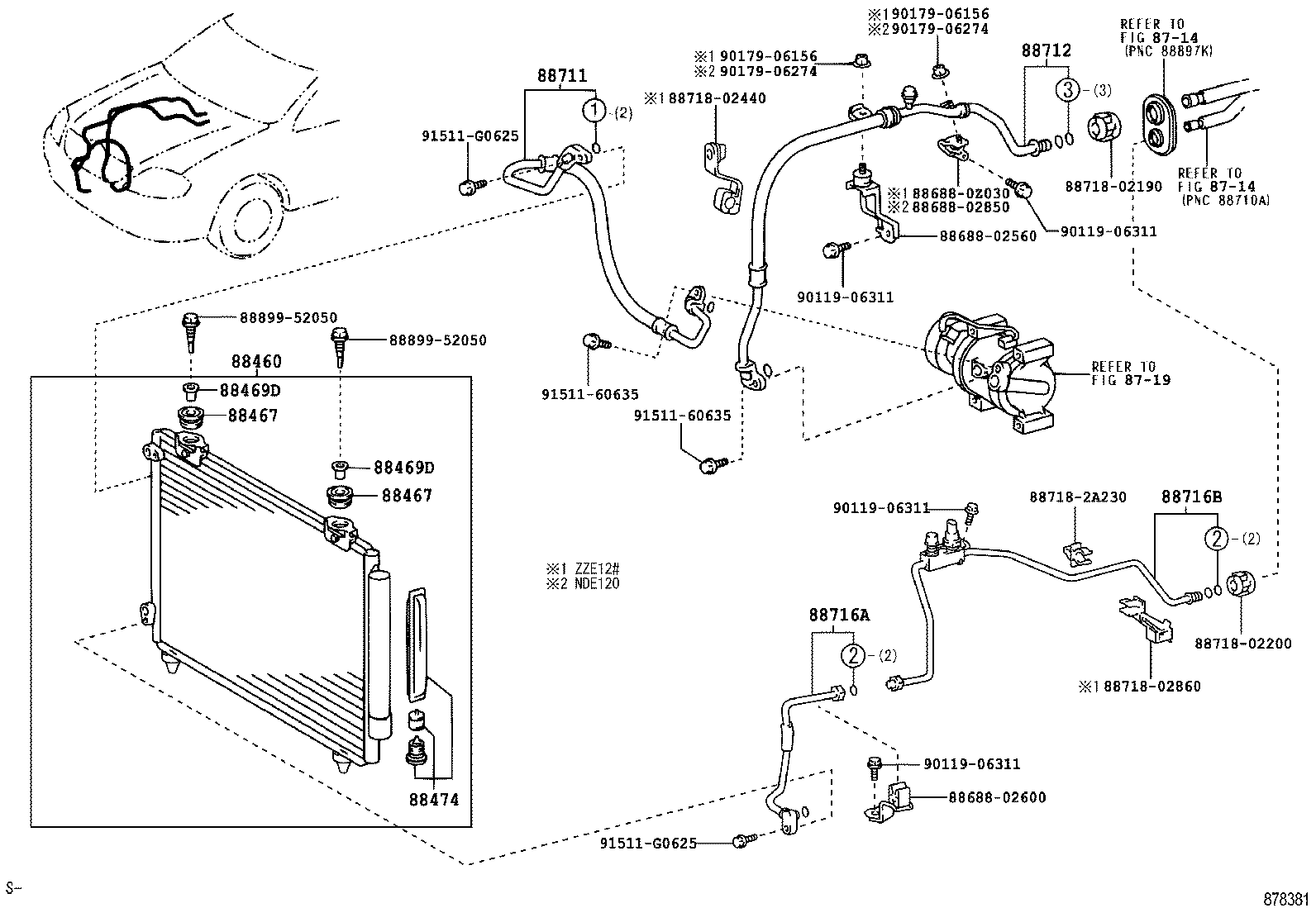

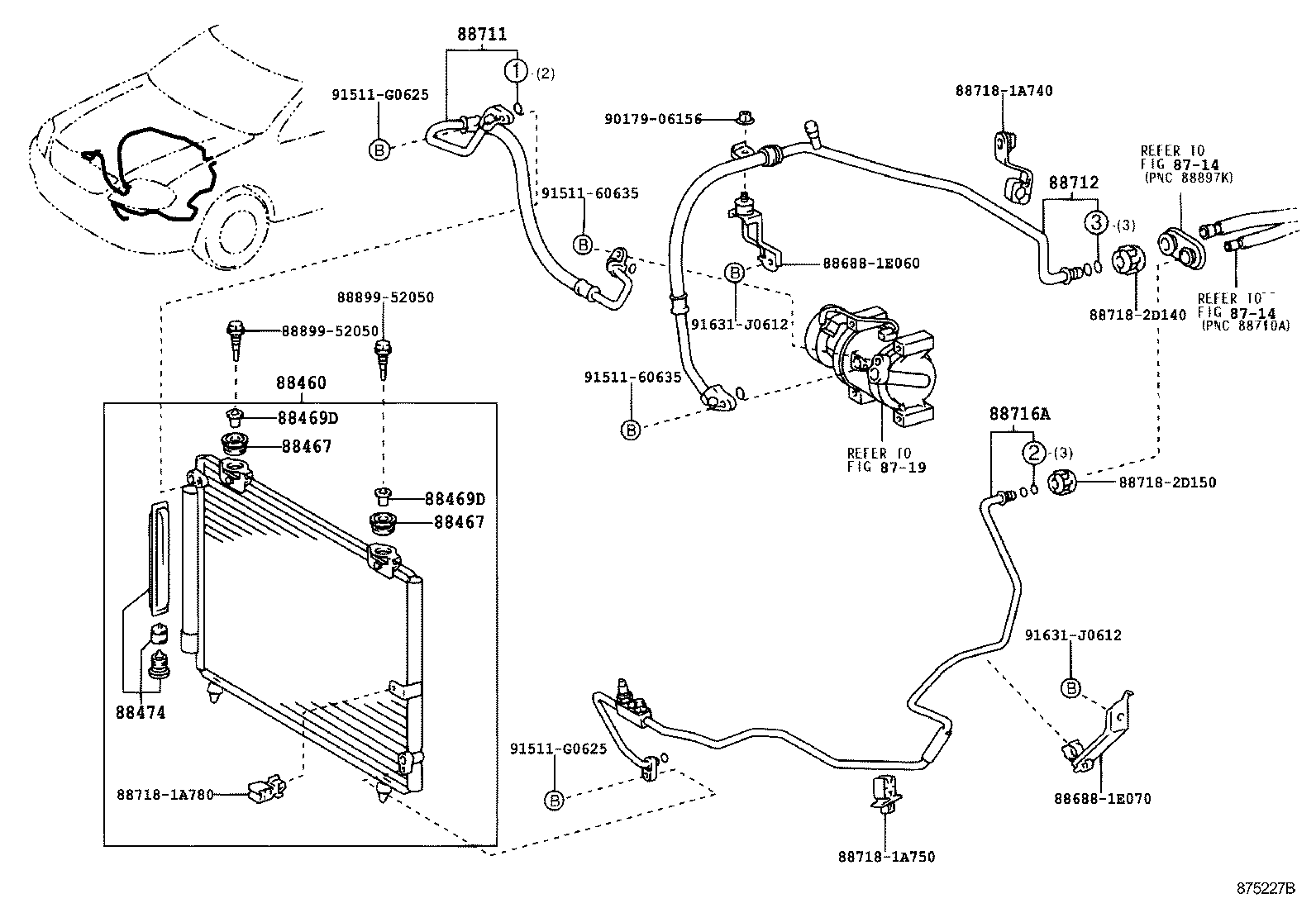

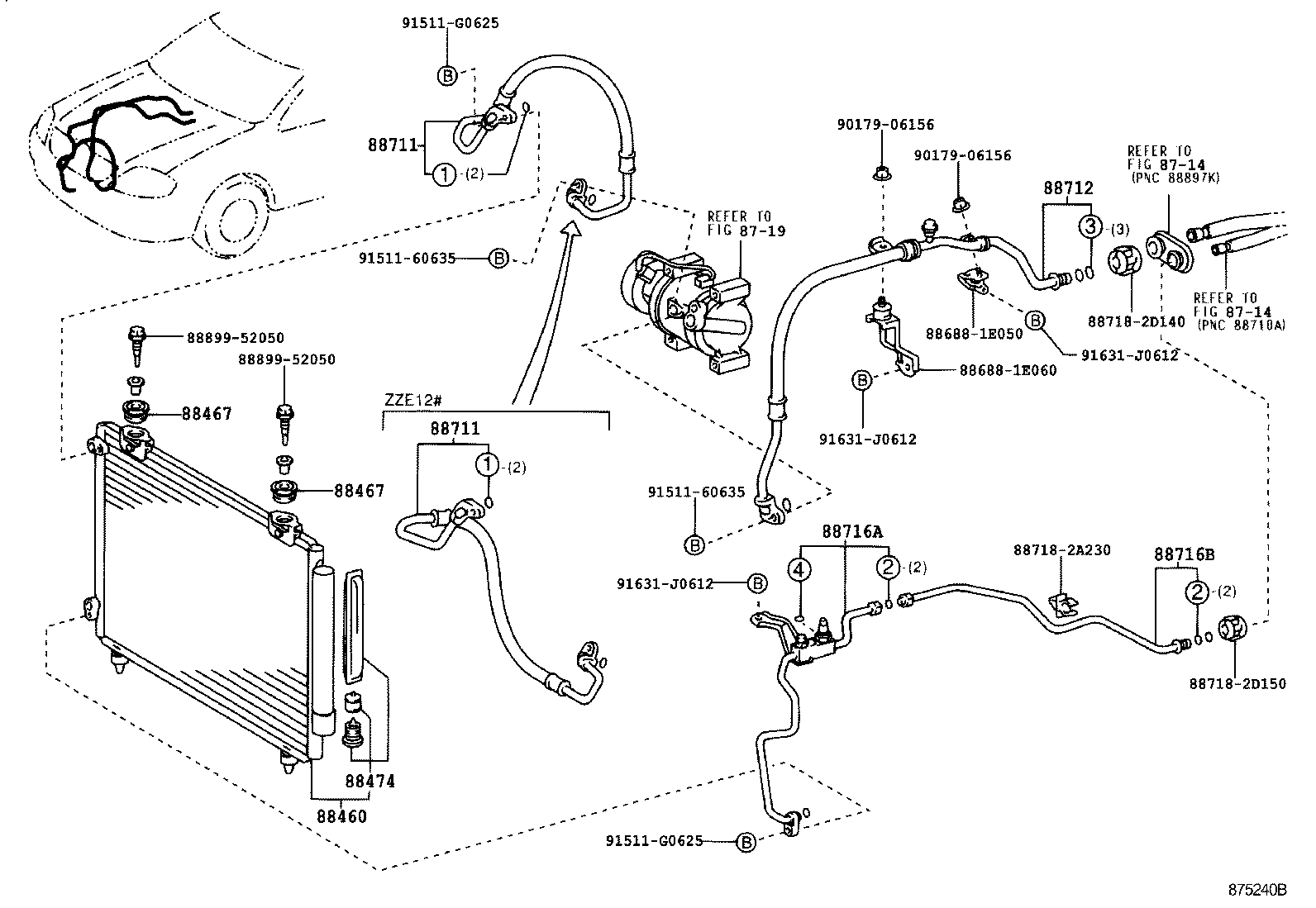

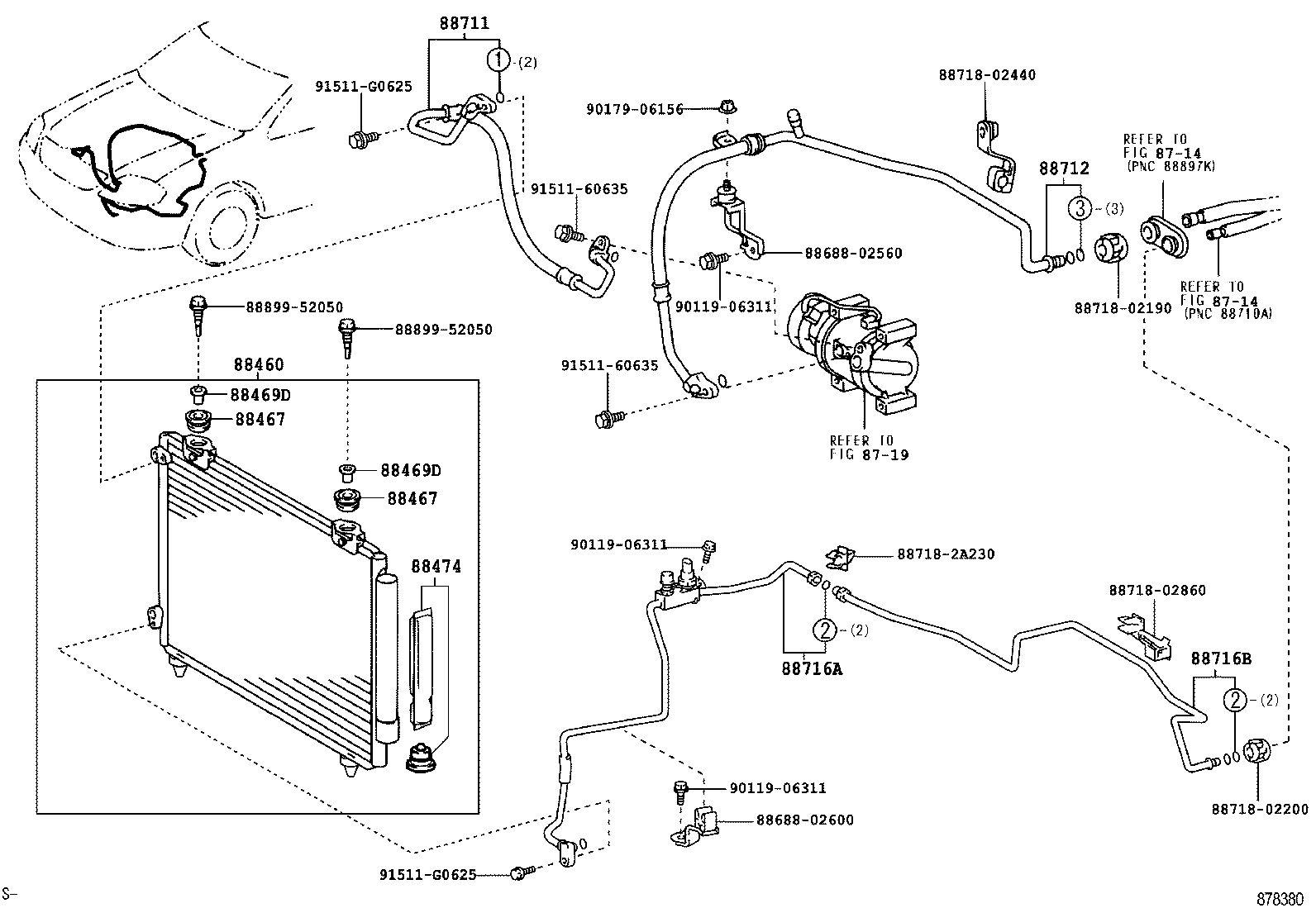

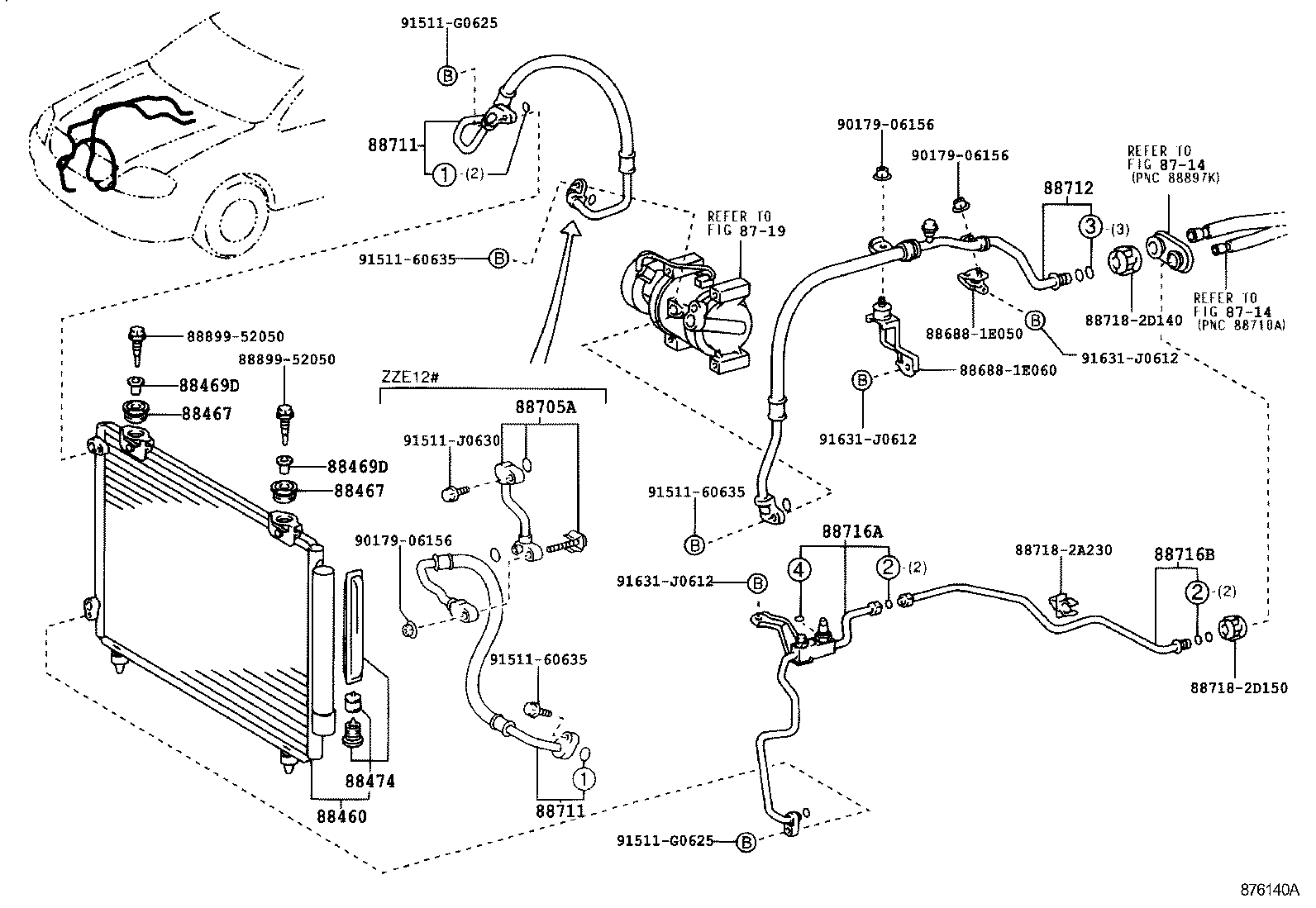

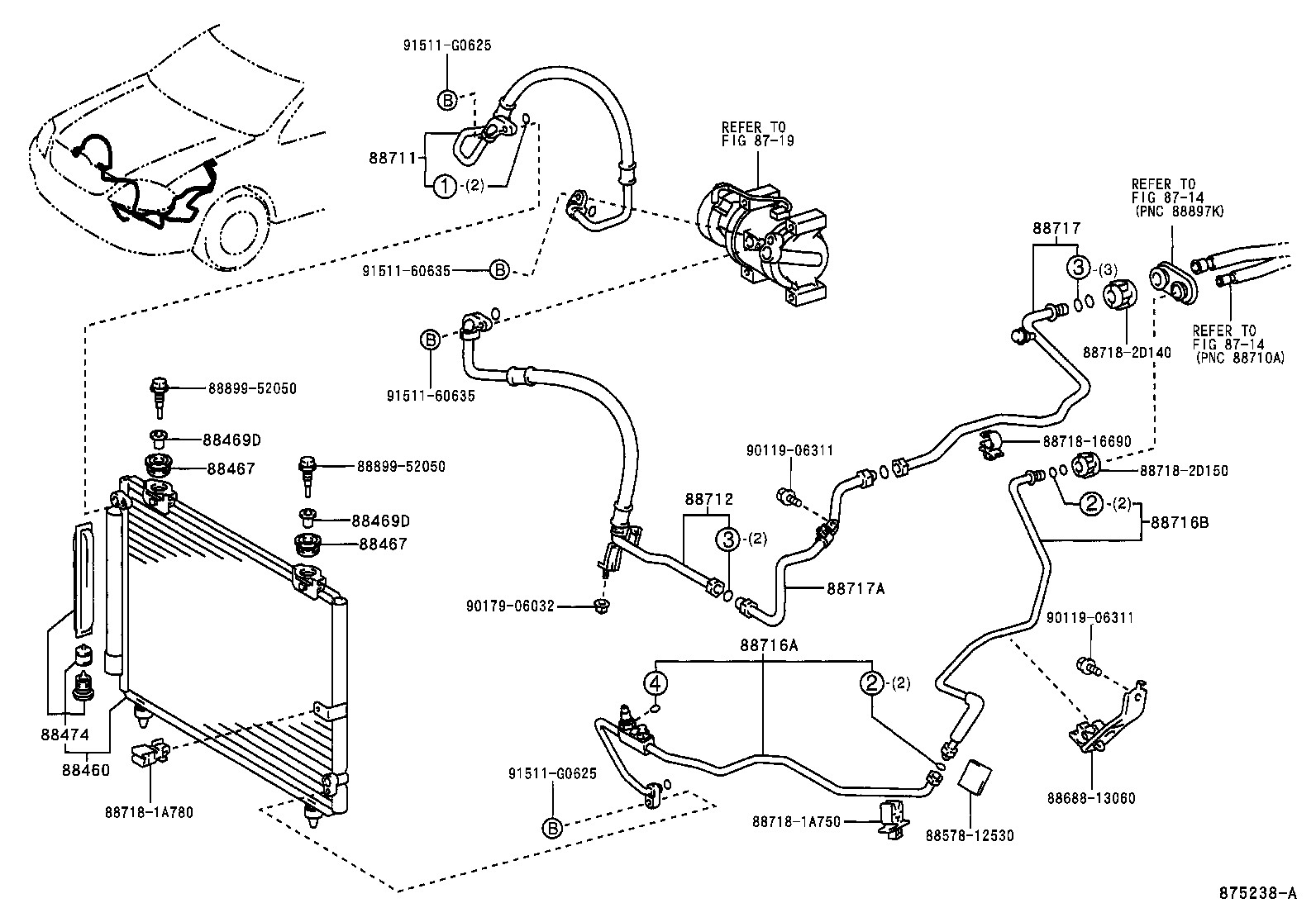

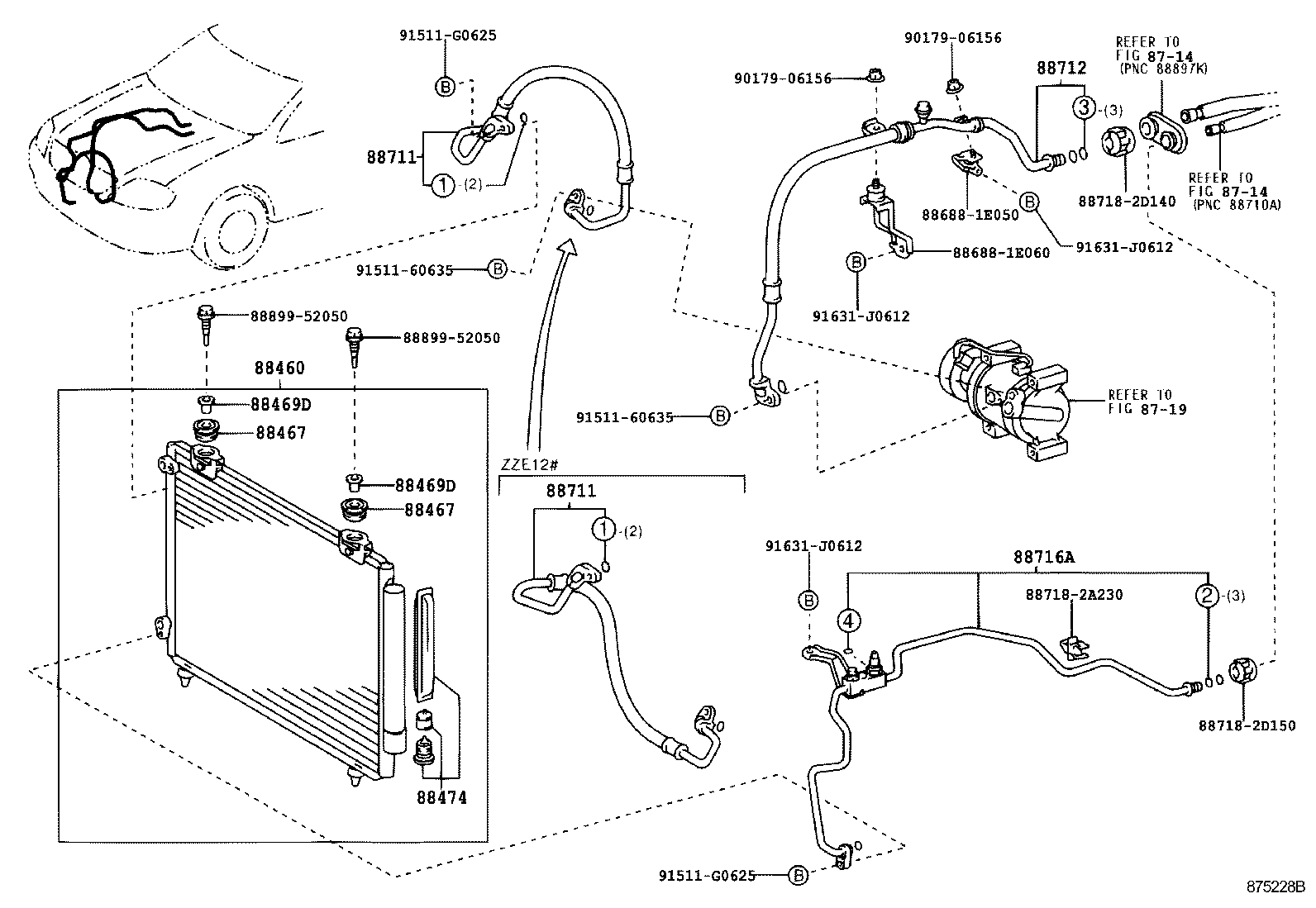

Figure 875226B 875226B 2001-10 → 2004-05 Figure 875238A 875238A 2001-10 → 2004-05 Figure 875227B 875227B 2001-10 → 2004-05 Figure 875239B 875239B 2001-10 → 2004-05 Figure 875228B 875228B 2001-10 → 2004-05 Figure 875240B 875240B 2001-10 → 2002-09 Figure 876140A 876140A 2002-09 → 2004-05 Figure 876747B 876747B 2004-05 → — Figure 876748B 876748B 2004-05 → — Figure 878380 878380 2004-05 → — Figure 878381 878381 2004-05 → — Figure 874869 874869 2001-10 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88705A Tube Sub-assy, Discharge
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
