Toyota Corolla HB (JPP)

2002-09 → 2006-10 · chassis CDE120,NDE120,ZZE12# · catalogue 152550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

6 part groups · 4 illustrations

Illustrations

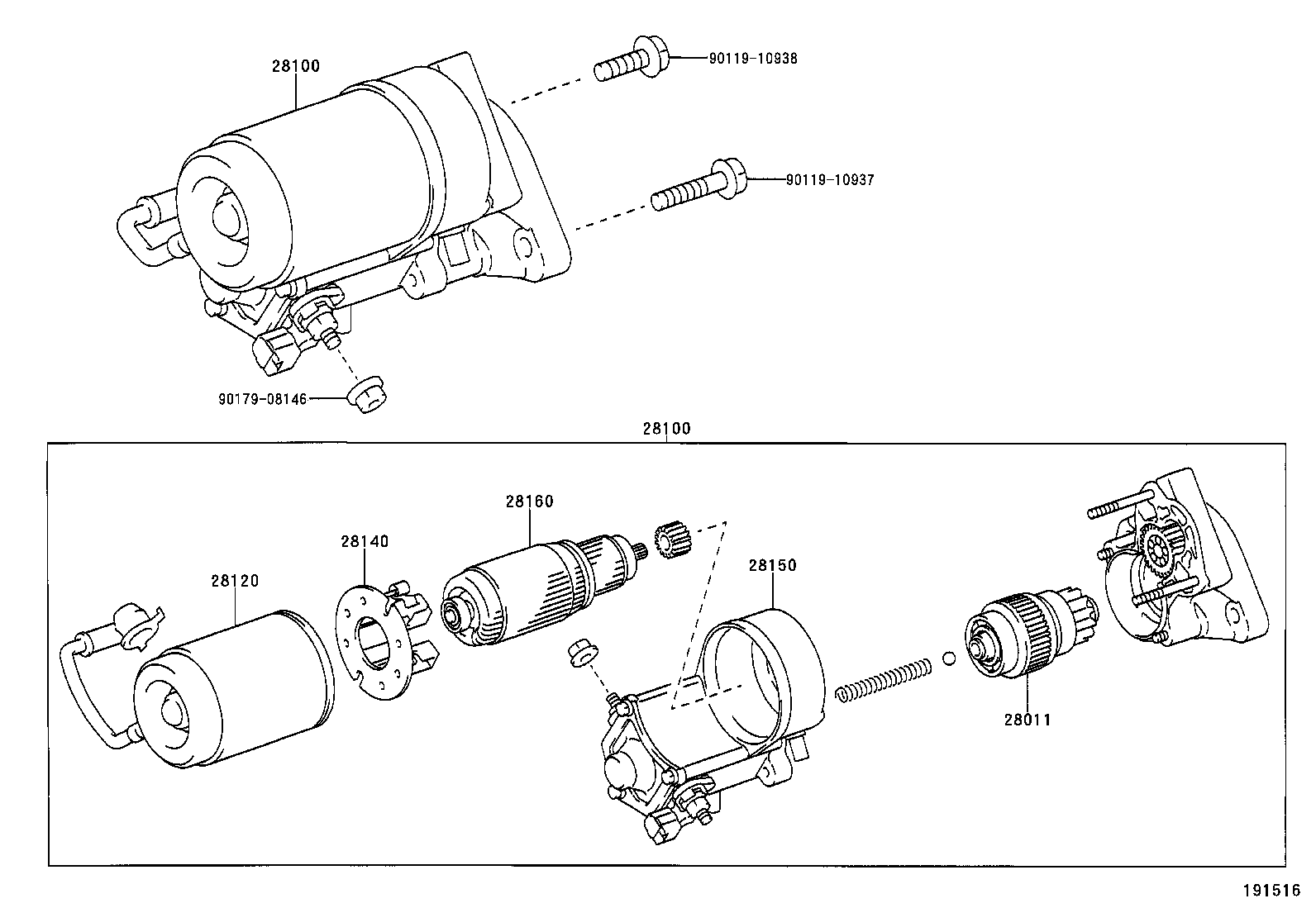

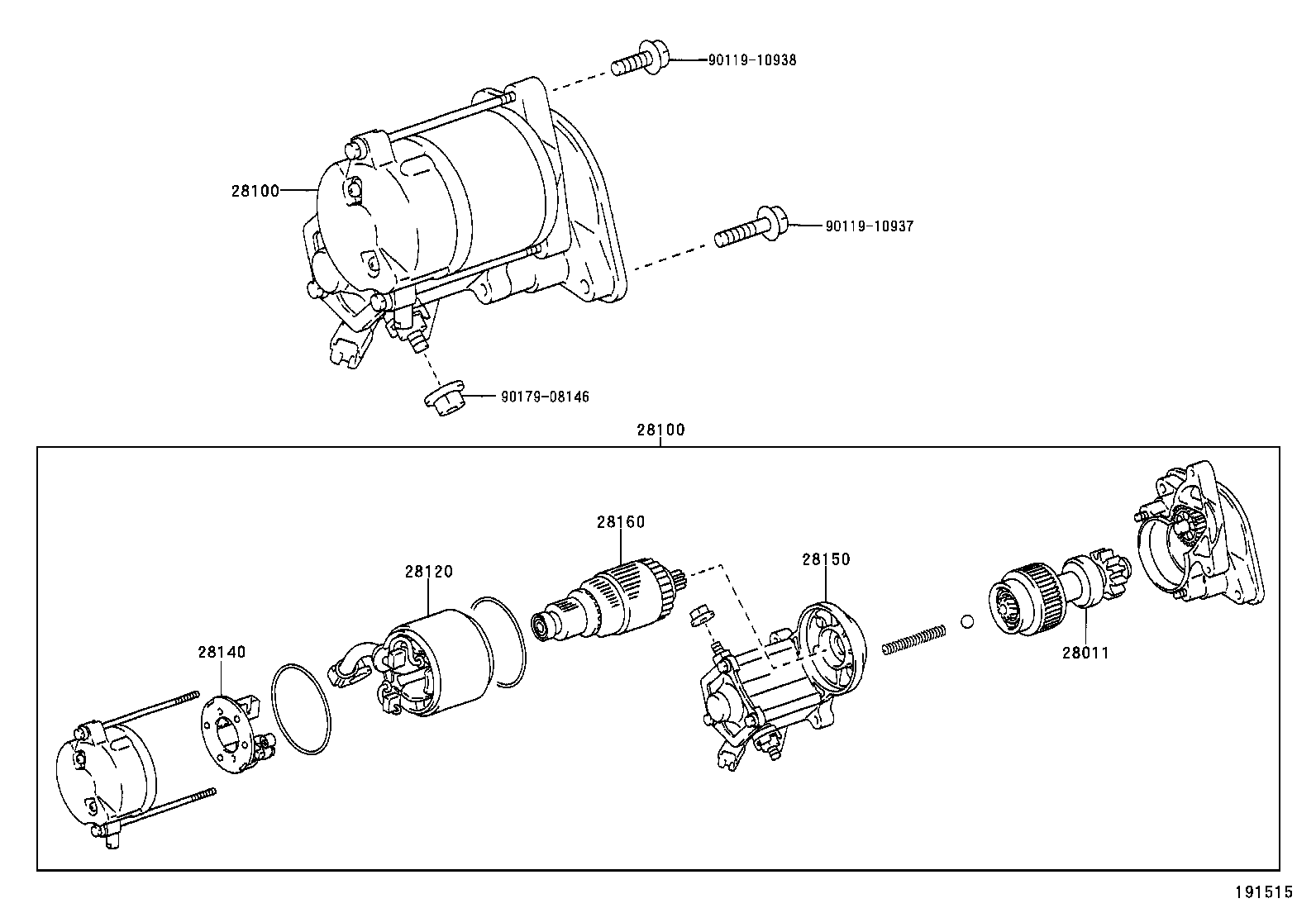

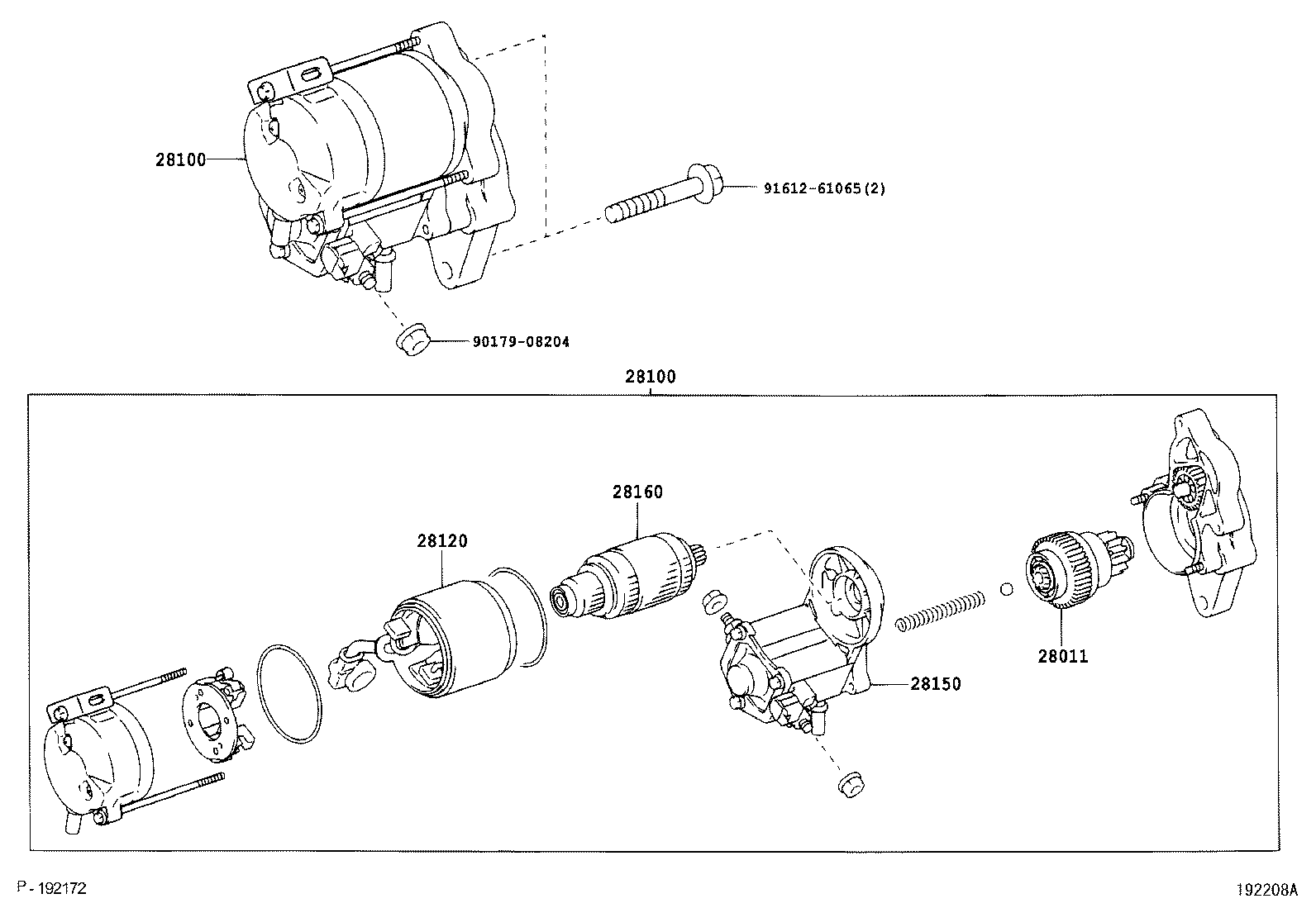

Figure 191512A 191512A 2002-09 → — Figure 191515 191515 2002-09 → — Figure 191516 191516 2002-09 → — Figure 192208A 192208A 2004-08 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28120 Yoke Assy, Starter
28140 Holder Assy, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
