Toyota Corolla HB (JPP)
2002-09 → 2006-10 · chassis CDE120,NDE120,ZZE12# · catalogue 152550 · Europe
Discontinued model
Data version 2007-09

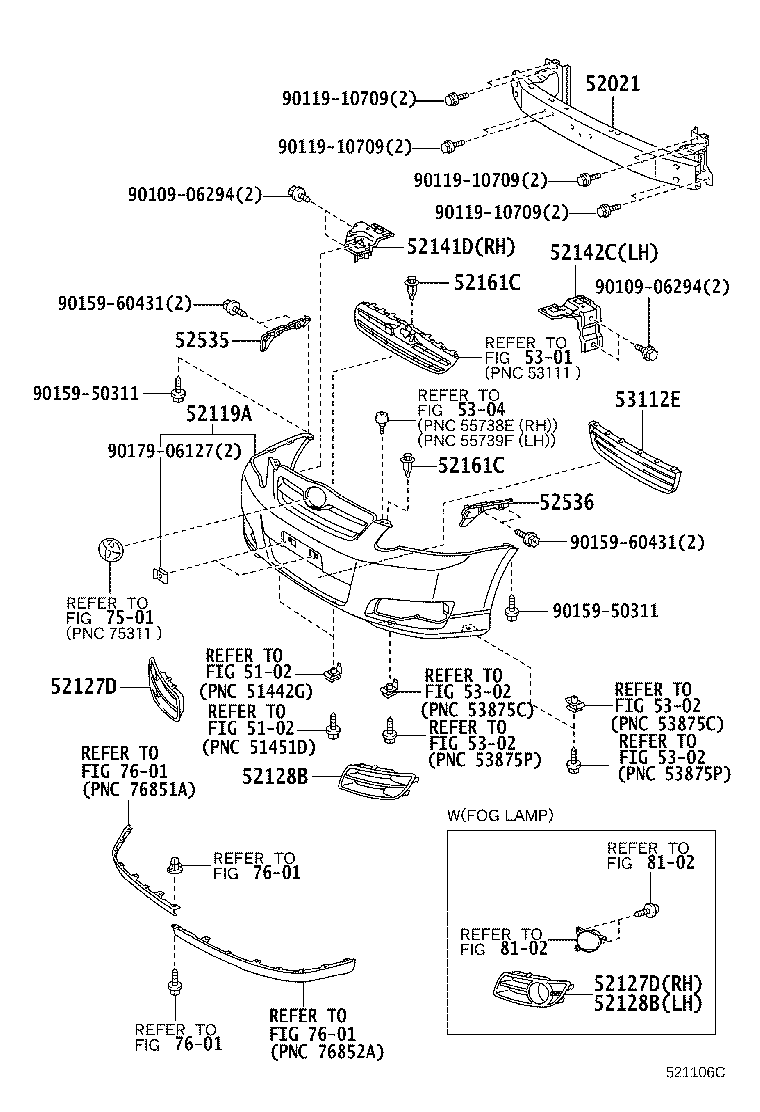

Front Bumper & Bumper Stay
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52119A | Cover, Front Bumper |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52141D | Stay, Front Bumper, RH |
| 52142C | Stay, Front Bumper, LH |
| 52161C | Piece, Front Bumper |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 53112E | Grille, Radiator, Lower NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
