Toyota Corolla HB (JPP)

2002-09 → 2006-10 · chassis CDE120,NDE120,ZZE12# · catalogue 152550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

41 part groups · 16 illustrations

Illustrations

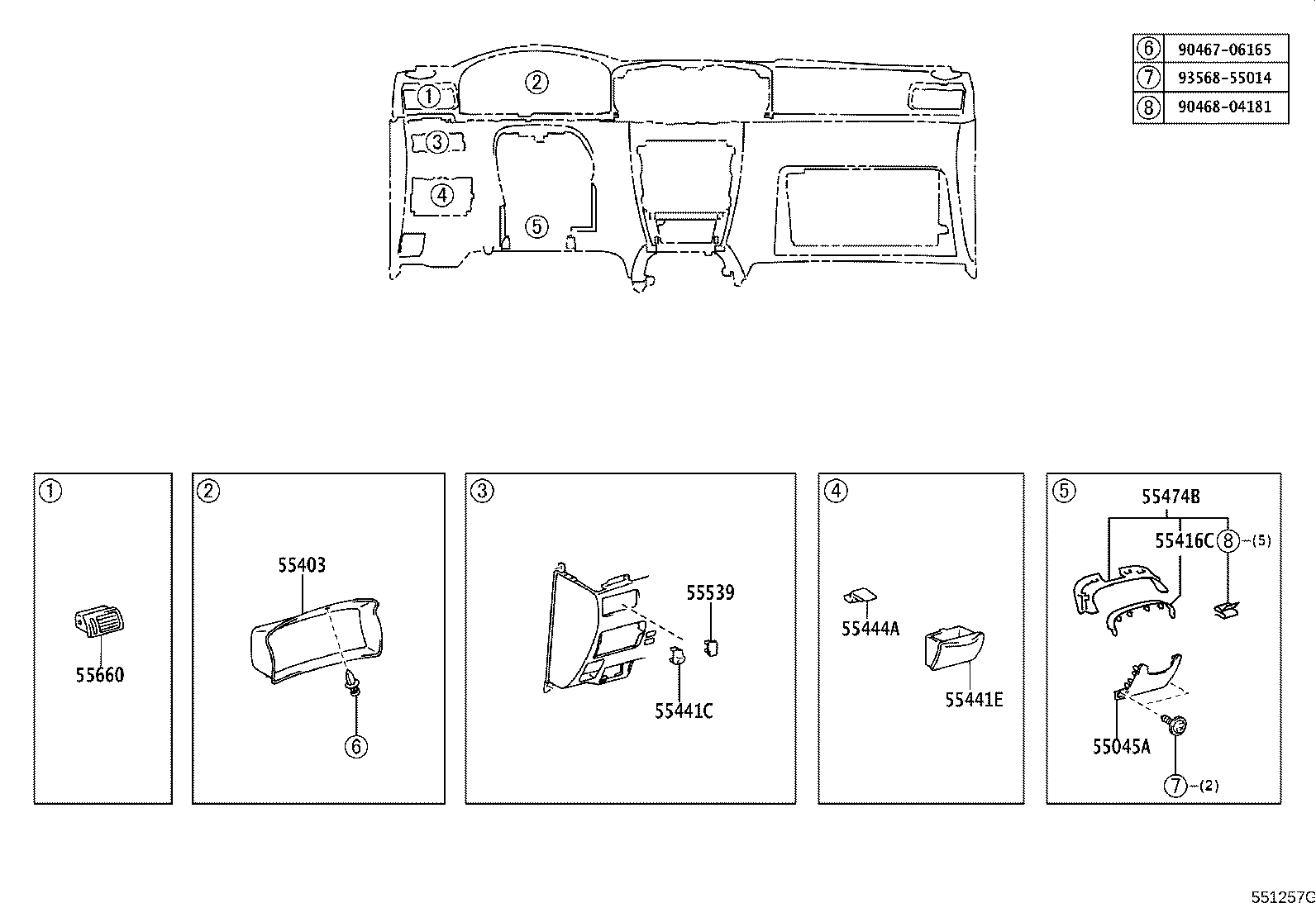

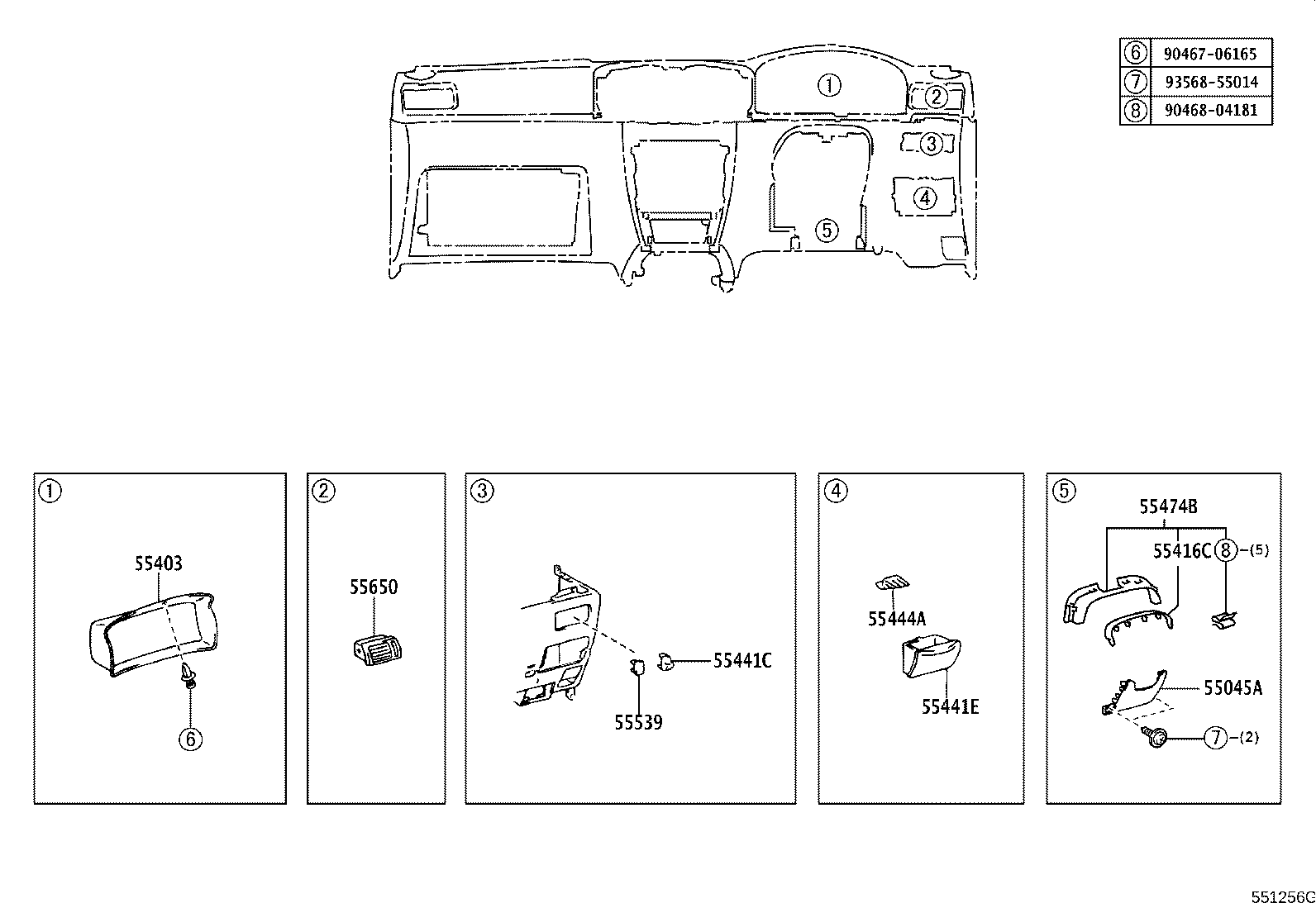

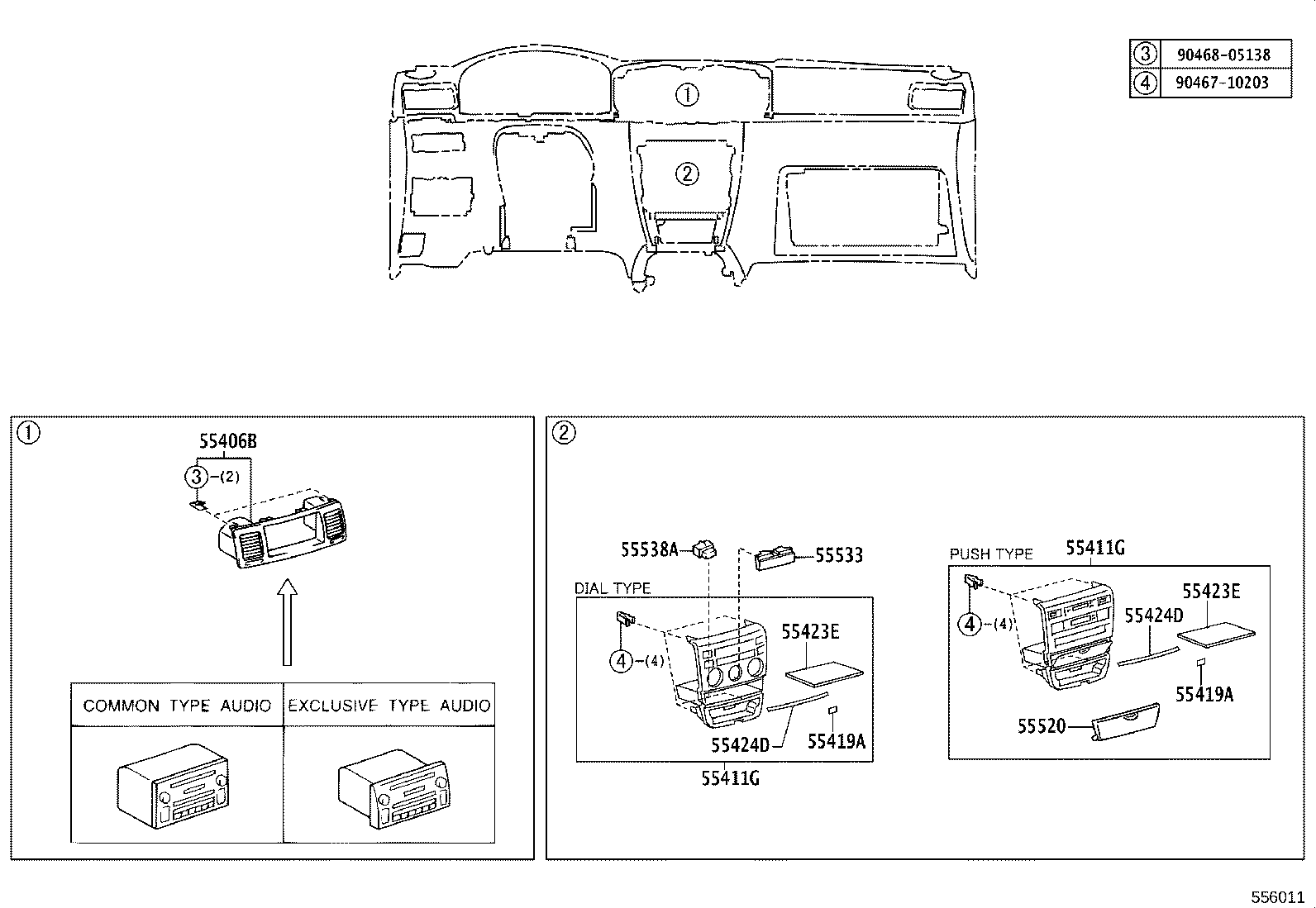

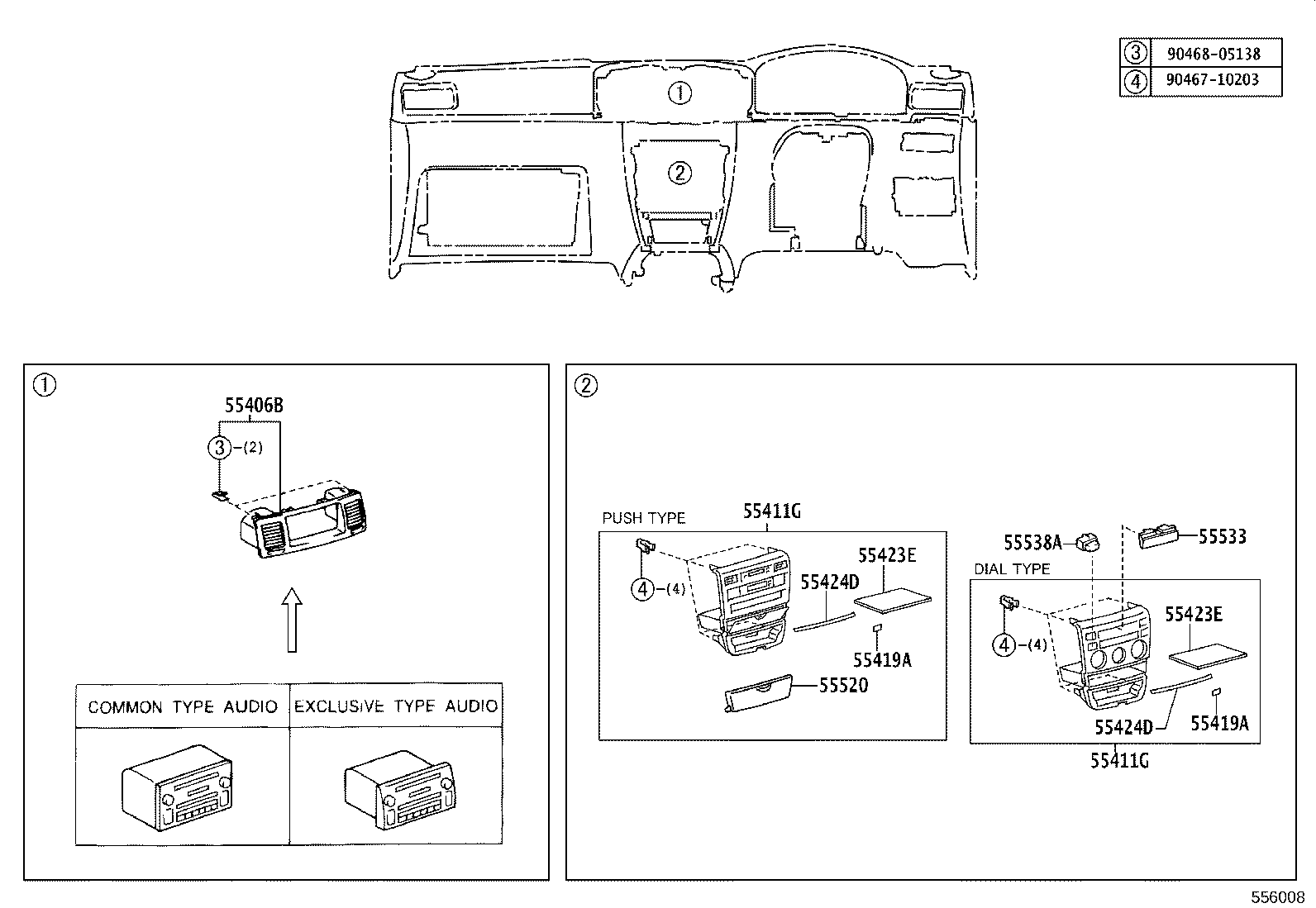

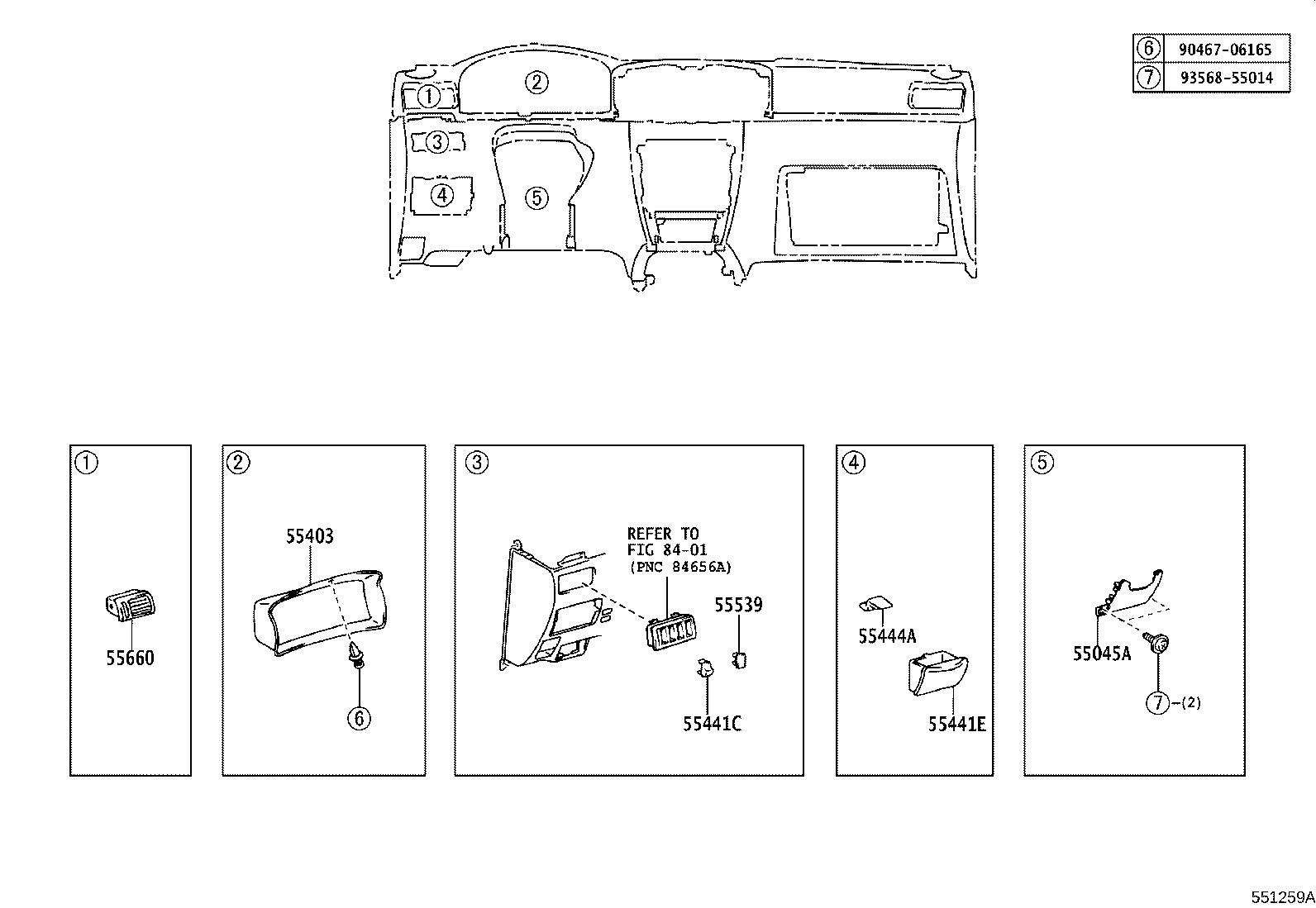

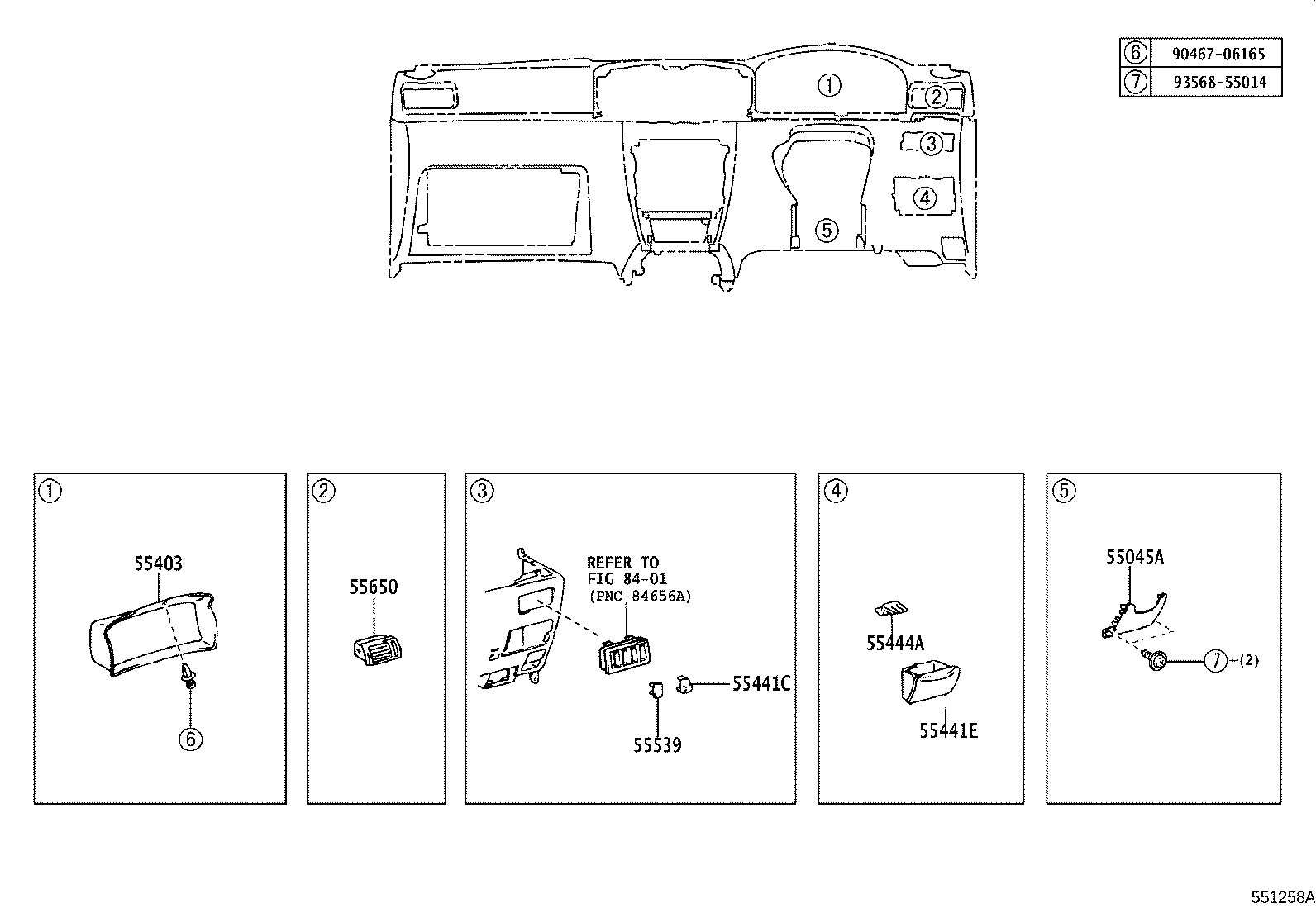

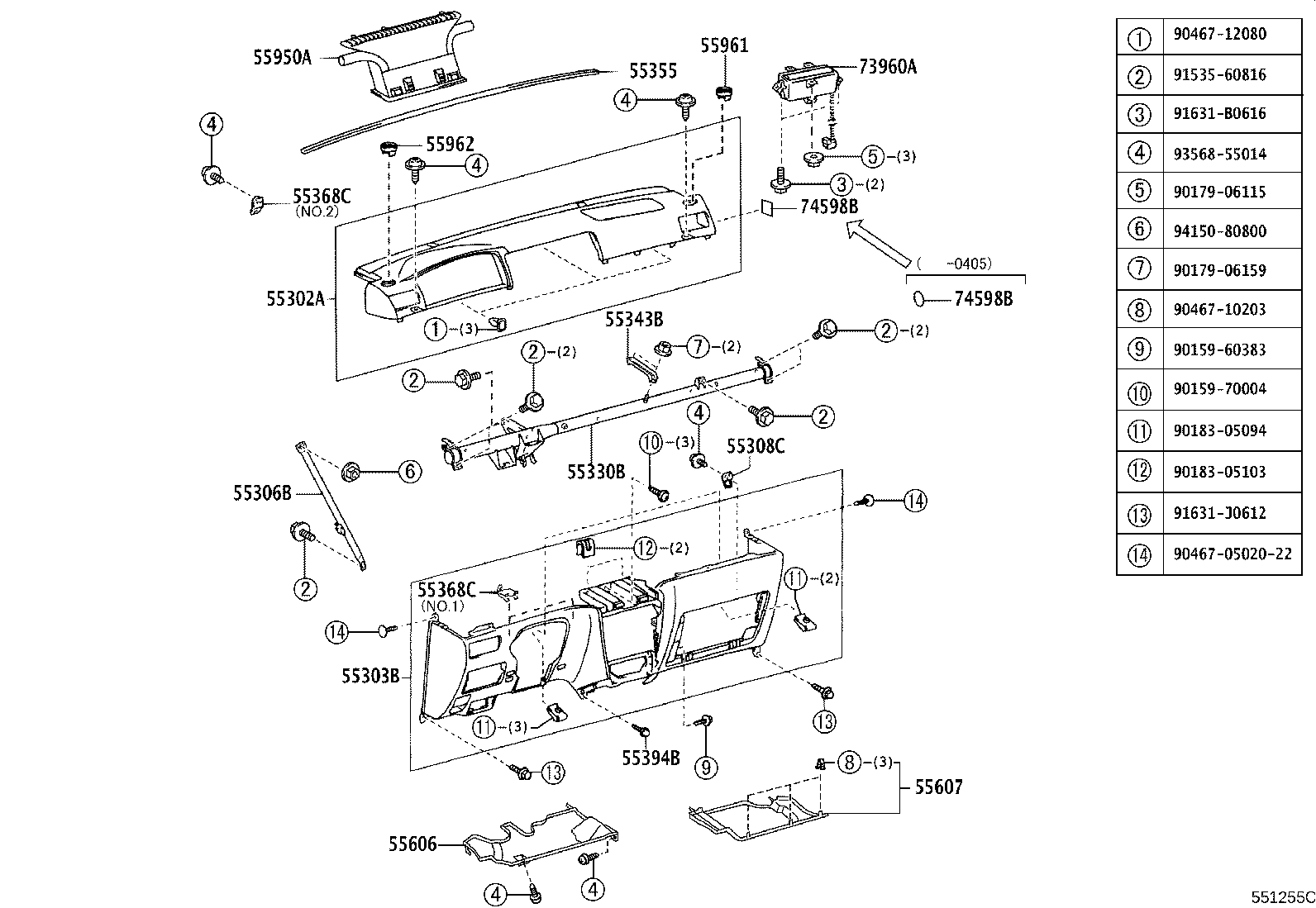

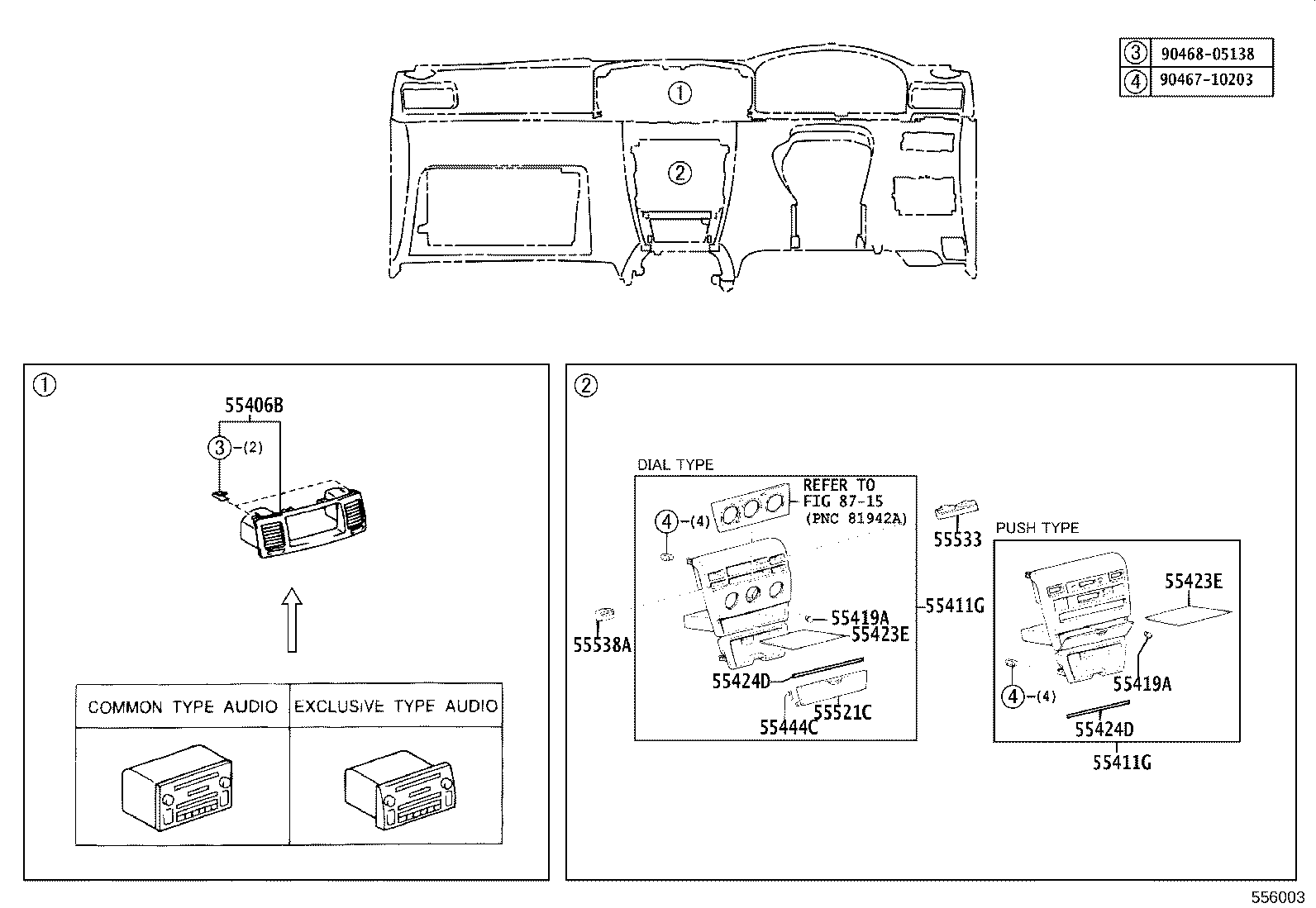

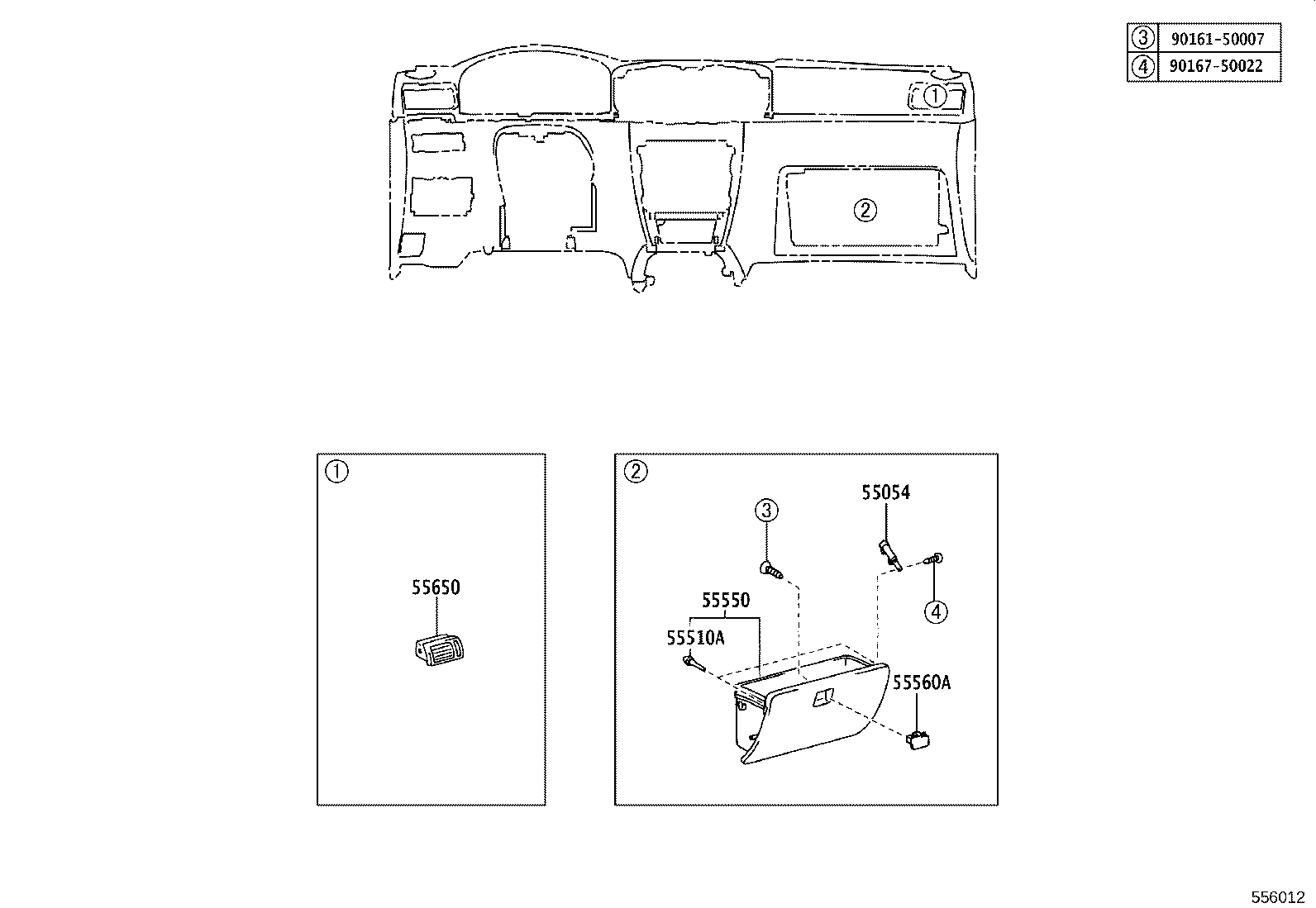

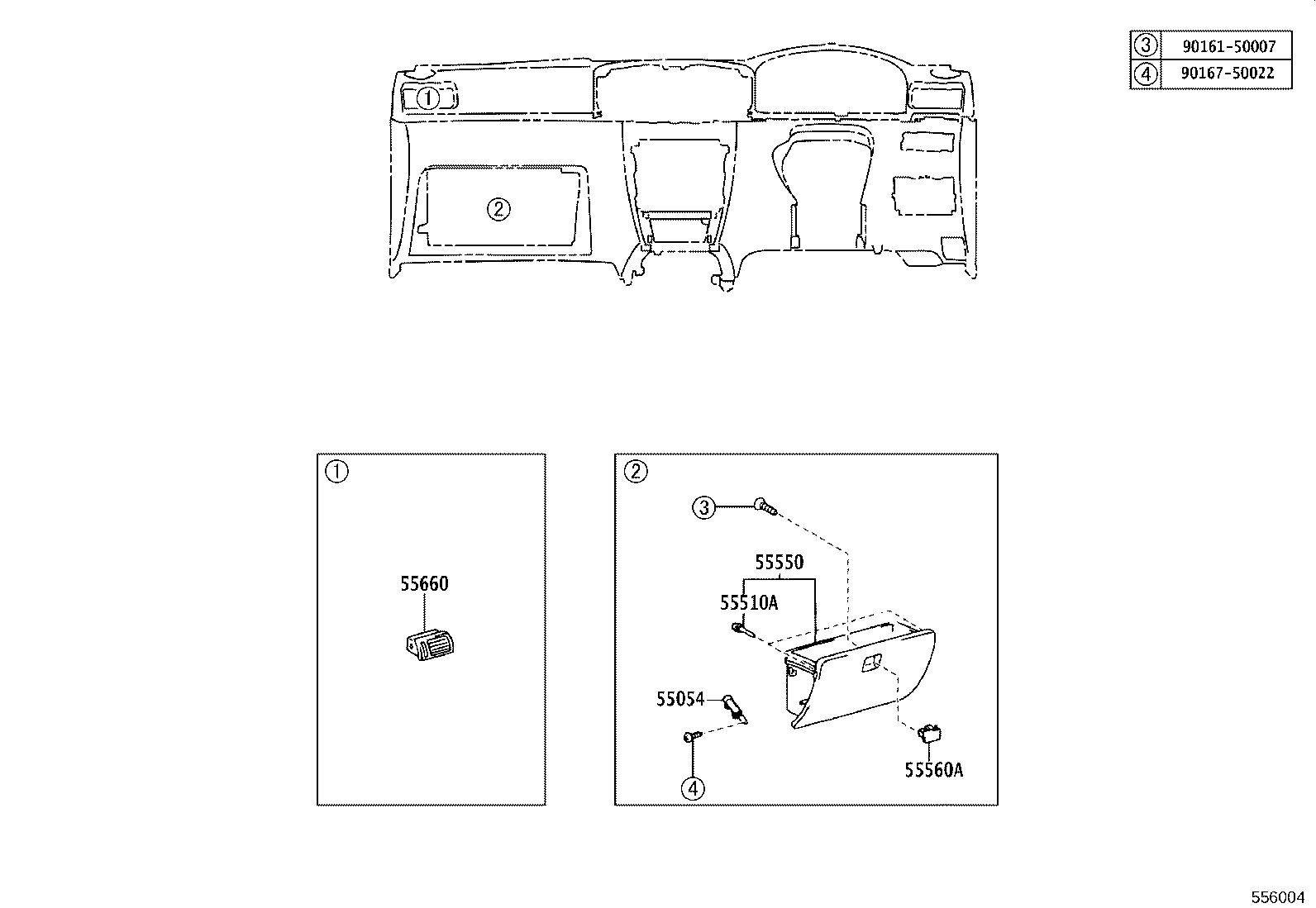

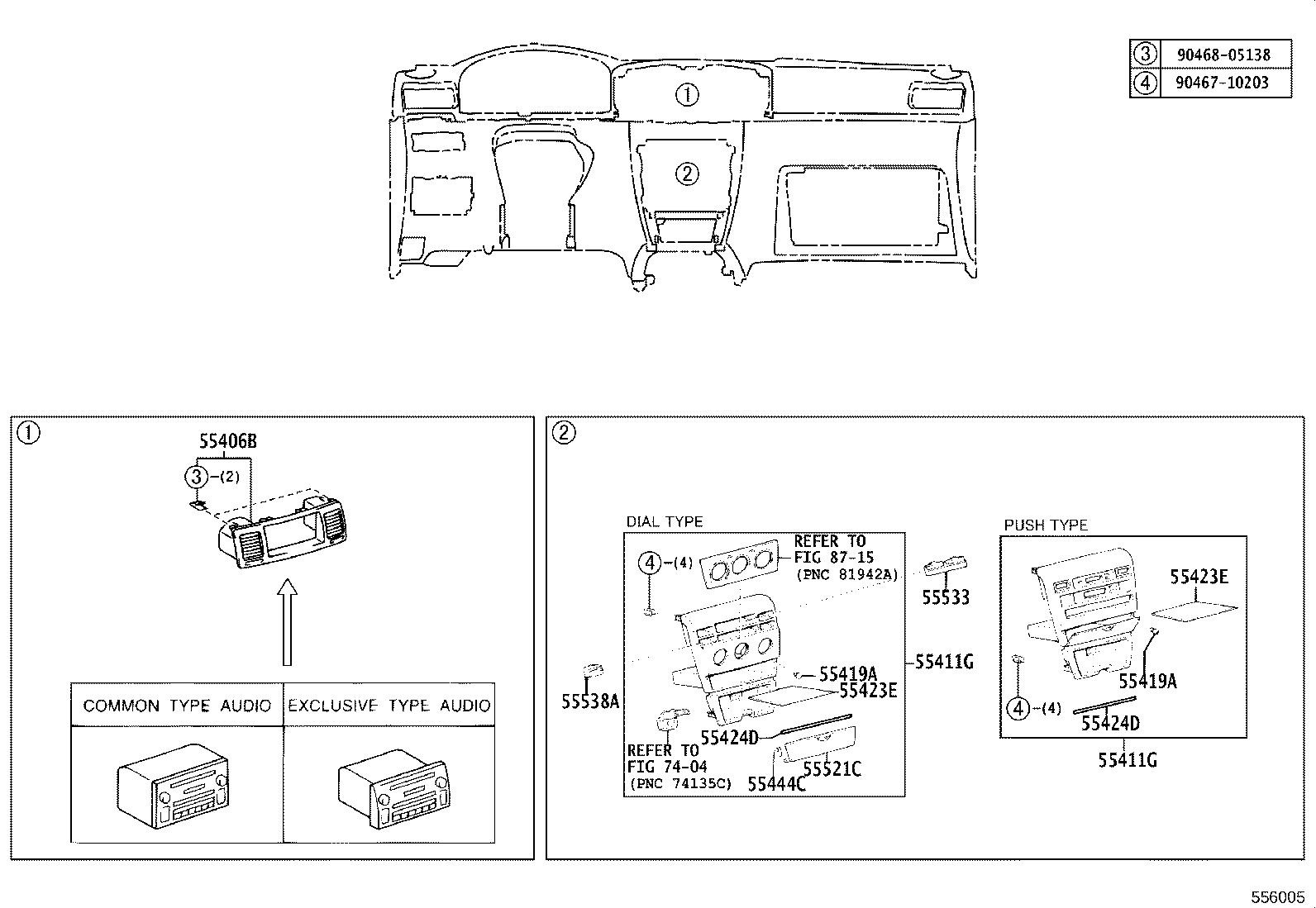

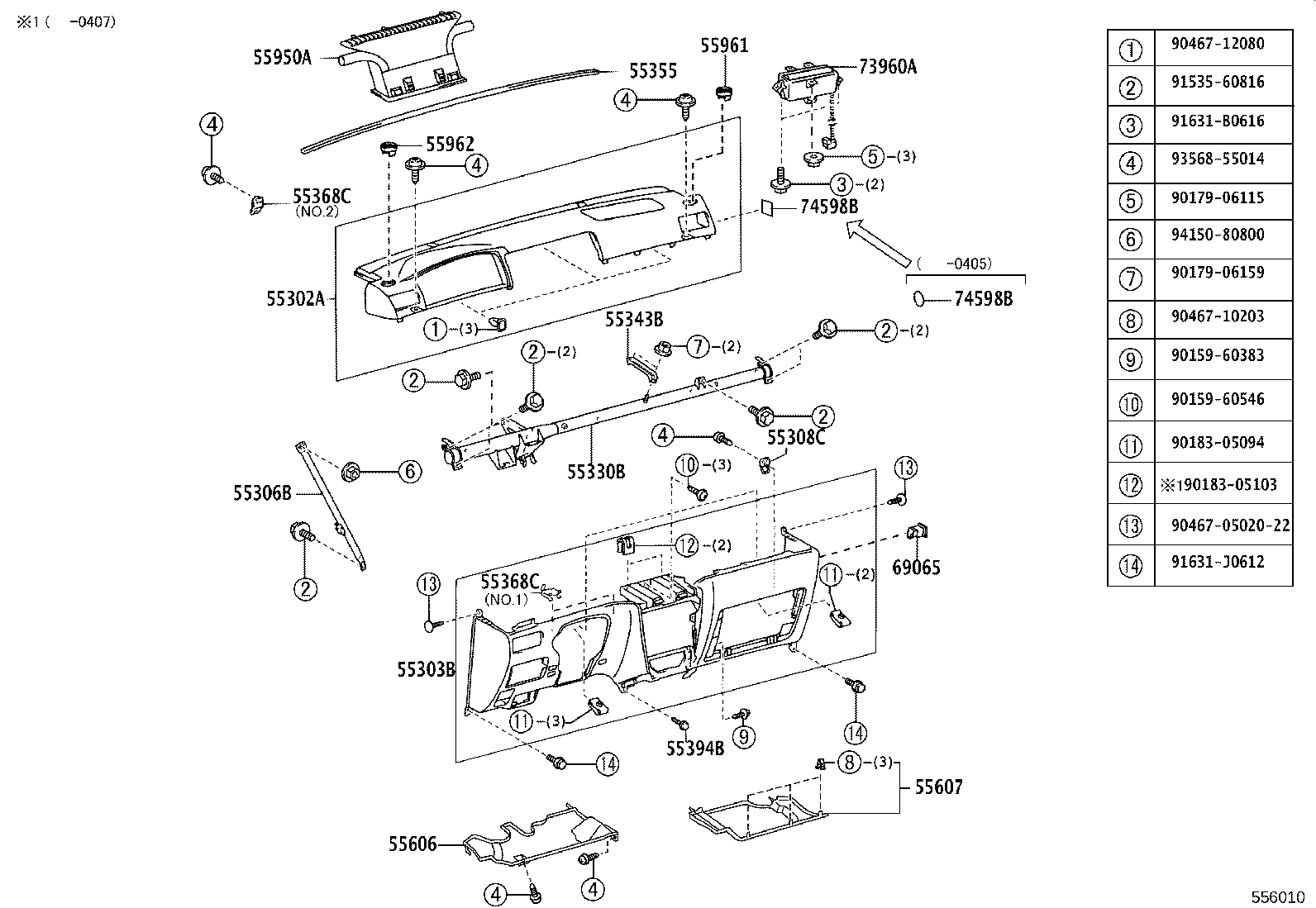

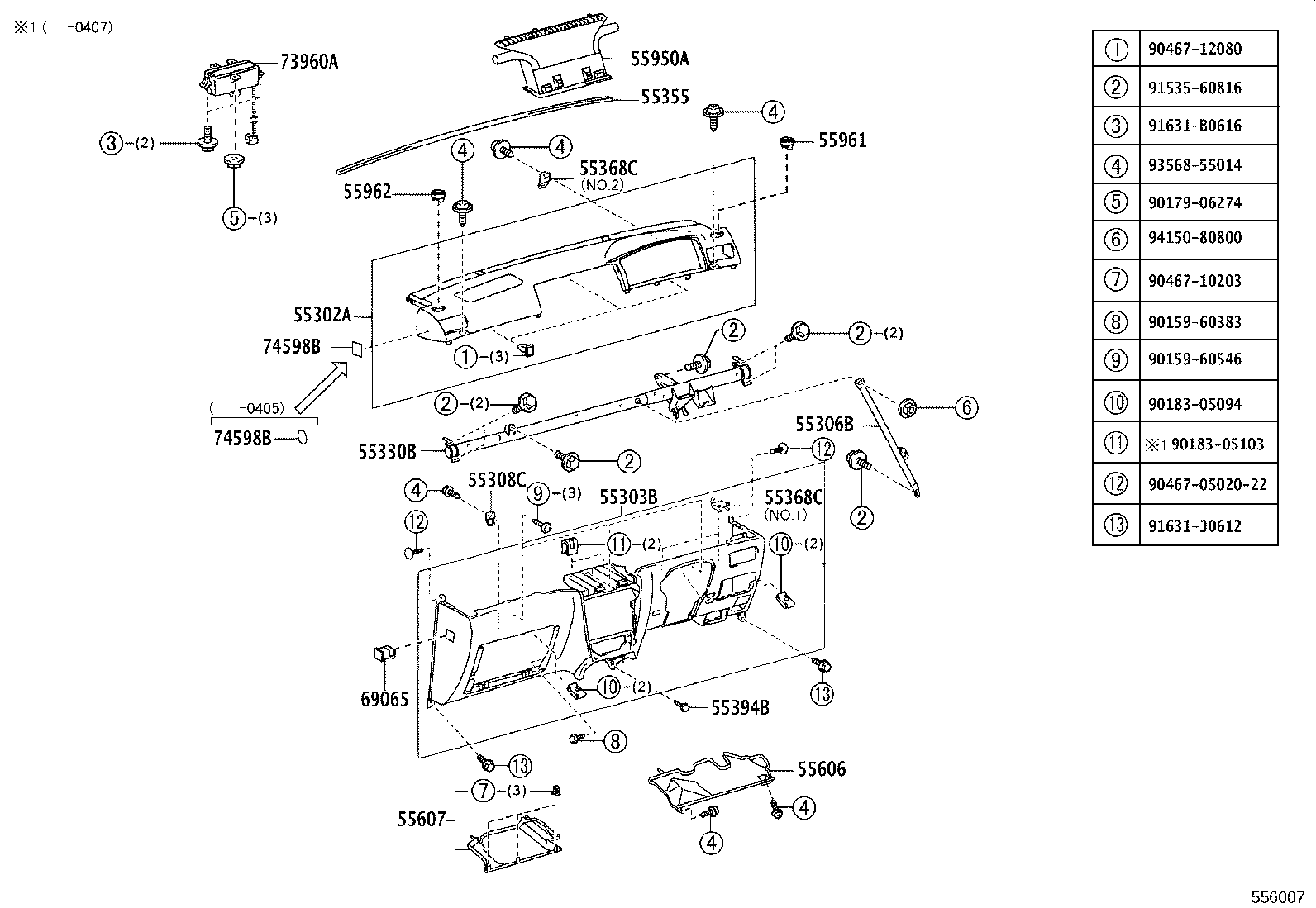

Figure 551254D 551254D 2002-09 → 2004-05 Figure 551258A 551258A 2002-09 → 2004-05 Figure 556003 556003 2002-09 → 2004-05 Figure 556004 556004 2002-09 → 2004-05 Figure 551255C 551255C 2002-09 → 2004-05 Figure 551259A 551259A 2002-09 → 2004-05 Figure 556005 556005 2002-09 → 2004-05 Figure 556006 556006 2002-09 → 2004-05 Figure 556007 556007 2004-05 → — Figure 551256G 551256G 2004-05 → — Figure 556008 556008 2004-05 → — Figure 556009 556009 2004-05 → — Figure 556010 556010 2004-05 → — Figure 551257G 551257G 2004-05 → — Figure 556011 556011 2004-05 → — Figure 556012 556012 2004-05 → —

Part groups

PNCDescription
55045A Panel Sub-assy, Instrument Panel Finish, Lower RH
55054 Stopper Sub-assy, Glove Compartment Door
55302A Panel Sub-assy, Instrument, Upper
55303B Panel Sub-assy, Instrument, Lower
55306B Brace Sub-assy, Instrument Panel TO Cowl
55308C Bracket Sub-assy, Instrument Panel, Center
55330B Reinforcement Assy, Instrument Panel
55343B Brace, Instrument Panel TO Cowl, Center
55355 Cushion, Instrument Panel, NO.1
55368C Bracket, Meter Mounting
55394B Bolt, Instrument Panel
55403 Hood Sub-assy, Meter
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55411G Panel, Instrument Cluster Finish, NO.1
55416C Retainer, Instrument Cluster Finish Panel
55419A Cushion, Instrument Cluster Finish Panel
55423E Cushion, Center Cluster, NO.1
55424D Cushion, Center Cluster, NO.2
55441C Box, Instrument Panel Coin
55441E Box, Instrument Panel
55444A Spring, Instrument Panel Box
55444C Spring, Instrument Panel Box
55474B Garnish, Instrument Cluster Finish Panel
55510A Cushion(FOR GLOVE COMPARTMENT DOOR)
55520 Cover Assy, OK Monitor Opening
55521C Cover, Stereo Opening
55533 Cover, Auto Clock Hole
55538A Cover, Cooler Switch Hole
55539 Cover, Spare Switch Hole
55550 Door Assy, Glove Compartment
55560A Lock Assy, Glove Compartment Door
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55950A Nozzle Assy, Defroster
55961 Nozzle, Side Defroster, NO.1
55962 Nozzle, Side Defroster, NO.2
69065 Cylinder Sub-assy, Airbag Cut Off SW
73960A Airbag Assy, Instrument Panel Passenger W/O Door
74598B Label, Passenger Airbag Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
