Toyota Corolla HB (JPP)
2002-09 → 2006-10 · chassis CDE120,NDE120,ZZE12# · catalogue 152550 · Europe
Discontinued model
Data version 2007-09

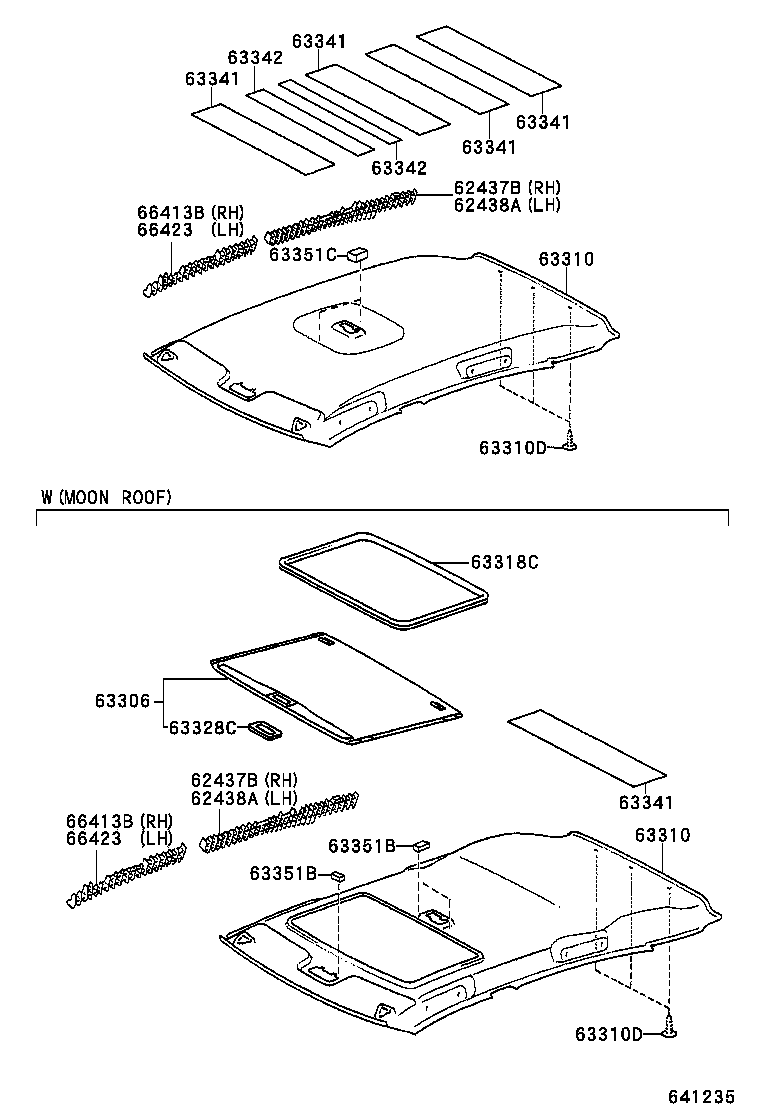

Roof Headlining & Silencer Pad
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62437B | Pad, Roof Side Rail, Rear RH |
| 62438A | Pad, Roof Side Rail, Rear LH |
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63328C | Knob, Sunshade Trim |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63351B | Pad, Roof Headlining |
| 63351C | Pad, Roof Headlining |
| 66413B | Spacer, Side Rail, Front RH |
| 66423 | Spacer, Side Rail, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
