Toyota Corolla HB (JPP)

2002-09 → 2006-10 · chassis CDE120,NDE120,ZZE12# · catalogue 152550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

8 part groups · 9 illustrations

Illustrations

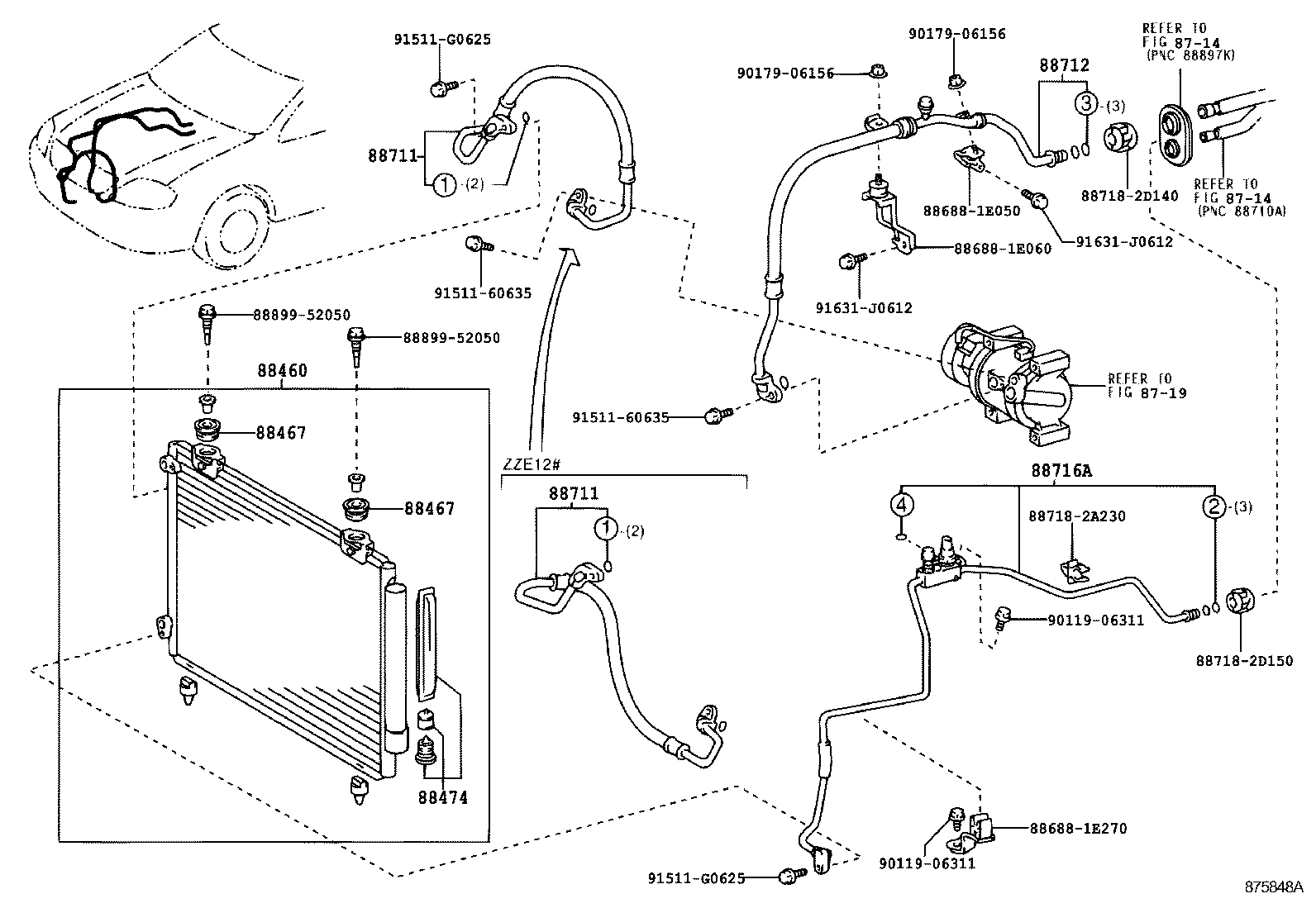

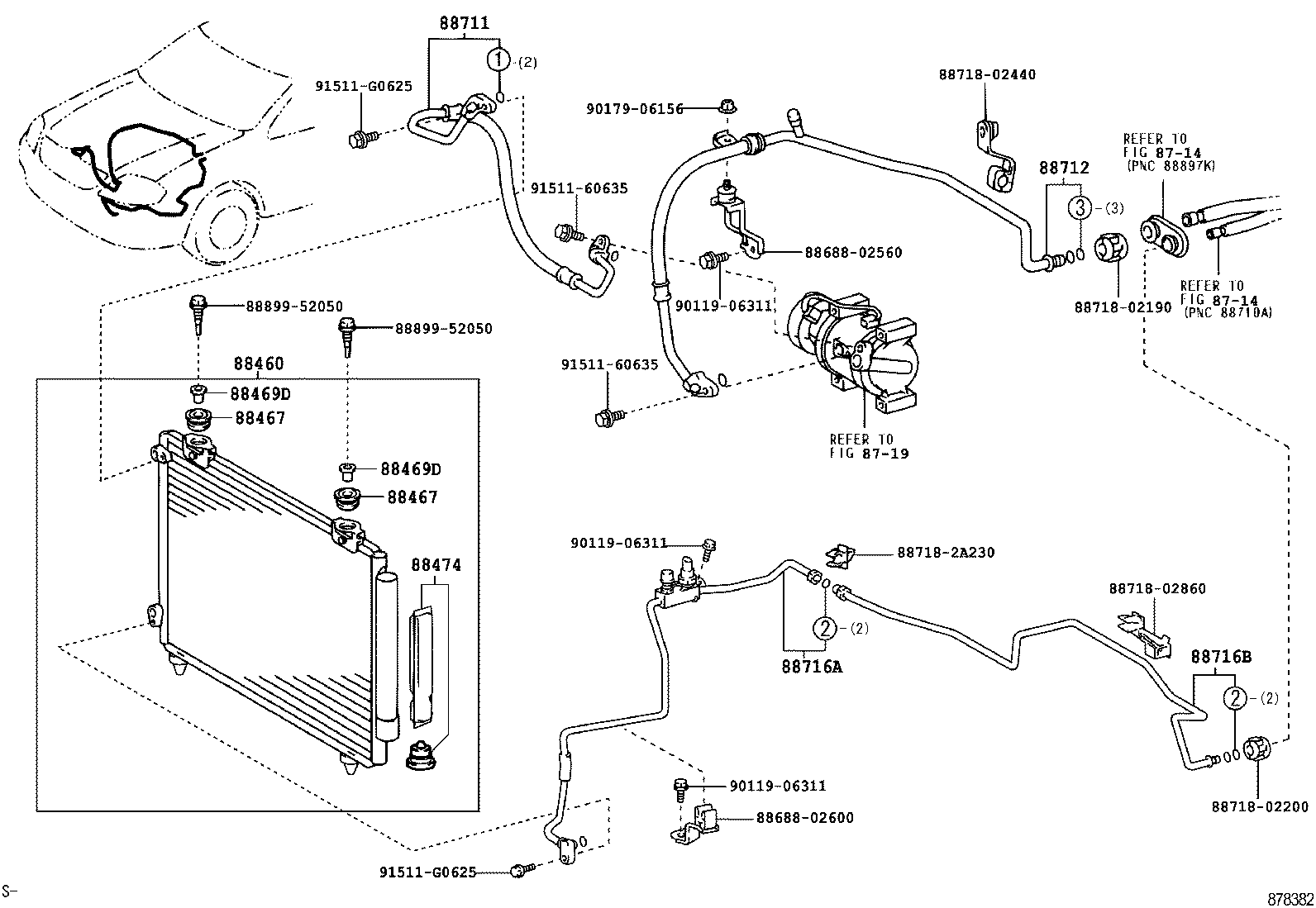

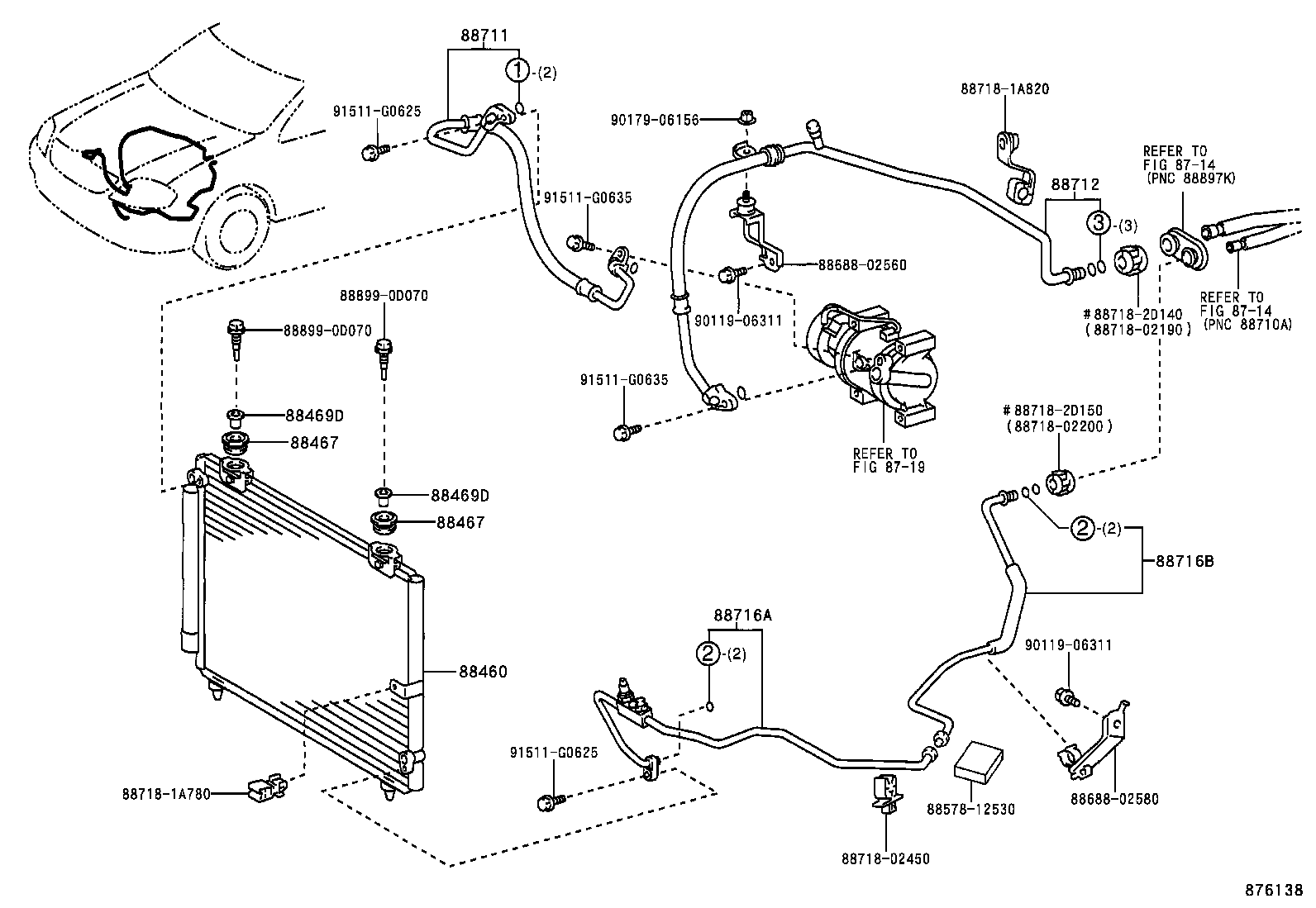

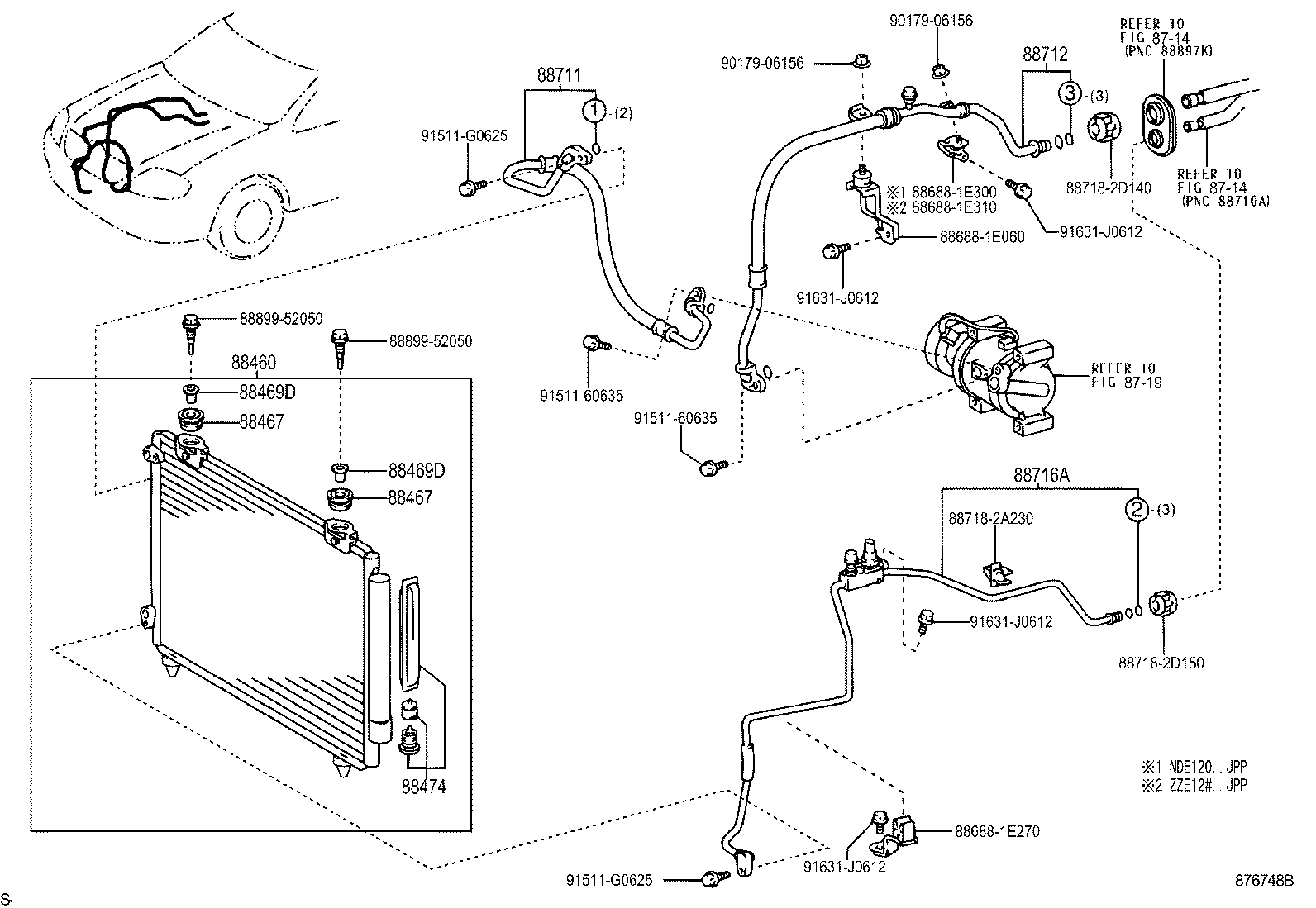

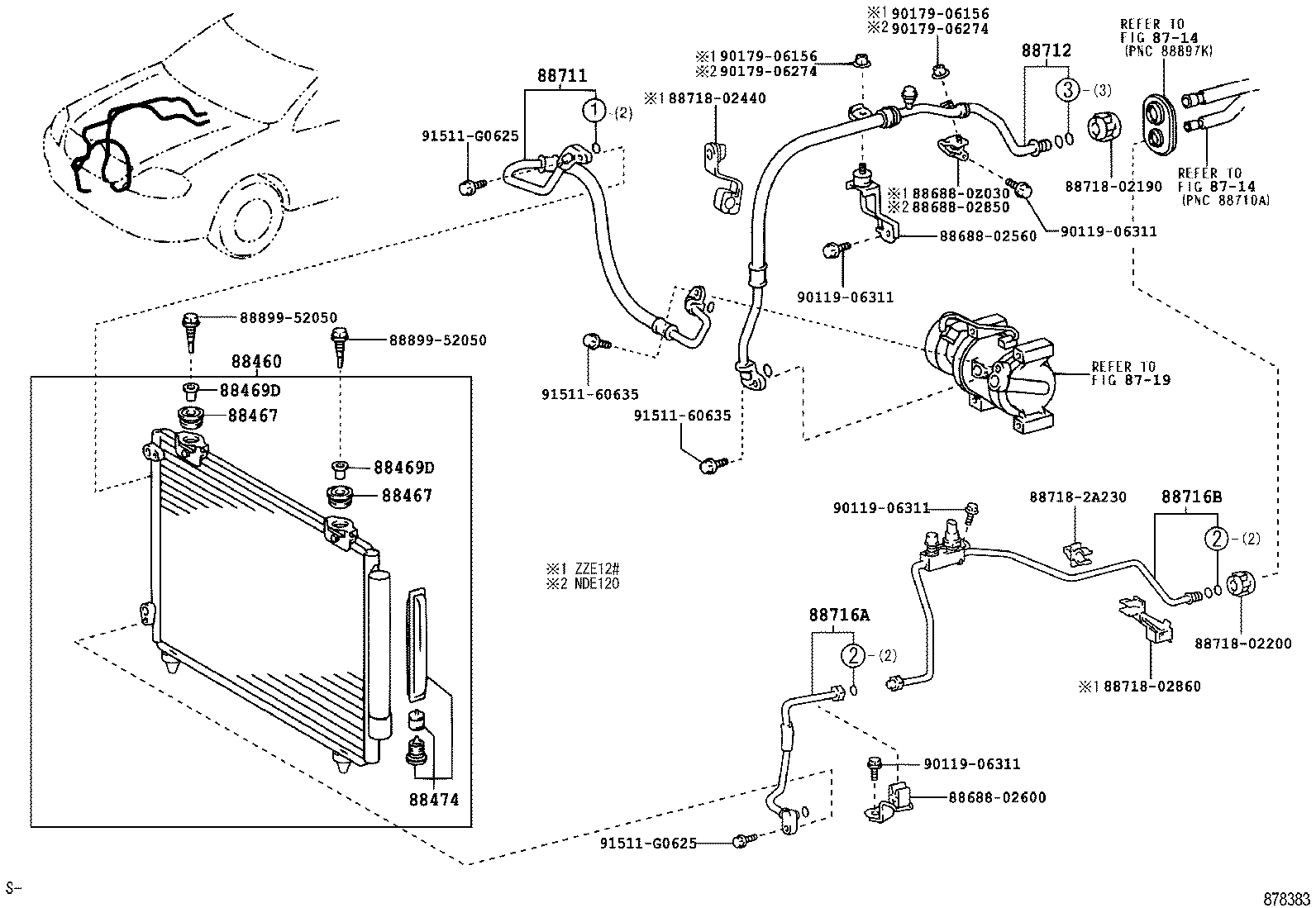

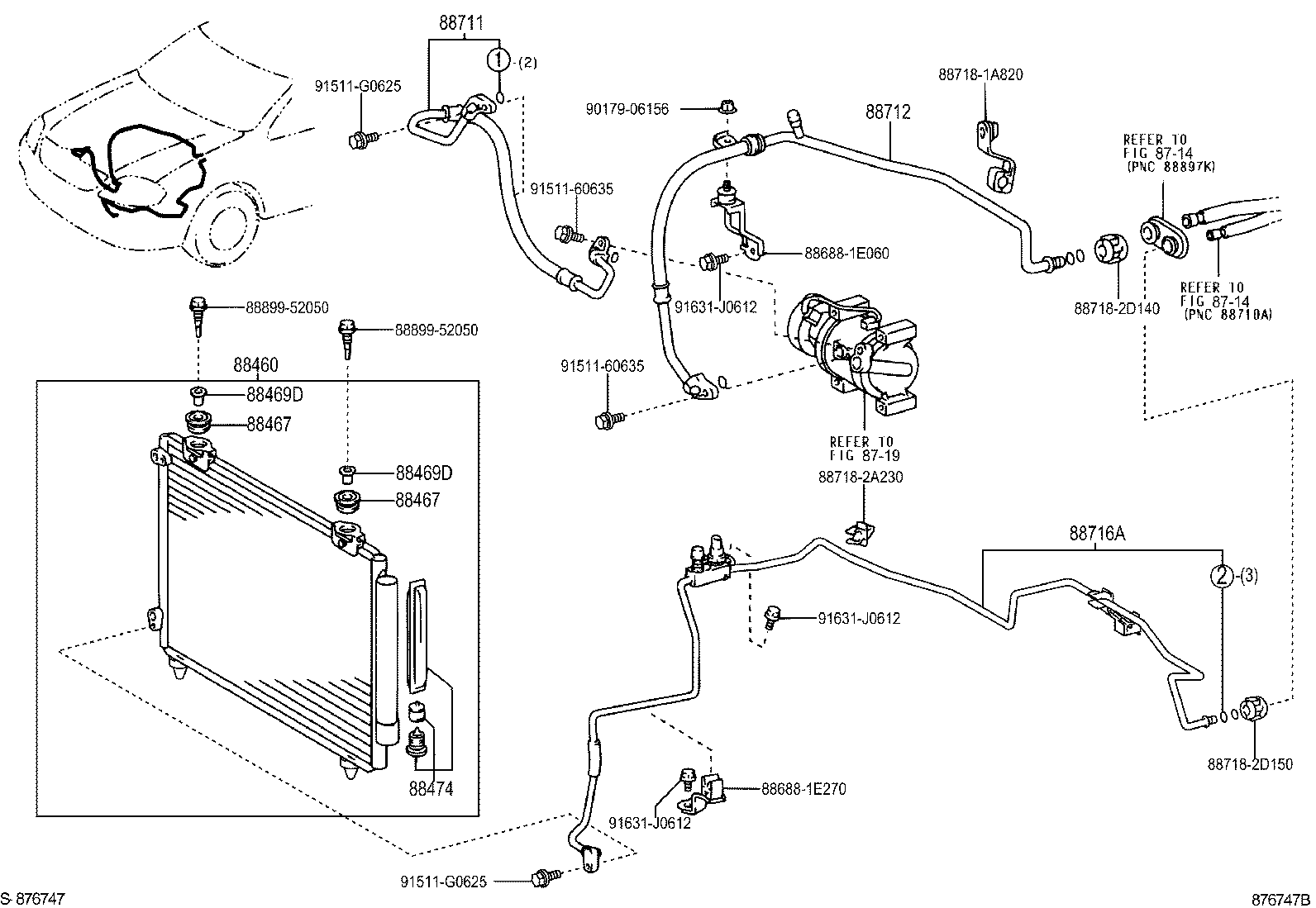

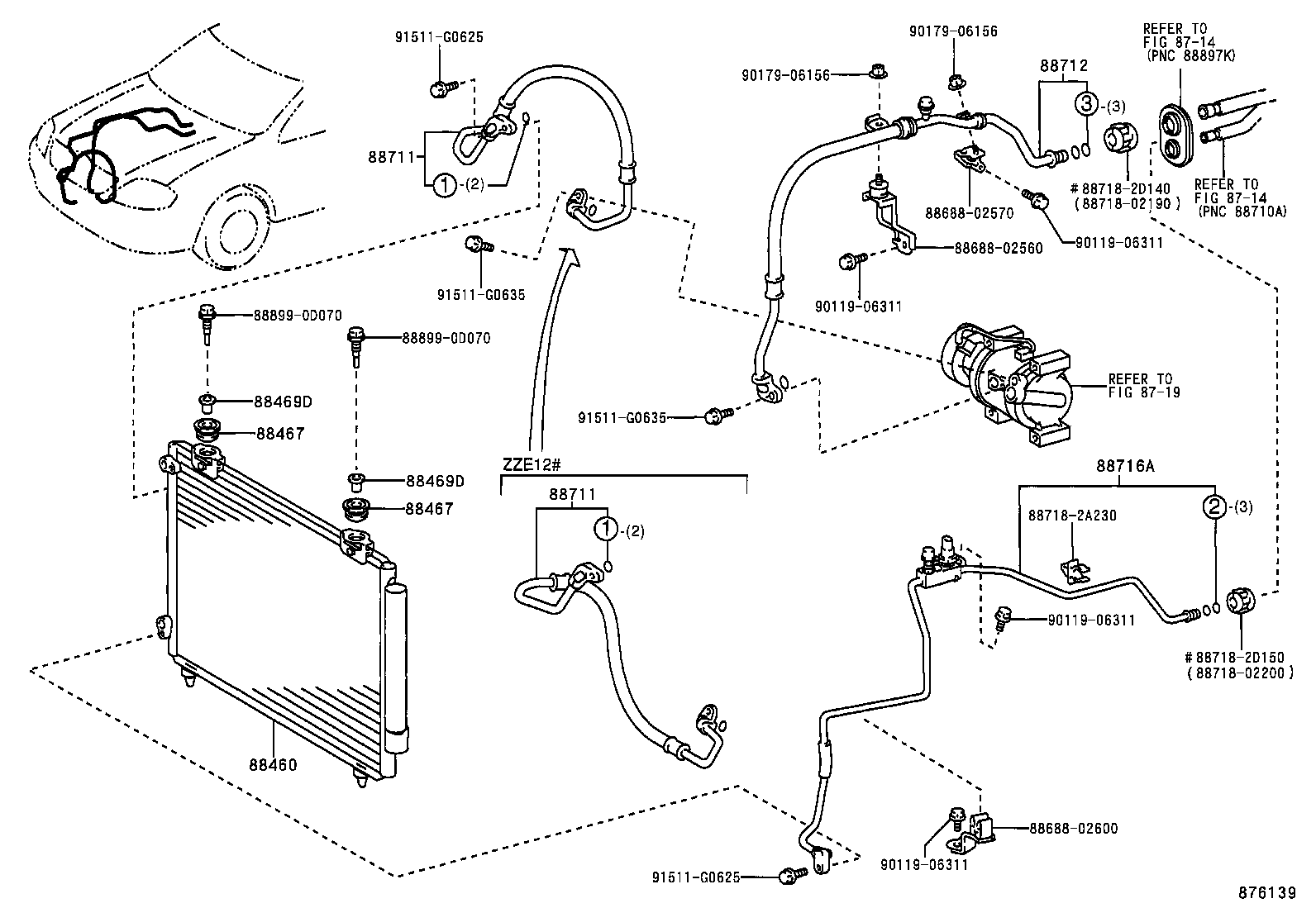

Figure 875847A 875847A 2002-09 → 2004-05 Figure 875848A 875848A 2002-09 → 2004-05 Figure 876138 876138 2002-09 → 2004-05 Figure 876139 876139 2002-09 → 2004-05 Figure 876747B 876747B 2004-05 → — Figure 876748B 876748B 2004-05 → — Figure 878382 878382 2004-05 → — Figure 878383 878383 2004-05 → — Figure 874869 874869 2002-09 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
