Toyota Corolla CP

1987-08 → 1991-06 · chassis AE92 · catalogue 153420 · Europe

Discontinued model Data version 1992-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

20 part groups · 2 illustrations

Illustrations

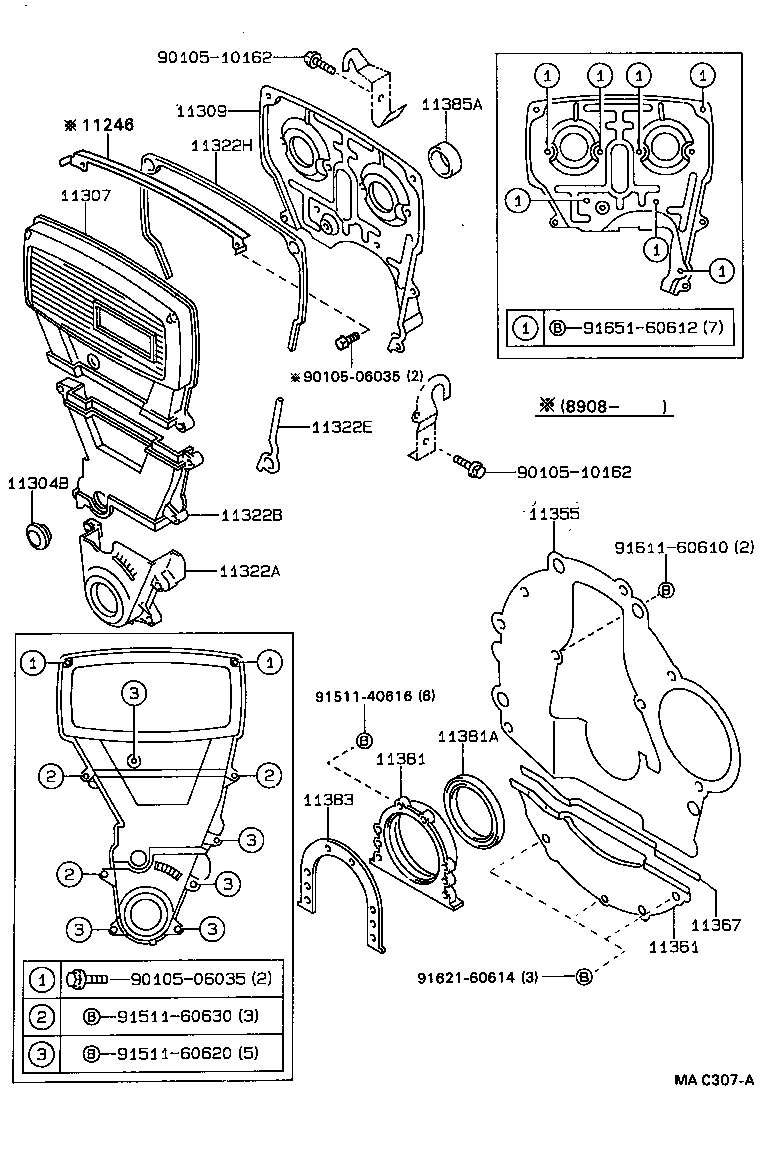

Figure MAE805 MAE805 1987-08 → — Figure MAC307A MAC307A 1987-08 → —

Part groups

PNCDescription
11246 Plate, Clamp Base
11302 Cover Sub-assy, Timing Chain OR Belt
11302T Plug, Hole
11303 Cover Sub-assy, Crankshaft Gear OR Pulley
11304 Cover, Timing Chain OR Belt, NO.2
11304B Plug, Semi Circular(FOR CHAIN COVER NO.2)
11307 Cover, Sub-assy, Timing Belt, NO.3
11309 Cover Sub-assy, Timing Belt, NO.4
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11322E Gasket, Timing Belt Cover, NO.2
11322H Gasket, Timing Belt Cover, NO.3
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11361 Cover, Flywheel Housing Under
11367 Gasket, Flywheel Housing Under
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11385A Seal, Oil(FOR CAMSHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
