Toyota Corolla CP

1987-08 → 1991-06 · chassis AE92 · catalogue 153420 · Europe

Discontinued model Data version 1992-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

21 part groups · 2 illustrations

Illustrations

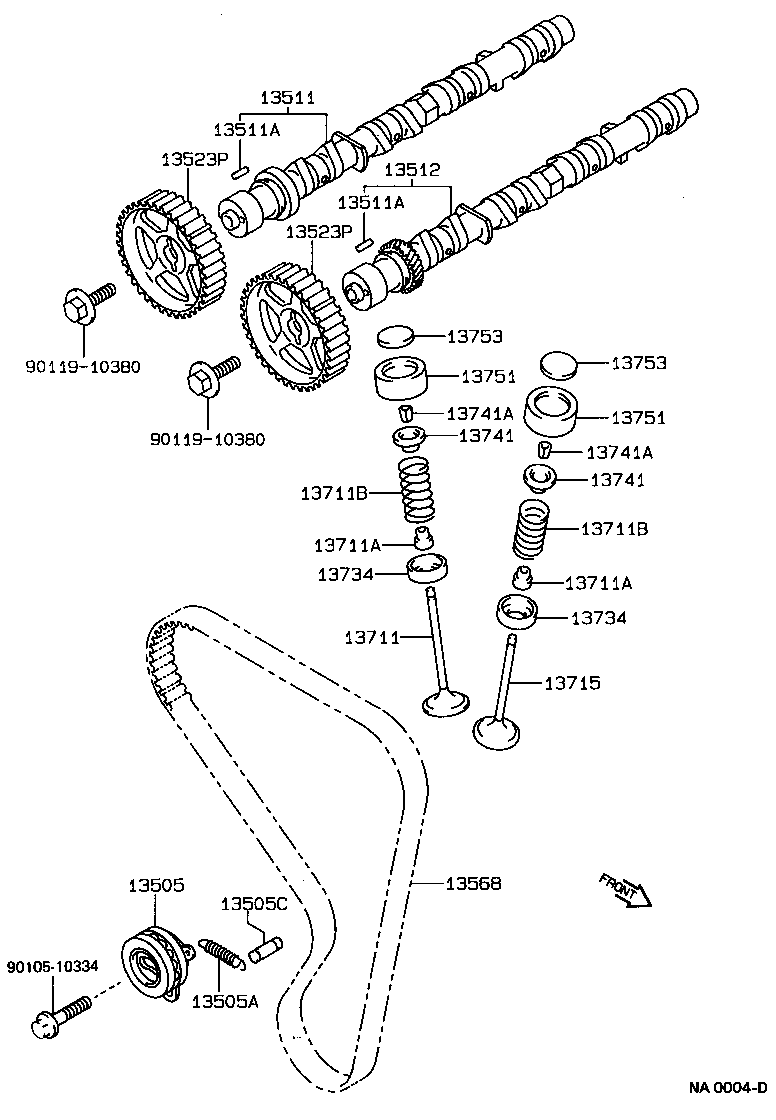

Figure MAC207 MAC207 1987-08 → — Figure NA0004D NA0004D 1987-08 → —

Part groups

PNCDescription
13505 Idler Sub-assy, Timing Belt, NO.1
13505A Spring, Tension(FOR IDLER)
13505B Bolt, Flange (FOR IDLER)
13505C Pin(FOR IDLER SPRING TENSION)
13511 Camshaft
13511A Pin, Straight(FOR CAMSHAFT KNOCK)
13512 Camshaft, NO.2
13523P Pulley, Camshaft Timing
13529 Gear, Camshaft Sub
13568 Belt, Timing
13579 Washer, Camshaft Timing Gear Bolt
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13715 Valve, Exhaust
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13753 Shim, Valve Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
