Exhaust Pipe

18 part groups · 2 illustrations

Illustrations

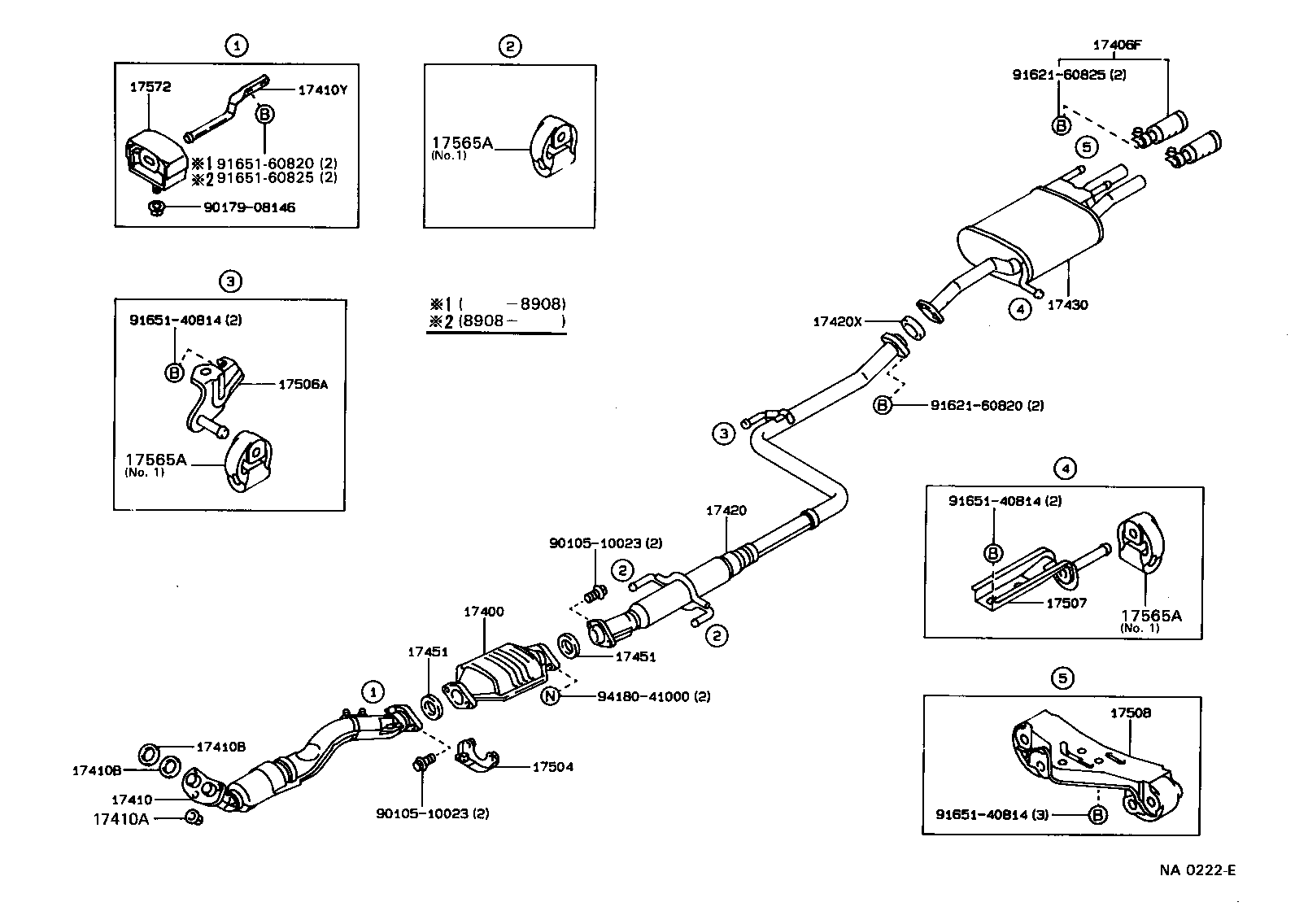

Figure NA0221F NA0221F 1987-08 → — Figure NA0222E NA0222E 1987-08 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17406F Diffuser Sub-assy, Exhaust Gas
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410Y Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
17419 Pipe, Converter Air Inlet
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17504 Bracket Sub-assy, Catalytic Converter
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17508 Support Sub-assy, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17572 Bracket, Exhaust Pipe NO.1 Support
17578 Clamp, Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
