Toyota Corolla CP

1987-08 → 1991-06 · chassis AE92 · catalogue 153420 · Europe

Discontinued model Data version 1992-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

26 part groups · 5 illustrations

Illustrations

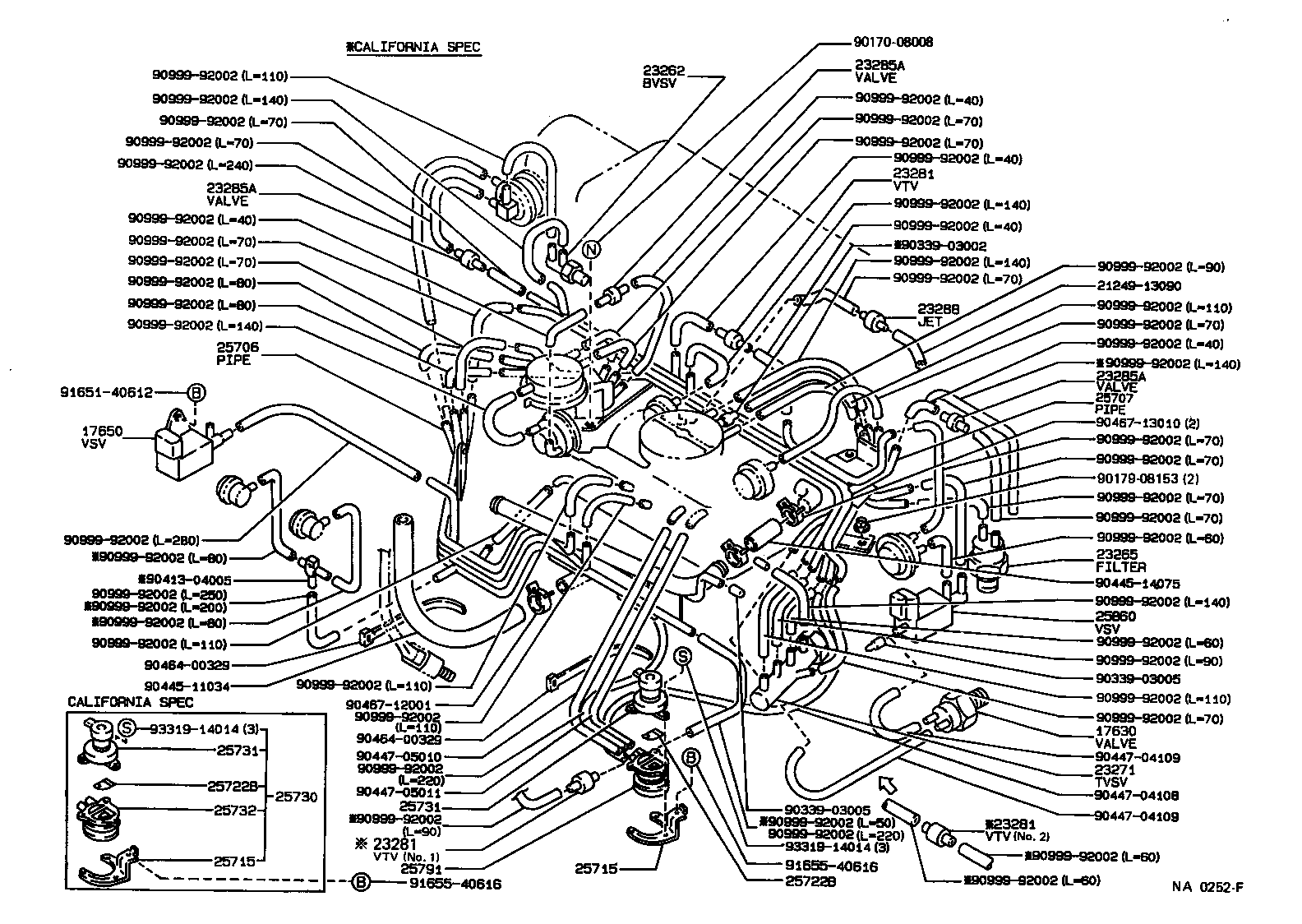

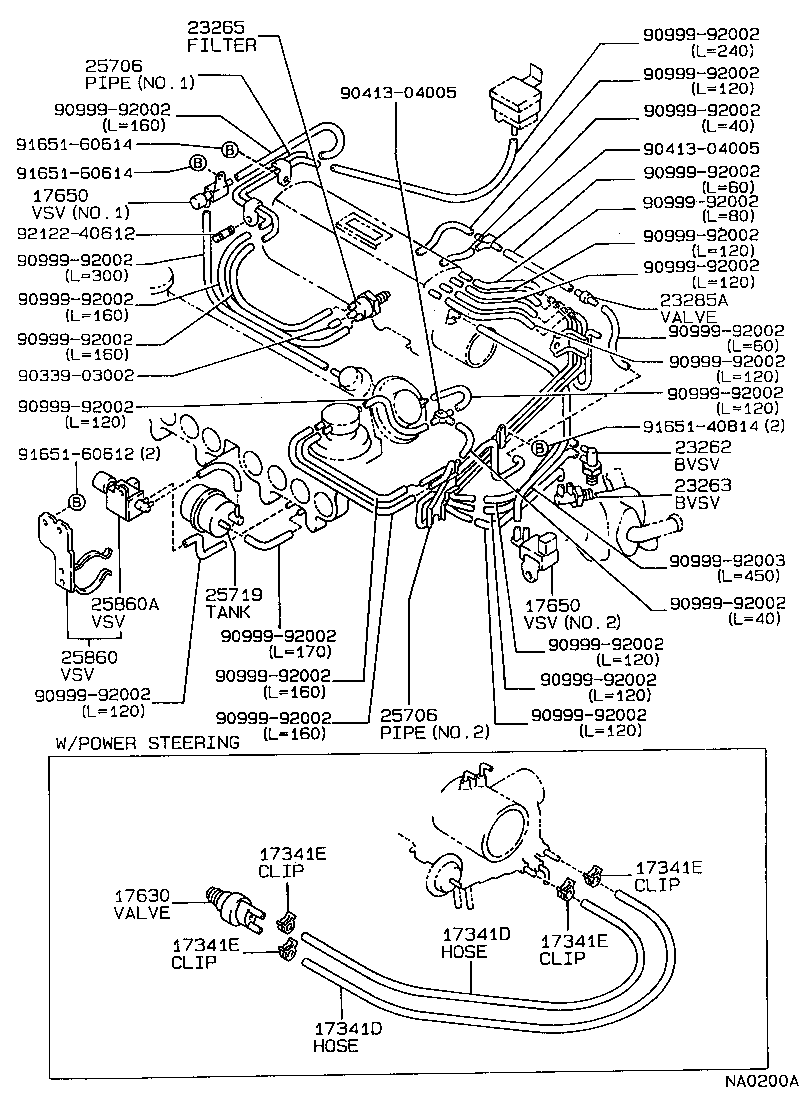

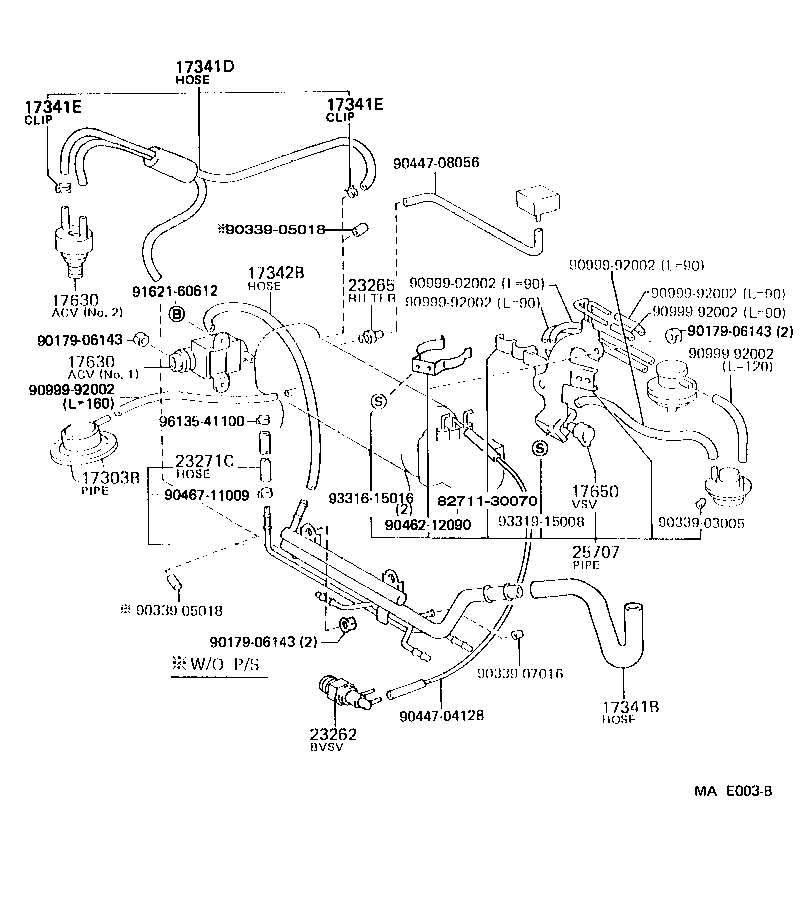

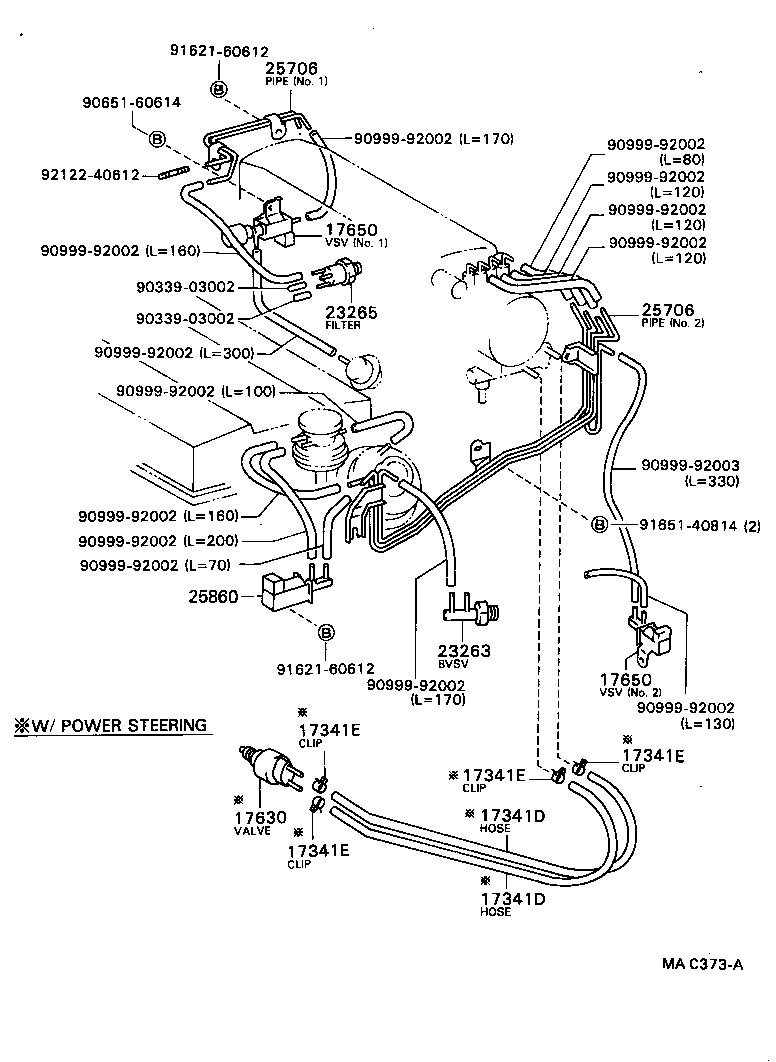

Figure MA9504B MA9504B 1987-08 → — Figure MAE003B MAE003B 1989-08 → — Figure NA0252F NA0252F 1987-08 → 1989-08 Figure NA0200A NA0200A 1987-08 → 1989-08 Figure MAC373A MAC373A 1989-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23271C Hose, Fuel
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25715 Bracket, Emission Control Valve
25719 Tank, Vacuum Surge
25722B Gasket, Electric Bleed Air Control Valve
25730 Valve Assy, Electric Bleed Air Control
25731 Valve, Electric Bleed Air Control
25732 Filter, Electric Bleed Air Control
25791 Valve, High Altitude Compensator
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
