Toyota Corolla CP

1987-08 → 1991-06 · chassis AE92 · catalogue 153420 · Europe

Discontinued model Data version 1992-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drive Shaft

24 part groups · 8 illustrations

Illustrations

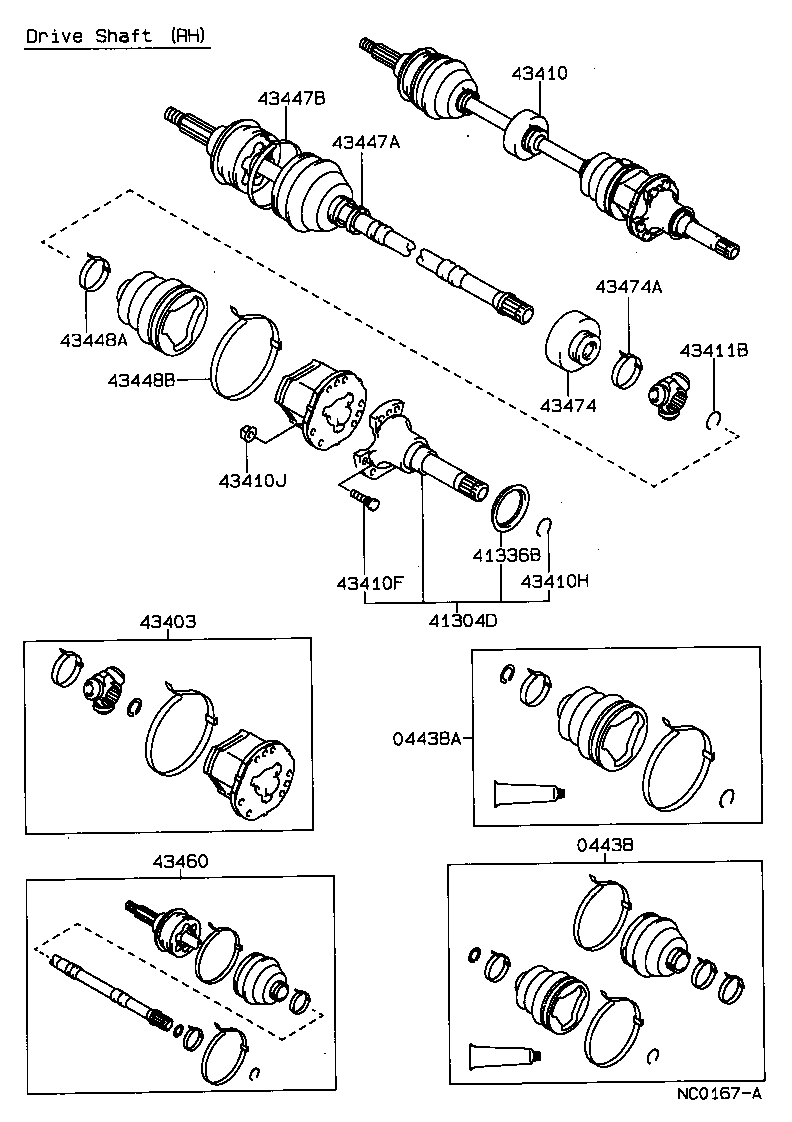

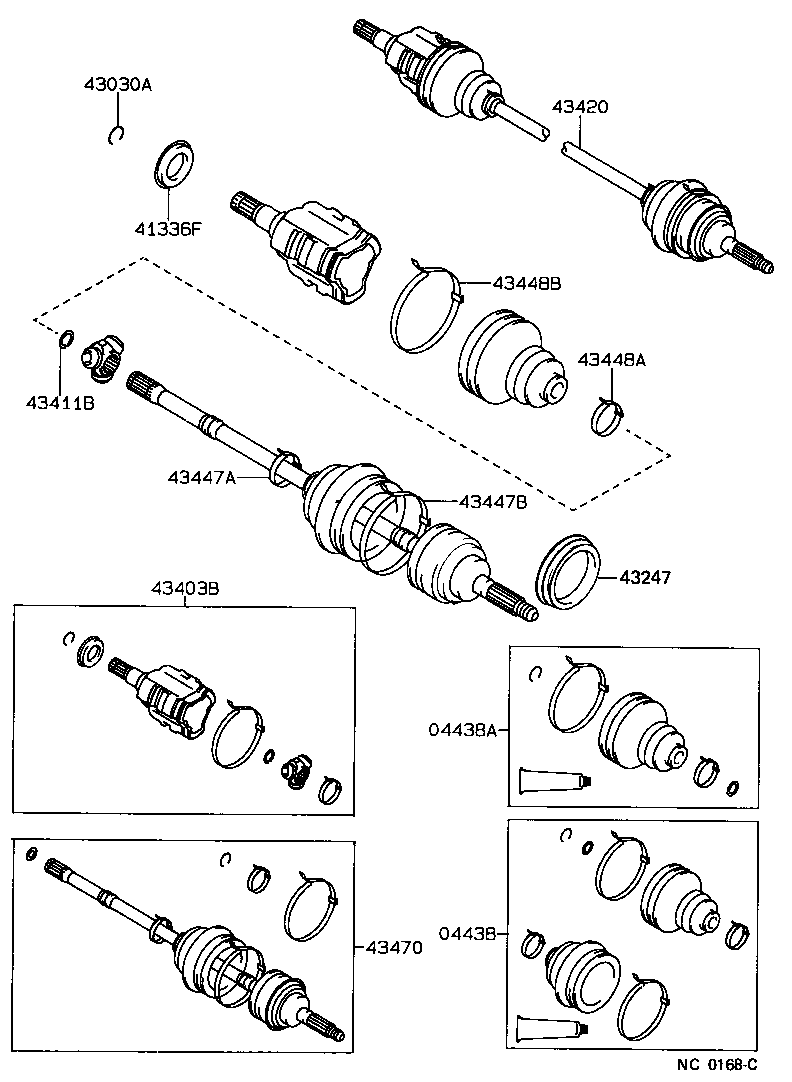

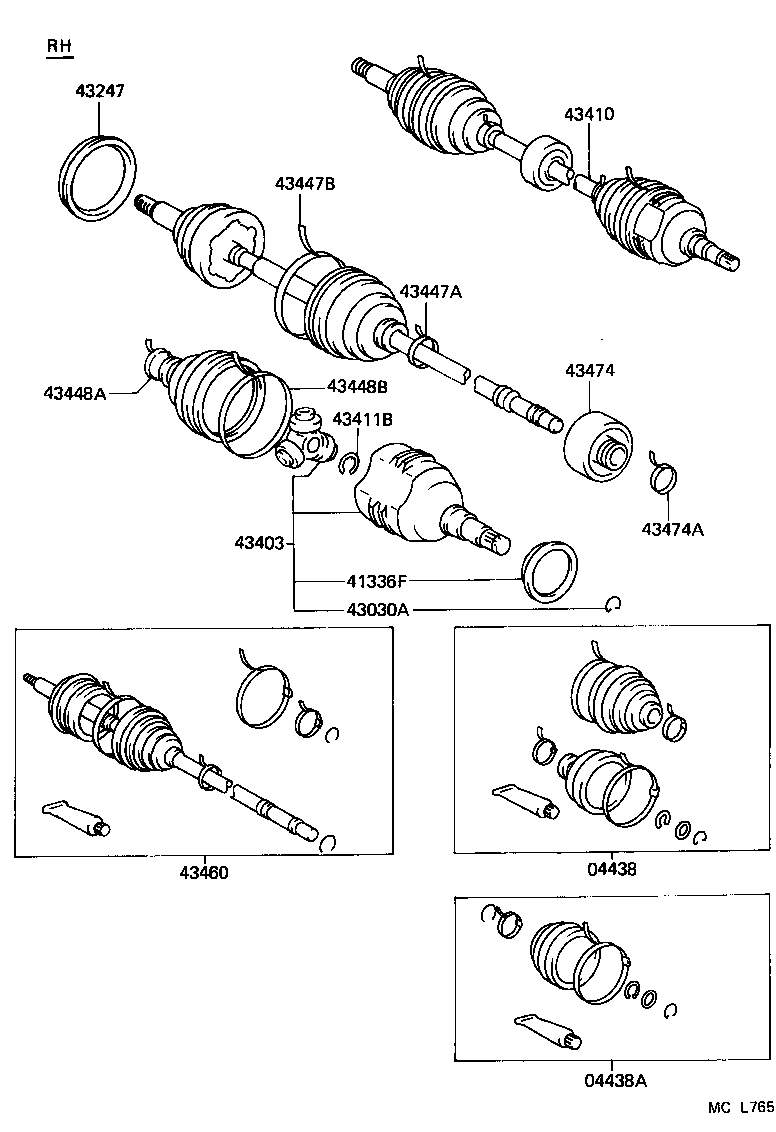

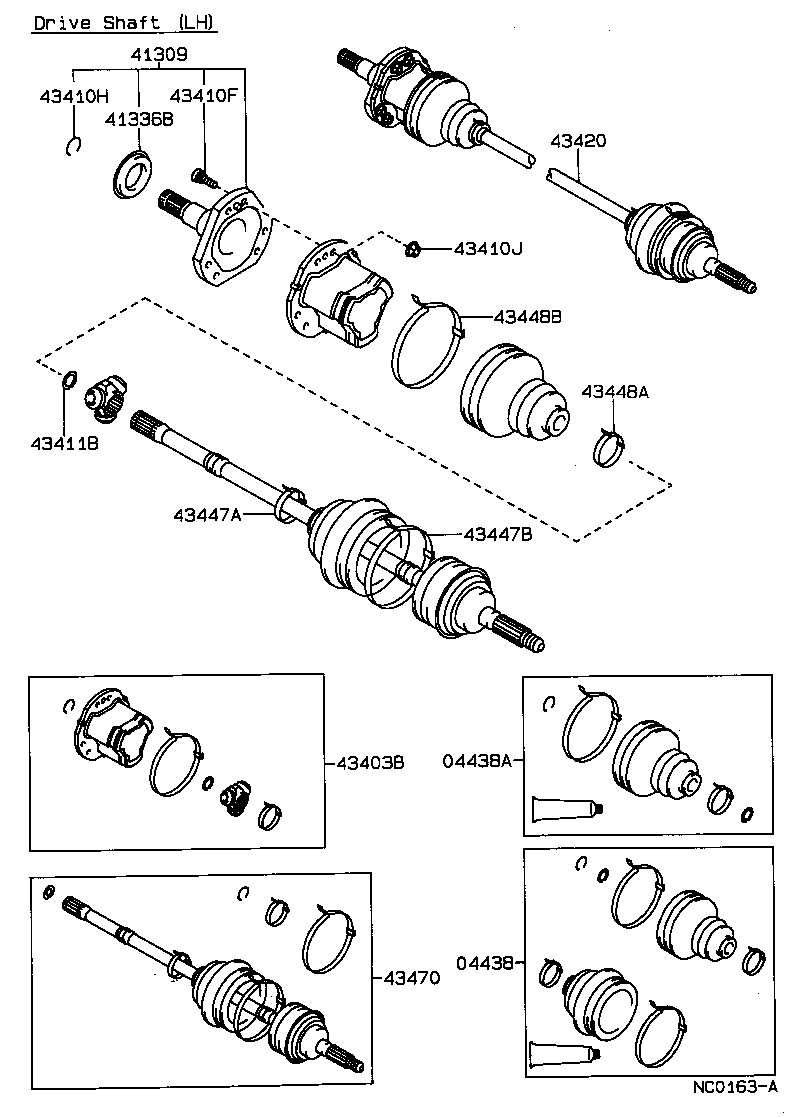

Figure MCH783 MCH783 1987-08 → 1987-09 Figure MCH783 MCH783 1987-09 → 1989-09 Figure NC0168C NC0168C 1987-08 → 1987-09 Figure NC0168C NC0168C 1987-09 → 1989-09 Figure NC0167A NC0167A 1987-08 → 1987-09 Figure NC0163A NC0163A 1987-08 → 1987-09 Figure MCL765 MCL765 1989-09 → — Figure MCM178 MCM178 1989-09 → —

Part groups

PNCDescription
04438 Boot Kit, Front Drive Shaft
04438A Boot Kit, Front Drive Shaft Inboard Joint
41304D Shaft Sub-assy, Differential Side Gear, RH
41309 Shaft Sub-assy, Differential Side Gear, LH
41336B Cover, Dust(FOR FRONT DRIVE SHAFT)
41336F Cover, Dust(FOR FRONT AXLE INBOARD JOINT SET)
43030A Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT)
43247 Deflector, Front Wheel Bearing Dust, NO.2
43403 Joint Set, Front Axle Inboard, RH
43403B Joint Set, Front Axle Inboard, LH
43410 Shaft Assy, Front Drive, RH
43410F Bolt, Serration (FOR FRONT DRIVE SHAFT)
43410H Ring, Hole Snap (FOR FRONT DRIVE SHAFT)
43410J Nut (FOR FRONT DRIVE SHAFT)
43411B Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER)
43420 Shaft Assy, Front Drive, LH
43447A Clamp, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43447B Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43448A Clamp, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43448B Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43460 Shaft Assy, Front Drive Outboard Joint, RH
43470 Shaft Assy, Front Drive Outboard Joint, LH
43474 Damper, Drive Shaft
43474A Clamp (FOR DRIVE SHAFT DAMPER SETTING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
