Toyota Corolla CP

1987-08 → 1991-06 · chassis AE92 · catalogue 153420 · Europe

Discontinued model Data version 1992-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

14 part groups · 4 illustrations

Illustrations

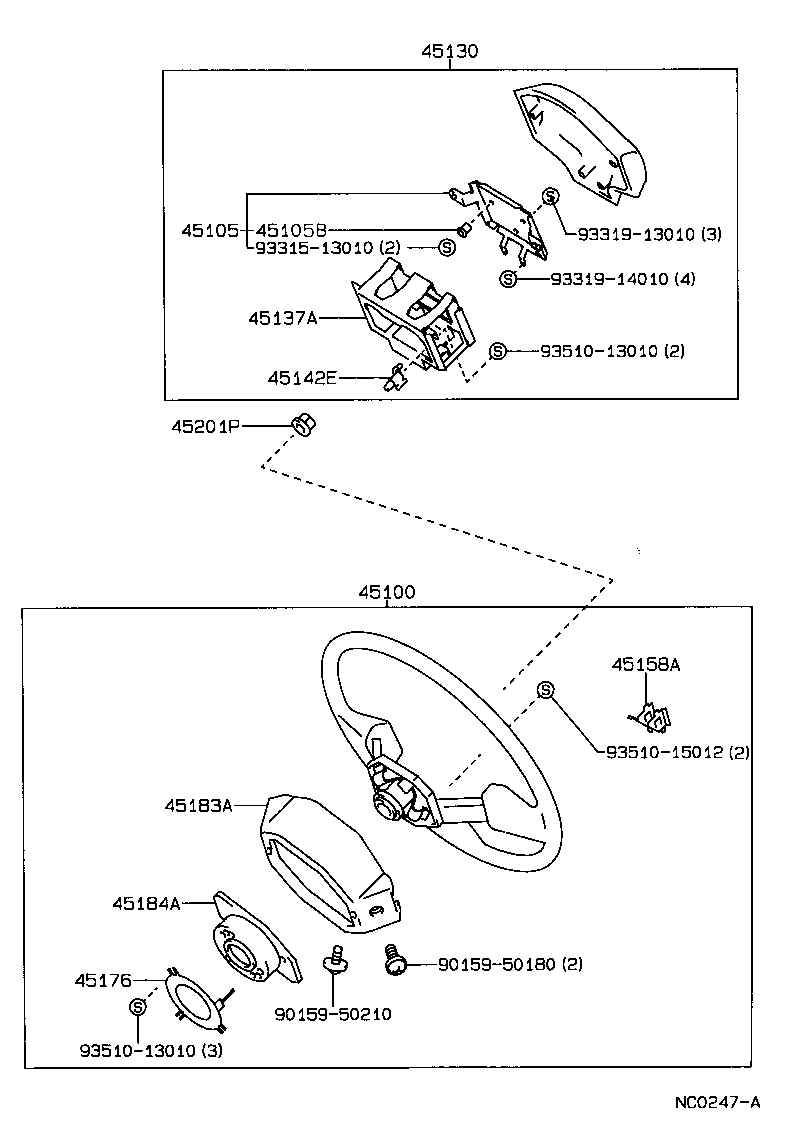

Figure NC0246A NC0246A 1987-08 → — Figure NC0247A NC0247A 1987-08 → — Figure NC0049A NC0049A 1987-08 → — Figure NC0050A NC0050A 1987-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45124 Ornament, Steering Wheel Mark
45130 Button Assy, Horn
45137A Plate, Horn Button Contact, NO.2
45142E Piece, Horn Contact
45158A Socket, Horn Button Joint
45159 Retainer, Steering Wheel Pad Set
45176 Ring, Horn Contact
45180 Cover Sub-assy, Steering Wheel
45183A Cover, Steering Wheel Boss, Lower NO.1
45184A Cover, Steering Wheel Boss, Lower NO.2
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
