Toyota Corolla CP

1987-08 → 1991-06 · chassis AE92 · catalogue 153420 · Europe

Discontinued model Data version 1992-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

26 part groups · 2 illustrations

Illustrations

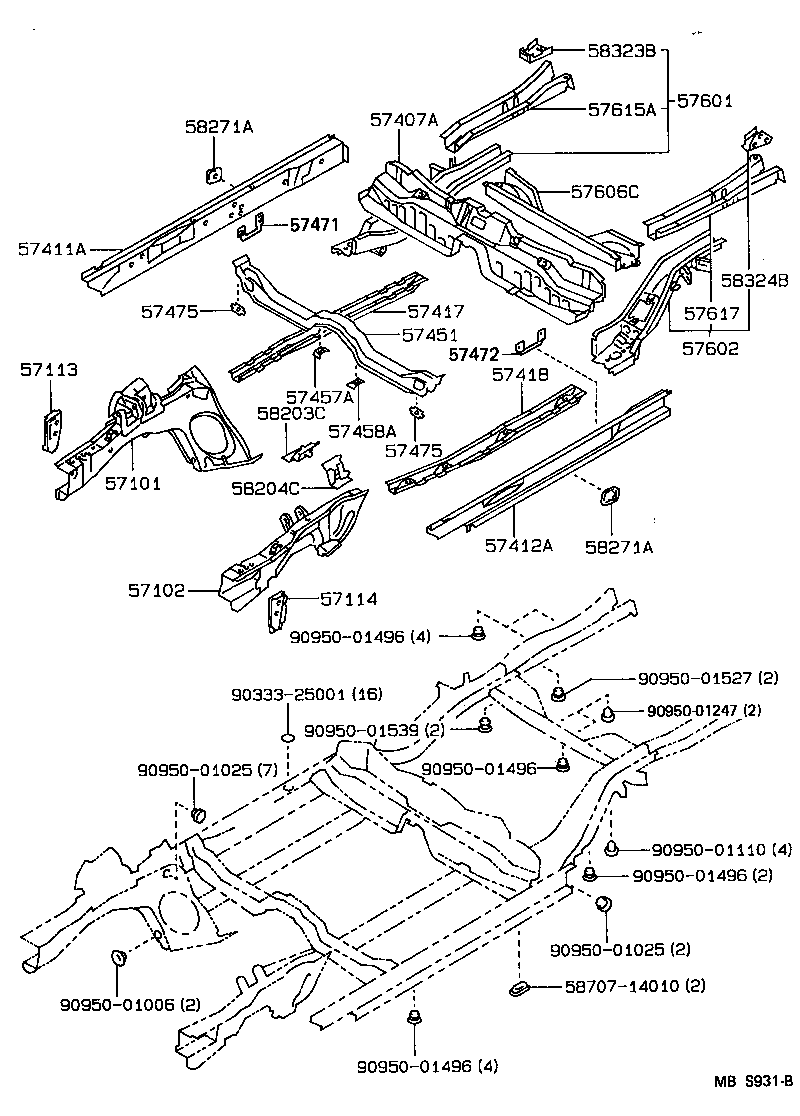

Figure NB0425 NB0425 1987-08 → 1989-08 Figure MBS931B MBS931B 1989-08 → —

Part groups

PNCDescription
57101 Member Sub-assy, Front Side, RH
57102 Member Sub-assy, Front Side, LH
57113 Extension, Front Side Member, RH
57114 Extension, Front Side Member, LH
57407A Member Sub-assy, Center Floor Cross
57411A Member, Floor Side, Inner RH
57412A Member, Floor Side, Inner LH
57417 Reinforcement, Front Floor Under, RH
57418 Reinforcement, Front Floor Under, LH
57451 Member, Front Floor Cross
57457A Plate, Front Floor Crossmember, NO.2 RH
57458A Plate, Front Floor Crossmember, NO.2 LH
57471 Reinforcement, Seat Belt Anchor TO Floor Member, RH
57472 Reinforcement, Seat Belt Anchor TO Floor Member, LH
57475 Plate, Front Floor Crossmember
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57606C Member Sub-assy, Rear Floor Cross, NO.2
57615A Member, Rear Floor Side, Rear RH
57617 Member, Rear Floor Side, Rear LH
58169C Patch, Front Floor Rear
58203C Bracket Sub-assy, Exhaust Pipe Mounting
58204C Bracket Sub-assy, Exhaust Pipe Mounting, LH
58271A Reinforcement, Belt Anchor TO Floor Pan, NO.3
58323B Reinforce, Rear Bumper Arm Support, RH
58324B Reinforce, Rear Bumper Arm Support, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
