Toyota Corolla CP
1987-08 → 1991-06 · chassis AE92 · catalogue 153420 · Europe
Discontinued model
Data version 1992-12

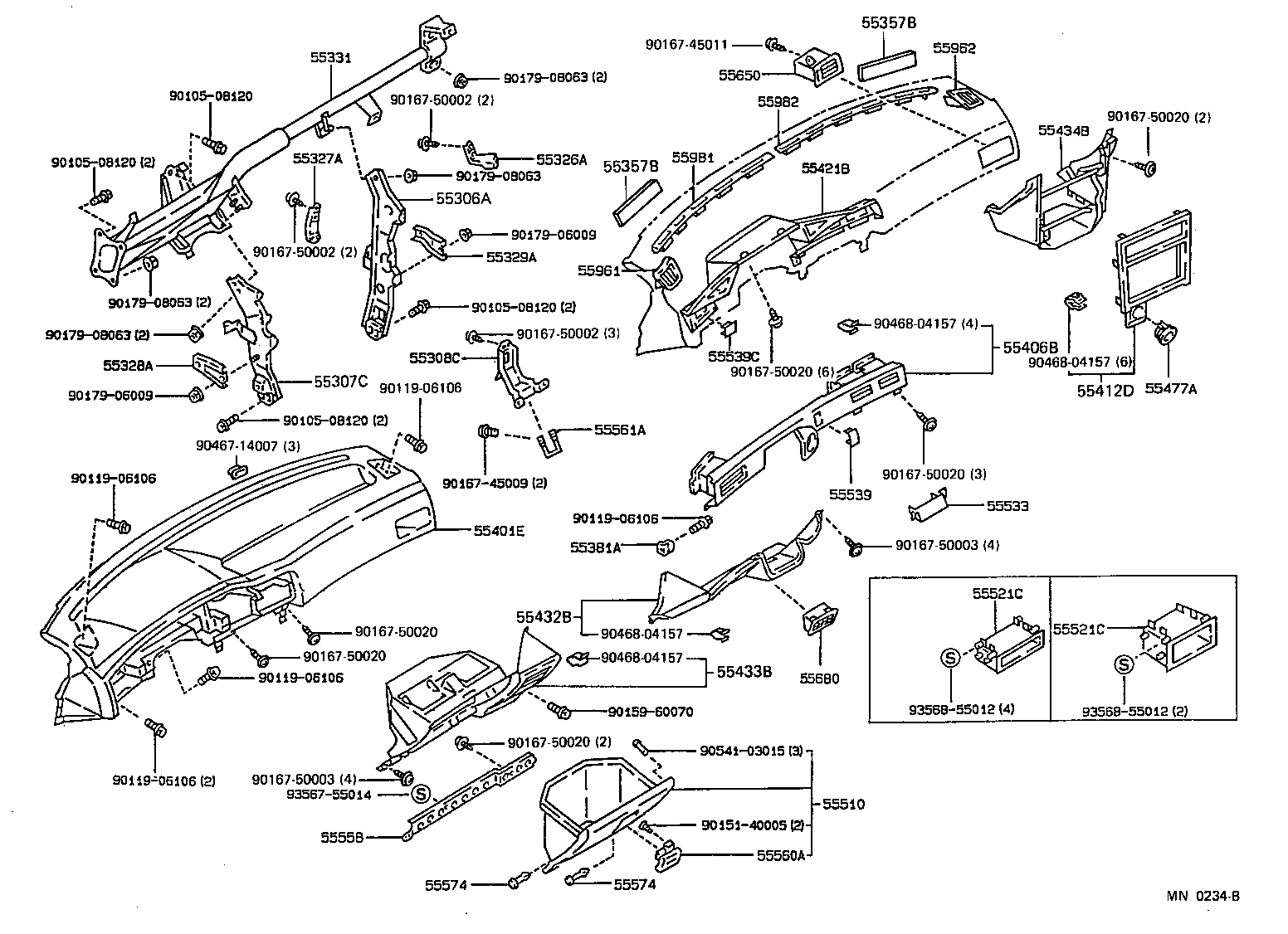

Instrument Panel & Glove Compartment
47 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55318B | Extension, Instrument Panel |
| 55326A | Stay, Instrument Panel, NO.1 |
| 55327A | Stay, Instrument Panel, NO.2 |
| 55328A | Stay, Instrument Panel, NO.3 |
| 55329A | Bracket, Instrument Panel Meter |
| 55331 | Reinforcement, Instrument Panel |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55374A | Bracket, Instrument Panel Lower Mounting, RH |
| 55375A | Bracket, Instrument Panel Lower Mounting, LH |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55381A | Bracket, Finish Panel Mounting |
| 55385B | Bracket, Finish Panel Mounting, NO.5 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55421B | Panel, Instrument Cluster Finish, Upper |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55443A | Cover, Instrument Panel Box Door |
| 55444A | Spring, Instrument Panel Box |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55510 | Door Assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55533 | Cover, Auto Clock Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55556 | Arm, Glove Compartment Door Check |
| 55558 | Reinforcement, Glove Compartment Door |
| 55560A | Lock Assy, Glove Compartment Door |
| 55561A | Striker, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55581A | Compartment, Glove |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55604A | Holder Sub-assy, Instrument Panel Cup |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55680 | Register Assy, Instrument Panel, Lower NO.1 |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 55982 | Garnish, Defroster Nozzle, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
