Toyota Corolla CP
1987-08 → 1991-06 · chassis AE92 · catalogue 153420 · Europe
Discontinued model
Data version 1992-12
Fuel Tank & Tube

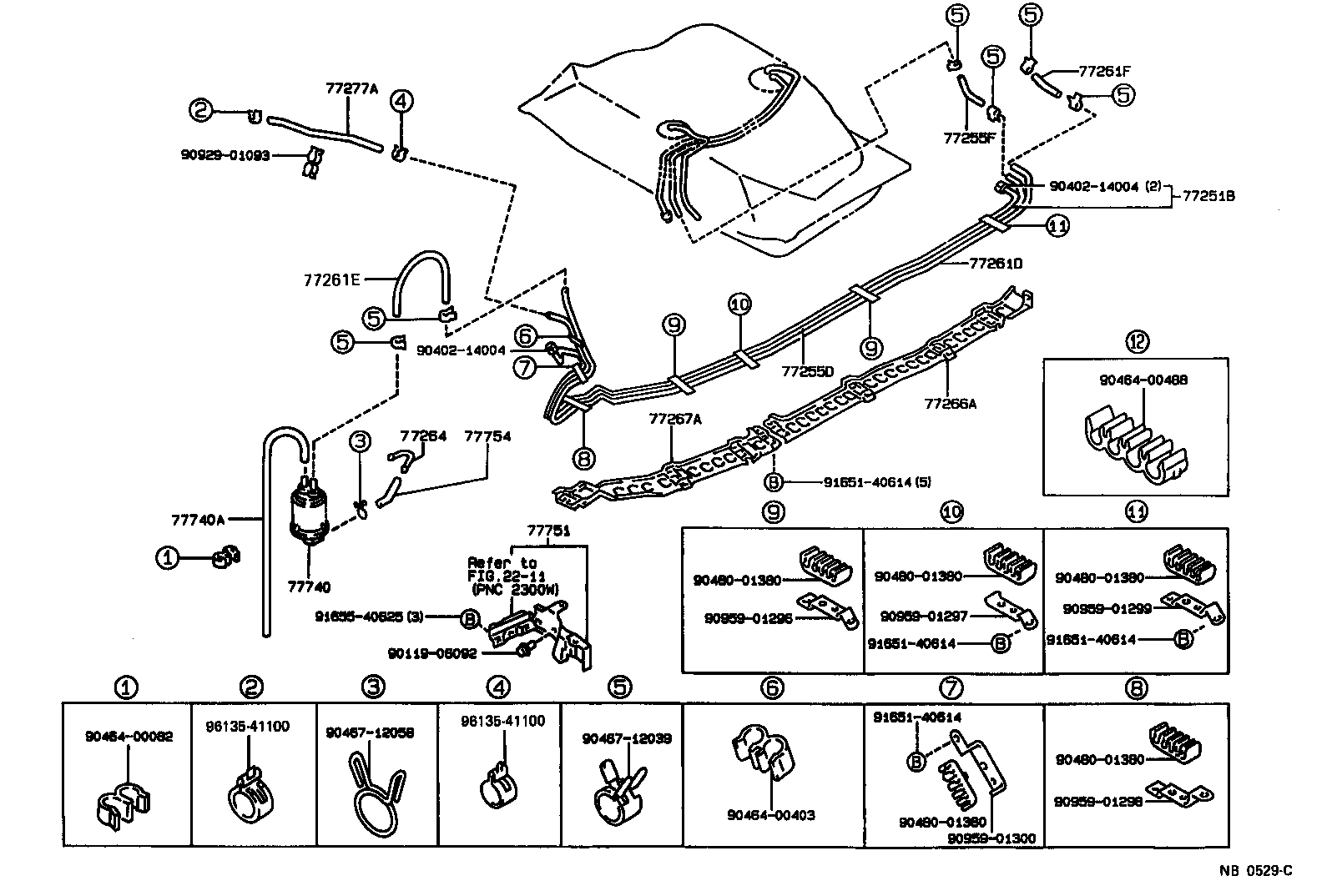

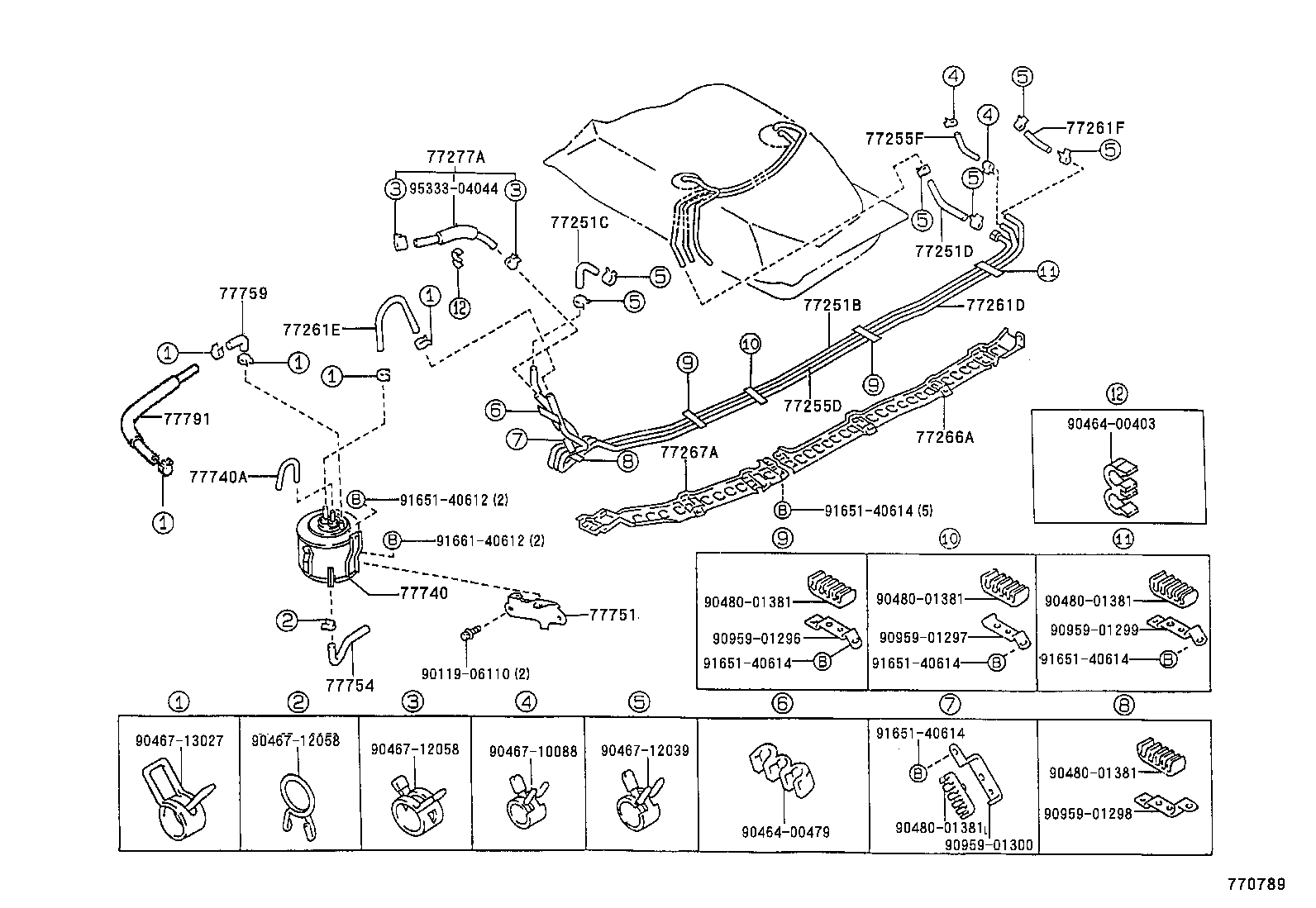

55 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77012A | Tube Sub-assy, Fuel Tank Breather, NO.1 |
| 77017 | Tube Sub-assy, Fuel And Evaporation Vent |
| 77017A | Gasket, Fuel Tank Vent |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201A | Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE) |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77218A | Support, Fuel Tank Filler Pipe, NO.3 |
| 77251B | Tube, Fuel Main |
| 77251C | Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) |
| 77251D | Hose, Fuel, NO.2(FOR FUEL MAIN TUBE) |
| 77255D | Tube, Fuel Return |
| 77255F | Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) |
| 77261D | Tube, Fuel Tank TO Canister |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77261F | Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE) |
| 77264 | Tube, Canister TO Front Side Member |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77267A | Protector, Fuel Tube, NO.2 |
| 77276 | Protector, Fuel Hose |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77293A | Shield, Fuel Tank Filler Pipe, NO.3 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77391 | Ring, Fuel Inlet Box |
| 77601B | Band Sub-assy, Fuel Tank, NO.1 RH |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77614 | Seat, Fuel Tank Band |
| 77642A | Protector, Fuel Tank, NO.2 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77653A | Cushion, Fuel Tank, NO.3 |
| 77654 | Cushion, Fuel Tank, NO.2 |
| 77656A | Cushion, Fuel Tank, NO.4 |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77751 | Bracket, Charcoal Canister Base |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77759 | Hose, Charcoal Canister |
| 77791 | Hose, Outer Vent Valve TO Carburetor |
PNC is the six-character part-group number the factory catalogue files
