Toyota Corolla CP
1987-08 → 1991-06 · chassis AE92 · catalogue 153420 · Europe
Discontinued model
Data version 1992-12

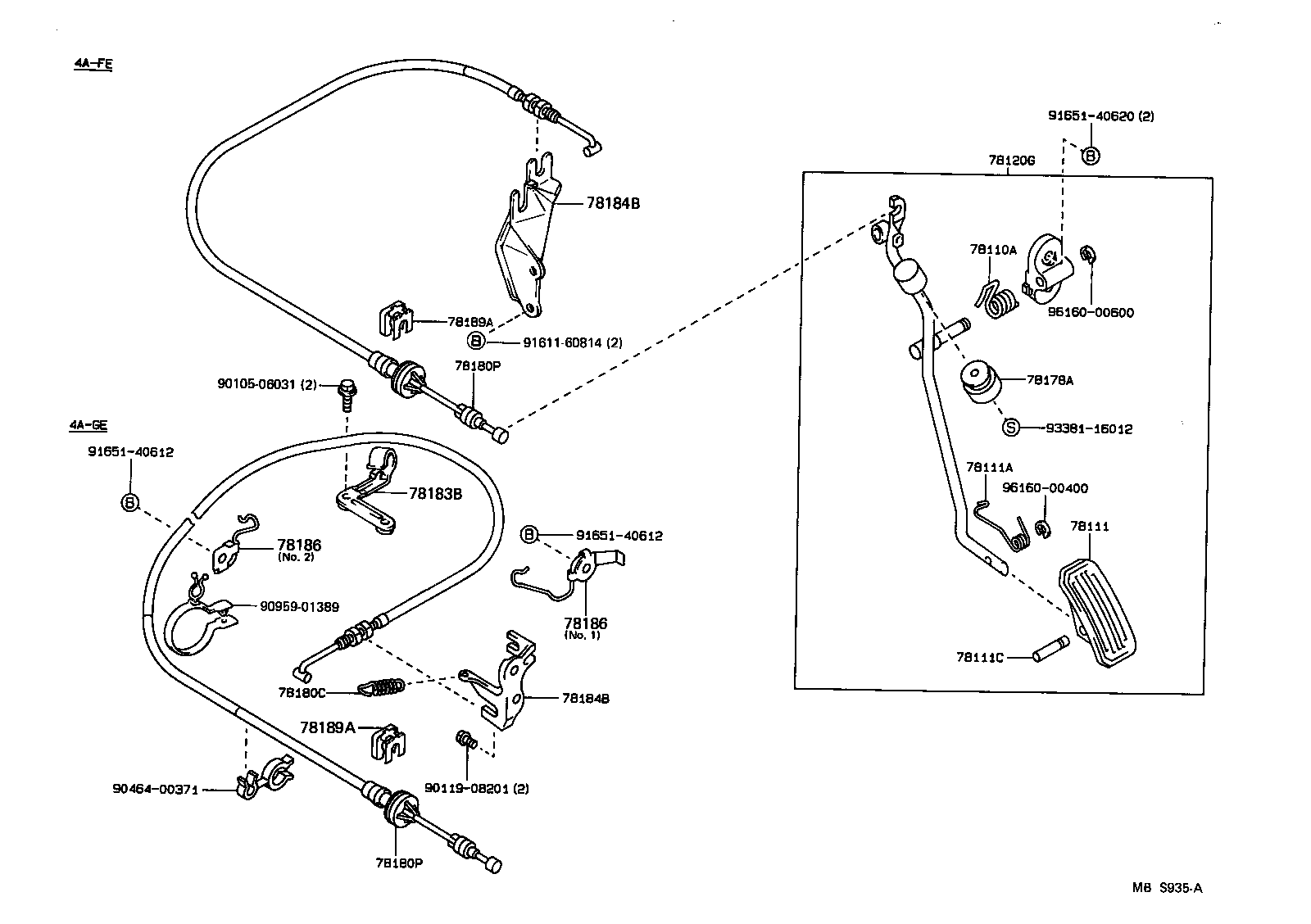

Accelerator Link
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 78110A | Spring (FOR ACCELERATOR PEDAL ROD) |
| 78111 | Pedal, Accelerator |
| 78111A | Spring (FOR ACCELERATOR PEDAL) |
| 78111C | Pin (FOR ACCELERATOR PEDAL) |
| 78120G | Rod Assy, Accelerator Pedal |
| 78178A | Damper, Accelrator Pedal Rod Dynamic |
| 78180C | Spring, Tension (FOR ACCELERATOR WIRE) |
| 78180P | Cable Assy, Accelerator Control |
| 78183B | Clamp, Accelerator Control Cable |
| 78184B | Bracket, Accelerator Control Cable |
| 78186 | Support, Accelerator Control Cable, NO.1 |
| 78189A | Support, Accelerator Control Cable, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
