Toyota Corolla CP

1987-08 → 1991-06 · chassis AE92 · catalogue 153420 · Europe

Discontinued model Data version 1992-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 10 illustrations

Illustrations

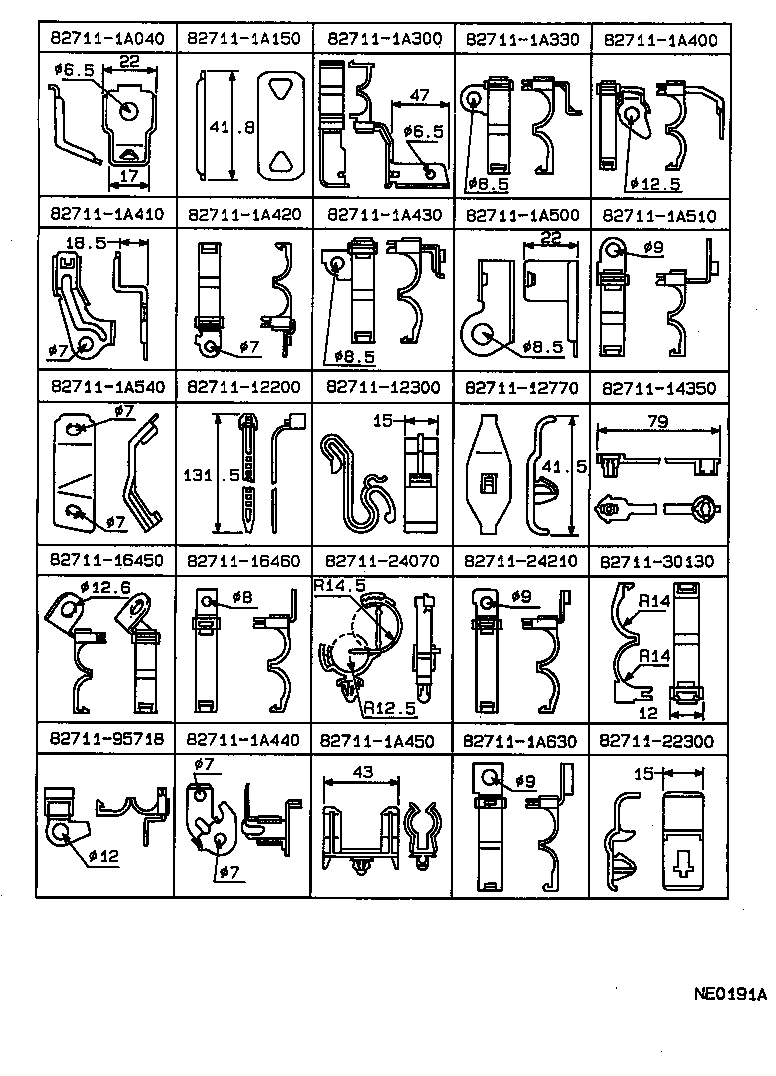

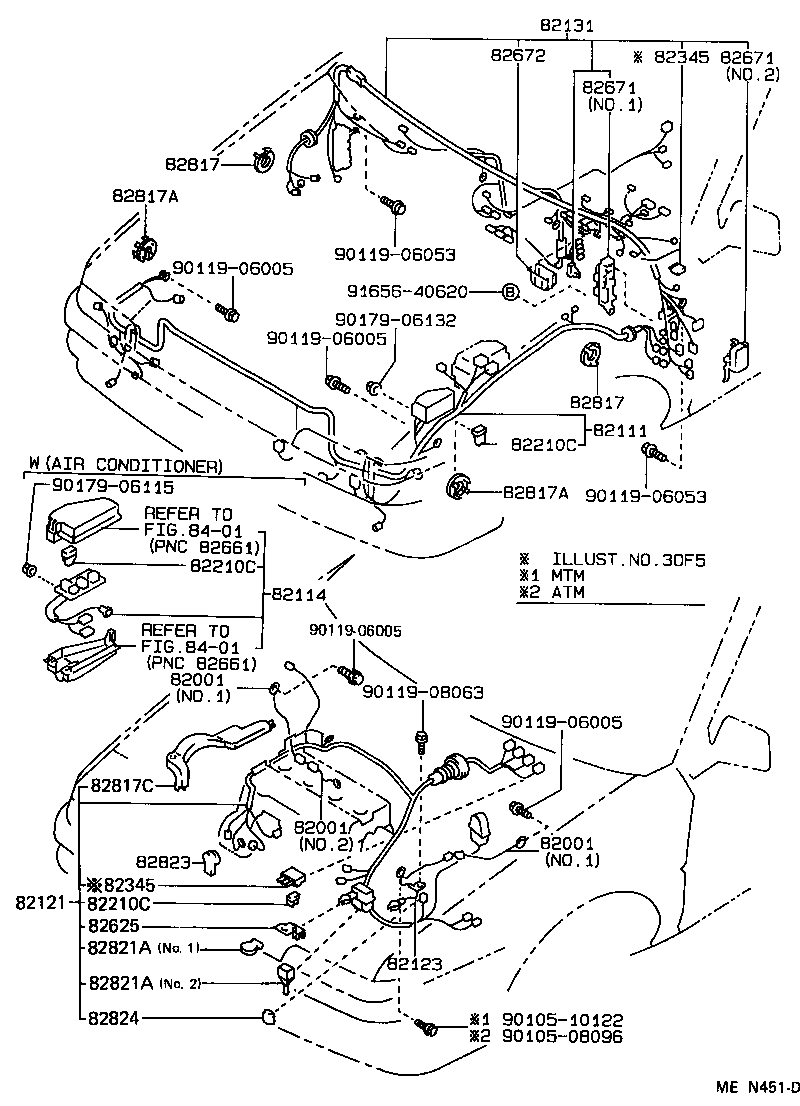

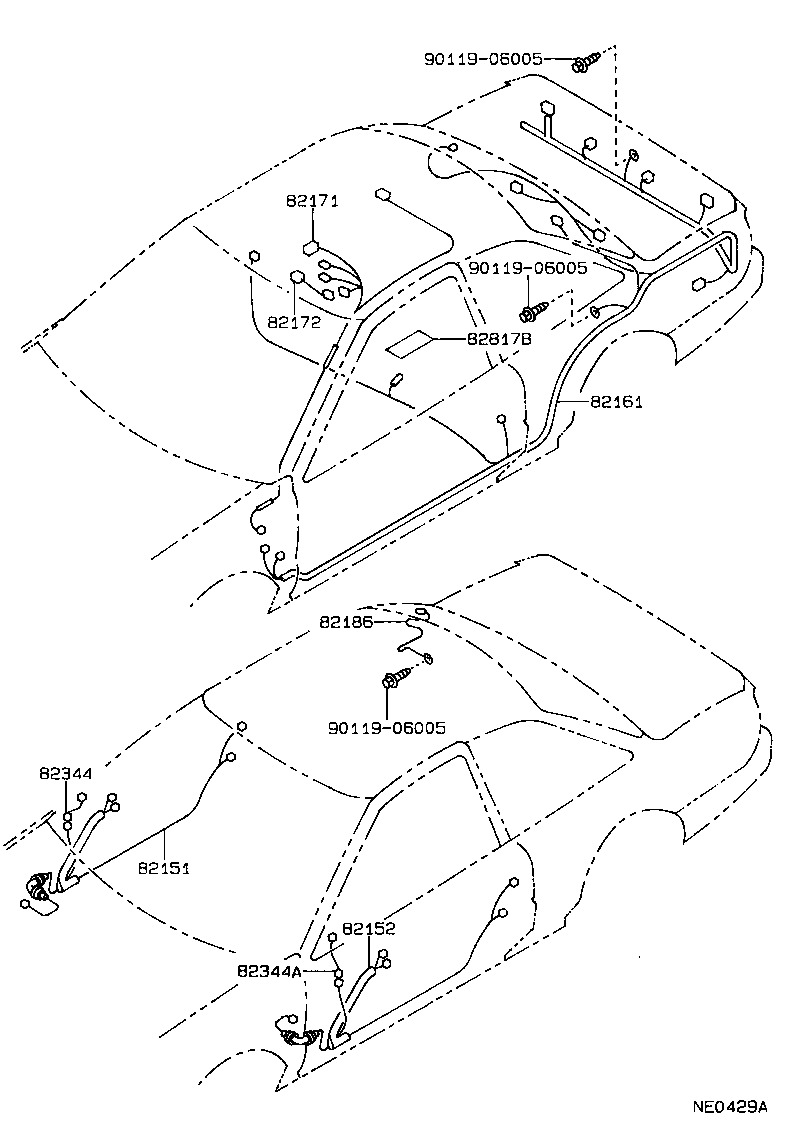

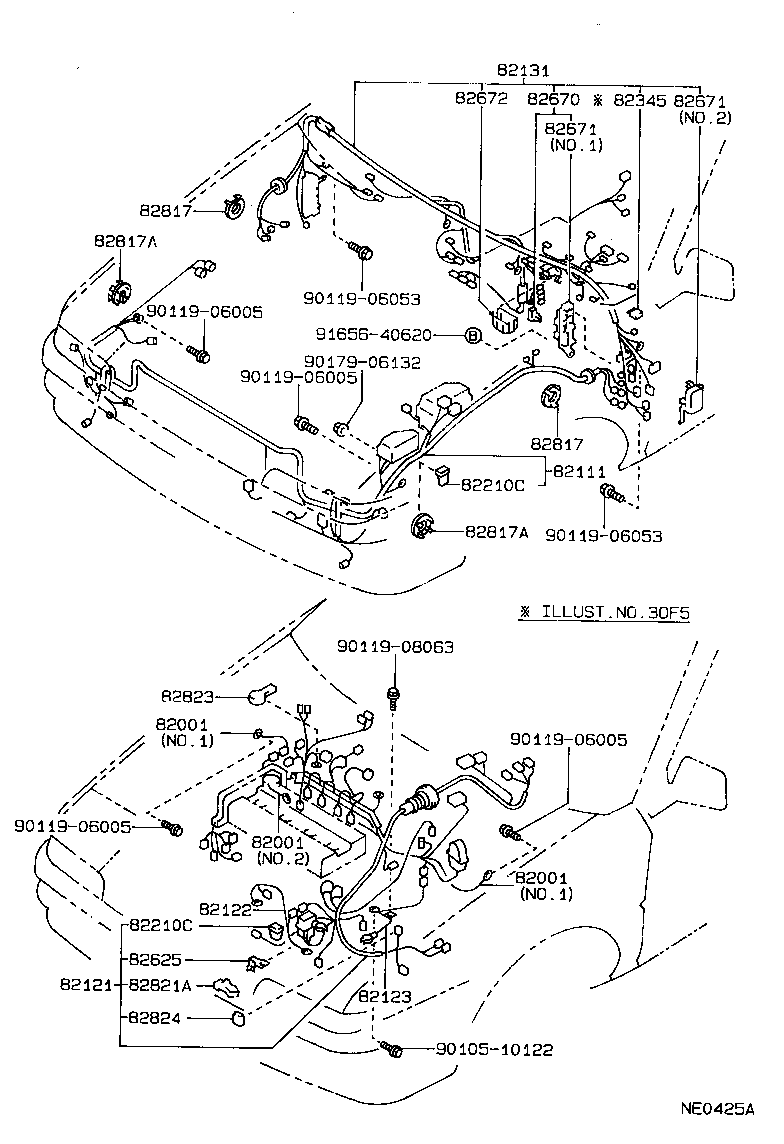

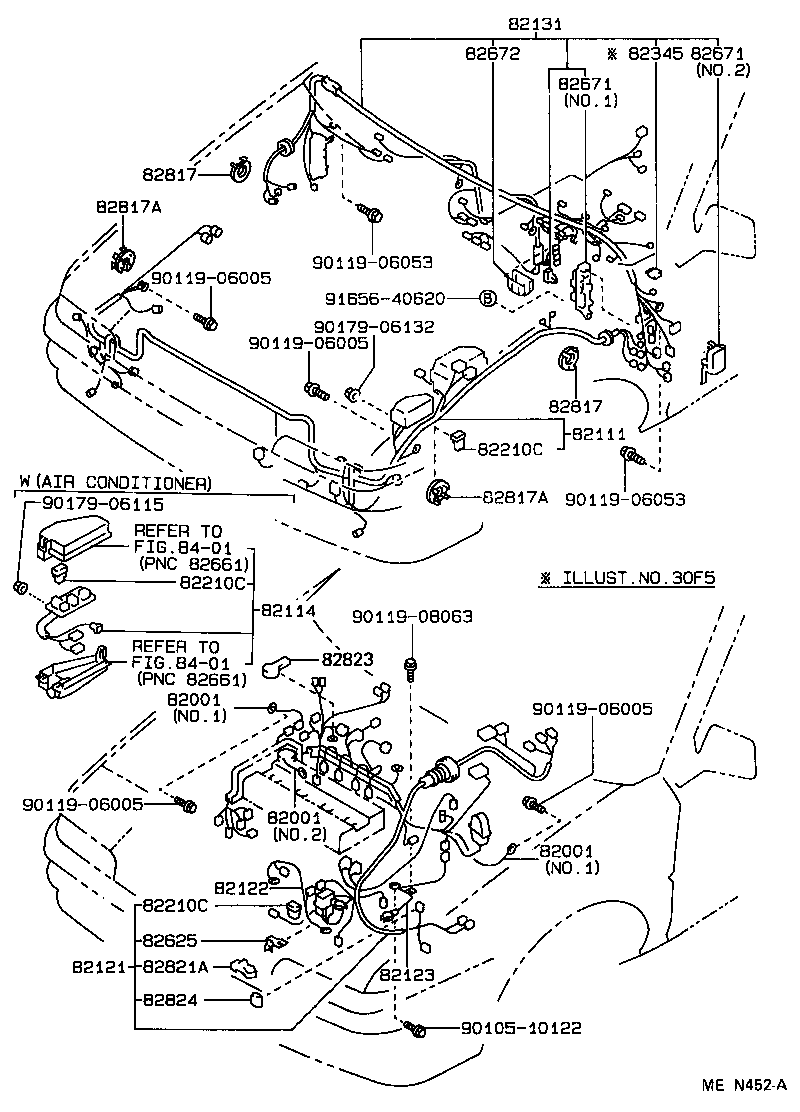

Figure NE0424B NE0424B 1987-08 → 1989-08 Figure MEN451D MEN451D 1989-08 → — Figure NE0425A NE0425A 1987-08 → 1989-08 Figure MEN452A MEN452A 1989-08 → — Figure NE0429A NE0429A 1987-08 → — Figure MEN450A MEN450A 1987-08 → — Figure MEP953 MEP953 1987-08 → — Figure MEP952 MEP952 1987-08 → — Figure NE0191A NE0191A 1987-08 → — Figure NE0851D NE0851D 1987-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82186 Wire, Rear Window, NO.1
82210C Fusible Link
82344 Wire, Mirror, RH
82344A Wire, Mirror, LH
82345 Diode
82625 Terminal, Fusible Link
82670 Block Assy, Junction, NO.1
82671 Block, Junction
82672 Cover, Junktion Block
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82821A Cover, Connector
82823 Cap, Terminal, NO.1
82824 Connector, Wiring Harness
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
