Toyota Corolla CP

1987-08 → 1991-06 · chassis AE92 · catalogue 153420 · Europe

Discontinued model Data version 1992-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

18 part groups · 3 illustrations

Illustrations

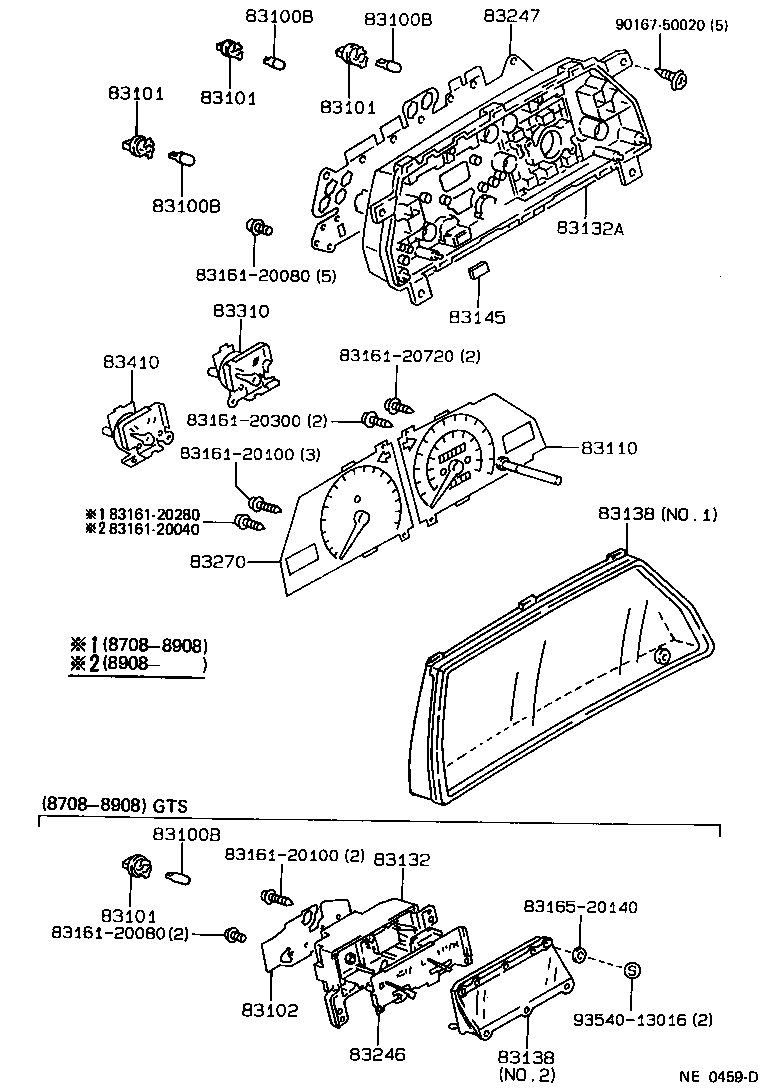

Figure NE0458G NE0458G 1987-08 → — Figure NE0459D NE0459D 1987-08 → — Figure NE0484A NE0484A 1987-08 → —

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83110 Speedometer Assy
83132 Case, Combination Meter
83132A Case, Meter
83138 Glass, Speedometer
83145 Lens, Meter, NO.1
83145A Lens, Meter, NO.2
83189 Bracket, Meter
83246 Gauge, Oil Pressure Receiver
83247 Plate, Meter Circuit
83270 Tachometer Assy, Engine
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83710A Cable Assy, Speedometer Drive, NO.2
83910 Clock Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
