Toyota Corolla CP
1987-08 → 1991-06 · chassis AE92 · catalogue 153420 · Europe
Discontinued model
Data version 1992-12
Cruise Control (AUTO DRIVE)

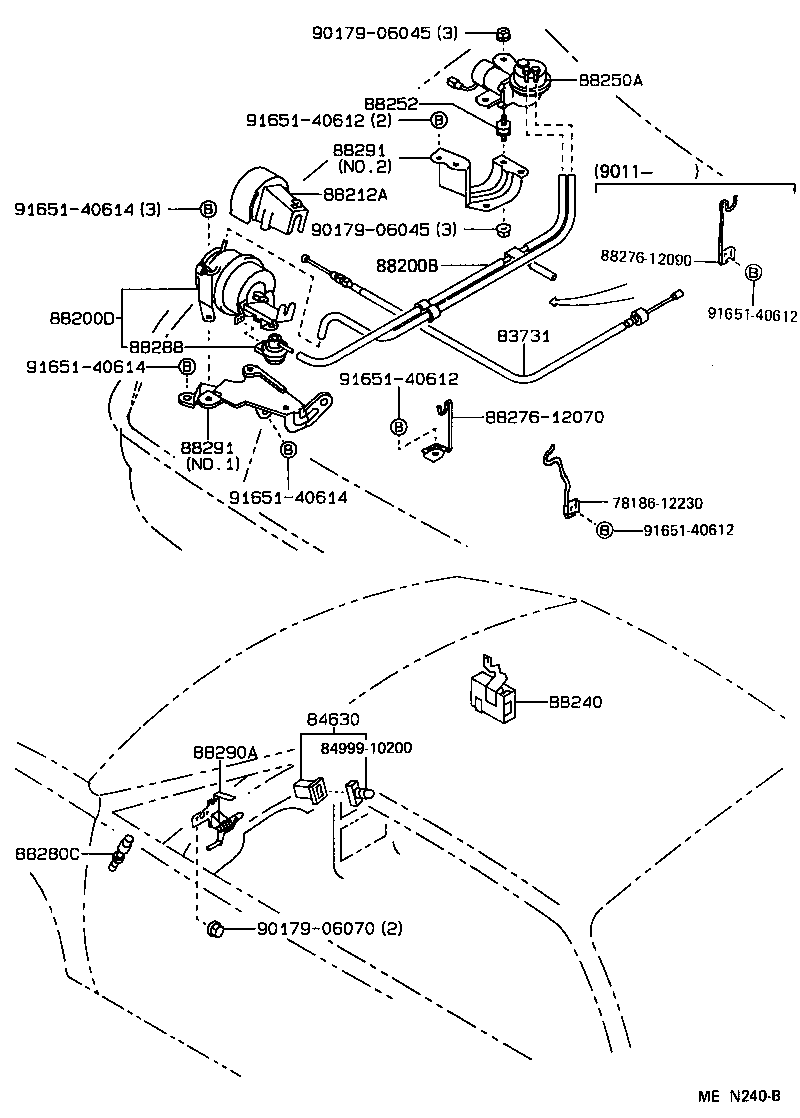

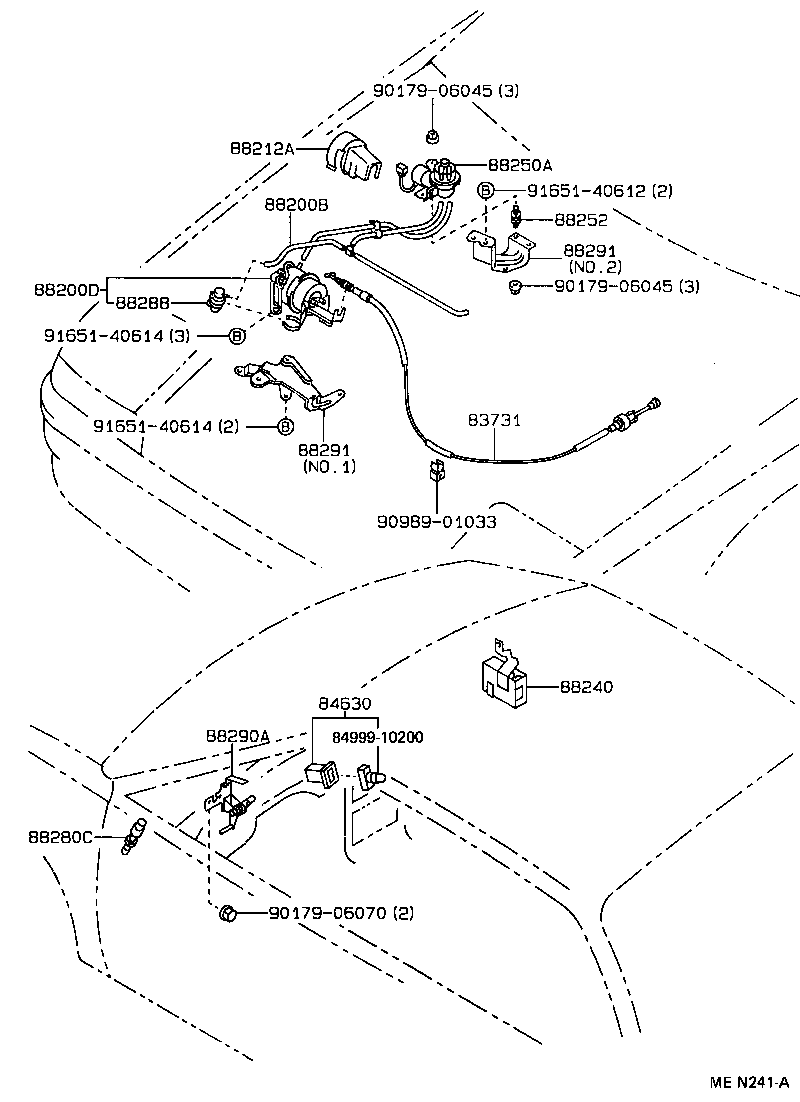

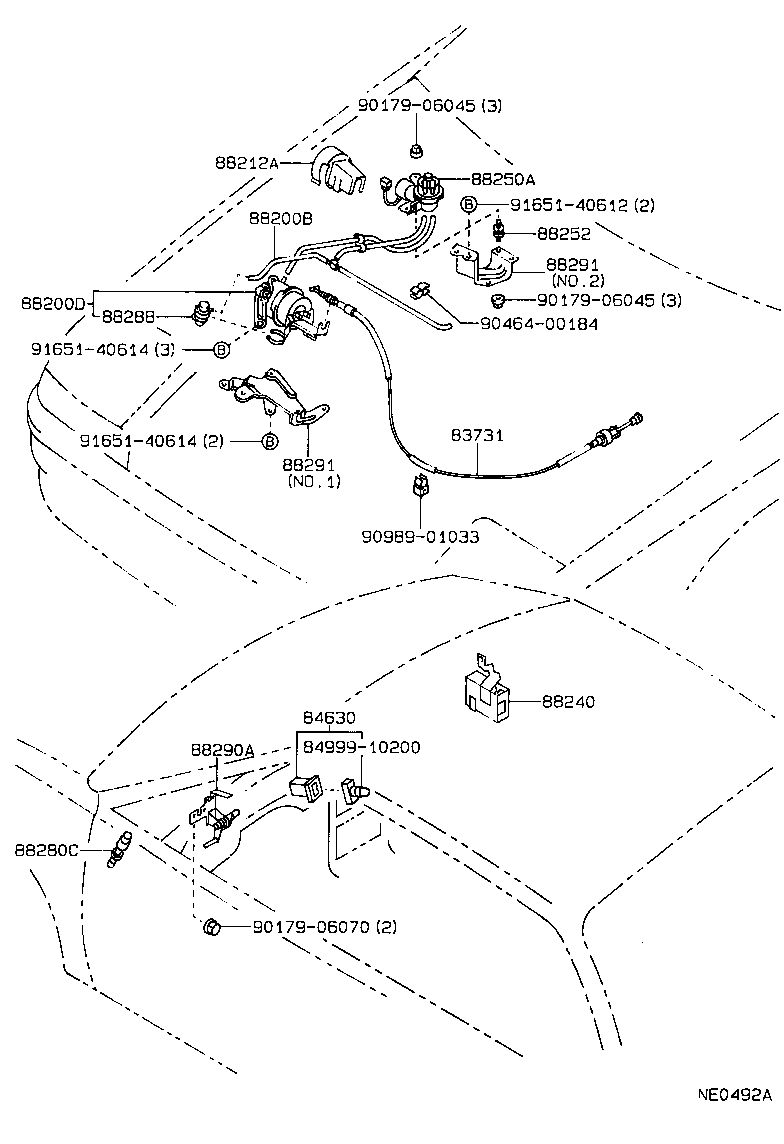

12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 83731 | Cable, Cruise Control |
| 84630 | Switch Assy, Cruise Control Main |
| 88200B | Hose, Cruise Control Vacuum |
| 88200D | Actuator Assy, Cruise Control |
| 88212A | Cover, Cruise Control Actuator |
| 88240 | Computer Assy, Cruise Control |
| 88250A | Pump Assy, Cruise Control |
| 88252 | Cushion, Vacuum Pump |
| 88280C | Switch Assy, Clutch |
| 88288 | Switch, Vacuum Speed Control |
| 88290A | Bellcrank Assy, Cruise Control |
| 88291 | Bracket, Cruise Control(AUTO DRIVE), NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
