Toyota Corolla HB
1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe
Discontinued model
Data version 1993-01

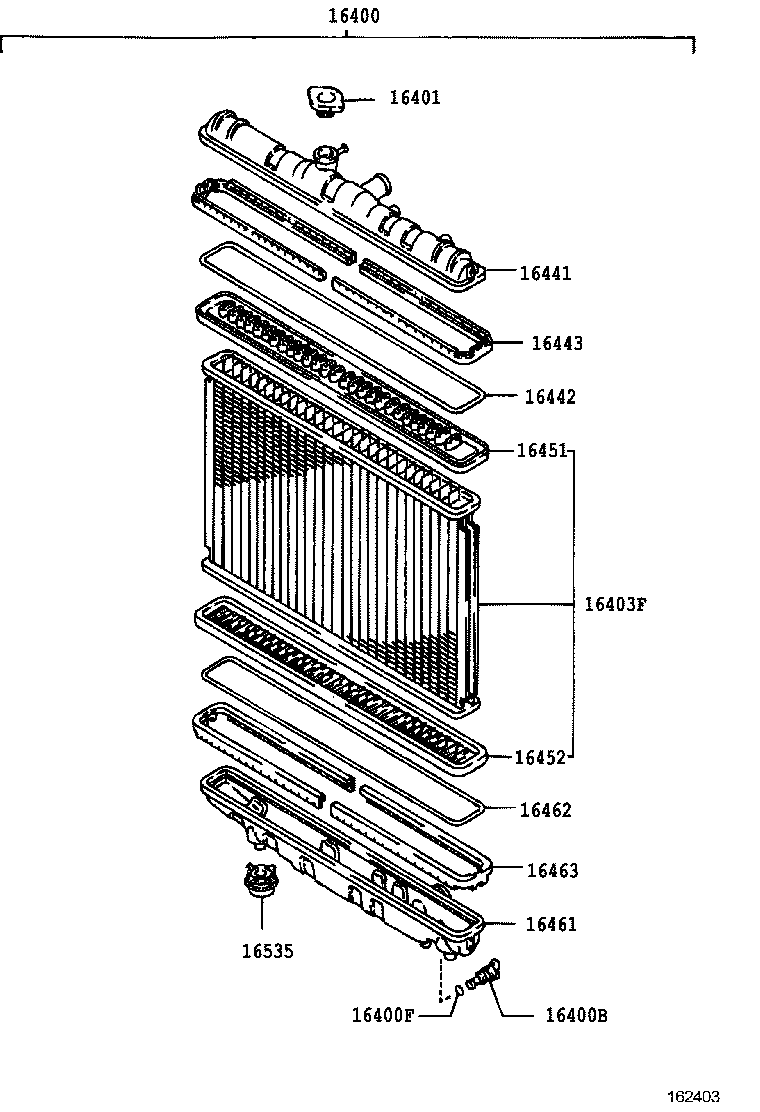

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16400 — Radiator Assy | ||||
| 16400-11170 |
Radiator Assy
1987-05 → 1992-06
ended
|
2E# EE90 MTM | — | |
| 16400-11180 |
Radiator Assy
1987-05 → 1992-06
ended
|
2E# EE90 3FC | — | |
| 16400-15370 note |
Radiator Assy
1987-05 → 1987-08
ended
|
2E EE90 LHD MTM | — | |
| 16400-15370 note |
Radiator Assy
1987-05 → 1987-08
ended
|
4AF AE92 | — | |
| 16400-15371 note |
Radiator Assy
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16400-15371 note |
Radiator Assy
1987-08 → 1992-06
ended
|
4AF AE92 | — | |
| 16400-15371 note |
Radiator Assy
1987-08 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16400-16130 |
Radiator Assy
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 16400-16150 |
Radiator Assy
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 16400-16200 note |
Radiator Assy
1987-05 → 1992-06
ended
|
2E EE90 LHD 3FC | — | |
| 16400-64430 |
Radiator Assy
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 16400B — Plug, Radiator Drain Cock | ||||
| 16417-15210 note |
Plug, Radiator Drain Cock
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16417-15210 note |
Plug, Radiator Drain Cock
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16417-15210 note |
Plug, Radiator Drain Cock
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 23322-54010 note |
Plug, Radiator Drain Cock
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 23322-54010 note |
Plug, Radiator Drain Cock
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 23322-54010 note |
Plug, Radiator Drain Cock
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 23322-54010 |
Plug, Radiator Drain Cock
1987-05 → 1992-11
ended
|
1C CE90 | — | |
| 23322-54010 |
Plug, Radiator Drain Cock
1987-05 → 1992-11
ended
|
2E# EE90 | — | |
| 23322-54010 |
Plug, Radiator Drain Cock
1987-05 → 1992-11
ended
|
4AF#,4AGE AE92 | — | |
| 16400F — Packing(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 note |
Packing(FOR RADIATOR DRAIN COCK)
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16418-24200 note |
Packing(FOR RADIATOR DRAIN COCK)
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16418-24200 note |
Packing(FOR RADIATOR DRAIN COCK)
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 96711-19007 note |
Packing(FOR RADIATOR DRAIN COCK)
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 96711-19007 note |
Packing(FOR RADIATOR DRAIN COCK)
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 96711-19007 note |
Packing(FOR RADIATOR DRAIN COCK)
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 96711-19007 |
Packing(FOR RADIATOR DRAIN COCK)
1987-05 → 1992-11
ended
|
1C CE90 | — | |
| 96711-19007 |
Packing(FOR RADIATOR DRAIN COCK)
1987-05 → 1992-11
ended
|
2E# EE90 | — | |
| 96711-19007 |
Packing(FOR RADIATOR DRAIN COCK)
1987-05 → 1992-11
ended
|
4AF#,4AGE AE92 | — | |
| 16401 — Cap Sub-assy, Radiator | ||||
| 16401-15210 note |
Cap Sub-assy, Radiator
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 16401-15210 note |
Cap Sub-assy, Radiator
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16401-15210 note |
Cap Sub-assy, Radiator
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16401-63010 note |
Cap Sub-assy, Radiator
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16401-63010 note |
Cap Sub-assy, Radiator
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 16401-63010 note |
Cap Sub-assy, Radiator
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16401-63010 |
Cap Sub-assy, Radiator
1987-05 → 1992-11
ended
|
1C CE90 | — | |
| 16401-63010 |
Cap Sub-assy, Radiator
1987-05 → 1992-11
ended
|
2E# EE90 | — | |
| 16401-63010 |
Cap Sub-assy, Radiator
1987-05 → 1992-11
ended
|
4AF#,4AGE AE92 | — | |
| 16403F — Core Sub-assy, Radiator | ||||
| 16403-11010 |
Core Sub-assy, Radiator
1987-05 → 1992-06
ended
|
2E# EE90 MTM | — | |
| 16403-11030 note |
Core Sub-assy, Radiator
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 16403-11030 note |
Core Sub-assy, Radiator
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16403-11030 note |
Core Sub-assy, Radiator
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16403-14030 |
Core Sub-assy, Radiator
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 16403-15231 |
Core Sub-assy, Radiator
1987-05 → 1992-06
ended
|
2E# EE90 3FC | — | |
| 16403-15370 note |
Core Sub-assy, Radiator
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16403-15370 note |
Core Sub-assy, Radiator
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16403-15370 note |
Core Sub-assy, Radiator
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 16403-74120 |
Core Sub-assy, Radiator
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 16403-74130 note |
Core Sub-assy, Radiator
1987-05 → 1992-06
ended
|
2E EE90 LHD 3FC | — | |
| 16403-74170 |
Core Sub-assy, Radiator
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 16441 — Tank, Radiator, Upper | ||||
| 16441-11180 |
Tank, Radiator, Upper
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 16441-11180 |
Tank, Radiator, Upper
1987-05 → 1992-06
ended
|
2E# EE90 | — | |
| 16441-15370 note |
Tank, Radiator, Upper
1987-05 → 1987-08
ended
|
4AF AE92 | — | |
| 16441-15370 note |
Tank, Radiator, Upper
1987-05 → 1987-08
ended
|
2E EE90 LHD MTM | — | |
| 16441-15371 note |
Tank, Radiator, Upper
1989-08 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16441-15371 note |
Tank, Radiator, Upper
1987-08 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16441-15371 note |
Tank, Radiator, Upper
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16441-15371 note |
Tank, Radiator, Upper
1987-08 → 1992-06
ended
|
4AF AE92 | — | |
| 16441-16140 |
Tank, Radiator, Upper
1989-08 → 1992-11
ended
|
4AGE AE92 LHD | — | |
| 16441-16140 |
Tank, Radiator, Upper
1989-08 → 1992-05
ended
|
4AGE AE92 RHD | — | |
| 16441-16140 |
Tank, Radiator, Upper
1987-05 → 1989-08
ended
|
4AGE AE92 | — | |
| 16441-16200 note |
Tank, Radiator, Upper
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 16441-16200 note |
Tank, Radiator, Upper
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16441-16200 note |
Tank, Radiator, Upper
1987-05 → 1992-06
ended
|
2E EE90 LHD 3FC | — | |
| 16441-16200 note |
Tank, Radiator, Upper
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16441-64070 |
Tank, Radiator, Upper
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 16442 — Ring, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-14030 |
Ring, O(FOR RADIATOR UPPER TANK)
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 16442-14030 |
Ring, O(FOR RADIATOR UPPER TANK)
1987-05 → 1992-06
ended
|
2E# EE90 | — | |
| 16442-63030 note |
Ring, O(FOR RADIATOR UPPER TANK)
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16442-63030 note |
Ring, O(FOR RADIATOR UPPER TANK)
1987-05 → 1992-06
ended
|
2E EE90 LHD 3FC | — | |
| 16442-63030 note |
Ring, O(FOR RADIATOR UPPER TANK)
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 16442-63030 note |
Ring, O(FOR RADIATOR UPPER TANK)
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16442-63030 |
Ring, O(FOR RADIATOR UPPER TANK)
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 16442-70080 note |
Ring, O(FOR RADIATOR UPPER TANK)
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16442-70080 note |
Ring, O(FOR RADIATOR UPPER TANK)
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 16442-70080 note |
Ring, O(FOR RADIATOR UPPER TANK)
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16462-63030 |
Ring, O(FOR RADIATOR UPPER TANK)
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 16443 — Plate, Radiator Tank, Lock, Upper | ||||
| 16443-15301 |
Plate, Radiator Tank, Lock, Upper
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 16443-15301 |
Plate, Radiator Tank, Lock, Upper
1987-05 → 1992-06
ended
|
2E# EE90 | — | |
| 16443-15321 note |
Plate, Radiator Tank, Lock, Upper
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16443-15321 |
Plate, Radiator Tank, Lock, Upper
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 16443-15321 note |
Plate, Radiator Tank, Lock, Upper
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16443-15321 note |
Plate, Radiator Tank, Lock, Upper
1987-05 → 1992-06
ended
|
2E EE90 LHD 3FC | — | |
| 16443-15321 note |
Plate, Radiator Tank, Lock, Upper
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 16443-15370 note |
Plate, Radiator Tank, Lock, Upper
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16443-15370 note |
Plate, Radiator Tank, Lock, Upper
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16443-15370 note |
Plate, Radiator Tank, Lock, Upper
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 16463-15320 |
Plate, Radiator Tank, Lock, Upper
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 16451 — Plate, Radiator Core, Upper | ||||
| 16451-14030 |
Plate, Radiator Core, Upper
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 16451-14030 |
Plate, Radiator Core, Upper
1987-05 → 1992-06
ended
|
2E# EE90 | — | |
| 16451-63030 note |
Plate, Radiator Core, Upper
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16451-63030 |
Plate, Radiator Core, Upper
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 16451-63030 note |
Plate, Radiator Core, Upper
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 16451-63030 note |
Plate, Radiator Core, Upper
1987-05 → 1992-06
ended
|
2E EE90 LHD 3FC | — | |
| 16451-63030 note |
Plate, Radiator Core, Upper
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16451-70080 note |
Plate, Radiator Core, Upper
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 16451-70080 note |
Plate, Radiator Core, Upper
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16451-70080 note |
Plate, Radiator Core, Upper
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16452-64070 |
Plate, Radiator Core, Upper
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 16452 — Plate, Radiator Core, Lower | ||||
| 16452-14030 |
Plate, Radiator Core, Lower
1987-05 → 1992-06
ended
|
2E# EE90 | — | |
| 16452-14030 |
Plate, Radiator Core, Lower
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 16452-15370 note |
Plate, Radiator Core, Lower
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16452-15370 note |
Plate, Radiator Core, Lower
1989-08 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16452-15370 note |
Plate, Radiator Core, Lower
1989-08 → 1992-06
ended
|
4AF AE92 | — | |
| 16452-15370 note |
Plate, Radiator Core, Lower
1987-05 → 1989-08
ended
|
2E EE90 LHD MTM | — | |
| 16452-15370 note |
Plate, Radiator Core, Lower
1987-05 → 1989-08
ended
|
4AF AE92 | — | |
| 16452-63030 note |
Plate, Radiator Core, Lower
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16452-63030 note |
Plate, Radiator Core, Lower
1987-05 → 1992-06
ended
|
2E EE90 LHD 3FC | — | |
| 16452-63030 note |
Plate, Radiator Core, Lower
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 16452-63030 note |
Plate, Radiator Core, Lower
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16452-63030 |
Plate, Radiator Core, Lower
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 16452-64070 |
Plate, Radiator Core, Lower
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 16461 — Tank, Radiator, Lower | ||||
| 16461-11180 |
Tank, Radiator, Lower
1987-05 → 1992-06
ended
|
2E# EE90 3FC | — | |
| 16461-15370 note |
Tank, Radiator, Lower
1987-05 → 1987-08
ended
|
4AF AE92 | — | |
| 16461-15370 note |
Tank, Radiator, Lower
1987-05 → 1987-08
ended
|
2E EE90 LHD MTM | — | |
| 16461-15371 note |
Tank, Radiator, Lower
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16461-15371 note |
Tank, Radiator, Lower
1987-08 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16461-15371 note |
Tank, Radiator, Lower
1987-08 → 1992-06
ended
|
4AF AE92 | — | |
| 16461-16150 |
Tank, Radiator, Lower
1987-05 → 1992-06
ended
|
2E# EE90 MTM | — | |
| 16461-16150 |
Tank, Radiator, Lower
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 16461-16170 note |
Tank, Radiator, Lower
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16461-16170 note |
Tank, Radiator, Lower
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16461-16170 |
Tank, Radiator, Lower
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 16461-16170 note |
Tank, Radiator, Lower
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 16461-16200 note |
Tank, Radiator, Lower
1987-05 → 1992-06
ended
|
2E EE90 LHD 3FC | — | |
| 16461-64450 |
Tank, Radiator, Lower
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 16462 — Ring, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-14030 |
Ring, O(FOR RADIATOR LOWER TANK)
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 16462-14030 |
Ring, O(FOR RADIATOR LOWER TANK)
1987-05 → 1992-06
ended
|
2E# EE90 | — | |
| 16462-15370 note |
Ring, O(FOR RADIATOR LOWER TANK)
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16462-15370 note |
Ring, O(FOR RADIATOR LOWER TANK)
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 16462-15370 note |
Ring, O(FOR RADIATOR LOWER TANK)
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16462-63030 note |
Ring, O(FOR RADIATOR LOWER TANK)
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16462-63030 note |
Ring, O(FOR RADIATOR LOWER TANK)
1987-05 → 1992-06
ended
|
2E EE90 LHD 3FC | — | |
| 16462-63030 note |
Ring, O(FOR RADIATOR LOWER TANK)
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 16462-63030 note |
Ring, O(FOR RADIATOR LOWER TANK)
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16462-63030 |
Ring, O(FOR RADIATOR LOWER TANK)
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 16462-63030 |
Ring, O(FOR RADIATOR LOWER TANK)
1987-05 → 1992-11
ended
|
1C CE90 | — | |
| 16463 — Plate, Radiator Tank, Lock, Lower | ||||
| 16463-15300 |
Plate, Radiator Tank, Lock, Lower
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 16463-15300 |
Plate, Radiator Tank, Lock, Lower
1987-05 → 1992-06
ended
|
2E# EE90 | — | |
| 16463-15320 note |
Plate, Radiator Tank, Lock, Lower
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16463-15320 |
Plate, Radiator Tank, Lock, Lower
1987-05 → 1992-11
ended
|
1C CE90 | — | |
| 16463-15320 |
Plate, Radiator Tank, Lock, Lower
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 16463-15320 note |
Plate, Radiator Tank, Lock, Lower
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16463-15320 note |
Plate, Radiator Tank, Lock, Lower
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 16463-15320 note |
Plate, Radiator Tank, Lock, Lower
1987-05 → 1992-06
ended
|
2E EE90 LHD 3FC | — | |
| 16463-15370 note |
Plate, Radiator Tank, Lock, Lower
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 16463-15370 note |
Plate, Radiator Tank, Lock, Lower
1987-05 → 1992-06
ended
|
2E EE90 LHD MTM | — | |
| 16463-15370 note |
Plate, Radiator Tank, Lock, Lower
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16535 — Support, Radiator, Lower | ||||
| 16535-11020 |
Support, Radiator, Lower
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 16535-11020 |
Support, Radiator, Lower
1987-05 → 1992-06
ended
|
2E# EE90 | — | |
| 16535-11030 |
Support, Radiator, Lower
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 16535-15020 note |
Support, Radiator, Lower
1990-11 → 1992-05
ended
|
2EE EE90 3D 5F | — | |
| 16535-15020 note |
Support, Radiator, Lower
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 16535-15020 note |
Support, Radiator, Lower
1987-05 → 1992-06
ended
|
2E EE90 LHD | — | |
| 16535-64050 |
Support, Radiator, Lower
1987-05 → 1992-06
ended
|
1C CE90 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
