Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

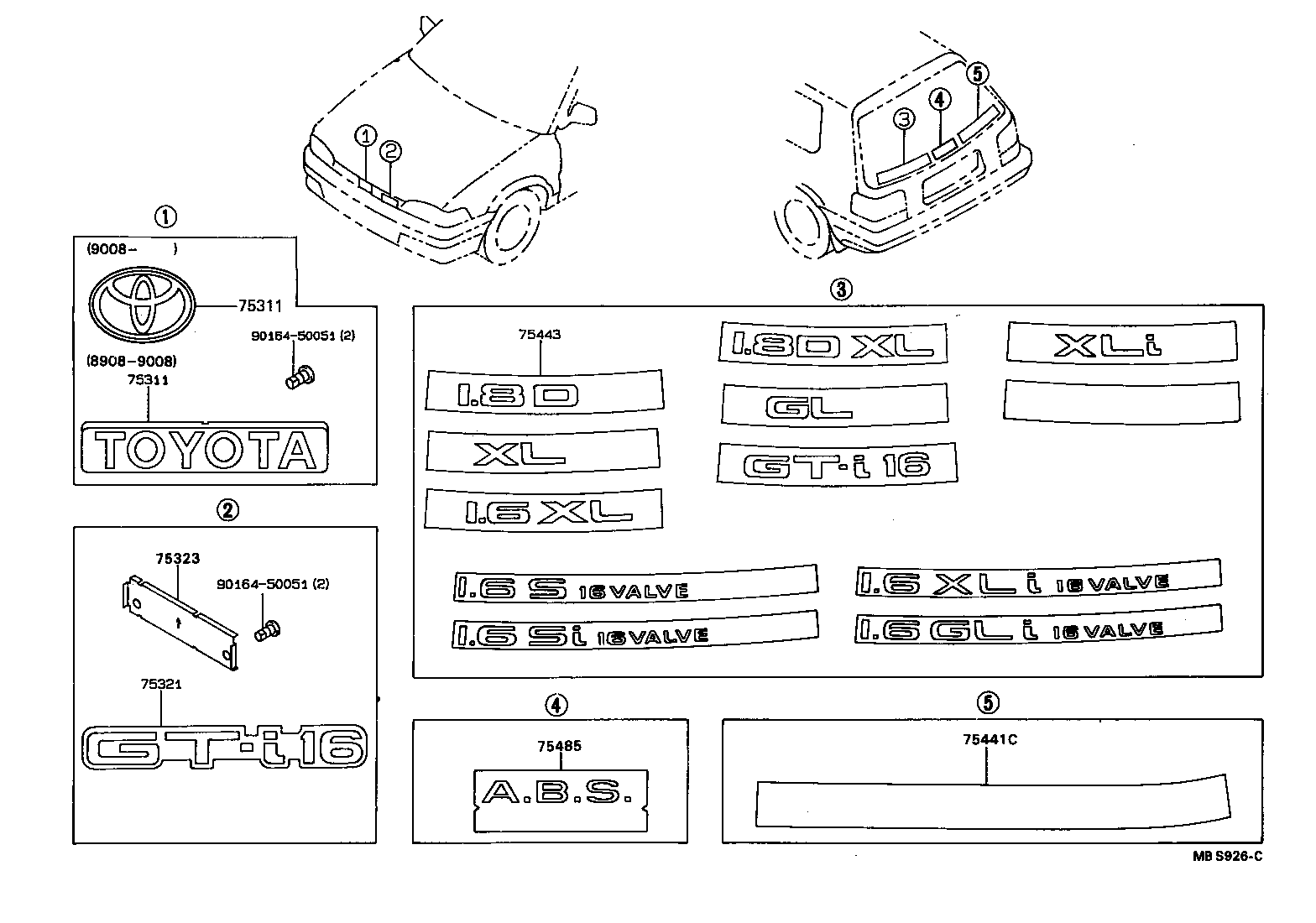

Exploded illustration MBS926C 75311 — EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) (2 parts) 75443 — PLATE, BACK DOOR NAME, NO.3 (16 parts) 9016450051 — not listed in this catalogue 75311 — EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) (2 parts) 75323 — RETAINER, RADIATOR GRILLE (1 parts) 9016450051 — not listed in this catalogue 75321 — PLATE, RADIATOR GRILLE OR FRONT PANEL NAME (1 parts) 75441C — PLATE, BACK DOOR NAME (1 parts) 75485 — PLATE, BACK WINDOW NAME (1 parts)
MBS926C · 7 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
75311 — Emblem, Radiator Grille (OR FRONT PANEL)
75311-1A460 Emblem, Radiator Grille (OR FRONT PANEL)
1987-05 → 1990-08 ended
AE92,CE90,EE90 —
75311-1A461 Emblem, Radiator Grille (OR FRONT PANEL)
1990-08 → 1992-11 ended
AE92,CE90,EE90 —
75321 — Plate, Radiator Grille OR Front Panel Name
75321-12210 note Plate, Radiator Grille OR Front Panel Name
1987-05 → 1992-11 ended
AE92 GTI —
75323 — Retainer, Radiator Grille
75324-12090 Retainer, Radiator Grille
1989-08 → 1992-11 ended
AE92 GTI —
75441C — Plate, Back Door Name
75441-12500 Plate, Back Door Name
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
75443 — Plate, Back Door Name, NO.3
75443-12870 note Plate, Back Door Name, NO.3
1987-05 → 1992-05 ended
CE90 STD —
75443-12880 note Plate, Back Door Name, NO.3
1987-05 → 1992-06 ended
EE90 XL —
75443-12890 note Plate, Back Door Name, NO.3
1987-05 → 1992-06 ended
AE92 XL —
75443-1A010 note Plate, Back Door Name, NO.3
1987-05 → 1992-06 ended
CE90 XL —
75443-1A020 note Plate, Back Door Name, NO.3
1987-05 → 1990-11 ended
EE90 GL —
75443-1A021 note Plate, Back Door Name, NO.3
1990-11 → 1992-06 ended
EE90 GL —
75443-1A030 note Plate, Back Door Name, NO.3
1987-05 → 1990-11 ended
AE92 GTI —
75443-1A031 note Plate, Back Door Name, NO.3
1990-11 → 1992-11 ended
AE92 GTI —
75443-1A040 note Plate, Back Door Name, NO.3
1987-05 → 1989-08 ended
AE92 GL —
75443-1A320 note Plate, Back Door Name, NO.3
1989-08 → 1992-06 ended
EE90 XLI —
75443-1A330 note Plate, Back Door Name, NO.3
1989-08 → 1992-06 ended
AE92 XLI —
75443-1A340 note Plate, Back Door Name, NO.3
1989-08 → 1992-05 ended
AE92 GLI —
75443-1A430 note Plate, Back Door Name, NO.3
1989-08 → 1992-05 ended
AE92 SR5 CBR —
75443-1A430 note Plate, Back Door Name, NO.3
1988-12 → 1989-08 ended
AE92 3D XL —
75443-1A490 Plate, Back Door Name, NO.3
1989-08 → 1992-05 ended
EE90 STD —
75443-1A500 note Plate, Back Door Name, NO.3
1989-08 → 1992-05 ended
AE92 SR5 EFI —
75485 — Plate, Back Window Name
75485-12190 note Plate, Back Window Name
1989-08 → 1992-11 ended
AE92 LHD GTI —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
