Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

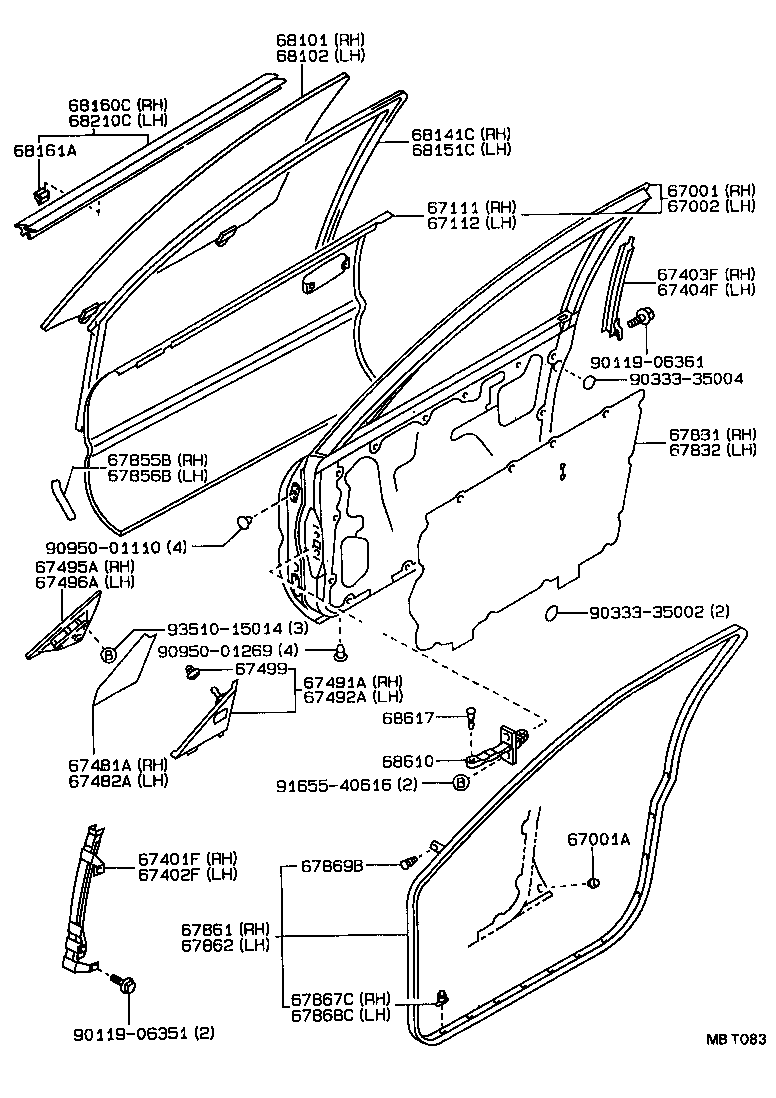

Exploded illustration MBT083 68101 — GLASS SUB-ASSY, FRONT DOOR, RH (8 parts) 68102 — GLASS SUB-ASSY, FRONT DOOR, LH (8 parts) 68160C — WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH (2 parts) 68210C — WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH (2 parts) 68141C — RUN, FRONT DOOR GLASS, RH (5 parts) 68161A — CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) (2 parts) 68151C — RUN, FRONT DOOR GLASS, LH (5 parts) 67001 — PANEL SUB-ASSY, FRONT DOOR, RH (4 parts) 67002 — PANEL SUB-ASSY, FRONT DOOR, LH (4 parts) 67111 — PANEL, FRONT DOOR, OUTER RH (2 parts) 67112 — PANEL, FRONT DOOR, OUTER LH (2 parts) 67403F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH (2 parts) 67404F — FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH (2 parts) 9011906361 — not listed in this catalogue 9033335004 — not listed in this catalogue 67831 — COVER, FRONT DOOR SERVICE HOLE, RH (4 parts) 67832 — COVER, FRONT DOOR SERVICE HOLE, LH (3 parts) 67855B — PROTECTOR, FRONT DOOR PANEL, RH (1 parts) 67856B — PROTECTOR, FRONT DOOR PANEL, LH (1 parts) 9095001110 — not listed in this catalogue 67495A — COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH (2 parts) 67496A — COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH (2 parts) 9033335002 — not listed in this catalogue 9351015014 — not listed in this catalogue 9095001269 — not listed in this catalogue 67499 — RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH (2 parts) 67491A — GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH (8 parts) 67492A — GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH (8 parts) 68617 — PIN, FRONT DOOR CHECK (2 parts) 68610 — CHECK ASSY, FRONT DOOR (4 parts) 67481A — SEAL, FRONT DOOR FRONT LOWER FRAME, RH (4 parts) 67482A — SEAL, FRONT DOOR FRONT LOWER FRAME, LH (4 parts) 9165540616 — not listed in this catalogue 67001A — CUSHION, FRONT DOOR PANEL (2 parts) 67401F — FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH (2 parts) 67869B — CLIP, FRONT DOOR WEATHERSTRIP (3 parts) 67402F — FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH (2 parts) 67861 — WEATHERSTRIP, FRONT DOOR, RH (4 parts) 67862 — WEATHERSTRIP, FRONT DOOR, LH (4 parts) 67867C — RETAINER, FRONT DOOR WEATHERSTRIP, RH (3 parts) 67868C — RETAINER, FRONT DOOR WEATHERSTRIP, LH (7 parts) 9011906351 — not listed in this catalogue
MBT083 · 34 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
120 parts on this figure
Part number Description Fitment Price
67001 — Panel Sub-assy, Front Door, RH
67001-1A140 Panel Sub-assy, Front Door, RH
1987-05 → 1988-03 ended
AE92,CE90,EE90 5D —
67001-1A141 Panel Sub-assy, Front Door, RH
1988-03 → 1992-06 ended
AE92,CE90,EE90 5D —
67001-1A320 Panel Sub-assy, Front Door, RH
1987-05 → 1988-03 ended
AE92,CE90,EE90 3D —
67001-1A321 Panel Sub-assy, Front Door, RH
1988-03 → 1992-11 ended
AE92,CE90,EE90 3D —
67001A — Cushion, Front Door Panel
90541-09035 Cushion, Front Door Panel
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
90541-09059 Cushion, Front Door Panel
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
67002 — Panel Sub-assy, Front Door, LH
67002-1A120 Panel Sub-assy, Front Door, LH
1987-05 → 1988-03 ended
AE92,CE90,EE90 5D —
67002-1A121 Panel Sub-assy, Front Door, LH
1988-03 → 1992-06 ended
AE92,CE90,EE90 5D —
67002-1A300 Panel Sub-assy, Front Door, LH
1987-05 → 1988-03 ended
AE92,CE90,EE90 3D —
67002-1A301 Panel Sub-assy, Front Door, LH
1988-03 → 1992-11 ended
AE92,CE90,EE90 3D —
67111 — Panel, Front Door, Outer RH
67111-12440 Panel, Front Door, Outer RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67111-12480 Panel, Front Door, Outer RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
67112 — Panel, Front Door, Outer LH
67112-12430 Panel, Front Door, Outer LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67112-12470 Panel, Front Door, Outer LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
67401F — Frame Sub-assy, Front Door, Front Lower RH
67401-12280 Frame Sub-assy, Front Door, Front Lower RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
67401-12290 Frame Sub-assy, Front Door, Front Lower RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67402F — Frame Sub-assy, Front Door, Front Lower LH
67402-12300 Frame Sub-assy, Front Door, Front Lower LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
67402-12310 Frame Sub-assy, Front Door, Front Lower LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67403F — Frame Sub-assy, Front Door, Rear Lower RH
67403-12100 Frame Sub-assy, Front Door, Rear Lower RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67403-12140 Frame Sub-assy, Front Door, Rear Lower RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
67404F — Frame Sub-assy, Front Door, Rear Lower LH
67404-12100 Frame Sub-assy, Front Door, Rear Lower LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67404-12140 Frame Sub-assy, Front Door, Rear Lower LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
67481A — Seal, Front Door Front Lower Frame, RH
67481-12210 Seal, Front Door Front Lower Frame, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
67481-12210 Seal, Front Door Front Lower Frame, RH
1989-08 → 1992-06 ended
EE90 RHD 5D —
67481-12210 Seal, Front Door Front Lower Frame, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
67481-12210 Seal, Front Door Front Lower Frame, RH
1989-08 → 1992-11 ended
EE90 RHD 5D;AE92,CE90,EE90 3D —
67482A — Seal, Front Door Front Lower Frame, LH
67482-12140 Seal, Front Door Front Lower Frame, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
67482-12140 Seal, Front Door Front Lower Frame, LH
1989-08 → 1992-06 ended
EE90 RHD 5D —
67482-12140 Seal, Front Door Front Lower Frame, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
67482-12140 Seal, Front Door Front Lower Frame, LH
1989-08 → 1992-11 ended
EE90 3D;AE92,CE90;EE90 LHD 5D —
67491A — Garnish, Front Door Lower Frame Bracket, RH
67491-12150 Garnish, Front Door Lower Frame Bracket, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67491-12160 note Garnish, Front Door Lower Frame Bracket, RH
1987-05 → 1992-06 ended
EE90 RHD 5D —
67491-12160 note Garnish, Front Door Lower Frame Bracket, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
67491-12190 note Garnish, Front Door Lower Frame Bracket, RH
1987-05 → 1992-05 ended
AE92 RHD —
67491-12190 Garnish, Front Door Lower Frame Bracket, RH
1987-05 → 1992-11 ended
CE90,EE90 3D;AE92 LHD 3D —
67491-12200 note Garnish, Front Door Lower Frame Bracket, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD 3D —
67491-12200 note Garnish, Front Door Lower Frame Bracket, RH
1987-05 → 1992-05 ended
CE90,EE90 RHD 3D —
67491-12200 Garnish, Front Door Lower Frame Bracket, RH
1987-05 → 1992-05 ended
AE92 RHD —
67492A — Garnish, Front Door Lower Frame Bracket, LH
67492-12130 Garnish, Front Door Lower Frame Bracket, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67492-12160 note Garnish, Front Door Lower Frame Bracket, LH
1987-05 → 1992-06 ended
EE90 RHD 5D —
67492-12160 note Garnish, Front Door Lower Frame Bracket, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
67492-12190 Garnish, Front Door Lower Frame Bracket, LH
1987-05 → 1992-05 ended
AE92 RHD;AE92,CE90,EE90 3D (GL,GLI,SR5,STD,XL,XLI) —
67492-12190 note Garnish, Front Door Lower Frame Bracket, LH
1987-05 → 1992-11 ended
AE92 LHD GTI —
67492-12200 note Garnish, Front Door Lower Frame Bracket, LH
1987-05 → 1992-05 ended
AE92,CE90,EE90 RHD 3D —
67492-12200 note Garnish, Front Door Lower Frame Bracket, LH
1987-05 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GL,GLI,SR5,STD,XL,XLI) —
67492-12200 Garnish, Front Door Lower Frame Bracket, LH
1987-05 → 1992-11 ended
AE92 LHD GTI —
67495A — Cover, Front Door Front Lower Frame, Upper RH
67495-12120 Cover, Front Door Front Lower Frame, Upper RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
67495-12140 Cover, Front Door Front Lower Frame, Upper RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD 3D —
67496A — Cover, Front Door Front Lower Frame, Upper LH
67496-12120 Cover, Front Door Front Lower Frame, Upper LH
1987-05 → 1992-06 ended
EE90 RHD 5D —
67496-12140 Cover, Front Door Front Lower Frame, Upper LH
1987-05 → 1992-05 ended
AE92,CE90,EE90 RHD 3D —
67499 — Retainer, Front Door Lower Frame Bracket Garnish
67499-12030 Retainer, Front Door Lower Frame Bracket Garnish
1987-10 → 1992-11 ended
AE92,CE90,EE90 —
67499-32010 Retainer, Front Door Lower Frame Bracket Garnish
1987-05 → 1987-10 ended
AE92,CE90,EE90 —
67831 — Cover, Front Door Service Hole, RH
67831-12360 Cover, Front Door Service Hole, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67831-12390 note Cover, Front Door Service Hole, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
67831-12430 note Cover, Front Door Service Hole, RH
1987-05 → 1989-08 ended
AE92,EE90 3D (GL,GTI) —
67832-12260 Cover, Front Door Service Hole, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
67832 — Cover, Front Door Service Hole, LH
67831-12360 Cover, Front Door Service Hole, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67832-12220 note Cover, Front Door Service Hole, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
67832-12260 Cover, Front Door Service Hole, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
67855B — Protector, Front Door Panel, RH
58741-12060 Protector, Front Door Panel, RH
1987-10 → 1992-11 ended
AE92,CE90,EE90 —
67856B — Protector, Front Door Panel, LH
58741-12060 Protector, Front Door Panel, LH
1987-10 → 1992-11 ended
AE92,CE90,EE90 —
67861 — Weatherstrip, Front Door, RH
67861-12440 Weatherstrip, Front Door, RH
1987-05 → 1987-10 ended
AE92,CE90,EE90 5D —
67861-12610 Weatherstrip, Front Door, RH
1987-05 → 1987-10 ended
AE92,CE90,EE90 3D —
67861-12710 Weatherstrip, Front Door, RH
1987-10 → 1992-06 ended
AE92,CE90,EE90 5D —
67861-12750 Weatherstrip, Front Door, RH
1987-10 → 1992-11 ended
AE92,CE90,EE90 3D —
67862 — Weatherstrip, Front Door, LH
67862-12580 Weatherstrip, Front Door, LH
1987-05 → 1987-10 ended
AE92,CE90,EE90 5D —
67862-12610 Weatherstrip, Front Door, LH
1987-05 → 1987-10 ended
AE92,CE90,EE90 3D —
67862-12670 Weatherstrip, Front Door, LH
1987-10 → 1992-06 ended
AE92,CE90,EE90 5D —
67862-12710 Weatherstrip, Front Door, LH
1987-10 → 1992-11 ended
AE92,CE90,EE90 3D —
67867C — Retainer, Front Door Weatherstrip, RH
67868-12020 Retainer, Front Door Weatherstrip, RH
1987-05 → 1991-06 ended
AE92,CE90,EE90 3D —
67868-12050 Retainer, Front Door Weatherstrip, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67868-12050 Retainer, Front Door Weatherstrip, RH
1991-06 → 1992-11 ended
AE92,CE90,EE90 3D —
67868C — Retainer, Front Door Weatherstrip, LH
67868-12030 Retainer, Front Door Weatherstrip, LH
1987-05 → 1987-10 ended
AE92,CE90,EE90 5D —
67868-12050 Retainer, Front Door Weatherstrip, LH
1990-06 → 1992-06 ended
AE92,CE90,EE90 5D —
67868-12050 Retainer, Front Door Weatherstrip, LH
1990-12 → 1992-11 ended
AE92,CE90,EE90 3D —
67868-12050 Retainer, Front Door Weatherstrip, LH
1989-08 → 1990-12 ended
AE92,CE90,EE90 3D —
67868-12050 Retainer, Front Door Weatherstrip, LH
1989-08 → 1990-06 ended
AE92,CE90,EE90 5D —
67868-12050 Retainer, Front Door Weatherstrip, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D —
67868-12050 Retainer, Front Door Weatherstrip, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
67869B — Clip, Front Door Weatherstrip
67869-12020 Clip, Front Door Weatherstrip
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
67869-12020 Clip, Front Door Weatherstrip
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
67869-12020 Clip, Front Door Weatherstrip
1989-08 → 1992-11 ended
AE92,CE90,EE90 3D —
68101 — Glass Sub-assy, Front Door, RH
68101-12530 note Glass Sub-assy, Front Door, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
68101-12540 note Glass Sub-assy, Front Door, RH
1987-05 → 1990-11 ended
AE92,CE90,EE90 5D —
68101-12540 note Glass Sub-assy, Front Door, RH
1990-11 → 1992-06 ended
EE90 5D GL —
68101-12540 note Glass Sub-assy, Front Door, RH
1990-11 → 1992-06 ended
AE92,CE90,EE90 5D (XL,XLI) —
68101-12750 note Glass Sub-assy, Front Door, RH
1990-11 → 1992-06 ended
EE90 5D GL —
68111-12650 note Glass Sub-assy, Front Door, RH
1987-05 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,SR5,STD,XL,XLI) —
68111-12660 note Glass Sub-assy, Front Door, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D (GL,GLI,GTI,SR5,XL,XLI) —
68111-12760 note Glass Sub-assy, Front Door, RH
1990-11 → 1992-11 ended
AE92,EE90 3D (GL,GLI,GTI) —
68102 — Glass Sub-assy, Front Door, LH
68102-12530 note Glass Sub-assy, Front Door, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
68102-12540 note Glass Sub-assy, Front Door, LH
1990-11 → 1992-06 ended
AE92,CE90,EE90 5D (XL,XLI) —
68102-12540 note Glass Sub-assy, Front Door, LH
1987-05 → 1990-11 ended
AE92,CE90,EE90 5D —
68102-12540 note Glass Sub-assy, Front Door, LH
1990-11 → 1992-06 ended
EE90 5D GL —
68102-12750 note Glass Sub-assy, Front Door, LH
1990-11 → 1992-06 ended
EE90 5D GL —
68112-12650 note Glass Sub-assy, Front Door, LH
1987-05 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,SR5,STD,XL,XLI) —
68112-12660 note Glass Sub-assy, Front Door, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D (GL,GLI,GTI,SR5,XL,XLI) —
68112-12760 note Glass Sub-assy, Front Door, LH
1990-11 → 1992-11 ended
AE92,EE90 3D (GL,GLI,GTI) —
68141C — Run, Front Door Glass, RH
68141-12310 Run, Front Door Glass, RH
1987-05 → 1988-03 ended
AE92,CE90,EE90 5D —
68141-12311 Run, Front Door Glass, RH
1988-03 → 1992-06 ended
AE92,CE90,EE90 5D —
68141-12360 Run, Front Door Glass, RH
1987-05 → 1987-11 ended
AE92,CE90,EE90 3D —
68141-12380 Run, Front Door Glass, RH
1987-11 → 1988-03 ended
AE92,CE90,EE90 3D —
68141-12381 Run, Front Door Glass, RH
1988-03 → 1992-11 ended
AE92,CE90,EE90 3D —
68151C — Run, Front Door Glass, LH
68151-12030 Run, Front Door Glass, LH
1987-05 → 1988-03 ended
AE92,CE90,EE90 5D —
68151-12031 Run, Front Door Glass, LH
1988-03 → 1992-06 ended
AE92,CE90,EE90 5D —
68151-12080 Run, Front Door Glass, LH
1987-05 → 1987-11 ended
AE92,CE90,EE90 3D —
68151-12100 Run, Front Door Glass, LH
1987-11 → 1988-03 ended
AE92,CE90,EE90 3D —
68151-12101 Run, Front Door Glass, LH
1988-03 → 1992-11 ended
AE92,CE90,EE90 3D —
68160C — Weatherstrip Assy, Front Door Glass, Outer RH
68160-12170 Weatherstrip Assy, Front Door Glass, Outer RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D (XL,XLI) —
68160-12180 Weatherstrip Assy, Front Door Glass, Outer RH
1987-05 → 1992-05 ended
AE92,CE90,EE90 3D (STD,XL,XLI) —
68161A — Clip(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68211-12160 Clip(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
1987-05 → 1992-05 ended
AE92,CE90,EE90 3D (STD,XL,XLI) —
68211-12160 Clip(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D (XL,XLI) —
68210C — Weatherstrip Assy, Front Door Glass, Outer LH
68210-12120 Weatherstrip Assy, Front Door Glass, Outer LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D (XL,XLI) —
68210-12130 Weatherstrip Assy, Front Door Glass, Outer LH
1987-05 → 1992-05 ended
AE92,CE90,EE90 3D (STD,XL,XLI) —
68610 — Check Assy, Front Door
68610-12050 Check Assy, Front Door
1987-05 → 1989-07 ended
AE92,CE90,EE90 —
68610-12050 note Check Assy, Front Door
1989-07 → 1989-08 ended
AE92,CE90,EE90 3D —
68610-12050 Check Assy, Front Door
1989-07 → 1992-06 ended
AE92,CE90,EE90 5D —
68610-12070 Check Assy, Front Door
1989-07 → 1992-11 ended
AE92,CE90,EE90 3D —
68617 — Pin, Front Door Check
68617-12030 Pin, Front Door Check
1988-09 → 1992-11 ended
AE92,CE90,EE90 —
68617-22020 Pin, Front Door Check
1987-05 → 1988-09 ended
AE92,CE90,EE90 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
