Exploded illustration MBV192A 52011A — ARM SUB-ASSY, FRONT BUMPER, RH (14 parts) 9046705057 — not listed in this catalogue 9011912015 — not listed in this catalogue 9165540820 — not listed in this catalogue 9015960304 — not listed in this catalogue 9010908155 — not listed in this catalogue 9011906340 — not listed in this catalogue 9017906086 — not listed in this catalogue 52012A — ARM SUB-ASSY, FRONT BUMPER, LH (26 parts) 52526A — RETAINER, FRONT BUMPER, LOWER NO.1 (13 parts) 9011906341 — not listed in this catalogue 52119A — COVER, FRONT BUMPER (29 parts) 52115A — SUPPORT, FRONT BUMPER SIDE, RH (9 parts) 52116A — SUPPORT, FRONT BUMPER SIDE, LH (9 parts)

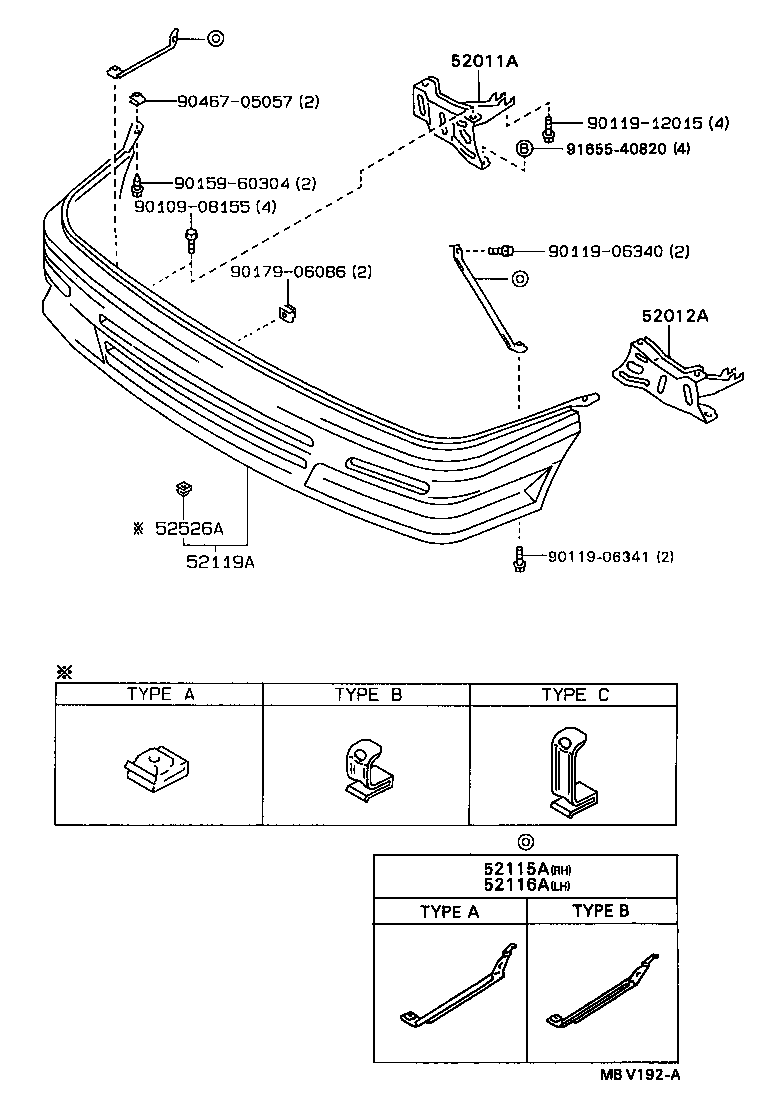

MBV192A · 6 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
100 parts on this figure
Part number Description Fitment Price
52011A — Arm Sub-assy, Front Bumper, RH
52011-12360 note Arm Sub-assy, Front Bumper, RH
1987-05 → 1987-08 ended
AE92 CBR —
52011-12360 note Arm Sub-assy, Front Bumper, RH
1987-05 → 1987-08 ended
CE90 —
52011-12360 note Arm Sub-assy, Front Bumper, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (XL,XLI) —
52011-12360 note Arm Sub-assy, Front Bumper, RH
1989-08 → 1992-06 ended
AE92,EE90 LHD (GL,GLI) —
52011-12360 note Arm Sub-assy, Front Bumper, RH
1988-12 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
52011-12360 note Arm Sub-assy, Front Bumper, RH
1987-08 → 1988-12 ended
EE90 3D;EE90 LHD 5D;AE92,CE90 +1 —
52011-12360 note Arm Sub-assy, Front Bumper, RH
1987-05 → 1987-08 ended
EE90 RHD 3D —
52011-12360 note Arm Sub-assy, Front Bumper, RH
1987-05 → 1987-08 ended
EE90 LHD —
52011-12370 note Arm Sub-assy, Front Bumper, RH
1989-08 → 1992-05 ended
AE92 RHD —
52011-12380 note Arm Sub-assy, Front Bumper, RH
1987-05 → 1990-08 ended
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI —
52011-12380 note Arm Sub-assy, Front Bumper, RH
1989-08 → 1990-08 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
52011-12380 note Arm Sub-assy, Front Bumper, RH
1990-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,XL,XLI —
52011-12380 note Arm Sub-assy, Front Bumper, RH
1987-05 → 1992-11 ended
AE92 SR5 —
52011-12380 note Arm Sub-assy, Front Bumper, RH
1990-08 → 1992-11 ended
AE92 GTI,SR5 —
52012A — Arm Sub-assy, Front Bumper, LH
52012-12370 note Arm Sub-assy, Front Bumper, LH
1989-08 → 1990-08 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
52012-12370 note Arm Sub-assy, Front Bumper, LH
1990-08 → 1992-06 ended
AE92,EE90 LHD (GL,GLI) —
52012-12370 note Arm Sub-assy, Front Bumper, LH
1988-12 → 1989-08 ended
EE90 RHD 5D —
52012-12370 note Arm Sub-assy, Front Bumper, LH
1987-08 → 1989-08 ended
EE90 3D;EE90 LHD 5D;AE92,CE90 +1 —
52012-12370 note Arm Sub-assy, Front Bumper, LH
1990-08 → 1992-06 ended
AE92,CE90,EE90 LHD (XL,XLI) —
52012-12370 note Arm Sub-assy, Front Bumper, LH
1989-08 → 1990-08 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
52012-12370 note Arm Sub-assy, Front Bumper, LH
1990-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
52012-12370 note Arm Sub-assy, Front Bumper, LH
1987-05 → 1987-08 ended
AE92,EE90 LHD XL —
52012-12370 note Arm Sub-assy, Front Bumper, LH
1987-05 → 1987-08 ended
EE90 RHD 3D —
52012-12370 note Arm Sub-assy, Front Bumper, LH
1987-05 → 1987-08 ended
AE92,EE90 LHD GL —
52012-12370 note Arm Sub-assy, Front Bumper, LH
1987-05 → 1987-08 ended
EE90 STD —
52012-12370 note Arm Sub-assy, Front Bumper, LH
1987-05 → 1987-08 ended
CE90 —
52012-12380 note Arm Sub-assy, Front Bumper, LH
1989-08 → 1992-05 ended
AE92 RHD —
52012-12390 note Arm Sub-assy, Front Bumper, LH
1990-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,XL,XLI —
52012-12390 Arm Sub-assy, Front Bumper, LH
1990-08 → 1992-11 ended
AE92 GTI,SR5 —
52012-12390 note Arm Sub-assy, Front Bumper, LH
1989-08 → 1990-08 ended
AE92 GTI,SR5;CE90,EE90 RHD —
52012-12390 note Arm Sub-assy, Front Bumper, LH
1989-08 → 1990-08 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
52012-12390 note Arm Sub-assy, Front Bumper, LH
1988-12 → 1989-08 ended
AE92 EFI —
52012-12390 note Arm Sub-assy, Front Bumper, LH
1988-12 → 1989-08 ended
AE92 5D;AE92 3D GL;CE90,EE90 +2 —
52012-12390 note Arm Sub-assy, Front Bumper, LH
1988-12 → 1989-08 ended
CE90,EE90 RHD —
52012-12390 note Arm Sub-assy, Front Bumper, LH
1987-05 → 1987-08 ended
CE90,EE90 RHD 3D XL —
52012-12390 note Arm Sub-assy, Front Bumper, LH
1987-08 → 1988-12 ended
AE92 EFI;EE90 RHD 5D —
52012-12390 note Arm Sub-assy, Front Bumper, LH
1987-08 → 1988-12 ended
CE90,EE90 RHD 3D —
52012-12390 note Arm Sub-assy, Front Bumper, LH
1987-05 → 1988-12 ended
AE92,CE90,EE90 LHD (GL,XL) —
52012-12390 note Arm Sub-assy, Front Bumper, LH
1987-05 → 1987-08 ended
AE92 EFI;EE90 RHD GL;EE90 +2 —
52012-12390 note Arm Sub-assy, Front Bumper, LH
1988-12 → 1989-08 ended
AE92 3D XL —
52115A — Support, Front Bumper Side, RH
52115-12260 note Support, Front Bumper Side, RH
1987-05 → 1987-08 ended
EE90 LHD GL;EE90 LHD +5 —
52115-12260 note Support, Front Bumper Side, RH
1987-08 → 1988-12 ended
EE90 3D;EE90 LHD 5D;AE92,CE90 +1 —
52115-12260 note Support, Front Bumper Side, RH
1989-08 → 1992-05 ended
AE92 RHD —
52115-12260 note Support, Front Bumper Side, RH
1988-12 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
52115-12260 note Support, Front Bumper Side, RH
1989-08 → 1992-06 ended
AE92,EE90 LHD (GL,GLI) —
52115-12260 note Support, Front Bumper Side, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (XL,XLI) —
52115-12270 note Support, Front Bumper Side, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 GL,GTI,XL —
52115-12270 note Support, Front Bumper Side, RH
1989-08 → 1992-11 ended
AE92 GTI,SR5 —
52115-12270 note Support, Front Bumper Side, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,XL,XLI —
52116A — Support, Front Bumper Side, LH
52116-12200 note Support, Front Bumper Side, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (XL,XLI) —
52116-12200 note Support, Front Bumper Side, LH
1987-08 → 1988-12 ended
EE90 3D;EE90 LHD 5D;AE92,CE90 +1 —
52116-12200 note Support, Front Bumper Side, LH
1989-08 → 1992-06 ended
AE92,EE90 LHD (GL,GLI) —
52116-12200 note Support, Front Bumper Side, LH
1988-12 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
52116-12200 note Support, Front Bumper Side, LH
1987-05 → 1987-08 ended
EE90 LHD GL;EE90 LHD +5 —
52116-12200 note Support, Front Bumper Side, LH
1989-08 → 1992-05 ended
AE92 RHD —
52116-12210 note Support, Front Bumper Side, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 GL,GTI,XL —
52116-12210 note Support, Front Bumper Side, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,XL,XLI —
52116-12210 note Support, Front Bumper Side, LH
1989-08 → 1992-11 ended
AE92 GTI,SR5 —
52119A — Cover, Front Bumper
52119-1A270 note Cover, Front Bumper
1988-12 → 1992-11 ended
AE92 GTI,SR5 —
52119-1A270 note Cover, Front Bumper
1989-08 → 1992-11 ended
AE92 RHD —
52119-1A270 note Cover, Front Bumper
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,XL,XLI —
52119-1A270 note Cover, Front Bumper
1989-08 → 1992-11 ended
AE92 LHD GTI —
52119-1A270 note Cover, Front Bumper
1988-12 → 1989-08 ended
AE92 5D;AE92 3D GL;CE90,EE90 +1 —
52119-1A270 note Cover, Front Bumper
1988-12 → 1989-08 ended
AE92 3D XL —
52119-1A270 note Cover, Front Bumper
1987-08 → 1988-12 ended
EE90 LHD 5D;AE92,CE90 GL,XL;EE90 +2 —
52119-1A270 note Cover, Front Bumper
1987-05 → 1987-08 ended
AE92 EFI;EE90 RHD GL;EE90 +2 —
52119-1A270 note Cover, Front Bumper
1987-08 → 1988-12 ended
AE92 EFI;EE90 RHD 5D —
52119-1A270 note Cover, Front Bumper
1987-05 → 1987-08 ended
EE90 3D XL;EE90 LHD +5 —
52119-1A280 note Cover, Front Bumper
1987-05 → 1988-12 ended
AE92,CE90,EE90 LHD (GL,XL) —
52119-1A280 note Cover, Front Bumper
1987-05 → 1989-08 ended
AE92 LHD EFI —
52119-1A280 note Cover, Front Bumper
1989-08 → 1992-11 ended
AE92 LHD GTI —
52119-1A280 note Cover, Front Bumper
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
52119-1A280 note Cover, Front Bumper
1988-12 → 1989-08 ended
AE92 5D;AE92 3D GL;CE90,EE90 +2 —
52119-1A280 note Cover, Front Bumper
1988-12 → 1989-08 ended
AE92 3D XL —
52119-1A280 note Cover, Front Bumper
1989-08 → 1992-05 ended
AE92 SR5 —
52119-1A350 note Cover, Front Bumper
1988-12 → 1989-08 ended
EE90 RHD 5D —
52119-1A350 note Cover, Front Bumper
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
52119-1A350 note Cover, Front Bumper
1987-05 → 1987-08 ended
CE90 —
52119-1A350 note Cover, Front Bumper
1987-05 → 1987-08 ended
EE90 STD —
52119-1A350 note Cover, Front Bumper
1987-05 → 1987-08 ended
EE90 RHD 3D —
52119-1A350 note Cover, Front Bumper
1987-05 → 1987-08 ended
AE92,EE90 LHD (GL,XL) —
52119-1A350 note Cover, Front Bumper
1987-08 → 1989-08 ended
EE90 3D;EE90 LHD 5D;AE92,CE90 +1 —
52119-1A370 note Cover, Front Bumper
1989-08 → 1992-05 ended
CE90,EE90 STD —
52119-1A370 note Cover, Front Bumper
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (XL,XLI) —
52119-1A370 note Cover, Front Bumper
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
52119-1A370 note Cover, Front Bumper
1989-08 → 1992-06 ended
AE92,EE90 LHD (GL,GLI) —
52119-1A390 note Cover, Front Bumper
1989-08 → 1992-05 ended
AE92 RHD —
52526A — Retainer, Front Bumper, Lower NO.1
52565-12040 note Retainer, Front Bumper, Lower NO.1
1987-05 → 1989-10 ended
AE92,CE90,EE90 —
52565-12090 note Retainer, Front Bumper, Lower NO.1
1987-08 → 1988-05 ended
AE92,EE90 LHD GL —
52565-12090 note Retainer, Front Bumper, Lower NO.1
1988-05 → 1992-11 ended
AE92,CE90,EE90 —
52565-12090 note Retainer, Front Bumper, Lower NO.1
1987-08 → 1988-05 ended
AE92 EFI;EE90 RHD 5D —
52565-12090 note Retainer, Front Bumper, Lower NO.1
1987-08 → 1988-05 ended
CE90,EE90 RHD 3D —
52565-12090 note Retainer, Front Bumper, Lower NO.1
1987-08 → 1988-05 ended
AE92,CE90,EE90 LHD XL —
52565-12090 note Retainer, Front Bumper, Lower NO.1
1987-08 → 1988-05 ended
EE90 3D;EE90 LHD 5D;AE92,CE90 +1 —
52565-12090 note Retainer, Front Bumper, Lower NO.1
1987-05 → 1987-08 ended
AE92,CE90,EE90 —
52565-12110 note Retainer, Front Bumper, Lower NO.1
1988-05 → 1988-12 ended
EE90 3D;EE90 LHD 5D;AE92,CE90 +1 —
52565-12110 note Retainer, Front Bumper, Lower NO.1
1988-12 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
52565-12110 note Retainer, Front Bumper, Lower NO.1
1987-05 → 1988-05 ended
EE90 3D;EE90 LHD 5D;AE92,CE90 +1 —
52565-12110 note Retainer, Front Bumper, Lower NO.1
1989-08 → 1992-06 ended
AE92 RHD;AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
52565-16020 note Retainer, Front Bumper, Lower NO.1
1989-10 → 1992-11 ended
AE92,CE90,EE90 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
