Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

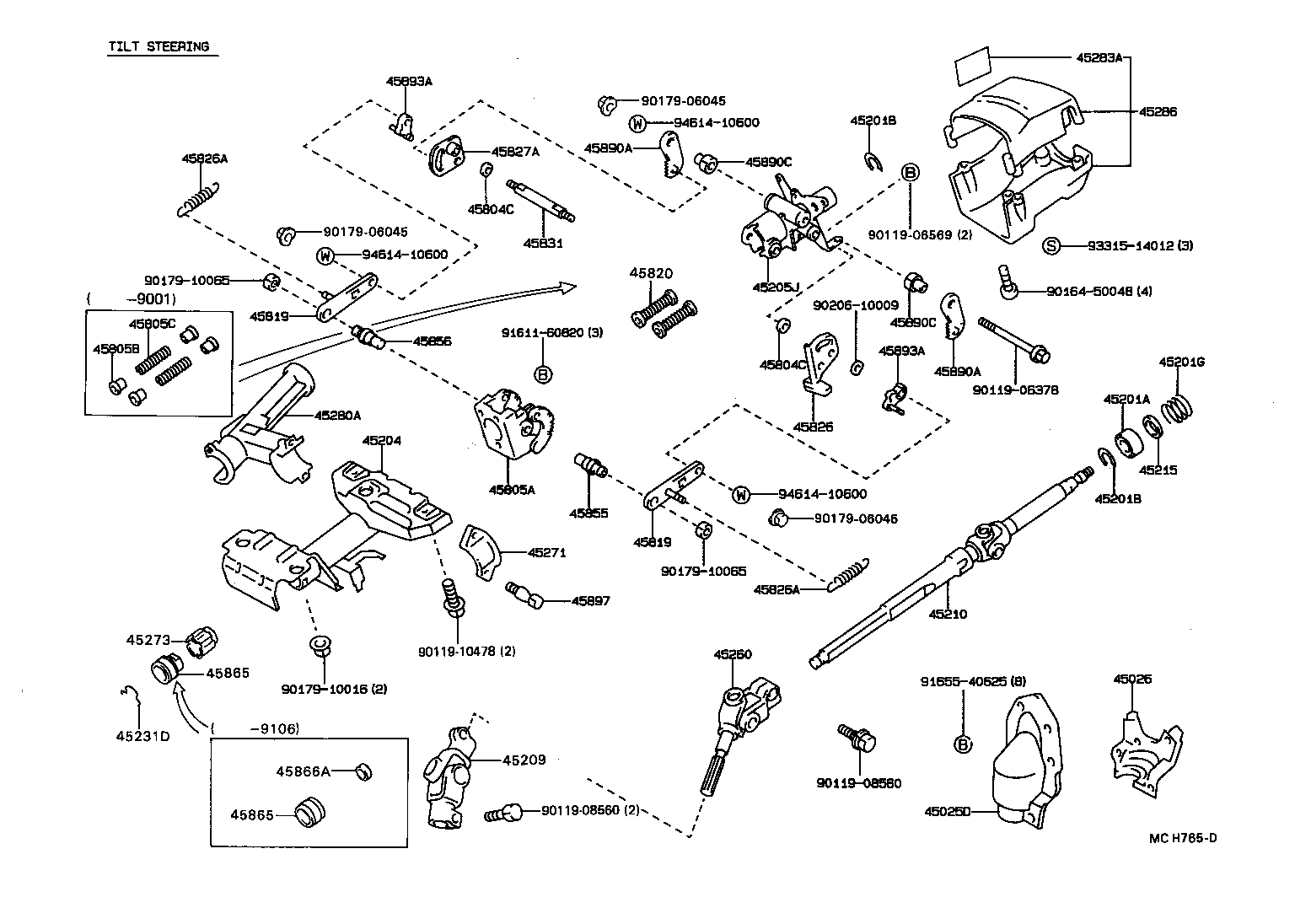

Exploded illustration MCH765D 45283A — PLATE, BEAM CHANGE & TURN SIGNAL CAUTION (3 parts) 45893A — STOPPER, TILT STEERING PAWL (22 parts) 9017906045 — not listed in this catalogue 45286 — COVER, STEERING COLUMN (28 parts) 45201B — RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) (2 parts) 9461410600 — not listed in this catalogue 45890A — PAWL ASSY, TILT STEERING (6 parts) 45827A — LEVER, STEERING TILT SUB (4 parts) 45826A — SPRING, TENSION(FOR STEERING TILT LEVER) (2 parts) 45890C — COLLAR(FOR TILT STEERING PAWL) (16 parts) 45804C — WASHER, PLATE(FOR STEERING TILT LEVER) (2 parts) 9017906045 — not listed in this catalogue 9011906569 — not listed in this catalogue 45831 — BOLT, TILT LEVER LOCK, NO.1 (2 parts) 9331514012 — not listed in this catalogue 9461410600 — not listed in this catalogue 45820 — SPRING ASSY, TILT STEERING SUPPORT (1 parts) 9017910065 — not listed in this catalogue 45205J — TUBE SUB-ASSY, STEERING COLUMN, UPPER (5 parts) 9016450048 — not listed in this catalogue 9020610009 — not listed in this catalogue 45819 — RETAINER, TILT LEVER (4 parts) 45890C — COLLAR(FOR TILT STEERING PAWL) (16 parts) 45805C — SPRING, COMPRESSION(FOR TILT STEERING SUPPORT) (2 parts) 9161160820 — not listed in this catalogue 45856 — BOLT, TILT STEERING, NO.2 (8 parts) 45805B — BUSH(FOR TILT STEERING SUPPORT) (2 parts) 45893A — STOPPER, TILT STEERING PAWL (22 parts) 45201G — SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) (2 parts) 45804C — WASHER, PLATE(FOR STEERING TILT LEVER) (2 parts) 45890A — PAWL ASSY, TILT STEERING (6 parts) 9011906378 — not listed in this catalogue 45201A — BEARING(FOR STEERING MAIN SHAFT) (2 parts) 45280A — BRACKET ASSY, STEERING COLUMN, UPPER (4 parts) 45826 — LEVER, STEERING TILT (3 parts) 45204 — TUBE ASSY, STEERING COLUMN, LOWER (5 parts) 45215 — COLLAR, MAIN SHAFT BEARING THRUST (2 parts) 45805A — SUPPORT SUB-ASSY, TILT STEERING (2 parts) 9461410600 — not listed in this catalogue 45201B — RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) (2 parts) 45855 — BOLT, TILT STEERING, NO.1 (8 parts) 9017906045 — not listed in this catalogue 45819 — RETAINER, TILT LEVER (4 parts) 45271 — CLAMP, STEERING COLUMN, UPPER (4 parts) 9017910065 — not listed in this catalogue 45826A — SPRING, TENSION(FOR STEERING TILT LEVER) (2 parts) 45897 — BOLT, STEERING LOCK SET (3 parts) 45210 — SHAFT ASSY, STEERING MAIN (6 parts) 45273 — BUSH, STEERING MAIN SHAFT (7 parts) 9011910478 — not listed in this catalogue 45260 — SHAFT ASSY, STEERING INTERMEDIATE, NO.2 (15 parts) 45865 — COLLAR, STEERING MAIN SHAFT (4 parts) 45026 — COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 (7 parts) 9165540625 — not listed in this catalogue 9017910016 — not listed in this catalogue 45231D — RING, HOLE SNAP(FOR STEERING MAIN SHAFT) (3 parts) 45209 — YOKE SUB-ASSY, STEERING SLIDING (5 parts) 45866A — STOPPER, STEERING MAIN SHAFT BUSH (3 parts) 9011908560 — not listed in this catalogue 9011908560 — not listed in this catalogue 45025D — COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 (7 parts) 45865 — COLLAR, STEERING MAIN SHAFT (4 parts)
MCH765D · 43 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
201 parts on this figure
Part number Description Fitment Price
45025D — Cover Sub-assy, Steering Column Hole, NO.1
45025-12170 Cover Sub-assy, Steering Column Hole, NO.1
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
45025-12180 note Cover Sub-assy, Steering Column Hole, NO.1
1987-05 → 1989-08 ended
AE92,CE90 RHD —
45025-12180 note Cover Sub-assy, Steering Column Hole, NO.1
1989-08 → 1992-06 ended
AE92,CE90,EE90 RHD —
45025-12190 Cover Sub-assy, Steering Column Hole, NO.1
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
45025-12200 note Cover Sub-assy, Steering Column Hole, NO.1
1987-05 → 1989-08 ended
AE92,CE90 LHD (GL,GTI,XL) —
45025-12200 note Cover Sub-assy, Steering Column Hole, NO.1
1991-06 → 1992-11 ended
EE90 LHD CBR;AE92,CE90 LHD +1 —
45025-12200 note Cover Sub-assy, Steering Column Hole, NO.1
1989-08 → 1990-09 ended
EE90 LHD CBR;AE92,CE90 LHD +1 —
45026 — Cover Sub-assy, Steering Column Hole, NO.2
45026-12010 Cover Sub-assy, Steering Column Hole, NO.2
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
45026-12020 note Cover Sub-assy, Steering Column Hole, NO.2
1987-05 → 1989-08 ended
AE92,CE90 RHD —
45026-12020 note Cover Sub-assy, Steering Column Hole, NO.2
1989-08 → 1992-06 ended
AE92,CE90,EE90 RHD —
45026-12030 Cover Sub-assy, Steering Column Hole, NO.2
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
45026-12040 note Cover Sub-assy, Steering Column Hole, NO.2
1987-05 → 1989-08 ended
AE92,CE90 LHD (GL,GTI,XL) —
45026-12040 note Cover Sub-assy, Steering Column Hole, NO.2
1989-08 → 1990-09 ended
EE90 LHD CBR;AE92,CE90 LHD +1 —
45026-12040 note Cover Sub-assy, Steering Column Hole, NO.2
1991-06 → 1992-11 ended
EE90 LHD CBR;AE92,CE90 LHD +1 —
45201A — Bearing(FOR STEERING MAIN SHAFT)
90363-18004 Bearing(FOR STEERING MAIN SHAFT)
1987-05 → 1988-09 ended
AE92,CE90;EE90 GL,XL —
90363-18005 Bearing(FOR STEERING MAIN SHAFT)
1988-09 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45201B — Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
90520-17042 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
90520-17196 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1987-05 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI —
45201G — Spring, Compression(FOR STEERING MAIN SHAFT)
90501-40017 Spring, Compression(FOR STEERING MAIN SHAFT)
1987-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
90501-40017 Spring, Compression(FOR STEERING MAIN SHAFT)
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45204 — Tube Assy, Steering Column, Lower
45204-12090 Tube Assy, Steering Column, Lower
1987-05 → 1989-05 ended
AE92,CE90;EE90 GL,XL —
45204-12090 Tube Assy, Steering Column, Lower
1989-05 → 1989-08 ended
AE92,CE90 LHD;EE90 LHD (GL,XL) —
45204-12091 Tube Assy, Steering Column, Lower
1989-05 → 1989-08 ended
AE92,CE90,EE90 RHD —
45204-12091 Tube Assy, Steering Column, Lower
1989-08 → 1990-06 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45204-12092 Tube Assy, Steering Column, Lower
1990-06 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45205J — Tube Sub-assy, Steering Column, Upper
45205-12250 Tube Sub-assy, Steering Column, Upper
1987-05 → 1988-09 ended
AE92,CE90,EE90 RHD —
45205-12251 Tube Sub-assy, Steering Column, Upper
1988-09 → 1992-06 ended
AE92,CE90,EE90 RHD —
45205-12260 Tube Sub-assy, Steering Column, Upper
1987-05 → 1988-09 ended
AE92,CE90 LHD;EE90 LHD (GL,XL) —
45205-12261 Tube Sub-assy, Steering Column, Upper
1988-09 → 1989-08 ended
AE92,CE90 LHD;EE90 LHD (GL,XL) —
45205-12261 Tube Sub-assy, Steering Column, Upper
1989-08 → 1992-11 ended
EE90 XLI;EE90 LHD CBR;AE92,CE90 +1 —
45209 — Yoke Sub-assy, Steering Sliding
45209-12050 note Yoke Sub-assy, Steering Sliding
1989-08 → 1992-11 ended
AE92 GTI —
45209-12050 note Yoke Sub-assy, Steering Sliding
1989-08 → 1992-06 ended
EE90 CBR;AE92,CE90 GLI,SR5,XL,XLI —
45209-12050 note Yoke Sub-assy, Steering Sliding
1987-05 → 1989-08 ended
AE92 CBR;CE90 RHD —
45209-12050 note Yoke Sub-assy, Steering Sliding
1987-05 → 1989-08 ended
AE92 EFI;CE90 LHD XL —
45209-32010 Yoke Sub-assy, Steering Sliding
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
45210 — Shaft Assy, Steering Main
45210-12310 Shaft Assy, Steering Main
1987-05 → 1992-06 ended
CE90,EE90 RHD —
45210-12330 note Shaft Assy, Steering Main
1987-05 → 1989-08 ended
CE90 LHD XL —
45210-12350 Shaft Assy, Steering Main
1987-05 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,SR5,STD,XL,XLI) —
45210-12400 note Shaft Assy, Steering Main
1989-08 → 1992-05 ended
EE90 STD CBR —
45210-12400 note Shaft Assy, Steering Main
1987-05 → 1992-06 ended
EE90 GL,XL,XLI;AE92,CE90 GL,GLI,SR5,STD,XL,XLI —
45210-12400 Shaft Assy, Steering Main
1987-05 → 1992-11 ended
AE92 GTI —
45215 — Collar, Main Shaft Bearing Thrust
45215-12010 Collar, Main Shaft Bearing Thrust
1987-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45215-12010 Collar, Main Shaft Bearing Thrust
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45231D — Ring, Hole Snap(FOR STEERING MAIN SHAFT)
90521-01005 Ring, Hole Snap(FOR STEERING MAIN SHAFT)
1987-05 → 1988-02 ended
AE92 RHD;EE90 GL,XL;AE92,CE90 CBR,DSL —
90521-01005 Ring, Hole Snap(FOR STEERING MAIN SHAFT)
1989-08 → 1990-06 ended
AE92,CE90;EE90 CBR;EE90 XLI —
90521-01005 Ring, Hole Snap(FOR STEERING MAIN SHAFT)
1988-02 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45260 — Shaft Assy, Steering Intermediate, NO.2
45260-12160 Shaft Assy, Steering Intermediate, NO.2
1987-05 → 1989-08 ended
AE92,EE90 RHD —
45260-12160 note Shaft Assy, Steering Intermediate, NO.2
1989-08 → 1992-06 ended
CE90,EE90 RHD —
45260-12160 Shaft Assy, Steering Intermediate, NO.2
1989-08 → 1992-05 ended
AE92 RHD —
45260-12160 note Shaft Assy, Steering Intermediate, NO.2
1987-05 → 1989-08 ended
CE90 RHD —
45260-12180 note Shaft Assy, Steering Intermediate, NO.2
1987-05 → 1992-05 ended
AE92 RHD —
45260-12180 note Shaft Assy, Steering Intermediate, NO.2
1987-05 → 1989-08 ended
CE90 RHD —
45260-12180 note Shaft Assy, Steering Intermediate, NO.2
1989-08 → 1992-06 ended
CE90,EE90 RHD —
45260-12200 note Shaft Assy, Steering Intermediate, NO.2
1987-05 → 1989-08 ended
AE92,CE90 LHD (GL,XL) —
45260-12200 Shaft Assy, Steering Intermediate, NO.2
1989-08 → 1992-11 ended
EE90 XLI;AE92,CE90 LHD (GTI,STD) —
45260-12200 note Shaft Assy, Steering Intermediate, NO.2
1989-08 → 1992-06 ended
EE90 LHD (GL,XL);AE92,CE90 LHD +1 —
45260-12200 Shaft Assy, Steering Intermediate, NO.2
1987-05 → 1989-08 ended
EE90 LHD (GL,XL);AE92,CE90 LHD +1 —
45260-12220 note Shaft Assy, Steering Intermediate, NO.2
1989-08 → 1992-06 ended
EE90 LHD (GL,XL);AE92,CE90 LHD +1 —
45260-12220 note Shaft Assy, Steering Intermediate, NO.2
1987-05 → 1992-11 ended
AE92 LHD GTI —
45260-12220 Shaft Assy, Steering Intermediate, NO.2
1989-08 → 1992-05 ended
EE90 STD CBR —
45260-12220 note Shaft Assy, Steering Intermediate, NO.2
1987-05 → 1989-08 ended
AE92,CE90 LHD (GL,XL) —
45271 — Clamp, Steering Column, Upper
45271-12050 Clamp, Steering Column, Upper
1987-05 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI —
45271-12060 note Clamp, Steering Column, Upper
1989-08 → 1992-05 ended
EE90 STD CBR —
45271-12060 note Clamp, Steering Column, Upper
1987-05 → 1992-06 ended
EE90 GL,XL,XLI;AE92,CE90 GL,GLI,SR5,STD,XL,XLI —
45271-12060 Clamp, Steering Column, Upper
1987-05 → 1992-11 ended
AE92 GTI —
45273 — Bush, Steering Main Shaft
45273-16010 Bush, Steering Main Shaft
1990-06 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI —
45273-16010 Bush, Steering Main Shaft
1988-02 → 1989-08 ended
AE92,CE90,EE90 —
45273-16010 Bush, Steering Main Shaft
1987-05 → 1988-02 ended
AE92 RHD;AE92,CE90,EE90 CBR,DSL —
45273-16010 Bush, Steering Main Shaft
1989-08 → 1990-06 ended
AE92,CE90,EE90 —
45273-22020 note Bush, Steering Main Shaft
1990-06 → 1992-05 ended
EE90 STD CBR —
45273-22020 note Bush, Steering Main Shaft
1990-06 → 1992-06 ended
EE90 GL,XL,XLI;AE92,CE90 GLI,SR5,STD,XL,XLI —
45273-22020 Bush, Steering Main Shaft
1990-06 → 1992-11 ended
AE92 GTI —
45280A — Bracket Assy, Steering Column, Upper
45280-12100 Bracket Assy, Steering Column, Upper
1987-05 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI —
45280-12120 note Bracket Assy, Steering Column, Upper
1989-08 → 1992-05 ended
EE90 STD CBR —
45280-12120 note Bracket Assy, Steering Column, Upper
1987-05 → 1992-06 ended
EE90 GL,XL,XLI;AE92,CE90 GL,GLI,SR5,STD,XL,XLI —
45280-12120 Bracket Assy, Steering Column, Upper
1987-05 → 1992-11 ended
AE92 GTI —
45283A — Plate, Beam Change & Turn Signal Caution
45283-22010 Plate, Beam Change & Turn Signal Caution
1991-01 → 1991-06 ended
CE90,EE90 RHD —
45283-22010 Plate, Beam Change & Turn Signal Caution
1991-06 → 1992-06 ended
AE92,CE90,EE90 RHD —
45283-22010 Plate, Beam Change & Turn Signal Caution
1987-05 → 1991-01 ended
AE92,CE90,EE90 RHD —
45286 — Cover, Steering Column
45286-12940-01 note Cover, Steering Column
1989-08 → 1992-06 ended
CE90,EE90 RHD —
45286-12940-01 note Cover, Steering Column
1987-10 → 1989-08 ended
CE90,EE90 RHD —
45286-12940-03 note Cover, Steering Column
1987-05 → 1989-08 ended
CE90,EE90 RHD —
45286-12940-05 note Cover, Steering Column
1987-05 → 1989-08 ended
CE90,EE90 RHD —
45286-12941-01 note Cover, Steering Column
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
45286-12941-01 note Cover, Steering Column
1989-08 → 1992-06 ended
AE92 SR5 —
45286-12941-01 note Cover, Steering Column
1987-10 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
45286-12941-01 note Cover, Steering Column
1987-10 → 1989-08 ended
CE90,EE90 STD —
45286-12941-01 note Cover, Steering Column
1987-05 → 1987-10 ended
AE92,CE90,EE90 LHD 5D XL —
45286-12941-01 note Cover, Steering Column
1987-05 → 1987-10 ended
AE92 GL;EE90 5D GL;EE90 +6 —
45286-12941-05 note Cover, Steering Column
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
45286-12941-06 note Cover, Steering Column
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
45286-12942-01 note Cover, Steering Column
1989-08 → 1992-06 ended
CE90,EE90 RHD —
45286-12942-01 note Cover, Steering Column
1987-05 → 1987-10 ended
AE92,CE90,EE90 RHD —
45286-12942-01 note Cover, Steering Column
1987-10 → 1992-05 ended
AE92 RHD —
45286-12942-01 note Cover, Steering Column
1987-10 → 1989-08 ended
CE90,EE90 RHD —
45286-12942-05 note Cover, Steering Column
1987-05 → 1989-08 ended
CE90,EE90 RHD —
45286-12943 Cover, Steering Column
1987-05 → 1987-10 ended
AE92 LHD EFI —
45286-12943-01 note Cover, Steering Column
1987-10 → 1989-08 ended
CE90 STD —
45286-12943-01 note Cover, Steering Column
1987-10 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
45286-12943-01 note Cover, Steering Column
1987-05 → 1987-10 ended
CE90 STD —
45286-12943-01 note Cover, Steering Column
1987-05 → 1987-10 ended
AE92,CE90,EE90 LHD 5D XL —
45286-12943-01 note Cover, Steering Column
1987-05 → 1987-10 ended
AE92 GL;EE90 5D GL;EE90 +6 —
45286-12943-01 note Cover, Steering Column
1989-08 → 1992-06 ended
AE92 SR5 —
45286-12943-01 note Cover, Steering Column
1989-08 → 1992-06 ended
EE90 XLI;EE90 LHD CBR;AE92,CE90 +2 —
45286-12943-01 note Cover, Steering Column
1987-10 → 1992-11 ended
AE92 LHD GTI —
45286-12943-05 note Cover, Steering Column
1987-05 → 1989-08 ended
EE90 LHD (GL,XL);AE92,CE90 LHD +1 —
45286-12943-06 note Cover, Steering Column
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
45804C — Washer, Plate(FOR STEERING TILT LEVER)
90201-10283 Washer, Plate(FOR STEERING TILT LEVER)
1987-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
90201-10283 Washer, Plate(FOR STEERING TILT LEVER)
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45805A — Support Sub-assy, Tilt Steering
45805-12010 Support Sub-assy, Tilt Steering
1987-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45805-12010 Support Sub-assy, Tilt Steering
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45805B — Bush(FOR TILT STEERING SUPPORT)
90386-06031 Bush(FOR TILT STEERING SUPPORT)
1987-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
90386-06031 Bush(FOR TILT STEERING SUPPORT)
1989-08 → 1990-01 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45805C — Spring, Compression(FOR TILT STEERING SUPPORT)
90501-20072 Spring, Compression(FOR TILT STEERING SUPPORT)
1987-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
90501-20072 Spring, Compression(FOR TILT STEERING SUPPORT)
1989-08 → 1990-01 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45819 — Retainer, Tilt Lever
45819-12010 Retainer, Tilt Lever
1987-05 → 1988-02 ended
AE92 RHD;EE90 GL,XL;AE92,CE90 CBR,DSL —
45819-12010 Retainer, Tilt Lever
1989-08 → 1991-06 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45819-12010 Retainer, Tilt Lever
1988-02 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45819-12020 Retainer, Tilt Lever
1991-06 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45820 — Spring Assy, Tilt Steering Support
45820-12010 Spring Assy, Tilt Steering Support
1990-01 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45826 — Lever, Steering Tilt
45826-12020 Lever, Steering Tilt
1987-05 → 1989-05 ended
AE92,CE90;EE90 GL,XL —
45826-12021 Lever, Steering Tilt
1989-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45826-12021 Lever, Steering Tilt
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45826A — Spring, Tension(FOR STEERING TILT LEVER)
90507-12029 Spring, Tension(FOR STEERING TILT LEVER)
1987-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
90507-12029 Spring, Tension(FOR STEERING TILT LEVER)
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45827A — Lever, Steering Tilt Sub
45827-12010 Lever, Steering Tilt Sub
1987-05 → 1989-05 ended
AE92,CE90;EE90 GL,XL —
45827-12011 Lever, Steering Tilt Sub
1989-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45827-12011 Lever, Steering Tilt Sub
1989-08 → 1991-06 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45827-12020 Lever, Steering Tilt Sub
1991-06 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45831 — Bolt, Tilt Lever Lock, NO.1
45831-12010 Bolt, Tilt Lever Lock, NO.1
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45831-12010 Bolt, Tilt Lever Lock, NO.1
1987-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45855 — Bolt, Tilt Steering, NO.1
45855-12010 note Bolt, Tilt Steering, NO.1
1987-05 → 1988-02 ended
AE92 RHD;EE90 GL,XL;AE92,CE90 CBR,DSL —
45855-12010 note Bolt, Tilt Steering, NO.1
1988-02 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45855-12010 note Bolt, Tilt Steering, NO.1
1989-08 → 1991-06 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45855-12020 note Bolt, Tilt Steering, NO.1
1987-05 → 1988-02 ended
AE92 RHD;EE90 GL,XL;AE92,CE90 CBR,DSL —
45855-12020 note Bolt, Tilt Steering, NO.1
1988-02 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45855-12020 note Bolt, Tilt Steering, NO.1
1989-08 → 1991-06 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45855-12030 note Bolt, Tilt Steering, NO.1
1991-06 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45855-12040 note Bolt, Tilt Steering, NO.1
1991-06 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45856 — Bolt, Tilt Steering, NO.2
45856-12010 note Bolt, Tilt Steering, NO.2
1987-05 → 1988-02 ended
AE92 RHD;EE90 GL,XL;AE92,CE90 CBR,DSL —
45856-12010 note Bolt, Tilt Steering, NO.2
1988-02 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45856-12010 note Bolt, Tilt Steering, NO.2
1989-08 → 1991-06 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45856-12020 note Bolt, Tilt Steering, NO.2
1989-08 → 1991-06 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45856-12020 note Bolt, Tilt Steering, NO.2
1987-05 → 1988-02 ended
AE92 RHD;EE90 GL,XL;AE92,CE90 CBR,DSL —
45856-12020 note Bolt, Tilt Steering, NO.2
1988-02 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45856-12030 note Bolt, Tilt Steering, NO.2
1991-06 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45856-12040 note Bolt, Tilt Steering, NO.2
1991-06 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45865 — Collar, Steering Main Shaft
45865-12050 Collar, Steering Main Shaft
1987-05 → 1988-02 ended
AE92 RHD;EE90 GL,XL;AE92,CE90 CBR,DSL —
45865-12050 Collar, Steering Main Shaft
1988-02 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45865-12050 Collar, Steering Main Shaft
1989-08 → 1991-06 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45865-12060 Collar, Steering Main Shaft
1991-06 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45866A — Stopper, Steering Main Shaft Bush
45866-12010 Stopper, Steering Main Shaft Bush
1987-05 → 1988-02 ended
AE92 RHD;EE90 GL,XL;AE92,CE90 CBR,DSL —
45866-12010 Stopper, Steering Main Shaft Bush
1988-02 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45866-12010 Stopper, Steering Main Shaft Bush
1989-08 → 1991-06 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45890A — Pawl Assy, Tilt Steering
45890-12020 note Pawl Assy, Tilt Steering
1987-05 → 1989-05 ended
AE92,CE90;EE90 GL,XL —
45890-12021 note Pawl Assy, Tilt Steering
1989-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45890-12021 note Pawl Assy, Tilt Steering
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45890-12030 note Pawl Assy, Tilt Steering
1987-05 → 1989-05 ended
AE92,CE90;EE90 GL,XL —
45890-12031 note Pawl Assy, Tilt Steering
1989-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45890-12031 note Pawl Assy, Tilt Steering
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45890C — Collar(FOR TILT STEERING PAWL)
90389-07004 note Collar(FOR TILT STEERING PAWL)
1987-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
90389-07004 note Collar(FOR TILT STEERING PAWL)
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
90389-07005 note Collar(FOR TILT STEERING PAWL)
1987-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
90389-07005 note Collar(FOR TILT STEERING PAWL)
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
90389-07006 note Collar(FOR TILT STEERING PAWL)
1987-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
90389-07006 note Collar(FOR TILT STEERING PAWL)
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
90389-07007 note Collar(FOR TILT STEERING PAWL)
1987-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
90389-07007 note Collar(FOR TILT STEERING PAWL)
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
90389-07008 note Collar(FOR TILT STEERING PAWL)
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
90389-07008 note Collar(FOR TILT STEERING PAWL)
1987-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
90389-07009 note Collar(FOR TILT STEERING PAWL)
1987-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
90389-07009 note Collar(FOR TILT STEERING PAWL)
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
90389-07010 note Collar(FOR TILT STEERING PAWL)
1987-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
90389-07010 note Collar(FOR TILT STEERING PAWL)
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
90389-07011 note Collar(FOR TILT STEERING PAWL)
1987-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
90389-07011 note Collar(FOR TILT STEERING PAWL)
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45893A — Stopper, Tilt Steering Pawl
45893-12020 note Stopper, Tilt Steering Pawl
1987-05 → 1989-05 ended
AE92,CE90;EE90 GL,XL —
45893-12021 note Stopper, Tilt Steering Pawl
1989-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45893-12021 note Stopper, Tilt Steering Pawl
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45893-12070 note Stopper, Tilt Steering Pawl
1987-05 → 1989-05 ended
AE92,CE90;EE90 GL,XL —
45893-12071 note Stopper, Tilt Steering Pawl
1989-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45893-12071 note Stopper, Tilt Steering Pawl
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45893-12120 note Stopper, Tilt Steering Pawl
1989-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45893-12120 note Stopper, Tilt Steering Pawl
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45893-12130 note Stopper, Tilt Steering Pawl
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45893-12130 note Stopper, Tilt Steering Pawl
1989-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45893-12140 note Stopper, Tilt Steering Pawl
1989-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45893-12140 note Stopper, Tilt Steering Pawl
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45893-12150 note Stopper, Tilt Steering Pawl
1989-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45893-12150 note Stopper, Tilt Steering Pawl
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45893-12160 note Stopper, Tilt Steering Pawl
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45893-12160 note Stopper, Tilt Steering Pawl
1989-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45893-12170 note Stopper, Tilt Steering Pawl
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45893-12170 note Stopper, Tilt Steering Pawl
1989-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45893-12180 note Stopper, Tilt Steering Pawl
1989-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45893-12180 note Stopper, Tilt Steering Pawl
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45893-12190 note Stopper, Tilt Steering Pawl
1989-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
45893-12190 note Stopper, Tilt Steering Pawl
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
45897 — Bolt, Steering Lock Set
45897-12020 Bolt, Steering Lock Set
1987-05 → 1987-07 ended
AE92 EFI —
45897-12020 note Bolt, Steering Lock Set
1987-05 → 1987-07 ended
EE90 GL,XL;AE92,CE90 CBR,DSL —
45897-12020 Bolt, Steering Lock Set
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
