Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

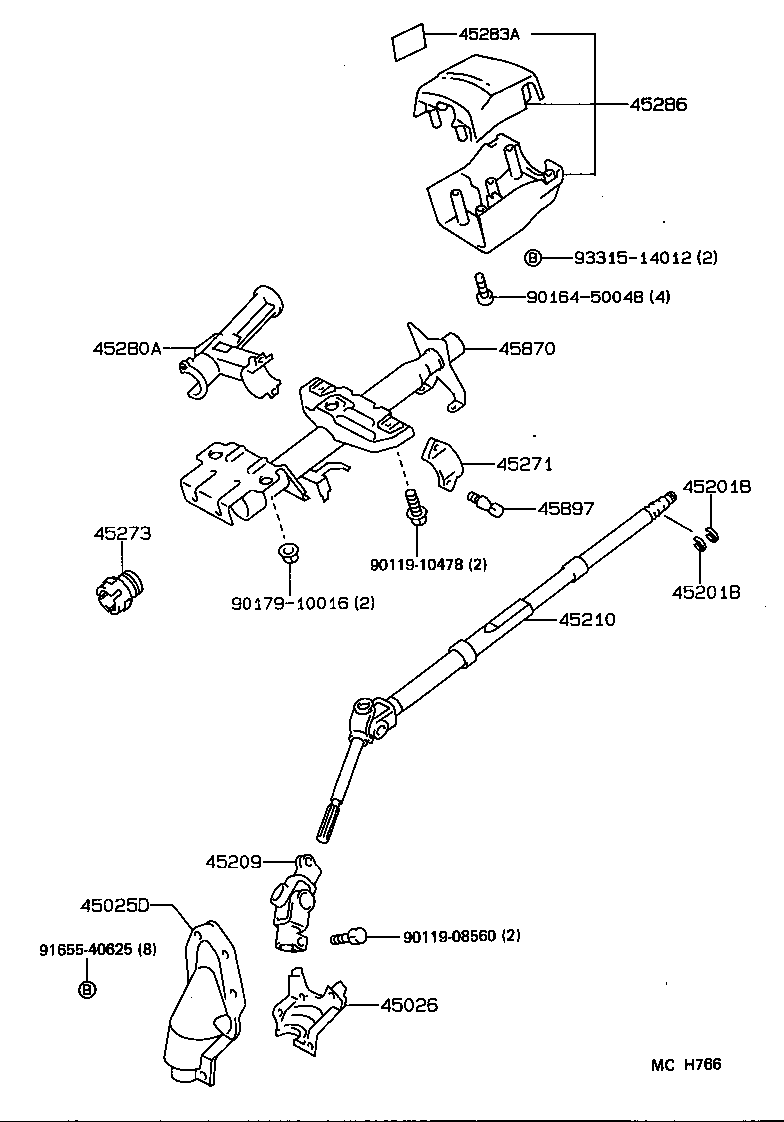

Exploded illustration MCH766 45283A — PLATE, BEAM CHANGE & TURN SIGNAL CAUTION (3 parts) 45286 — COVER, STEERING COLUMN (28 parts) 9331514012 — not listed in this catalogue 9016450048 — not listed in this catalogue 45280A — BRACKET ASSY, STEERING COLUMN, UPPER (4 parts) 45870 — TUBE ASSY, STEERING COLUMN (8 parts) 45271 — CLAMP, STEERING COLUMN, UPPER (4 parts) 45201B — RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) (2 parts) 45897 — BOLT, STEERING LOCK SET (3 parts) 45273 — BUSH, STEERING MAIN SHAFT (7 parts) 9011910478 — not listed in this catalogue 45201B — RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) (2 parts) 9017910016 — not listed in this catalogue 45210 — SHAFT ASSY, STEERING MAIN (6 parts) 45209 — YOKE SUB-ASSY, STEERING SLIDING (5 parts) 45025D — COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 (7 parts) 9011908560 — not listed in this catalogue 9165540625 — not listed in this catalogue 45026 — COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 (7 parts)
MCH766 · 13 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
84 parts on this figure
Part number Description Fitment Price
45025D — Cover Sub-assy, Steering Column Hole, NO.1
45025-12170 Cover Sub-assy, Steering Column Hole, NO.1
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
45025-12180 note Cover Sub-assy, Steering Column Hole, NO.1
1989-08 → 1992-06 ended
AE92,CE90,EE90 RHD —
45025-12180 note Cover Sub-assy, Steering Column Hole, NO.1
1987-05 → 1989-08 ended
AE92,CE90 RHD —
45025-12190 Cover Sub-assy, Steering Column Hole, NO.1
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
45025-12200 note Cover Sub-assy, Steering Column Hole, NO.1
1987-05 → 1989-08 ended
AE92,CE90 LHD (GL,GTI,XL) —
45025-12200 note Cover Sub-assy, Steering Column Hole, NO.1
1989-08 → 1990-09 ended
EE90 LHD CBR;AE92,CE90 LHD +1 —
45025-12200 note Cover Sub-assy, Steering Column Hole, NO.1
1991-06 → 1992-11 ended
EE90 LHD CBR;AE92,CE90 LHD +1 —
45026 — Cover Sub-assy, Steering Column Hole, NO.2
45026-12010 Cover Sub-assy, Steering Column Hole, NO.2
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
45026-12020 note Cover Sub-assy, Steering Column Hole, NO.2
1987-05 → 1989-08 ended
AE92,CE90 RHD —
45026-12020 note Cover Sub-assy, Steering Column Hole, NO.2
1989-08 → 1992-06 ended
AE92,CE90,EE90 RHD —
45026-12030 Cover Sub-assy, Steering Column Hole, NO.2
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
45026-12040 note Cover Sub-assy, Steering Column Hole, NO.2
1991-06 → 1992-11 ended
EE90 LHD CBR;AE92,CE90 LHD +1 —
45026-12040 note Cover Sub-assy, Steering Column Hole, NO.2
1989-08 → 1990-09 ended
EE90 LHD CBR;AE92,CE90 LHD +1 —
45026-12040 note Cover Sub-assy, Steering Column Hole, NO.2
1987-05 → 1989-08 ended
AE92,CE90 LHD (GL,GTI,XL) —
45201B — Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
90520-17042 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
90520-17196 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1987-05 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI —
45209 — Yoke Sub-assy, Steering Sliding
45209-12050 note Yoke Sub-assy, Steering Sliding
1987-05 → 1989-08 ended
AE92 EFI;CE90 LHD XL —
45209-12050 note Yoke Sub-assy, Steering Sliding
1987-05 → 1989-08 ended
AE92 CBR;CE90 RHD —
45209-12050 note Yoke Sub-assy, Steering Sliding
1989-08 → 1992-06 ended
EE90 CBR;AE92,CE90 GLI,SR5,XL,XLI —
45209-12050 note Yoke Sub-assy, Steering Sliding
1989-08 → 1992-11 ended
AE92 GTI —
45209-32010 Yoke Sub-assy, Steering Sliding
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
45210 — Shaft Assy, Steering Main
45210-12310 Shaft Assy, Steering Main
1987-05 → 1992-06 ended
CE90,EE90 RHD —
45210-12330 note Shaft Assy, Steering Main
1987-05 → 1989-08 ended
CE90 LHD XL —
45210-12350 Shaft Assy, Steering Main
1987-05 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,SR5,STD,XL,XLI) —
45210-12400 note Shaft Assy, Steering Main
1989-08 → 1992-05 ended
EE90 STD CBR —
45210-12400 Shaft Assy, Steering Main
1987-05 → 1992-11 ended
AE92 GTI —
45210-12400 note Shaft Assy, Steering Main
1987-05 → 1992-06 ended
EE90 GL,XL,XLI;AE92,CE90 GL,GLI,SR5,STD,XL,XLI —
45271 — Clamp, Steering Column, Upper
45271-12050 Clamp, Steering Column, Upper
1987-05 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI —
45271-12060 note Clamp, Steering Column, Upper
1989-08 → 1992-05 ended
EE90 STD CBR —
45271-12060 note Clamp, Steering Column, Upper
1987-05 → 1992-06 ended
EE90 GL,XL,XLI;AE92,CE90 GL,GLI,SR5,STD,XL,XLI —
45271-12060 Clamp, Steering Column, Upper
1987-05 → 1992-11 ended
AE92 GTI —
45273 — Bush, Steering Main Shaft
45273-16010 Bush, Steering Main Shaft
1990-06 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI —
45273-16010 Bush, Steering Main Shaft
1989-08 → 1990-06 ended
AE92,CE90,EE90 —
45273-16010 Bush, Steering Main Shaft
1988-02 → 1989-08 ended
AE92,CE90,EE90 —
45273-16010 Bush, Steering Main Shaft
1987-05 → 1988-02 ended
AE92 RHD;AE92,CE90,EE90 CBR,DSL —
45273-22020 note Bush, Steering Main Shaft
1990-06 → 1992-05 ended
EE90 STD CBR —
45273-22020 note Bush, Steering Main Shaft
1990-06 → 1992-06 ended
EE90 GL,XL,XLI;AE92,CE90 GLI,SR5,STD,XL,XLI —
45273-22020 Bush, Steering Main Shaft
1990-06 → 1992-11 ended
AE92 GTI —
45280A — Bracket Assy, Steering Column, Upper
45280-12100 Bracket Assy, Steering Column, Upper
1987-05 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI —
45280-12120 note Bracket Assy, Steering Column, Upper
1989-08 → 1992-05 ended
EE90 STD CBR —
45280-12120 note Bracket Assy, Steering Column, Upper
1987-05 → 1992-06 ended
EE90 GL,XL,XLI;AE92,CE90 GL,GLI,SR5,STD,XL,XLI —
45280-12120 Bracket Assy, Steering Column, Upper
1987-05 → 1992-11 ended
AE92 GTI —
45283A — Plate, Beam Change & Turn Signal Caution
45283-22010 Plate, Beam Change & Turn Signal Caution
1987-05 → 1991-01 ended
AE92,CE90,EE90 RHD —
45283-22010 Plate, Beam Change & Turn Signal Caution
1991-06 → 1992-06 ended
AE92,CE90,EE90 RHD —
45283-22010 Plate, Beam Change & Turn Signal Caution
1991-01 → 1991-06 ended
CE90,EE90 RHD —
45286 — Cover, Steering Column
45286-12940-01 note Cover, Steering Column
1989-08 → 1992-06 ended
CE90,EE90 RHD —
45286-12940-01 note Cover, Steering Column
1987-10 → 1989-08 ended
CE90,EE90 RHD —
45286-12940-03 note Cover, Steering Column
1987-05 → 1989-08 ended
CE90,EE90 RHD —
45286-12940-05 note Cover, Steering Column
1987-05 → 1989-08 ended
CE90,EE90 RHD —
45286-12941-01 note Cover, Steering Column
1987-05 → 1987-10 ended
AE92,CE90,EE90 LHD 5D XL —
45286-12941-01 note Cover, Steering Column
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
45286-12941-01 note Cover, Steering Column
1989-08 → 1992-06 ended
AE92 SR5 —
45286-12941-01 note Cover, Steering Column
1987-10 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
45286-12941-01 note Cover, Steering Column
1987-10 → 1989-08 ended
CE90,EE90 STD —
45286-12941-01 note Cover, Steering Column
1987-05 → 1987-10 ended
AE92 GL;EE90 5D GL;EE90 +6 —
45286-12941-05 note Cover, Steering Column
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
45286-12941-06 note Cover, Steering Column
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
45286-12942-01 note Cover, Steering Column
1989-08 → 1992-06 ended
CE90,EE90 RHD —
45286-12942-01 note Cover, Steering Column
1987-10 → 1989-08 ended
CE90,EE90 RHD —
45286-12942-01 note Cover, Steering Column
1987-10 → 1992-05 ended
AE92 RHD —
45286-12942-01 note Cover, Steering Column
1987-05 → 1987-10 ended
AE92,CE90,EE90 RHD —
45286-12942-05 note Cover, Steering Column
1987-05 → 1989-08 ended
CE90,EE90 RHD —
45286-12943 Cover, Steering Column
1987-05 → 1987-10 ended
AE92 LHD EFI —
45286-12943-01 note Cover, Steering Column
1989-08 → 1992-06 ended
AE92 SR5 —
45286-12943-01 note Cover, Steering Column
1987-10 → 1992-11 ended
AE92 LHD GTI —
45286-12943-01 note Cover, Steering Column
1989-08 → 1992-06 ended
EE90 XLI;EE90 LHD CBR;AE92,CE90 +2 —
45286-12943-01 note Cover, Steering Column
1987-10 → 1989-08 ended
CE90 STD —
45286-12943-01 note Cover, Steering Column
1987-05 → 1987-10 ended
CE90 STD —
45286-12943-01 note Cover, Steering Column
1987-05 → 1987-10 ended
AE92,CE90,EE90 LHD 5D XL —
45286-12943-01 note Cover, Steering Column
1987-05 → 1987-10 ended
AE92 GL;EE90 5D GL;EE90 +6 —
45286-12943-01 note Cover, Steering Column
1987-10 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
45286-12943-05 note Cover, Steering Column
1987-05 → 1989-08 ended
EE90 LHD (GL,XL);AE92,CE90 LHD +1 —
45286-12943-06 note Cover, Steering Column
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
45870 — Tube Assy, Steering Column
45870-12240 Tube Assy, Steering Column
1987-05 → 1988-09 ended
CE90,EE90 RHD —
45870-12240 note Tube Assy, Steering Column
1987-05 → 1988-09 ended
CE90 LHD XL —
45870-12241 Tube Assy, Steering Column
1988-09 → 1989-05 ended
CE90,EE90 RHD —
45870-12241 note Tube Assy, Steering Column
1988-09 → 1989-05 ended
CE90 LHD XL —
45870-12242 Tube Assy, Steering Column
1989-08 → 1992-06 ended
CE90,EE90 RHD —
45870-12250 Tube Assy, Steering Column
1987-05 → 1988-09 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
45870-12251 Tube Assy, Steering Column
1988-09 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
45870-12252 Tube Assy, Steering Column
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,SR5,STD,XL,XLI) —
45897 — Bolt, Steering Lock Set
45897-12020 Bolt, Steering Lock Set
1987-05 → 1987-07 ended
AE92 EFI —
45897-12020 note Bolt, Steering Lock Set
1987-05 → 1987-07 ended
EE90 GL,XL;AE92,CE90 CBR,DSL —
45897-12020 Bolt, Steering Lock Set
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
