Toyota Corolla HB
1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe
Discontinued model
Data version 1993-01

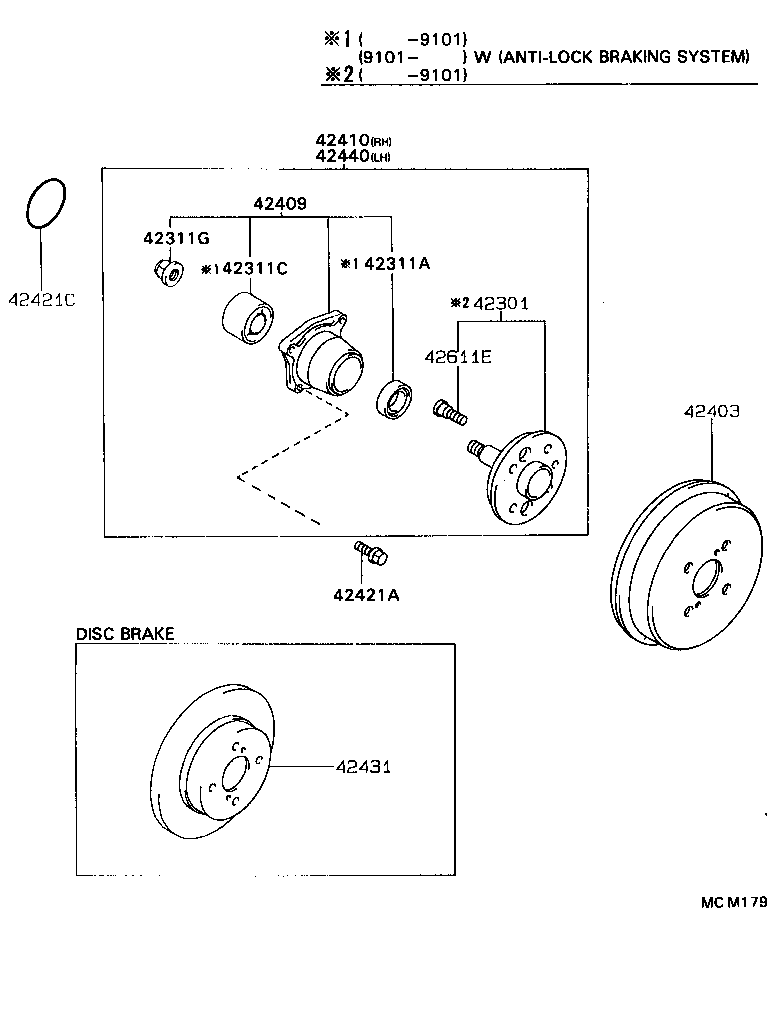

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42301 — Shaft Sub-assy, Rear Axle | ||||
| 42301-12150 |
Shaft Sub-assy, Rear Axle
1989-08 → 1991-01
ended
|
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI | — | |
| 42301-12150 |
Shaft Sub-assy, Rear Axle
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 42301-12170 note |
Shaft Sub-assy, Rear Axle
1989-08 → 1991-01
ended
|
AE92 LHD GTI | — | |
| 43502-17010 |
Shaft Sub-assy, Rear Axle
1987-05 → 1991-01
ended
|
AE92 GTI | — | |
| 42311A — Seal, Oil(FOR REAR AXLE SHAFT) | ||||
| 90311-41003 |
Seal, Oil(FOR REAR AXLE SHAFT)
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 90311-41003 |
Seal, Oil(FOR REAR AXLE SHAFT)
1989-08 → 1991-01
ended
|
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI | — | |
| 90311-41004 |
Seal, Oil(FOR REAR AXLE SHAFT)
1987-05 → 1991-01
ended
|
AE92 GTI | — | |
| 90311-41004 |
Seal, Oil(FOR REAR AXLE SHAFT)
1991-01 → 1992-11
ended
|
AE92 LHD GTI | — | |
| 42311C — Bearing(FOR REAR AXLE SHAFT) | ||||
| 90369-28006 |
Bearing(FOR REAR AXLE SHAFT)
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 | — | |
| 90369-28006 |
Bearing(FOR REAR AXLE SHAFT)
1989-08 → 1991-01
ended
|
AE92,CE90,EE90 | — | |
| 90369-28006 |
Bearing(FOR REAR AXLE SHAFT)
1991-01 → 1992-11
ended
|
AE92 LHD GTI | — | |
| 42311G — Nut(FOR REAR AXLE SHAFT) | ||||
| 90179-20003 |
Nut(FOR REAR AXLE SHAFT)
1989-08 → 1990-11
ended
|
AE92,CE90,EE90 (GL,STD,XL) (CBR,DSL) | — | |
| 90179-20003 |
Nut(FOR REAR AXLE SHAFT)
1989-08 → 1991-01
ended
|
AE92,CE90,EE90 | — | |
| 90179-20003 |
Nut(FOR REAR AXLE SHAFT)
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 | — | |
| 90179-20017 |
Nut(FOR REAR AXLE SHAFT)
1991-01 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 42403 — Drum Sub-assy, Rear Brake | ||||
| 42431-20080 |
Drum Sub-assy, Rear Brake
1987-05 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI | — | |
| 42409 — Bearing Sub-assy, Rear Axle | ||||
| 42409-19015 |
Bearing Sub-assy, Rear Axle
1991-01 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 42421-19015 |
Bearing Sub-assy, Rear Axle
1987-05 → 1991-01
ended
|
AE92,CE90,EE90 (GL,STD,XL) (CBR,DSL) | — | |
| 42421-19015 |
Bearing Sub-assy, Rear Axle
1989-08 → 1991-01
ended
|
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI | — | |
| 42421-19025 |
Bearing Sub-assy, Rear Axle
1987-05 → 1991-01
ended
|
AE92 GTI | — | |
| 42421-19035 note |
Bearing Sub-assy, Rear Axle
1989-08 → 1992-11
ended
|
AE92 LHD GTI | — | |
| 42422-19015 note |
Bearing Sub-assy, Rear Axle
1989-08 → 1992-11
ended
|
AE92 LHD GTI | — | |
| 42410 — Hub & Bearing Assy, Rear Axle, RH | ||||
| 42410-12050 |
Hub & Bearing Assy, Rear Axle, RH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 42410-12050 |
Hub & Bearing Assy, Rear Axle, RH
1989-08 → 1991-01
ended
|
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI | — | |
| 42410-12060 |
Hub & Bearing Assy, Rear Axle, RH
1987-05 → 1991-01
ended
|
AE92 GTI | — | |
| 42410-12070 note |
Hub & Bearing Assy, Rear Axle, RH
1989-08 → 1992-11
ended
|
AE92 LHD GTI | — | |
| 42410-12130 |
Hub & Bearing Assy, Rear Axle, RH
1991-01 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI | — | |
| 42410-12140 |
Hub & Bearing Assy, Rear Axle, RH
1991-01 → 1992-11
ended
|
AE92 GTI | — | |
| 42421A — Bolt (FOR REAR AXLE BEARING CASE) | ||||
| 90105-10124 |
Bolt (FOR REAR AXLE BEARING CASE)
1987-05 → 1990-01
ended
|
AE92,CE90,EE90 | — | |
| 90105-10124 |
Bolt (FOR REAR AXLE BEARING CASE)
1990-01 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI | — | |
| 90105-10124 |
Bolt (FOR REAR AXLE BEARING CASE)
1990-01 → 1992-11
ended
|
AE92 GTI | — | |
| 90105-10251 note |
Bolt (FOR REAR AXLE BEARING CASE)
1989-08 → 1992-11
ended
|
AE92 LHD GTI | — | |
| 42421C — Ring, O (FOR REAR AXLE BEARING CASE) | ||||
| 90301-61002 |
Ring, O (FOR REAR AXLE BEARING CASE)
1990-01 → 1992-11
ended
|
AE92 GTI | — | |
| 90301-61002 |
Ring, O (FOR REAR AXLE BEARING CASE)
1990-01 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI | — | |
| 90301-61002 |
Ring, O (FOR REAR AXLE BEARING CASE)
1987-05 → 1990-01
ended
|
AE92,CE90,EE90 | — | |
| 42431 — Disc, Rear | ||||
| 42431-12090 |
Disc, Rear
1987-05 → 1992-11
ended
|
AE92 GTI | — | |
| 42431-12120 note |
Disc, Rear
1989-08 → 1992-11
ended
|
AE92 LHD GTI | — | |
| 42440 — Hub & Bearing Assy, Rear Axle, LH | ||||
| 42410-12050 |
Hub & Bearing Assy, Rear Axle, LH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 42410-12050 |
Hub & Bearing Assy, Rear Axle, LH
1989-08 → 1991-01
ended
|
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI | — | |
| 42410-12060 |
Hub & Bearing Assy, Rear Axle, LH
1987-05 → 1991-01
ended
|
AE92 GTI | — | |
| 42410-12130 |
Hub & Bearing Assy, Rear Axle, LH
1991-01 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI | — | |
| 42410-12140 |
Hub & Bearing Assy, Rear Axle, LH
1991-01 → 1992-11
ended
|
AE92 GTI | — | |
| 42440-12010 note |
Hub & Bearing Assy, Rear Axle, LH
1989-08 → 1992-11
ended
|
AE92 LHD GTI | — | |
| 42611E — Bolt, Hub (FOR REAR AXLE) | ||||
| 90942-02047 |
Bolt, Hub (FOR REAR AXLE)
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
