Toyota Corolla HB
1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe
Discontinued model
Data version 1993-01

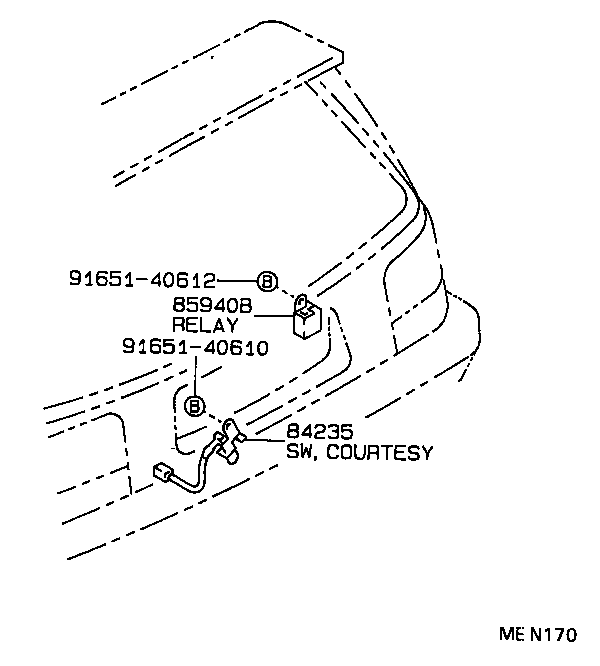

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84235 — Switch Assy, Courtesy Lamp(FOR BACK DOOR) | ||||
| 84231-16021 |
Switch Assy, Courtesy Lamp(FOR BACK DOOR)
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 85940B — Relay Assy, Rear Wiper | ||||
| 85940-12030 |
Relay Assy, Rear Wiper
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
