Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

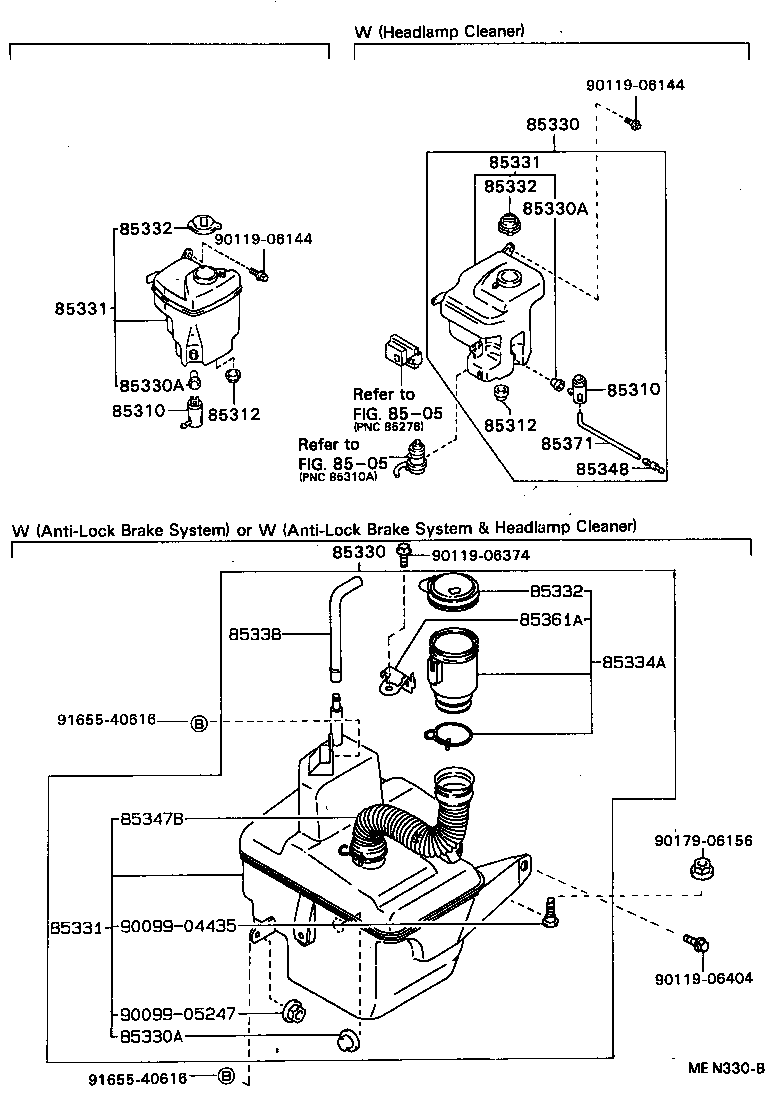

Exploded illustration MEN330B 9011906144 — not listed in this catalogue 85330 — JAR ASSY, WINDSHIELD WASHER (4 parts) 85331 — JAR SUB-ASSY, WINDSHIELD WASHER (9 parts) 85332 — CAP, WINDSHIELD WASHER JAR (7 parts) 85330A — BUSH, WINDSHIELD WASHER JAR (1 parts) 85332 — CAP, WINDSHIELD WASHER JAR (7 parts) 9011906144 — not listed in this catalogue 85331 — JAR SUB-ASSY, WINDSHIELD WASHER (9 parts) 85330A — BUSH, WINDSHIELD WASHER JAR (1 parts) 85310 — MOTOR AND PUMP ASSY, WINDSHIELD WASHER (6 parts) 85310 — MOTOR AND PUMP ASSY, WINDSHIELD WASHER (6 parts) 8505 — not listed in this catalogue 85312 — PACKING, WINDSHIELD WASHER TANK (1 parts) 85312 — PACKING, WINDSHIELD WASHER TANK (1 parts) 85371 — HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) (4 parts) 8505 — not listed in this catalogue 85348 — JOINT, WINDSHIELD WASHER HOSE, NO.1 (12 parts) 85330 — JAR ASSY, WINDSHIELD WASHER (4 parts) 9011906374 — not listed in this catalogue 85332 — CAP, WINDSHIELD WASHER JAR (7 parts) 85361A — BRACKET, WINDSHIELD WASHER, NO.1 (1 parts) 85338 — HOSE, BREATHER (1 parts) 85334A — CAP SUB-ASSY, TANK (1 parts) 9165540616 — not listed in this catalogue 85347B — HOSE, TANK (1 parts) 9017906156 — not listed in this catalogue 9009904435 — not listed in this catalogue 85331 — JAR SUB-ASSY, WINDSHIELD WASHER (9 parts) 9011906404 — not listed in this catalogue 9009905247 — not listed in this catalogue 85330A — BUSH, WINDSHIELD WASHER JAR (1 parts) 9165540616 — not listed in this catalogue
MEN330B · 21 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
48 parts on this figure
Part number Description Fitment Price
85310 — Motor And Pump Assy, Windshield Washer
85310-12180 Motor And Pump Assy, Windshield Washer
1989-08 → 1992-06 ended
EE90 5D 4F —
85310-12180 note Motor And Pump Assy, Windshield Washer
1989-08 → 1992-11 ended
EE90 3D 4F;AE92,CE90,EE90 LHD +1 —
85310-12180 note Motor And Pump Assy, Windshield Washer
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD —
85310-16050 note Motor And Pump Assy, Windshield Washer
1989-08 → 1992-11 ended
AE92 LHD GTI —
85310-22080 Motor And Pump Assy, Windshield Washer
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
85310-22080 Motor And Pump Assy, Windshield Washer
1989-08 → 1992-11 ended
EE90 3D 4F;AE92,CE90,EE90 3FC,5F —
85312 — Packing, Windshield Washer Tank
85312-12650 Packing, Windshield Washer Tank
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
85330 — Jar Assy, Windshield Washer
85330-12210 note Jar Assy, Windshield Washer
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD —
85330-12210 Jar Assy, Windshield Washer
1989-08 → 1992-06 ended
EE90 5D 4F —
85330-12210 note Jar Assy, Windshield Washer
1989-08 → 1992-11 ended
EE90 3D 4F;AE92,CE90,EE90 LHD +1 —
85330-12270 note Jar Assy, Windshield Washer
1989-08 → 1992-11 ended
AE92 LHD GTI —
85330A — Bush, Windshield Washer Jar
90099-32089 Bush, Windshield Washer Jar
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
85331 — Jar Sub-assy, Windshield Washer
85331-12270 note Jar Sub-assy, Windshield Washer
1989-08 → 1992-11 ended
AE92 LHD GTI —
85331-12660 Jar Sub-assy, Windshield Washer
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
85331-12710 note Jar Sub-assy, Windshield Washer
1989-08 → 1992-06 ended
AE92 GLI,SR5,XL,XLI —
85331-12710 note Jar Sub-assy, Windshield Washer
1989-08 → 1992-11 ended
AE92 LHD GTI —
85331-12710 note Jar Sub-assy, Windshield Washer
1989-08 → 1992-06 ended
EE90 LHD 3D —
85331-12710 note Jar Sub-assy, Windshield Washer
1989-08 → 1992-06 ended
EE90 LHD 5D —
85331-12710 note Jar Sub-assy, Windshield Washer
1989-08 → 1992-06 ended
CE90 LHD —
85331-12710 note Jar Sub-assy, Windshield Washer
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD —
85331-12740 note Jar Sub-assy, Windshield Washer
1989-08 → 1992-11 ended
AE92 LHD GTI —
85332 — Cap, Windshield Washer Jar
85332-12320 Cap, Windshield Washer Jar
1987-05 → 1988-08 ended
AE92,CE90,EE90 —
85332-12660 Cap, Windshield Washer Jar
1988-08 → 1989-08 ended
AE92,CE90,EE90 —
85332-12660 Cap, Windshield Washer Jar
1989-08 → 1992-11 ended
EE90 3D 4F;AE92,CE90,EE90 3FC,5F —
85332-12740 note Cap, Windshield Washer Jar
1989-08 → 1992-11 ended
AE92 LHD GTI —
85332-22470 Cap, Windshield Washer Jar
1989-08 → 1992-06 ended
EE90 5D 4F —
85332-22470 note Cap, Windshield Washer Jar
1989-08 → 1992-11 ended
EE90 3D 4F;AE92,CE90,EE90 LHD +1 —
85332-22470 note Cap, Windshield Washer Jar
1988-08 → 1989-08 ended
AE92,CE90,EE90 LHD —
85334A — Cap Sub-assy, Tank
85334-12740 Cap Sub-assy, Tank
1989-08 → 1992-11 ended
AE92 LHD GTI —
85338 — Hose, Breather
85338-20270 Hose, Breather
1989-08 → 1992-11 ended
AE92 LHD GTI —
85347B — Hose, Tank
85347-12740 Hose, Tank
1989-08 → 1992-11 ended
AE92 LHD GTI —
85348 — Joint, Windshield Washer Hose, NO.1
85348-12250 note Joint, Windshield Washer Hose, NO.1
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
85348-12250 note Joint, Windshield Washer Hose, NO.1
1989-08 → 1992-11 ended
EE90 3D 4F;AE92,CE90,EE90 3FC,5F —
85349-89122 note Joint, Windshield Washer Hose, NO.1
1989-03 → 1992-11 ended
AE92 GTI —
85349-89122 note Joint, Windshield Washer Hose, NO.1
1989-08 → 1992-11 ended
AE92,CE90,EE90 —
85349-89122 note Joint, Windshield Washer Hose, NO.1
1989-08 → 1992-11 ended
EE90 3D 4F;AE92,CE90,EE90 (3FC,5F) +1 —
85349-89122 note Joint, Windshield Washer Hose, NO.1
1989-08 → 1992-11 ended
AE92,CE90,EE90 LHD (GL,GLI,SR5,STD,XL,XLI) —
85349-89122 note Joint, Windshield Washer Hose, NO.1
1989-08 → 1992-11 ended
AE92 LHD GTI —
85349-89122 note Joint, Windshield Washer Hose, NO.1
1989-08 → 1992-06 ended
EE90 3D 4F;AE92,CE90,EE90 (3FC,5F) +1 —
85349-89122 note Joint, Windshield Washer Hose, NO.1
1989-03 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
85349-89122 note Joint, Windshield Washer Hose, NO.1
1989-03 → 1989-08 ended
CE90,EE90 RHD —
85349-89122 note Joint, Windshield Washer Hose, NO.1
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
85349-89122 note Joint, Windshield Washer Hose, NO.1
1987-05 → 1989-03 ended
AE92,CE90,EE90 LHD —
85361A — Bracket, Windshield Washer, NO.1
85361-12770 Bracket, Windshield Washer, NO.1
1989-08 → 1992-11 ended
AE92 LHD GTI —
85371 — Hose, Windshield Washer (FROM MOTOR TO JOINT)
90099-33185 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
90099-33410 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
1987-05 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
90099-33410 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
1989-08 → 1992-06 ended
EE90 3D 4F;AE92,CE90,EE90 (3FC,5F) +1 —
90446-07001 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
