Toyota Corolla HB
1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe
Discontinued model
Data version 1993-01

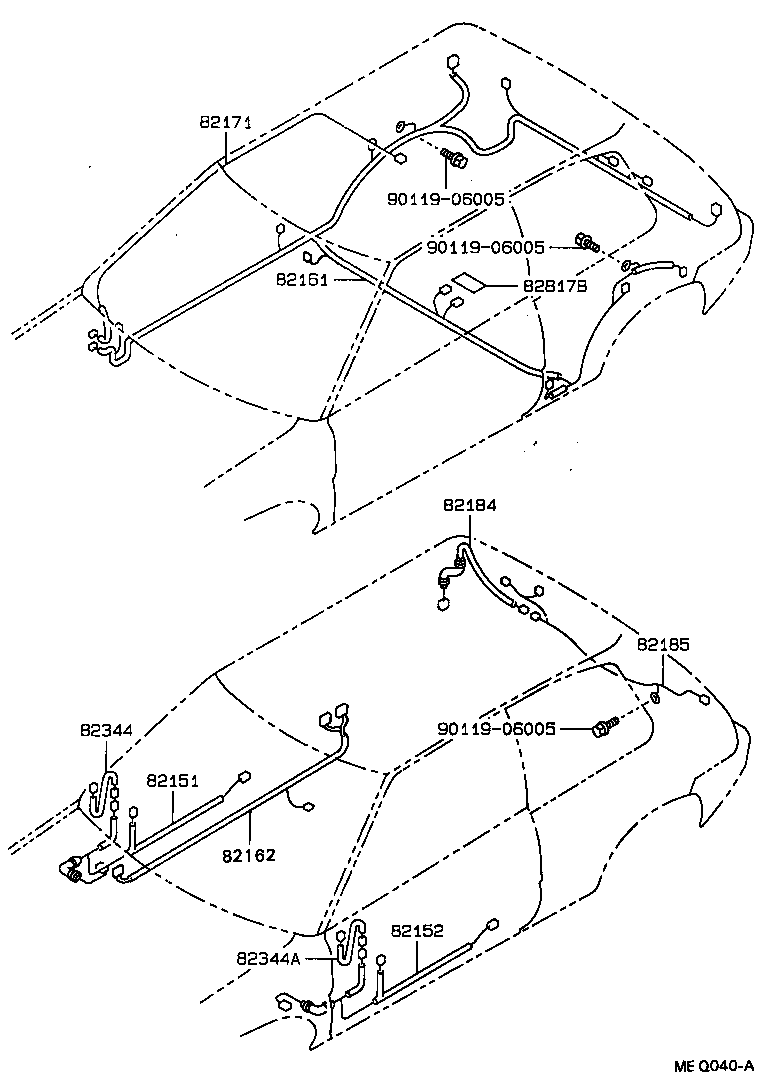

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82151 — Wire, Front Door, RH | ||||
| 82151-12260 note |
Wire, Front Door, RH
1987-05 → 1992-06
ended
|
AE92,CE90,EE90 5D | — | |
| 82151-12280 note |
Wire, Front Door, RH
1987-05 → 1989-08
ended
|
EE90 RHD 5D | — | |
| 82151-12300 note |
Wire, Front Door, RH
1987-05 → 1989-08
ended
|
EE90 RHD 5D | — | |
| 82151-12330 note |
Wire, Front Door, RH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD 5D | — | |
| 82151-12340 note |
Wire, Front Door, RH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD 5D | — | |
| 82151-12350 note |
Wire, Front Door, RH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 3D (GL,GTI,XL) | — | |
| 82151-12350 |
Wire, Front Door, RH
1989-08 → 1992-05
ended
|
EE90 3D MTM XLI;CE90,EE90 +3 | — | |
| 82151-12350 note |
Wire, Front Door, RH
1989-08 → 1992-05
ended
|
EE90 XLI) 3D GL;EE90 +9 | — | |
| 82151-12350 note |
Wire, Front Door, RH
1989-08 → 1992-11
ended
|
AE92 GTI | — | |
| 82151-12360 note |
Wire, Front Door, RH
1987-05 → 1989-08
ended
|
AE92 RHD | — | |
| 82151-12360 note |
Wire, Front Door, RH
1987-05 → 1989-08
ended
|
EE90 RHD GL | — | |
| 82151-12380 note |
Wire, Front Door, RH
1987-05 → 1989-08
ended
|
CE90,EE90 RHD 3D | — | |
| 82151-12390 note |
Wire, Front Door, RH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD 3D (GL,GTI,XL) | — | |
| 82151-12400 note |
Wire, Front Door, RH
1987-05 → 1989-08
ended
|
AE92,EE90 LHD 3D (GL,GTI) | — | |
| 82151-12600 note |
Wire, Front Door, RH
1989-08 → 1992-06
ended
|
EE90 RHD 5D | — | |
| 82151-12650 note |
Wire, Front Door, RH
1989-08 → 1992-06
ended
|
CE90,EE90 LHD 5D | — | |
| 82151-12650 note |
Wire, Front Door, RH
1989-08 → 1992-06
ended
|
AE92 5D | — | |
| 82151-12660 note |
Wire, Front Door, RH
1989-08 → 1992-05
ended
|
EE90 3D GL | — | |
| 82151-12660 note |
Wire, Front Door, RH
1989-08 → 1992-05
ended
|
AE92 RHD | — | |
| 82151-12680 note |
Wire, Front Door, RH
1989-08 → 1992-11
ended
|
AE92 LHD GTI | — | |
| 82151-12680 note |
Wire, Front Door, RH
1989-08 → 1992-05
ended
|
AE92 GLI,SR5 | — | |
| 82151-12750 note |
Wire, Front Door, RH
1989-08 → 1992-06
ended
|
EE90 RHD 5D | — | |
| 82151-12760 note |
Wire, Front Door, RH
1989-08 → 1992-06
ended
|
AE92,CE90 5D;EE90 5D 5F +4 | — | |
| 82151-12780 note |
Wire, Front Door, RH
1989-08 → 1992-11
ended
|
EE90 LHD 3D XL;EE90 +6 | — | |
| 82152 — Wire, Front Door, LH | ||||
| 82152-12200 note |
Wire, Front Door, LH
1987-05 → 1989-08
ended
|
EE90 RHD 5D | — | |
| 82152-12210 note |
Wire, Front Door, LH
1987-05 → 1989-08
ended
|
EE90 RHD 5D | — | |
| 82152-12250 note |
Wire, Front Door, LH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD 5D | — | |
| 82152-12270 note |
Wire, Front Door, LH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD 5D | — | |
| 82152-12280 note |
Wire, Front Door, LH
1987-05 → 1989-08
ended
|
AE92 RHD | — | |
| 82152-12280 note |
Wire, Front Door, LH
1987-05 → 1989-08
ended
|
EE90 RHD GL | — | |
| 82152-12300 note |
Wire, Front Door, LH
1987-05 → 1989-08
ended
|
CE90,EE90 RHD 3D | — | |
| 82152-12310 note |
Wire, Front Door, LH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD 3D (GL,GTI,XL) | — | |
| 82152-12320 note |
Wire, Front Door, LH
1987-05 → 1989-08
ended
|
AE92,EE90 LHD 3D (GL,GTI) | — | |
| 82152-12400 note |
Wire, Front Door, LH
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 5D | — | |
| 82152-12400 note |
Wire, Front Door, LH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 5D | — | |
| 82152-12420 |
Wire, Front Door, LH
1989-08 → 1992-05
ended
|
EE90 3D MTM XLI;CE90,EE90 +3 | — | |
| 82152-12420 note |
Wire, Front Door, LH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 3D (GL,GTI,XL) | — | |
| 82152-12420 note |
Wire, Front Door, LH
1989-08 → 1992-11
ended
|
AE92 GTI | — | |
| 82152-12420 note |
Wire, Front Door, LH
1989-08 → 1992-05
ended
|
EE90 XLI) 3D GL;EE90 +9 | — | |
| 82152-12510 note |
Wire, Front Door, LH
1989-08 → 1992-06
ended
|
EE90 RHD 5D | — | |
| 82152-12570 note |
Wire, Front Door, LH
1989-08 → 1992-05
ended
|
AE92 RHD | — | |
| 82152-12570 note |
Wire, Front Door, LH
1989-08 → 1992-05
ended
|
EE90 3D GL | — | |
| 82152-12580 note |
Wire, Front Door, LH
1989-08 → 1992-11
ended
|
AE92 LHD (GLI,GTI,SR5) | — | |
| 82152-12650 note |
Wire, Front Door, LH
1989-08 → 1992-06
ended
|
EE90 RHD 5D | — | |
| 82152-12670 note |
Wire, Front Door, LH
1989-08 → 1992-06
ended
|
AE92,CE90 5D;EE90 5D 5F +4 | — | |
| 82152-12690 note |
Wire, Front Door, LH
1989-08 → 1992-11
ended
|
EE90 LHD 3D XL;EE90 +6 | — | |
| 82152-12760 note |
Wire, Front Door, LH
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 LHD 5D | — | |
| 82161 — Wire, Floor | ||||
| 82161-1A390 |
Wire, Floor
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 RHD | — | |
| 82161-1A400 note |
Wire, Floor
1987-05 → 1989-08
ended
|
EE90 RHD 5D | — | |
| 82161-1A410 |
Wire, Floor
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD | — | |
| 82161-1A430 note |
Wire, Floor
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD 5D | — | |
| 82161-1H070 |
Wire, Floor
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 RHD | — | |
| 82161-1H080 note |
Wire, Floor
1989-08 → 1992-06
ended
|
EE90 RHD 5D | — | |
| 82161-1H110 |
Wire, Floor
1989-08 → 1992-11
ended
|
AE92,CE90,EE90 LHD | — | |
| 82161-1H130 note |
Wire, Floor
1989-08 → 1992-06
ended
|
AE92,CE90 5D;EE90 5D 5F +7 | — | |
| 82161-1H130 note |
Wire, Floor
1991-06 → 1992-06
ended
|
EE90 5D 3FC EFI | — | |
| 82161-1H140 note |
Wire, Floor
1989-08 → 1992-11
ended
|
AE92 LHD GTI | — | |
| 82162 — Wire, Floor, NO.2 | ||||
| 82162-12620 |
Wire, Floor, NO.2
1989-08 → 1992-11
ended
|
AE92 LHD GTI | — | |
| 82171 — Wire, Roof, NO.1 | ||||
| 82171-12140 |
Wire, Roof, NO.1
1987-05 → 1989-07
ended
|
AE92,CE90,EE90 RHD | — | |
| 82171-12150 note |
Wire, Roof, NO.1
1987-05 → 1989-07
ended
|
AE92,CE90,EE90 RHD | — | |
| 82171-12160 |
Wire, Roof, NO.1
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD | — | |
| 82171-12170 note |
Wire, Roof, NO.1
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,GTI,XL) | — | |
| 82171-12320 |
Wire, Roof, NO.1
1989-07 → 1992-06
ended
|
AE92,CE90,EE90 RHD | — | |
| 82171-12330 note |
Wire, Roof, NO.1
1989-07 → 1992-06
ended
|
AE92,CE90,EE90 RHD | — | |
| 82171-12340 |
Wire, Roof, NO.1
1989-08 → 1992-11
ended
|
AE92,CE90,EE90 LHD | — | |
| 82171-12350 note |
Wire, Roof, NO.1
1989-08 → 1992-11
ended
|
EE90 STD EFI;AE92,CE90,EE90 LHD +1 | — | |
| 82184 — Wire, Back Door, NO.1 | ||||
| 82184-12240 |
Wire, Back Door, NO.1
1987-05 → 1989-07
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 82184-12250 |
Wire, Back Door, NO.1
1987-05 → 1989-07
ended
|
AE92 EFI | — | |
| 82184-12250 note |
Wire, Back Door, NO.1
1987-05 → 1989-07
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 82184-12410 |
Wire, Back Door, NO.1
1989-07 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI | — | |
| 82184-12420 note |
Wire, Back Door, NO.1
1989-07 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI | — | |
| 82184-12420 |
Wire, Back Door, NO.1
1989-07 → 1992-11
ended
|
AE92 GTI | — | |
| 82185 — Wire, Back Door, NO.2 | ||||
| 82185-12310 |
Wire, Back Door, NO.2
1987-05 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI | — | |
| 82185-12330 note |
Wire, Back Door, NO.2
1987-05 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI | — | |
| 82185-12330 |
Wire, Back Door, NO.2
1987-05 → 1992-11
ended
|
AE92 GTI | — | |
| 82344 — Wire, Mirror, RH | ||||
| 82344-12010 |
Wire, Mirror, RH
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 82344A — Wire, Mirror, LH | ||||
| 82344-12010 |
Wire, Mirror, LH
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 82817B — Protector, Wiring Harness, NO.3 | ||||
| 82817-16100 |
Protector, Wiring Harness, NO.3
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
