Toyota Corolla HB
1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe
Discontinued model
Data version 1993-01

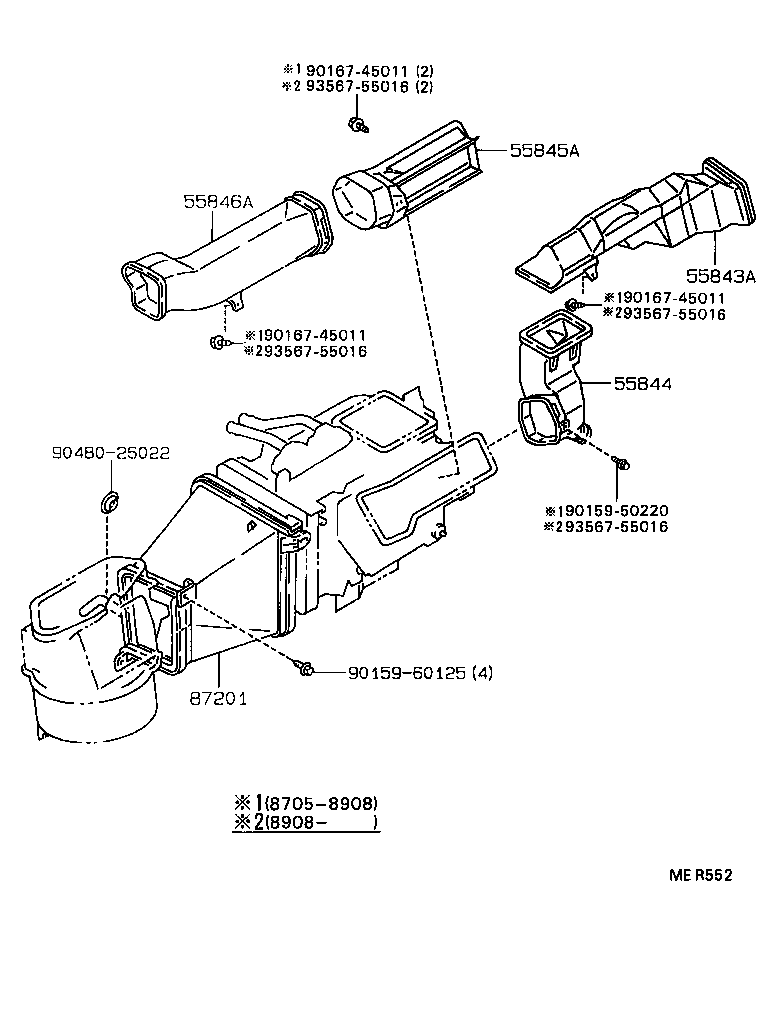

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55843A — Duct, Heater TO Register, NO.1 | ||||
| 55843-12170 |
Duct, Heater TO Register, NO.1
1987-05 → 1992-06
ended
|
AE92,CE90,EE90 RHD | — | |
| 55843-12180 |
Duct, Heater TO Register, NO.1
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 LHD | — | |
| 55844 — Duct, Heater TO Register, NO.2 | ||||
| 55844-12210 |
Duct, Heater TO Register, NO.2
1987-05 → 1992-06
ended
|
AE92,CE90,EE90 RHD | — | |
| 55844-12220 |
Duct, Heater TO Register, NO.2
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 LHD | — | |
| 55844-12240 note |
Duct, Heater TO Register, NO.2
1987-05 → 1992-06
ended
|
AE92,CE90,EE90 LHD (CBR,DSL) | — | |
| 55845A — Duct, Heater TO Register, NO.3 | ||||
| 55845-12110 |
Duct, Heater TO Register, NO.3
1987-05 → 1992-06
ended
|
AE92,CE90,EE90 RHD | — | |
| 55845-12120 |
Duct, Heater TO Register, NO.3
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 LHD | — | |
| 55846A — Duct, Heater TO Register, NO.4 | ||||
| 55846-12090 |
Duct, Heater TO Register, NO.4
1987-05 → 1992-06
ended
|
AE92,CE90,EE90 RHD | — | |
| 55846-12100 |
Duct, Heater TO Register, NO.4
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 LHD | — | |
| 87201 — Duct Sub-assy, Air, NO.1 | ||||
| 87201-12110 |
Duct Sub-assy, Air, NO.1
1987-05 → 1992-06
ended
|
AE92,CE90,EE90 RHD | — | |
| 87201-12130 |
Duct Sub-assy, Air, NO.1
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 LHD | — | |
| 87201-12140 note |
Duct Sub-assy, Air, NO.1
1987-05 → 1988-05
ended
|
AE92,CE90,EE90 LHD | — | |
| 87201-12140 note |
Duct Sub-assy, Air, NO.1
1988-05 → 1992-11
ended
|
AE92,CE90,EE90 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
