Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

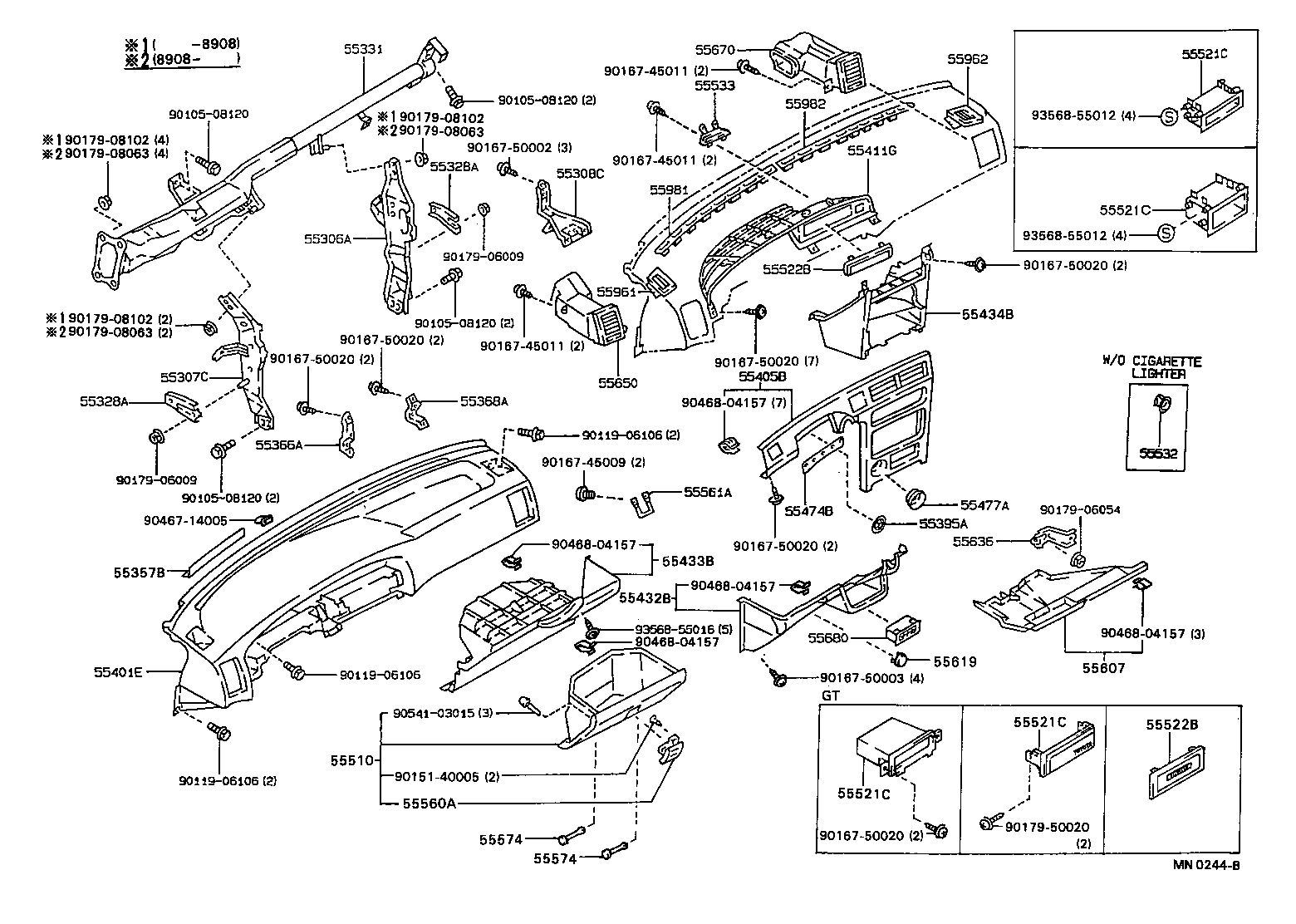

Exploded illustration MN0244B 55331 — REINFORCEMENT, INSTRUMENT PANEL (2 parts) 55670 — REGISTER ASSY, INSTRUMENT PANEL, NO.3 (10 parts) 55521C — COVER, STEREO OPENING (9 parts) 55962 — NOZZLE, SIDE DEFROSTER, NO.2 (8 parts) 9016745011 — not listed in this catalogue 55533 — COVER, AUTO CLOCK HOLE (2 parts) 9010508120 — not listed in this catalogue 55982 — GARNISH, DEFROSTER NOZZLE, NO.2 (8 parts) 9010508120 — not listed in this catalogue 9356855012 — not listed in this catalogue 9017908102 — not listed in this catalogue 9017908063 — not listed in this catalogue 9017908102 — not listed in this catalogue 9016750002 — not listed in this catalogue 55411G — PANEL, INSTRUMENT CLUSTER FINISH, NO.1 (6 parts) 9017908063 — not listed in this catalogue 9016745011 — not listed in this catalogue 55328A — STAY, INSTRUMENT PANEL, NO.3 (1 parts) 55308C — BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER (1 parts) 55981 — GARNISH, DEFROSTER NOZZLE, NO.1 (8 parts) 55521C — COVER, STEREO OPENING (9 parts) 9356855012 — not listed in this catalogue 55306A — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 (2 parts) 9017906009 — not listed in this catalogue 9016750020 — not listed in this catalogue 55522B — COVER, RADIO TUNER OPENING (4 parts) 55961 — NOZZLE, SIDE DEFROSTER, NO.1 (8 parts) 55434B — PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER (8 parts) 9017908102 — not listed in this catalogue 9010508120 — not listed in this catalogue 9017908063 — not listed in this catalogue 9016750020 — not listed in this catalogue 9016745011 — not listed in this catalogue 9016750020 — not listed in this catalogue 9016750020 — not listed in this catalogue 55405B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER (13 parts) 55307C — BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 (2 parts) 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (8 parts) 55328A — STAY, INSTRUMENT PANEL, NO.3 (1 parts) 55368A — BRACKET, RADIO MOUNTING, NO.2 (2 parts) 9046804157 — not listed in this catalogue 9011906106 — not listed in this catalogue 55366A — BRACKET, RADIO MOUNTING, NO.1 (2 parts) 55532 — COVER, CIGAR LIGHTER HOLE (6 parts) 9016745009 — not listed in this catalogue 9017906009 — not listed in this catalogue 55561A — STRIKER, GLOVE COMPARTMENT DOOR LOCK (1 parts) 9010508120 — not listed in this catalogue 55477A — BEZEL, CIGARETTE LIGHTER HOLE (1 parts) 9017906054 — not listed in this catalogue 55474B — GARNISH, INSTRUMENT CLUSTER FINISH PANEL (2 parts) 9046714005 — not listed in this catalogue 55395A — RETAINER, INSTRUMENT PANEL CLAMP (2 parts) 55636 — BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1 (2 parts) 9046804157 — not listed in this catalogue 9016750020 — not listed in this catalogue 55433B — PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 (8 parts) 55357B — CUSHION, INSTRUMENT PANEL, NO.3 (1 parts) 9046804157 — not listed in this catalogue 55432B — PANEL, INSTRUMENT PANEL FINISH, LOWER (8 parts) 9356855016 — not listed in this catalogue 9046804157 — not listed in this catalogue 55680 — REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 (6 parts) 9046804157 — not listed in this catalogue 55619 — COVER, SWITCH HOLE (5 parts) 55607 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 (8 parts) 55401E — PAD SUB-ASSY, INSTRUMENT PANEL SAFETY (11 parts) 9011906106 — not listed in this catalogue 9016750003 — not listed in this catalogue 9054103015 — not listed in this catalogue 55521C — COVER, STEREO OPENING (9 parts) 55522B — COVER, RADIO TUNER OPENING (4 parts) 55510 — DOOR ASSY, GLOVE COMPARTMENT (8 parts) 9015140005 — not listed in this catalogue 9011906106 — not listed in this catalogue 55521C — COVER, STEREO OPENING (9 parts) 55560A — LOCK ASSY, GLOVE COMPARTMENT DOOR (8 parts) 9017950020 — not listed in this catalogue 9016750020 — not listed in this catalogue 55574 — SHAFT, GLOVE COMPARTMENT DOOR HINGE (1 parts) 55574 — SHAFT, GLOVE COMPARTMENT DOOR HINGE (1 parts)
MN0244B · 41 callouts, 40 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
182 parts on this figure
Part number Description Fitment Price
55306A — Brace Sub-assy, Instrument Panel, NO.1
55306-12060 Brace Sub-assy, Instrument Panel, NO.1
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
55306-12070 Brace Sub-assy, Instrument Panel, NO.1
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
55307C — Brace Sub-assy, Instrument Panel, NO.2
55307-12110 Brace Sub-assy, Instrument Panel, NO.2
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
55307-12120 Brace Sub-assy, Instrument Panel, NO.2
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
55308C — Bracket Sub-assy, Instrument Panel, Center
55308-12150 Bracket Sub-assy, Instrument Panel, Center
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
55328A — Stay, Instrument Panel, NO.3
55328-12040 Stay, Instrument Panel, NO.3
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
55331 — Reinforcement, Instrument Panel
55330-12160 Reinforcement, Instrument Panel
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
55330-12170 Reinforcement, Instrument Panel
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
55357B — Cushion, Instrument Panel, NO.3
55357-22010 Cushion, Instrument Panel, NO.3
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
55366A — Bracket, Radio Mounting, NO.1
55366-12010 Bracket, Radio Mounting, NO.1
1987-05 → 1992-06 ended
CE90,EE90 RHD —
55366-12020 Bracket, Radio Mounting, NO.1
1987-05 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,SR5,STD,XL,XLI) —
55368A — Bracket, Radio Mounting, NO.2
55368-12010 Bracket, Radio Mounting, NO.2
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
55368-12020 Bracket, Radio Mounting, NO.2
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
55395A — Retainer, Instrument Panel Clamp
55395-12010 Retainer, Instrument Panel Clamp
1987-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
55395-12010 Retainer, Instrument Panel Clamp
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
55401E — Pad Sub-assy, Instrument Panel Safety
55401-12250-03 note Pad Sub-assy, Instrument Panel Safety
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
55401-12250-04 note Pad Sub-assy, Instrument Panel Safety
1989-08 → 1992-06 ended
CE90,EE90 RHD —
55401-12250-05 note Pad Sub-assy, Instrument Panel Safety
1987-05 → 1989-08 ended
CE90,EE90 RHD —
55401-12260-03 note Pad Sub-assy, Instrument Panel Safety
1987-05 → 1989-05 ended
AE92,CE90,EE90 LHD —
55401-12260-04 note Pad Sub-assy, Instrument Panel Safety
1987-05 → 1989-05 ended
AE92,CE90,EE90 LHD (GL,XL) —
55401-12260-05 note Pad Sub-assy, Instrument Panel Safety
1987-05 → 1989-05 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
55401-12261-03 note Pad Sub-assy, Instrument Panel Safety
1989-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
55401-12261-04 note Pad Sub-assy, Instrument Panel Safety
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
55401-12261-04 note Pad Sub-assy, Instrument Panel Safety
1989-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
55401-12261-05 note Pad Sub-assy, Instrument Panel Safety
1989-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
55401-12261-06 note Pad Sub-assy, Instrument Panel Safety
1989-08 → 1992-07 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
55405B — Panel Sub-assy, Instrument Cluster Finish, Center
55405-12430-01 note Panel Sub-assy, Instrument Cluster Finish, Center
1987-05 → 1992-11 ended
AE92 LHD GTI —
55405-12450-01 note Panel Sub-assy, Instrument Cluster Finish, Center
1987-05 → 1989-08 ended
CE90,EE90 RHD —
55405-12450-01 note Panel Sub-assy, Instrument Cluster Finish, Center
1987-05 → 1992-05 ended
AE92 RHD —
55405-12450-01 note Panel Sub-assy, Instrument Cluster Finish, Center
1989-08 → 1992-06 ended
CE90,EE90 RHD —
55405-12450-05 note Panel Sub-assy, Instrument Cluster Finish, Center
1987-05 → 1989-08 ended
CE90,EE90 RHD —
55405-12470-01 note Panel Sub-assy, Instrument Cluster Finish, Center
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
55405-12470-01 note Panel Sub-assy, Instrument Cluster Finish, Center
1987-05 → 1992-11 ended
AE92 LHD GTI —
55405-12470-01 note Panel Sub-assy, Instrument Cluster Finish, Center
1989-08 → 1992-06 ended
AE92 SR5 —
55405-12470-01 note Panel Sub-assy, Instrument Cluster Finish, Center
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
55405-12470-01 note Panel Sub-assy, Instrument Cluster Finish, Center
1987-05 → 1989-08 ended
CE90,EE90 STD —
55405-12470-05 note Panel Sub-assy, Instrument Cluster Finish, Center
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
55405-12470-06 note Panel Sub-assy, Instrument Cluster Finish, Center
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
55405-12490-01 note Panel Sub-assy, Instrument Cluster Finish, Center
1987-05 → 1992-05 ended
AE92 RHD —
55411G — Panel, Instrument Cluster Finish, NO.1
55411-12810 note Panel, Instrument Cluster Finish, NO.1
1987-05 → 1992-06 ended
CE90,EE90 RHD —
55411-12820 Panel, Instrument Cluster Finish, NO.1
1987-05 → 1992-06 ended
CE90,EE90 RHD —
55411-12830 note Panel, Instrument Cluster Finish, NO.1
1987-05 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,SR5,STD,XL,XLI) —
55411-12840 Panel, Instrument Cluster Finish, NO.1
1987-05 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,SR5,STD,XL,XLI) —
55411-12850 Panel, Instrument Cluster Finish, NO.1
1987-05 → 1992-05 ended
AE92 RHD —
55411-12860 Panel, Instrument Cluster Finish, NO.1
1987-05 → 1992-11 ended
AE92 LHD GTI —
55432B — Panel, Instrument Panel Finish, Lower
55432-12260-05 note Panel, Instrument Panel Finish, Lower
1987-05 → 1989-08 ended
CE90,EE90 RHD —
55432-12260-13 note Panel, Instrument Panel Finish, Lower
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
55432-12260-14 note Panel, Instrument Panel Finish, Lower
1989-08 → 1992-06 ended
CE90,EE90 RHD —
55432-12270-05 note Panel, Instrument Panel Finish, Lower
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
55432-12270-06 note Panel, Instrument Panel Finish, Lower
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
55432-12270-13 note Panel, Instrument Panel Finish, Lower
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
55432-12270-14 note Panel, Instrument Panel Finish, Lower
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
55432-12270-14 note Panel, Instrument Panel Finish, Lower
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
55433B — Panel, Instrument Panel Finish, Lower NO.2
55433-12040-03 note Panel, Instrument Panel Finish, Lower NO.2
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
55433-12040-04 note Panel, Instrument Panel Finish, Lower NO.2
1989-08 → 1992-06 ended
CE90,EE90 RHD —
55433-12040-05 note Panel, Instrument Panel Finish, Lower NO.2
1987-05 → 1989-08 ended
CE90,EE90 RHD —
55433-12060-03 note Panel, Instrument Panel Finish, Lower NO.2
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
55433-12060-04 note Panel, Instrument Panel Finish, Lower NO.2
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
55433-12060-04 note Panel, Instrument Panel Finish, Lower NO.2
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
55433-12060-05 note Panel, Instrument Panel Finish, Lower NO.2
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
55433-12060-06 note Panel, Instrument Panel Finish, Lower NO.2
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
55434B — Panel, Instrument Panel Finish, Lower Center
55434-12040-03 note Panel, Instrument Panel Finish, Lower Center
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
55434-12040-04 note Panel, Instrument Panel Finish, Lower Center
1989-08 → 1992-06 ended
CE90,EE90 RHD —
55434-12040-05 note Panel, Instrument Panel Finish, Lower Center
1987-05 → 1989-08 ended
CE90,EE90 RHD —
55434-12050-03 note Panel, Instrument Panel Finish, Lower Center
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
55434-12050-04 note Panel, Instrument Panel Finish, Lower Center
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
55434-12050-04 note Panel, Instrument Panel Finish, Lower Center
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
55434-12050-05 note Panel, Instrument Panel Finish, Lower Center
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
55434-12050-06 note Panel, Instrument Panel Finish, Lower Center
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
55474B — Garnish, Instrument Cluster Finish Panel
55474-12120 Garnish, Instrument Cluster Finish Panel
1987-05 → 1989-08 ended
AE92,CE90;EE90 GL,XL —
55474-12120 Garnish, Instrument Cluster Finish Panel
1989-08 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
55477A — Bezel, Cigarette Lighter Hole
55477-12080 Bezel, Cigarette Lighter Hole
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
55510 — Door Assy, Glove Compartment
55550-12250-03 note Door Assy, Glove Compartment
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
55550-12250-04 note Door Assy, Glove Compartment
1989-08 → 1992-06 ended
CE90,EE90 RHD —
55550-12250-05 note Door Assy, Glove Compartment
1987-05 → 1989-08 ended
CE90,EE90 RHD —
55550-12260-03 note Door Assy, Glove Compartment
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
55550-12260-04 note Door Assy, Glove Compartment
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
55550-12260-04 note Door Assy, Glove Compartment
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
55550-12260-05 note Door Assy, Glove Compartment
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
55550-12260-06 note Door Assy, Glove Compartment
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
55521C — Cover, Stereo Opening
55521-12110 note Cover, Stereo Opening
1987-05 → 1992-11 ended
AE92 GTI —
55521-12120 note Cover, Stereo Opening
1987-05 → 1992-11 ended
AE92 GTI —
55521-16030 note Cover, Stereo Opening
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD —
55521-16030 Cover, Stereo Opening
1989-08 → 1992-11 ended
AE92 LHD GTI —
55521-16030 Cover, Stereo Opening
1989-08 → 1992-06 ended
EE90 XLI;EE90 LHD CBR;AE92,CE90 +2 —
55521-16030 Cover, Stereo Opening
1987-05 → 1992-05 ended
EE90 STD EFI —
55521-16040 Cover, Stereo Opening
1989-08 → 1992-06 ended
EE90 CBR;EE90 XLI;AE92,CE90 GLI,SR5,STD,XL,XLI —
55521-16040 note Cover, Stereo Opening
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
55521-16040 Cover, Stereo Opening
1989-08 → 1992-11 ended
AE92 GTI —
55522B — Cover, Radio Tuner Opening
55522-12140 note Cover, Radio Tuner Opening
1989-08 → 1992-06 ended
EE90 CBR;EE90 XLI;AE92 GLI,SR5,XL,XLI —
55522-12140 note Cover, Radio Tuner Opening
1987-05 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
55522-12140 Cover, Radio Tuner Opening
1989-08 → 1992-05 ended
EE90 STD EFI —
55522-20060 Cover, Radio Tuner Opening
1987-05 → 1992-11 ended
AE92,CE90;EE90 CBR;EE90 XLI —
55532 — Cover, Cigar Lighter Hole
55532-12020-01 note Cover, Cigar Lighter Hole
1987-05 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
55532-12020-01 note Cover, Cigar Lighter Hole
1989-08 → 1992-06 ended
AE92 SR5 —
55532-12020-01 note Cover, Cigar Lighter Hole
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
55532-12020-04 note Cover, Cigar Lighter Hole
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
55532-12020-05 note Cover, Cigar Lighter Hole
1987-05 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
55532-12020-06 note Cover, Cigar Lighter Hole
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
55533 — Cover, Auto Clock Hole
55533-12090 Cover, Auto Clock Hole
1987-05 → 1992-06 ended
CE90,EE90 RHD —
55533-12100 Cover, Auto Clock Hole
1987-05 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,SR5,STD,XL,XLI) —
55560A — Lock Assy, Glove Compartment Door
55560-16040-03 note Lock Assy, Glove Compartment Door
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
55560-16040-05 note Lock Assy, Glove Compartment Door
1987-05 → 1989-08 ended
CE90,EE90 RHD —
55560-16040-14 note Lock Assy, Glove Compartment Door
1989-08 → 1992-06 ended
CE90,EE90 RHD —
55560-16050-03 note Lock Assy, Glove Compartment Door
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
55560-16050-05 note Lock Assy, Glove Compartment Door
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
55560-16050-06 note Lock Assy, Glove Compartment Door
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
55560-16050-14 note Lock Assy, Glove Compartment Door
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
55560-16050-14 note Lock Assy, Glove Compartment Door
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
55561A — Striker, Glove Compartment Door Lock
55561-12050 Striker, Glove Compartment Door Lock
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
55574 — Shaft, Glove Compartment Door Hinge
55574-10010 Shaft, Glove Compartment Door Hinge
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
55607 — Cover Sub-assy, Instrument Panel Under, NO.2
55607-12040-03 note Cover Sub-assy, Instrument Panel Under, NO.2
1987-05 → 1992-05 ended
AE92,CE90,EE90 RHD —
55607-12040-04 note Cover Sub-assy, Instrument Panel Under, NO.2
1989-08 → 1992-05 ended
AE92,CE90,EE90 RHD —
55607-12040-05 note Cover Sub-assy, Instrument Panel Under, NO.2
1987-05 → 1989-08 ended
AE92,CE90,EE90 RHD —
55607-12050-03 note Cover Sub-assy, Instrument Panel Under, NO.2
1987-05 → 1992-06 ended
AE92,CE90,EE90 LHD —
55607-12050-04 note Cover Sub-assy, Instrument Panel Under, NO.2
1987-08 → 1989-08 ended
AE92,CE90,EE90 LHD XL —
55607-12050-04 note Cover Sub-assy, Instrument Panel Under, NO.2
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD —
55607-12050-05 note Cover Sub-assy, Instrument Panel Under, NO.2
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD —
55607-12050-06 note Cover Sub-assy, Instrument Panel Under, NO.2
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD XL —
55619 — Cover, Switch Hole
55619-14010-04 note Cover, Switch Hole
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
55619-14010-04 note Cover, Switch Hole
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
55619-14010-25 note Cover, Switch Hole
1987-05 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
55619-14010-33 note Cover, Switch Hole
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
55619-14010-36 note Cover, Switch Hole
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
55636 — Bracket, Instrument Panel Under Cover, NO.1
55636-12030 Bracket, Instrument Panel Under Cover, NO.1
1987-05 → 1992-05 ended
CE90 RHD —
55636-12040 Bracket, Instrument Panel Under Cover, NO.1
1987-05 → 1992-06 ended
CE90 LHD —
55650 — Register Assy, Instrument Panel, NO.1
55650-12150-03 note Register Assy, Instrument Panel, NO.1
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
55650-12150-04 note Register Assy, Instrument Panel, NO.1
1989-08 → 1992-06 ended
CE90,EE90 RHD —
55650-12150-05 note Register Assy, Instrument Panel, NO.1
1987-05 → 1989-08 ended
CE90,EE90 RHD —
55650-12170-03 note Register Assy, Instrument Panel, NO.1
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
55650-12170-04 note Register Assy, Instrument Panel, NO.1
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
55650-12170-04 note Register Assy, Instrument Panel, NO.1
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
55650-12170-05 note Register Assy, Instrument Panel, NO.1
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
55650-12170-06 note Register Assy, Instrument Panel, NO.1
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
55670 — Register Assy, Instrument Panel, NO.3
55670-12130-03 note Register Assy, Instrument Panel, NO.3
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
55670-12130-04 note Register Assy, Instrument Panel, NO.3
1989-08 → 1992-06 ended
CE90,EE90 RHD —
55670-12130-05 note Register Assy, Instrument Panel, NO.3
1987-05 → 1989-08 ended
CE90,EE90 RHD —
55670-12140-03 note Register Assy, Instrument Panel, NO.3
1989-08 → 1992-11 ended
AE92,CE90,EE90 LHD —
55670-12140-03 note Register Assy, Instrument Panel, NO.3
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,GTI,XL) —
55670-12140-03 note Register Assy, Instrument Panel, NO.3
1987-05 → 1989-08 ended
CE90,EE90 STD —
55670-12140-04 note Register Assy, Instrument Panel, NO.3
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
55670-12140-04 note Register Assy, Instrument Panel, NO.3
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
55670-12140-05 note Register Assy, Instrument Panel, NO.3
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
55670-12140-06 note Register Assy, Instrument Panel, NO.3
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
55680 — Register Assy, Instrument Panel, Lower NO.1
55680-14030-05 note Register Assy, Instrument Panel, Lower NO.1
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
55680-14030-13 note Register Assy, Instrument Panel, Lower NO.1
1987-05 → 1992-06 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
55680-14030-14 note Register Assy, Instrument Panel, Lower NO.1
1987-05 → 1988-07 ended
AE92,CE90,EE90 LHD (GL,XL) —
55680-14030-E0 note Register Assy, Instrument Panel, Lower NO.1
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,XL) —
55680-14030-J0 note Register Assy, Instrument Panel, Lower NO.1
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,STD,XL) (CBR,DSL) —
55680-14030-J0 note Register Assy, Instrument Panel, Lower NO.1
1988-07 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
55961 — Nozzle, Side Defroster, NO.1
55961-12140-03 note Nozzle, Side Defroster, NO.1
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
55961-12140-04 note Nozzle, Side Defroster, NO.1
1989-08 → 1992-06 ended
CE90,EE90 RHD —
55961-12140-05 note Nozzle, Side Defroster, NO.1
1987-05 → 1989-08 ended
CE90,EE90 RHD —
55961-12150-03 note Nozzle, Side Defroster, NO.1
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
55961-12150-04 note Nozzle, Side Defroster, NO.1
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
55961-12150-04 note Nozzle, Side Defroster, NO.1
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
55961-12150-05 note Nozzle, Side Defroster, NO.1
1987-05 → 1989-08 ended
CE90,EE90 STD —
55961-12150-06 note Nozzle, Side Defroster, NO.1
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
55962 — Nozzle, Side Defroster, NO.2
55962-12120-03 note Nozzle, Side Defroster, NO.2
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
55962-12120-04 note Nozzle, Side Defroster, NO.2
1989-08 → 1992-06 ended
CE90,EE90 RHD —
55962-12120-05 note Nozzle, Side Defroster, NO.2
1987-05 → 1989-08 ended
CE90,EE90 RHD —
55962-12130-03 note Nozzle, Side Defroster, NO.2
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
55962-12130-04 note Nozzle, Side Defroster, NO.2
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
55962-12130-04 note Nozzle, Side Defroster, NO.2
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
55962-12130-05 note Nozzle, Side Defroster, NO.2
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
55962-12130-06 note Nozzle, Side Defroster, NO.2
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
55981 — Garnish, Defroster Nozzle, NO.1
55981-12030-03 note Garnish, Defroster Nozzle, NO.1
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
55981-12030-04 note Garnish, Defroster Nozzle, NO.1
1989-08 → 1992-06 ended
CE90,EE90 RHD —
55981-12030-05 note Garnish, Defroster Nozzle, NO.1
1987-05 → 1989-08 ended
CE90,EE90 RHD —
55981-12040-03 note Garnish, Defroster Nozzle, NO.1
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
55981-12040-04 note Garnish, Defroster Nozzle, NO.1
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
55981-12040-04 note Garnish, Defroster Nozzle, NO.1
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
55981-12040-05 note Garnish, Defroster Nozzle, NO.1
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
55981-12040-06 note Garnish, Defroster Nozzle, NO.1
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
55982 — Garnish, Defroster Nozzle, NO.2
55982-12030-03 note Garnish, Defroster Nozzle, NO.2
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
55982-12030-04 note Garnish, Defroster Nozzle, NO.2
1989-08 → 1992-06 ended
CE90,EE90 RHD —
55982-12030-05 note Garnish, Defroster Nozzle, NO.2
1987-05 → 1989-08 ended
CE90,EE90 RHD —
55982-12040-03 note Garnish, Defroster Nozzle, NO.2
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
55982-12040-04 note Garnish, Defroster Nozzle, NO.2
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
55982-12040-04 note Garnish, Defroster Nozzle, NO.2
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
55982-12040-05 note Garnish, Defroster Nozzle, NO.2
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
55982-12040-06 note Garnish, Defroster Nozzle, NO.2
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
