Toyota Corolla HB
1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe
Discontinued model
Data version 1993-01

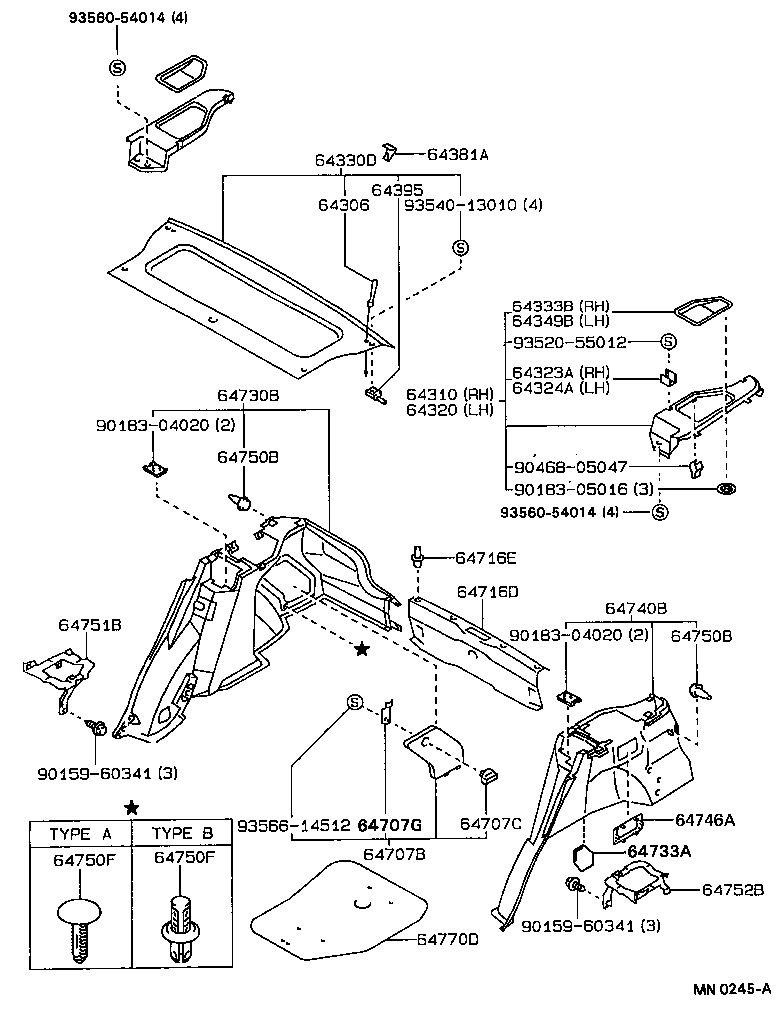

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 64306 — Suspender Sub-assy, Package Tray Trim | ||||
| 64306-12030 |
Suspender Sub-assy, Package Tray Trim
1989-08 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64306-12060 |
Suspender Sub-assy, Package Tray Trim
1987-05 → 1987-10
ended
|
AE92,CE90,EE90 | — | |
| 64310 — Bracket, Package Tray Trim, RH | ||||
| 64301-12090-03 note |
Bracket, Package Tray Trim, RH
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64301-12090-04 note |
Bracket, Package Tray Trim, RH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 64301-12090-04 note |
Bracket, Package Tray Trim, RH
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,STD,XL,XLI | — | |
| 64301-12090-05 note |
Bracket, Package Tray Trim, RH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 64301-12090-06 note |
Bracket, Package Tray Trim, RH
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 64301-12100-03 note |
Bracket, Package Tray Trim, RH
1988-02 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64301-12100-04 note |
Bracket, Package Tray Trim, RH
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,STD,XL,XLI | — | |
| 64301-12100-04 note |
Bracket, Package Tray Trim, RH
1988-02 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 64301-12100-05 note |
Bracket, Package Tray Trim, RH
1988-02 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 64301-12100-06 note |
Bracket, Package Tray Trim, RH
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 64320 — Bracket, Package Tray Trim, LH | ||||
| 64302-12090-03 note |
Bracket, Package Tray Trim, LH
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64302-12090-04 note |
Bracket, Package Tray Trim, LH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 64302-12090-04 note |
Bracket, Package Tray Trim, LH
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,STD,XL,XLI | — | |
| 64302-12090-05 note |
Bracket, Package Tray Trim, LH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 64302-12090-06 note |
Bracket, Package Tray Trim, LH
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 64302-12100-03 note |
Bracket, Package Tray Trim, LH
1988-02 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64302-12100-04 note |
Bracket, Package Tray Trim, LH
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,STD,XL,XLI | — | |
| 64302-12100-04 note |
Bracket, Package Tray Trim, LH
1988-02 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 64302-12100-05 note |
Bracket, Package Tray Trim, LH
1988-02 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 64302-12100-06 note |
Bracket, Package Tray Trim, LH
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 64323A — Clamp, Package Tray Trim, RH | ||||
| 64323-12020 |
Clamp, Package Tray Trim, RH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 | — | |
| 64323-12020 |
Clamp, Package Tray Trim, RH
1989-08 → 1990-08
ended
|
AE92,CE90,EE90 | — | |
| 64323-12020 |
Clamp, Package Tray Trim, RH
1990-08 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64324A — Clamp, Package Tray Trim, LH | ||||
| 64324-12010 |
Clamp, Package Tray Trim, LH
1989-08 → 1990-08
ended
|
AE92,CE90,EE90 | — | |
| 64324-12010 |
Clamp, Package Tray Trim, LH
1990-08 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64324-12010 |
Clamp, Package Tray Trim, LH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 | — | |
| 64330D — Panel Assy, Package Tray Trim | ||||
| 64330-1A040-03 note |
Panel Assy, Package Tray Trim
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64330-1A040-04 note |
Panel Assy, Package Tray Trim
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 64330-1A040-04 note |
Panel Assy, Package Tray Trim
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,STD,XL,XLI | — | |
| 64330-1A040-05 note |
Panel Assy, Package Tray Trim
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 64330-1A040-06 note |
Panel Assy, Package Tray Trim
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 64333B — Cover, Package Tray Trim Side, RH | ||||
| 64333-12070-03 note |
Cover, Package Tray Trim Side, RH
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64333-12070-04 note |
Cover, Package Tray Trim Side, RH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 64333-12070-04 note |
Cover, Package Tray Trim Side, RH
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,STD,XL,XLI | — | |
| 64333-12070-05 note |
Cover, Package Tray Trim Side, RH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 64333-12070-06 note |
Cover, Package Tray Trim Side, RH
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 64349B — Cover, Package Tray Trim Side, LH | ||||
| 64349-12050-03 note |
Cover, Package Tray Trim Side, LH
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64349-12050-04 note |
Cover, Package Tray Trim Side, LH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 64349-12050-04 note |
Cover, Package Tray Trim Side, LH
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,STD,XL,XLI | — | |
| 64349-12050-05 note |
Cover, Package Tray Trim Side, LH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 64349-12050-06 note |
Cover, Package Tray Trim Side, LH
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 64381A — Hanger, Package Tray Trim | ||||
| 64381-10010 |
Hanger, Package Tray Trim
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64395 — Pin, Package Tray Trim Hinge | ||||
| 64395-12050 |
Pin, Package Tray Trim Hinge
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64707B — Cover Sub-assy, Quarter Trim Jack | ||||
| 64707-12050-03 note |
Cover Sub-assy, Quarter Trim Jack
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64707-12050-04 note |
Cover Sub-assy, Quarter Trim Jack
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 64707-12050-04 note |
Cover Sub-assy, Quarter Trim Jack
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,STD,XL,XLI | — | |
| 64707-12050-05 note |
Cover Sub-assy, Quarter Trim Jack
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 64707-12050-06 note |
Cover Sub-assy, Quarter Trim Jack
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 64707C — Knob, Jack Cover | ||||
| 64982-16020-23 note |
Knob, Jack Cover
1987-05 → 1988-02
ended
|
AE92,CE90,EE90 | — | |
| 64982-16020-25 note |
Knob, Jack Cover
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 64982-16020-30 note |
Knob, Jack Cover
1988-02 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64982-16020-50 note |
Knob, Jack Cover
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 64982-16020-54 note |
Knob, Jack Cover
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 64982-16020-54 note |
Knob, Jack Cover
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,STD,XL,XLI | — | |
| 64707G — Stopper, Jack Cover | ||||
| 64981-16021 |
Stopper, Jack Cover
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64716D — Cover, Deck Trim, Rear | ||||
| 64716-12140-03 note |
Cover, Deck Trim, Rear
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64716-12140-04 note |
Cover, Deck Trim, Rear
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 64716-12140-04 note |
Cover, Deck Trim, Rear
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,STD,XL,XLI | — | |
| 64716-12140-05 note |
Cover, Deck Trim, Rear
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 64716-12140-06 note |
Cover, Deck Trim, Rear
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 64716E — Clip(FOR DECK TRIM REAR COVER) | ||||
| 90467-07066-03 note |
Clip(FOR DECK TRIM REAR COVER)
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 90467-07066-05 note |
Clip(FOR DECK TRIM REAR COVER)
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 90467-07066-06 note |
Clip(FOR DECK TRIM REAR COVER)
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 90467-07066-14 note |
Clip(FOR DECK TRIM REAR COVER)
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 90467-07066-14 note |
Clip(FOR DECK TRIM REAR COVER)
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,STD,XL,XLI | — | |
| 64730B — Panel Assy, Deck Trim Side, RH | ||||
| 64730-12240-03 note |
Panel Assy, Deck Trim Side, RH
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64730-12240-04 note |
Panel Assy, Deck Trim Side, RH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 64730-12240-04 note |
Panel Assy, Deck Trim Side, RH
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,STD,XL,XLI | — | |
| 64730-12240-05 note |
Panel Assy, Deck Trim Side, RH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 64730-12240-06 note |
Panel Assy, Deck Trim Side, RH
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 64733A — Pad, Deck Trim Side, NO.1 | ||||
| 64733-12040 |
Pad, Deck Trim Side, NO.1
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64740B — Board, Deck Trim Side, LH | ||||
| 64740-12240-03 note |
Board, Deck Trim Side, LH
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64740-12240-04 note |
Board, Deck Trim Side, LH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 64740-12240-04 note |
Board, Deck Trim Side, LH
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,STD,XL,XLI | — | |
| 64740-12240-05 note |
Board, Deck Trim Side, LH
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 64740-12240-06 note |
Board, Deck Trim Side, LH
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 64746A — Cover, Deck Trim Side Lamp Hole | ||||
| 64746-12080-03 note |
Cover, Deck Trim Side Lamp Hole
1987-05 → 1992-06
ended
|
EE90 STD,XL;EE90 MTM XLI;AE92,CE90 +1 | — | |
| 64746-12080-04 note |
Cover, Deck Trim Side Lamp Hole
1989-08 → 1992-06
ended
|
EE90 STD,XL;EE90 MTM XLI;AE92,CE90 +1 | — | |
| 64746-12080-04 note |
Cover, Deck Trim Side Lamp Hole
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD XL | — | |
| 64746-12080-05 note |
Cover, Deck Trim Side Lamp Hole
1987-05 → 1989-08
ended
|
AE92,CE90 STD,XL;EE90 LHD 5D +3 | — | |
| 64746-12080-06 note |
Cover, Deck Trim Side Lamp Hole
1989-08 → 1992-06
ended
|
EE90 LHD XL;EE90 MTM +3 | — | |
| 64750B — Retainer(FOR DECK SIDE TRIM PANEL) | ||||
| 67771-32010 |
Retainer(FOR DECK SIDE TRIM PANEL)
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64750F — Clip(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-06049-01 note |
Clip(FOR DECK SIDE TRIM PANEL)
1987-05 → 1987-08
ended
|
CE90,EE90 RHD;CE90,EE90 STD;AE92,EE90 5D +1 | — | |
| 90467-06049-01 note |
Clip(FOR DECK SIDE TRIM PANEL)
1987-05 → 1987-08
ended
|
AE92 3D GL;EE90 LHD +7 | — | |
| 90467-06049-01 note |
Clip(FOR DECK SIDE TRIM PANEL)
1989-08 → 1992-11
ended
|
CE90,EE90 RHD;CE90,EE90 STD | — | |
| 90467-06049-01 note |
Clip(FOR DECK SIDE TRIM PANEL)
1989-08 → 1992-11
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 90467-06049-01 note |
Clip(FOR DECK SIDE TRIM PANEL)
1989-08 → 1992-11
ended
|
AE92 GTI,SR5 | — | |
| 90467-06049-01 note |
Clip(FOR DECK SIDE TRIM PANEL)
1987-05 → 1989-08
ended
|
AE92 EFI | — | |
| 90467-06049-01 note |
Clip(FOR DECK SIDE TRIM PANEL)
1987-08 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 90467-06049-01 note |
Clip(FOR DECK SIDE TRIM PANEL)
1987-08 → 1989-08
ended
|
CE90,EE90 RHD;CE90,EE90 STD | — | |
| 90467-06049-03 note |
Clip(FOR DECK SIDE TRIM PANEL)
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 | — | |
| 90467-06049-15 note |
Clip(FOR DECK SIDE TRIM PANEL)
1987-05 → 1988-09
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 90467-06049-16 note |
Clip(FOR DECK SIDE TRIM PANEL)
1989-08 → 1989-09
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 90467-06049-24 note |
Clip(FOR DECK SIDE TRIM PANEL)
1987-05 → 1988-09
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 90467-06049-B0 note |
Clip(FOR DECK SIDE TRIM PANEL)
1989-08 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 90467-06049-E0 note |
Clip(FOR DECK SIDE TRIM PANEL)
1988-09 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 90467-06049-E4 note |
Clip(FOR DECK SIDE TRIM PANEL)
1989-09 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 90467-06049-J1 note |
Clip(FOR DECK SIDE TRIM PANEL)
1988-09 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 90467-06049-J1 note |
Clip(FOR DECK SIDE TRIM PANEL)
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,STD,XL,XLI | — | |
| 90467-07071-03 note |
Clip(FOR DECK SIDE TRIM PANEL)
1987-05 → 1990-09
ended
|
AE92,CE90,EE90 | — | |
| 90467-07071-04 note |
Clip(FOR DECK SIDE TRIM PANEL)
1987-05 → 1988-11
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 90467-07071-05 note |
Clip(FOR DECK SIDE TRIM PANEL)
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 90467-07071-06 note |
Clip(FOR DECK SIDE TRIM PANEL)
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 90467-07071-B4 note |
Clip(FOR DECK SIDE TRIM PANEL)
1990-09 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 90467-07071-J1 note |
Clip(FOR DECK SIDE TRIM PANEL)
1988-11 → 1989-08
ended
|
AE92 5D;AE92 3D XL;EE90 +4 | — | |
| 90467-07071-J1 note |
Clip(FOR DECK SIDE TRIM PANEL)
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,STD,XL,XLI | — | |
| 64751B — Bracket, Speaker Set, NO.1 RH | ||||
| 64751-12020 |
Bracket, Speaker Set, NO.1 RH
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64752B — Bracket, Speaker Set, NO.1 LH | ||||
| 64752-12020 |
Bracket, Speaker Set, NO.1 LH
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 64770D — Cover Assy, Spare Wheel | ||||
| 64770-12120 |
Cover Assy, Spare Wheel
1987-05 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI | — | |
| 64770-12140 |
Cover Assy, Spare Wheel
1987-05 → 1992-11
ended
|
AE92 GTI | — | |
| 64770-12140 note |
Cover Assy, Spare Wheel
1991-11 → 1992-06
ended
|
CE90,EE90 XL,XLI | — | |
| 64770-12140 note |
Cover Assy, Spare Wheel
1991-11 → 1992-06
ended
|
EE90 5D GL | — | |
| 64770-12140 note |
Cover Assy, Spare Wheel
1991-11 → 1992-06
ended
|
AE92 XL,XLI | — | |
| 64770-12140 note |
Cover Assy, Spare Wheel
1991-11 → 1992-05
ended
|
AE92 SR5 CBR | — | |
| 64770-12140 note |
Cover Assy, Spare Wheel
1991-11 → 1992-05
ended
|
AE92 GLI | — | |
| 64770-12140 note |
Cover Assy, Spare Wheel
1991-11 → 1992-05
ended
|
EE90 STD EFI | — | |
| 64770-12140 note |
Cover Assy, Spare Wheel
1991-11 → 1992-05
ended
|
EE90 3D GL | — | |
| 64770-12140 note |
Cover Assy, Spare Wheel
1991-11 → 1992-05
ended
|
AE92 SR5 EFI | — | |
| 64770-12140 note |
Cover Assy, Spare Wheel
1989-08 → 1991-11
ended
|
AE92 SR5 CBR | — | |
| 64770-12140 note |
Cover Assy, Spare Wheel
1989-08 → 1991-11
ended
|
AE92 SR5 EFI | — | |
| 64770-12140 note |
Cover Assy, Spare Wheel
1989-08 → 1991-11
ended
|
EE90 STD EFI | — | |
| 64770-12140 note |
Cover Assy, Spare Wheel
1987-05 → 1991-11
ended
|
AE92 GL,GLI | — | |
| 64770-12140 note |
Cover Assy, Spare Wheel
1987-05 → 1991-11
ended
|
AE92 XL,XLI | — | |
| 64770-12140 note |
Cover Assy, Spare Wheel
1987-05 → 1991-11
ended
|
CE90,EE90 XL,XLI | — | |
| 64770-12140 note |
Cover Assy, Spare Wheel
1987-05 → 1991-11
ended
|
EE90 GL | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
