Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

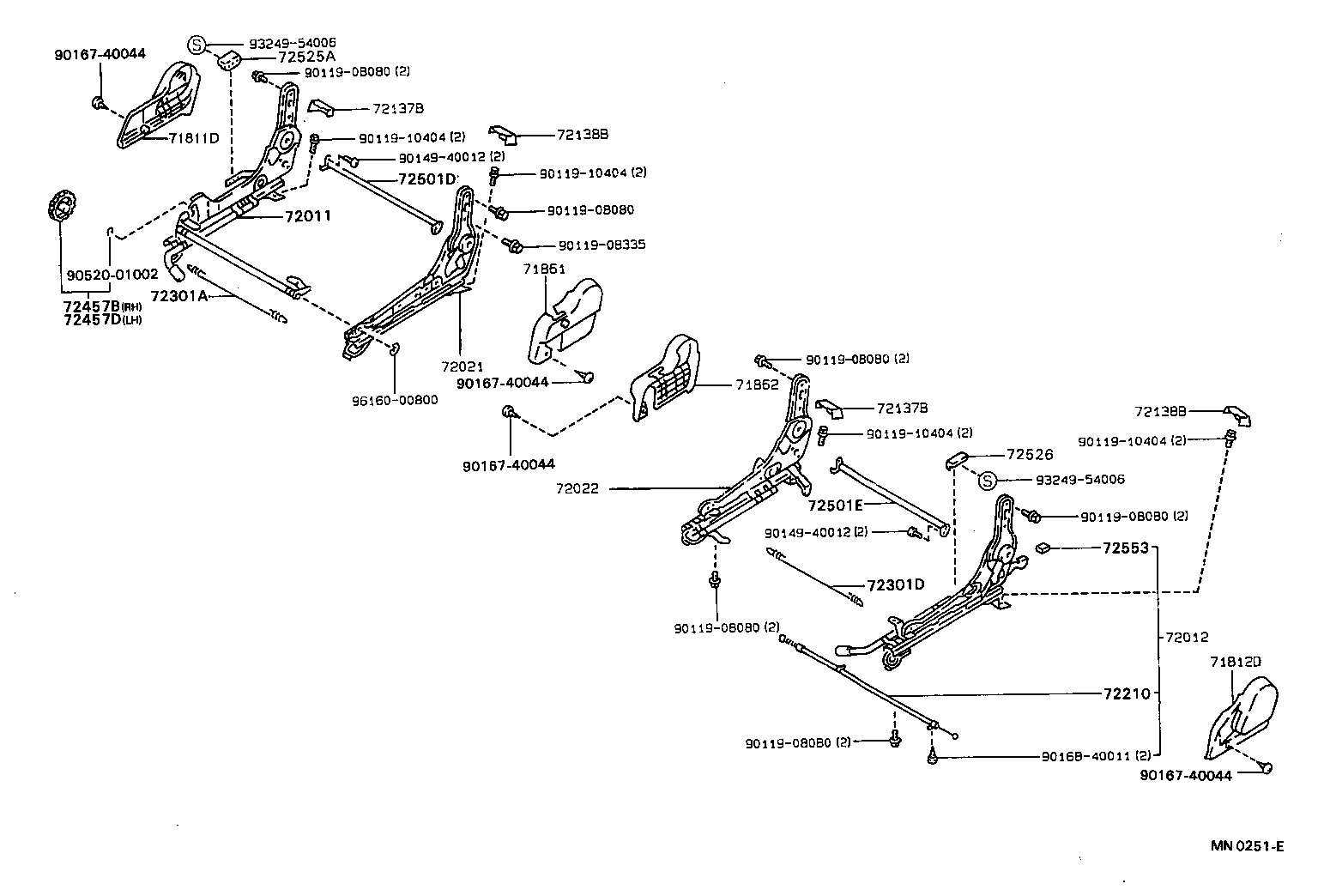

Exploded illustration MN0251E 9324954006 — not listed in this catalogue 9016740044 — not listed in this catalogue 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (5 parts) 9011908080 — not listed in this catalogue 72137B — COVER, SEAT TRACK, RH (8 parts) 72138B — COVER, SEAT TRACK, LH (8 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (11 parts) 9011910404 — not listed in this catalogue 9014940012 — not listed in this catalogue 9011910404 — not listed in this catalogue 72501D — PIPE SUB-ASSY, RECLINING CONNECTING, RH (6 parts) 9011908080 — not listed in this catalogue 72011 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH (5 parts) 9011908335 — not listed in this catalogue 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (7 parts) 9052001002 — not listed in this catalogue 72301A — WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH (1 parts) 72457B — KNOB, VERTICAL SEAT ADJUSTER, RH (5 parts) 72457D — KNOB, VERTICAL SEAT ADJUSTER, LH (8 parts) 9011908080 — not listed in this catalogue 72021 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH (2 parts) 9016740044 — not listed in this catalogue 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (7 parts) 9616000800 — not listed in this catalogue 72137B — COVER, SEAT TRACK, RH (8 parts) 72138B — COVER, SEAT TRACK, LH (8 parts) 9011910404 — not listed in this catalogue 9011910404 — not listed in this catalogue 72526 — HANDLE, RECLINING ADJUSTER RELEASE, LH (5 parts) 9016740044 — not listed in this catalogue 9324954006 — not listed in this catalogue 72022 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH (3 parts) 72501E — PIPE SUB-ASSY, RECLINING CONNECTING, LH (2 parts) 9011908080 — not listed in this catalogue 9014940012 — not listed in this catalogue 72553 — COVER, RECLINING PEDAL (1 parts) 72301D — WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH (1 parts) 9011908080 — not listed in this catalogue 72012 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH (6 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (9 parts) 72210 — CABLE ASSY, SEAT TRACK CONTROL (2 parts) 9011908080 — not listed in this catalogue 9016840011 — not listed in this catalogue 9016740044 — not listed in this catalogue
MN0251E · 22 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
102 parts on this figure
Part number Description Fitment Price
71811D — Shield, Front Seat Cushion, RH
71811-12160-03 note Shield, Front Seat Cushion, RH
1987-05 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GL,GLI,STD,XL,XLI) —
71811-12160-04 note Shield, Front Seat Cushion, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
71811-12160-04 note Shield, Front Seat Cushion, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,STD,XL,XLI) —
71811-12160-05 note Shield, Front Seat Cushion, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (CBR,DSL) —
71811-12160-06 note Shield, Front Seat Cushion, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
71811-12170-03 note Shield, Front Seat Cushion, RH
1987-05 → 1992-11 ended
AE92 GTI,SR5 —
71811-12180-03 note Shield, Front Seat Cushion, RH
1987-05 → 1992-06 ended
CE90,EE90 RHD;AE92,CE90,EE90 LHD 5D —
71811-12180-04 note Shield, Front Seat Cushion, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
71811-12180-04 note Shield, Front Seat Cushion, RH
1989-08 → 1992-06 ended
CE90,EE90 RHD;AE92,CE90,EE90 LHD 5D —
71811-12180-05 note Shield, Front Seat Cushion, RH
1987-05 → 1989-08 ended
CE90,EE90 RHD;AE92,CE90,EE90 LHD 5D —
71811-12180-06 note Shield, Front Seat Cushion, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
71812D — Shield, Front Seat Cushion, LH
71812-12130-03 note Shield, Front Seat Cushion, LH
1987-05 → 1992-05 ended
CE90,EE90 RHD 3D —
71812-12130-04 note Shield, Front Seat Cushion, LH
1989-08 → 1992-05 ended
CE90,EE90 RHD 3D —
71812-12130-05 note Shield, Front Seat Cushion, LH
1987-05 → 1989-08 ended
CE90,EE90 RHD 3D —
71812-12140-03 note Shield, Front Seat Cushion, LH
1987-05 → 1992-11 ended
AE92 GTI,SR5 —
71812-12150-03 note Shield, Front Seat Cushion, LH
1987-05 → 1992-06 ended
EE90 RHD 5D;AE92,CE90,EE90 LHD +1 —
71812-12150-04 note Shield, Front Seat Cushion, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
71812-12150-04 note Shield, Front Seat Cushion, LH
1989-08 → 1992-06 ended
EE90 RHD 5D;AE92,CE90,EE90 LHD +1 —
71812-12150-05 note Shield, Front Seat Cushion, LH
1987-05 → 1989-08 ended
EE90 RHD 5D;AE92,CE90,EE90 LHD +1 —
71812-12150-06 note Shield, Front Seat Cushion, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
71861 — Shield, Front Seat Cushion, Inner RH
71861-12100-03 note Shield, Front Seat Cushion, Inner RH
1987-05 → 1989-08 ended
CE90;AE92 GL;EE90 3D;AE92 3D +3 —
71861-12100-03 note Shield, Front Seat Cushion, Inner RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
71861-12100-04 note Shield, Front Seat Cushion, Inner RH
1987-05 → 1989-08 ended
AE92 5D;AE92 3D XL;EE90 +4 —
71861-12100-04 note Shield, Front Seat Cushion, Inner RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
71861-12100-05 note Shield, Front Seat Cushion, Inner RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
71861-12100-06 note Shield, Front Seat Cushion, Inner RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
71861-12130-03 note Shield, Front Seat Cushion, Inner RH
1987-05 → 1992-11 ended
AE92 GTI,SR5 —
71862 — Shield, Front Seat Cushion, Inner LH
71862-12100-03 note Shield, Front Seat Cushion, Inner LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
71862-12100-03 note Shield, Front Seat Cushion, Inner LH
1987-05 → 1989-08 ended
CE90;AE92 GL;EE90 3D;AE92 3D +3 —
71862-12100-04 note Shield, Front Seat Cushion, Inner LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
71862-12100-04 note Shield, Front Seat Cushion, Inner LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
71862-12100-05 note Shield, Front Seat Cushion, Inner LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
71862-12100-06 note Shield, Front Seat Cushion, Inner LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
71862-12120-03 note Shield, Front Seat Cushion, Inner LH
1987-05 → 1992-11 ended
AE92 GTI,SR5 —
72011 — Adjuster Sub-assy, Front Seat, Outer RH
72010-12310 Adjuster Sub-assy, Front Seat, Outer RH
1987-05 → 1992-06 ended
CE90,EE90 RHD;AE92,CE90,EE90 LHD 5D —
72010-12320 note Adjuster Sub-assy, Front Seat, Outer RH
1987-05 → 1992-06 ended
CE90,EE90 RHD —
72010-12330 Adjuster Sub-assy, Front Seat, Outer RH
1987-05 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GL,GLI,STD,XL,XLI) —
72011-12110 Adjuster Sub-assy, Front Seat, Outer RH
1987-05 → 1992-05 ended
AE92 RHD —
72011-12120 Adjuster Sub-assy, Front Seat, Outer RH
1987-05 → 1992-11 ended
AE92 LHD (GTI,SR5) —
72012 — Adjuster Sub-assy, Front Seat, Outer LH
72012-12100 Adjuster Sub-assy, Front Seat, Outer LH
1989-08 → 1992-05 ended
AE92 SR5 —
72012-12110 Adjuster Sub-assy, Front Seat, Outer LH
1987-05 → 1992-11 ended
AE92 LHD GTI —
72012-12120 Adjuster Sub-assy, Front Seat, Outer LH
1987-05 → 1992-05 ended
AE92 RHD —
72020-12330 Adjuster Sub-assy, Front Seat, Outer LH
1987-05 → 1992-06 ended
EE90 RHD 5D;AE92,CE90,EE90 LHD +1 —
72020-12340 note Adjuster Sub-assy, Front Seat, Outer LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
72020-12520 Adjuster Sub-assy, Front Seat, Outer LH
1987-05 → 1992-05 ended
CE90,EE90 RHD 3D —
72021 — Adjuster Sub-assy, Front Seat, Inner RH
72021-12130 Adjuster Sub-assy, Front Seat, Inner RH
1987-05 → 1992-05 ended
AE92 RHD —
72021-12140 Adjuster Sub-assy, Front Seat, Inner RH
1987-05 → 1992-11 ended
AE92 LHD (GTI,SR5) —
72022 — Adjuster Sub-assy, Front Seat, Inner LH
72022-12120 Adjuster Sub-assy, Front Seat, Inner LH
1989-08 → 1992-05 ended
AE92 SR5 —
72022-12130 Adjuster Sub-assy, Front Seat, Inner LH
1987-05 → 1992-11 ended
AE92 LHD GTI —
72022-12140 Adjuster Sub-assy, Front Seat, Inner LH
1987-05 → 1992-05 ended
AE92 RHD —
72137B — Cover, Seat Track, RH
72137-12020-03 note Cover, Seat Track, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
72137-12020-04 note Cover, Seat Track, RH
1987-05 → 1988-09 ended
AE92,CE90,EE90 LHD (GL,XL) —
72137-12020-05 note Cover, Seat Track, RH
1987-05 → 1988-11 ended
AE92,CE90,EE90 CBR,DSL —
72137-12020-06 note Cover, Seat Track, RH
1989-08 → 1989-09 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
72137-12020-E0 note Cover, Seat Track, RH
1988-11 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
72137-12020-E2 note Cover, Seat Track, RH
1989-09 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
72137-12020-J0 note Cover, Seat Track, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
72137-12020-J0 note Cover, Seat Track, RH
1988-09 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
72138B — Cover, Seat Track, LH
72138-12030-03 note Cover, Seat Track, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
72138-12030-04 note Cover, Seat Track, LH
1987-05 → 1988-09 ended
AE92,CE90,EE90 LHD (GL,XL) —
72138-12030-05 note Cover, Seat Track, LH
1987-05 → 1988-11 ended
AE92,CE90,EE90 CBR,DSL —
72138-12030-06 note Cover, Seat Track, LH
1989-08 → 1989-09 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
72138-12030-E0 note Cover, Seat Track, LH
1988-11 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
72138-12030-E2 note Cover, Seat Track, LH
1989-09 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
72138-12030-J0 note Cover, Seat Track, LH
1988-09 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
72138-12030-J0 note Cover, Seat Track, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
72210 — Cable Assy, Seat Track Control
72210-12190 Cable Assy, Seat Track Control
1987-05 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GL,GLI,STD,XL,XLI) —
72210-12200 Cable Assy, Seat Track Control
1987-05 → 1992-05 ended
CE90,EE90 RHD 3D —
72301A — Wire Sub-assy, Seat Track Equalizing, RH
72301-12040 Wire Sub-assy, Seat Track Equalizing, RH
1987-05 → 1992-11 ended
AE92 GTI,SR5;CE90,EE90 RHD —
72301D — Wire Sub-assy, Seat Track Equalizing, LH
72301-12040 Wire Sub-assy, Seat Track Equalizing, LH
1987-05 → 1992-11 ended
AE92;CE90,EE90 LHD (GL,XL,XLI) —
72457B — Knob, Vertical Seat Adjuster, RH
72457-12030-03 note Knob, Vertical Seat Adjuster, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
72457-12030-05 note Knob, Vertical Seat Adjuster, RH
1987-05 → 1988-09 ended
CE90,EE90 RHD —
72457-12030-E0 note Knob, Vertical Seat Adjuster, RH
1988-09 → 1989-08 ended
CE90,EE90 RHD —
72457-12030-J0 note Knob, Vertical Seat Adjuster, RH
1988-09 → 1989-08 ended
CE90,EE90 RHD —
72457-12030-J0 note Knob, Vertical Seat Adjuster, RH
1989-08 → 1992-06 ended
CE90,EE90 RHD —
72457D — Knob, Vertical Seat Adjuster, LH
72457-12030-03 note Knob, Vertical Seat Adjuster, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD (GL,GLI,GTI,XL,XLI) —
72457-12030-04 note Knob, Vertical Seat Adjuster, LH
1987-05 → 1988-09 ended
AE92,CE90,EE90 LHD (GL,XL) —
72457-12030-05 note Knob, Vertical Seat Adjuster, LH
1987-05 → 1988-09 ended
AE92,CE90,EE90 LHD (GL,XL) —
72457-12030-06 note Knob, Vertical Seat Adjuster, LH
1989-08 → 1989-10 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
72457-12030-E0 note Knob, Vertical Seat Adjuster, LH
1988-09 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
72457-12030-E2 note Knob, Vertical Seat Adjuster, LH
1989-10 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
72457-12030-J0 note Knob, Vertical Seat Adjuster, LH
1988-09 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
72457-12030-J0 note Knob, Vertical Seat Adjuster, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
72501D — Pipe Sub-assy, Reclining Connecting, RH
72501-12050 Pipe Sub-assy, Reclining Connecting, RH
1987-05 → 1988-08 ended
AE92 EFI —
72501-12050 Pipe Sub-assy, Reclining Connecting, RH
1988-08 → 1989-05 ended
AE92 LHD EFI —
72501-12050 Pipe Sub-assy, Reclining Connecting, RH
1989-05 → 1989-08 ended
AE92 EFI —
72501-12050 Pipe Sub-assy, Reclining Connecting, RH
1989-08 → 1991-01 ended
AE92 GTI,SR5 —
72501-12050 Pipe Sub-assy, Reclining Connecting, RH
1991-01 → 1991-08 ended
AE92 RHD —
72501-12090 Pipe Sub-assy, Reclining Connecting, RH
1991-01 → 1992-11 ended
AE92 GTI,SR5 —
72501E — Pipe Sub-assy, Reclining Connecting, LH
72501-12050 Pipe Sub-assy, Reclining Connecting, LH
1987-05 → 1991-01 ended
AE92 GTI,SR5 —
72501-12090 Pipe Sub-assy, Reclining Connecting, LH
1991-01 → 1992-11 ended
AE92 GTI,SR5 —
72525A — Handle, Reclining Adjuster Release, RH
72525-12090-03 note Handle, Reclining Adjuster Release, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
72525-12090-25 note Handle, Reclining Adjuster Release, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
72525-12090-34 note Handle, Reclining Adjuster Release, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
72525-12090-34 note Handle, Reclining Adjuster Release, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
72525-12090-46 note Handle, Reclining Adjuster Release, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
72526 — Handle, Reclining Adjuster Release, LH
72526-12030-03 note Handle, Reclining Adjuster Release, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
72526-12030-25 note Handle, Reclining Adjuster Release, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
72526-12030-34 note Handle, Reclining Adjuster Release, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
72526-12030-34 note Handle, Reclining Adjuster Release, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
72526-12030-46 note Handle, Reclining Adjuster Release, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
72553 — Cover, Reclining Pedal
72553-12040 Cover, Reclining Pedal
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
