Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

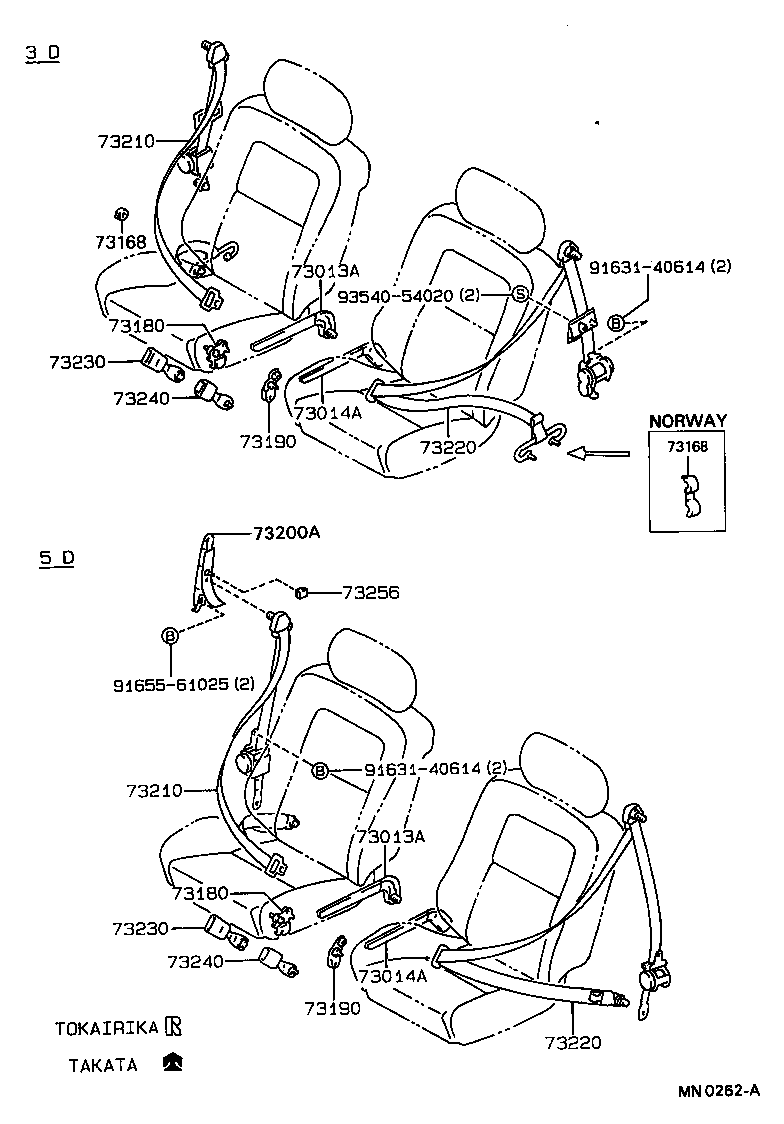

Exploded illustration MN0262A 73210 — BELT ASSY, FRONT SEAT OUTER, RH (20 parts) 73168 — STOPPER FRONT SEAT BELT LAP ANCHOR (1 parts) 9163140614 — not listed in this catalogue 73013A — PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH (8 parts) 9354054020 — not listed in this catalogue 73180 — BRACKET ASSY, SEAT BELT INNER ANCHOR, RH (1 parts) 73230 — BELT ASSY, FRONT SEAT INNER, RH (9 parts) 73240 — BELT ASSY, FRONT SEAT INNER, LH (9 parts) 73014A — PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH (8 parts) 73190 — BRACKET ASSY, SEAT BELT INNER ANCHOR, LH (1 parts) 73220 — BELT ASSY, FRONT SEAT OUTER, LH (20 parts) 73168 — STOPPER FRONT SEAT BELT LAP ANCHOR (1 parts) 73200A — ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR (6 parts) 73256 — KNOB, SHOULDER BELT ANCHOR ADJUST (5 parts) 9165561025 — not listed in this catalogue 9163140614 — not listed in this catalogue 73210 — BELT ASSY, FRONT SEAT OUTER, RH (20 parts) 73013A — PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH (8 parts) 73180 — BRACKET ASSY, SEAT BELT INNER ANCHOR, RH (1 parts) 73230 — BELT ASSY, FRONT SEAT INNER, RH (9 parts) 73240 — BELT ASSY, FRONT SEAT INNER, LH (9 parts) 73014A — PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH (8 parts) 73190 — BRACKET ASSY, SEAT BELT INNER ANCHOR, LH (1 parts) 73220 — BELT ASSY, FRONT SEAT OUTER, LH (20 parts)
MN0262A · 20 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
88 parts on this figure
Part number Description Fitment Price
73013A — Plate Sub-assy, Front Seat Belt Inner Anchor, RH
73013-12030-03 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1987-05 → 1988-04 ended
AE92,CE90,EE90 —
73013-12030-04 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1987-05 → 1988-04 ended
AE92,CE90,EE90 LHD (GL,XL) —
73013-12030-05 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1987-05 → 1988-04 ended
AE92,CE90,EE90 CBR,DSL —
73013-12031-03 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1988-06 → 1992-11 ended
AE92,CE90,EE90 —
73013-12031-04 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1988-06 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
73013-12031-04 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
73013-12031-05 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1988-06 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
73013-12031-06 note Plate Sub-assy, Front Seat Belt Inner Anchor, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
73014A — Plate Sub-assy, Front Seat Belt Inner Anchor, LH
73014-12030-03 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1987-05 → 1988-04 ended
AE92,CE90,EE90 —
73014-12030-04 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1987-05 → 1988-04 ended
AE92,CE90,EE90 LHD (GL,XL) —
73014-12030-05 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1987-05 → 1988-04 ended
AE92,CE90,EE90 CBR,DSL —
73014-12031-03 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1988-06 → 1992-11 ended
AE92,CE90,EE90 —
73014-12031-04 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1988-06 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
73014-12031-04 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
73014-12031-05 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1988-06 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
73014-12031-06 note Plate Sub-assy, Front Seat Belt Inner Anchor, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
73168 — Stopper Front Seat Belt Lap Anchor
73168-10010 Stopper Front Seat Belt Lap Anchor
1989-08 → 1992-11 ended
AE92,CE90,EE90 LHD 3D MTM +1 —
73180 — Bracket Assy, Seat Belt Inner Anchor, RH
73011-12030 Bracket Assy, Seat Belt Inner Anchor, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
73190 — Bracket Assy, Seat Belt Inner Anchor, LH
73012-12030 Bracket Assy, Seat Belt Inner Anchor, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
73200A — Adjuster Assy, Front Shoulder Belt Anchor
73200-12011-03 note Adjuster Assy, Front Shoulder Belt Anchor
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
73200-12011-04 note Adjuster Assy, Front Shoulder Belt Anchor
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
73200-12011-05 note Adjuster Assy, Front Shoulder Belt Anchor
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
73200-12012-03 note Adjuster Assy, Front Shoulder Belt Anchor
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
73200-12012-04 note Adjuster Assy, Front Shoulder Belt Anchor
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
73200-12012-06 note Adjuster Assy, Front Shoulder Belt Anchor
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
73210 — Belt Assy, Front Seat Outer, RH
73210-12680-03 note Belt Assy, Front Seat Outer, RH
1987-05 → 1987-08 ended
AE92,CE90,EE90 5D —
73210-12680-05 note Belt Assy, Front Seat Outer, RH
1987-05 → 1987-08 ended
AE92,CE90,EE90 5D —
73210-12681-03 note Belt Assy, Front Seat Outer, RH
1987-08 → 1989-08 ended
AE92,CE90,EE90 5D —
73210-12681-04 note Belt Assy, Front Seat Outer, RH
1987-08 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
73210-12681-05 note Belt Assy, Front Seat Outer, RH
1987-08 → 1989-08 ended
AE92,CE90,EE90 5D —
73210-12682-03 note Belt Assy, Front Seat Outer, RH
1989-08 → 1991-04 ended
AE92,CE90,EE90 5D —
73210-12682-04 note Belt Assy, Front Seat Outer, RH
1989-08 → 1991-04 ended
AE92,CE90,EE90 5D —
73210-12682-06 note Belt Assy, Front Seat Outer, RH
1989-08 → 1991-04 ended
AE92,CE90,EE90 LHD 5D —
73210-12683-03 note Belt Assy, Front Seat Outer, RH
1991-04 → 1992-06 ended
AE92,CE90,EE90 5D —
73210-12683-04 note Belt Assy, Front Seat Outer, RH
1991-04 → 1992-06 ended
AE92,CE90,EE90 5D —
73210-12683-06 note Belt Assy, Front Seat Outer, RH
1991-04 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
73210-12700-03 note Belt Assy, Front Seat Outer, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D —
73210-12700-04 note Belt Assy, Front Seat Outer, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
73210-12700-05 note Belt Assy, Front Seat Outer, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
73210-12701-03 note Belt Assy, Front Seat Outer, RH
1989-08 → 1991-04 ended
AE92,CE90,EE90 3D —
73210-12701-04 note Belt Assy, Front Seat Outer, RH
1989-08 → 1991-04 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
73210-12701-06 note Belt Assy, Front Seat Outer, RH
1989-08 → 1991-04 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
73210-12702-03 note Belt Assy, Front Seat Outer, RH
1991-04 → 1992-11 ended
AE92,CE90,EE90 3D —
73210-12702-04 note Belt Assy, Front Seat Outer, RH
1991-04 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
73210-12702-06 note Belt Assy, Front Seat Outer, RH
1991-04 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
73220 — Belt Assy, Front Seat Outer, LH
73220-12590-03 note Belt Assy, Front Seat Outer, LH
1987-05 → 1987-08 ended
AE92,CE90,EE90 5D —
73220-12590-05 note Belt Assy, Front Seat Outer, LH
1987-05 → 1987-08 ended
AE92,CE90,EE90 5D —
73220-12591-03 note Belt Assy, Front Seat Outer, LH
1987-08 → 1989-08 ended
AE92,CE90,EE90 5D —
73220-12591-04 note Belt Assy, Front Seat Outer, LH
1987-08 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
73220-12591-05 note Belt Assy, Front Seat Outer, LH
1987-08 → 1989-08 ended
AE92,CE90,EE90 5D —
73220-12592-03 note Belt Assy, Front Seat Outer, LH
1989-08 → 1991-01 ended
AE92,CE90,EE90 5D —
73220-12592-04 note Belt Assy, Front Seat Outer, LH
1989-08 → 1991-04 ended
AE92,CE90,EE90 5D —
73220-12592-06 note Belt Assy, Front Seat Outer, LH
1989-08 → 1991-04 ended
AE92,CE90,EE90 LHD 5D —
73220-12593-03 note Belt Assy, Front Seat Outer, LH
1991-04 → 1992-06 ended
AE92,CE90,EE90 5D —
73220-12593-04 note Belt Assy, Front Seat Outer, LH
1991-04 → 1992-06 ended
AE92,CE90,EE90 5D —
73220-12593-06 note Belt Assy, Front Seat Outer, LH
1991-04 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
73220-12610-03 note Belt Assy, Front Seat Outer, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D —
73220-12610-04 note Belt Assy, Front Seat Outer, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
73220-12610-05 note Belt Assy, Front Seat Outer, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
73220-12611-03 note Belt Assy, Front Seat Outer, LH
1989-08 → 1991-04 ended
AE92,CE90,EE90 3D —
73220-12611-04 note Belt Assy, Front Seat Outer, LH
1989-08 → 1991-04 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
73220-12611-06 note Belt Assy, Front Seat Outer, LH
1989-08 → 1991-04 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
73220-12612-03 note Belt Assy, Front Seat Outer, LH
1991-04 → 1992-11 ended
AE92,CE90,EE90 3D —
73220-12612-04 note Belt Assy, Front Seat Outer, LH
1991-04 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
73220-12612-06 note Belt Assy, Front Seat Outer, LH
1991-04 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
73230 — Belt Assy, Front Seat Inner, RH
73230-12320-03 note Belt Assy, Front Seat Inner, RH
1987-05 → 1991-04 ended
AE92,CE90,EE90 —
73230-12320-04 note Belt Assy, Front Seat Inner, RH
1987-05 → 1987-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
73230-12320-04 note Belt Assy, Front Seat Inner, RH
1989-08 → 1991-04 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
73230-12320-04 note Belt Assy, Front Seat Inner, RH
1987-08 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
73230-12320-05 note Belt Assy, Front Seat Inner, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
73230-12320-06 note Belt Assy, Front Seat Inner, RH
1989-08 → 1991-04 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
73230-12321-03 note Belt Assy, Front Seat Inner, RH
1991-04 → 1992-11 ended
AE92,CE90,EE90 —
73230-12321-04 note Belt Assy, Front Seat Inner, RH
1991-04 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
73230-12321-06 note Belt Assy, Front Seat Inner, RH
1991-04 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
73240 — Belt Assy, Front Seat Inner, LH
73230-12320-03 note Belt Assy, Front Seat Inner, LH
1987-05 → 1991-04 ended
AE92,CE90,EE90 —
73230-12320-04 note Belt Assy, Front Seat Inner, LH
1989-08 → 1991-04 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
73230-12320-04 note Belt Assy, Front Seat Inner, LH
1987-08 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
73230-12320-04 note Belt Assy, Front Seat Inner, LH
1987-05 → 1987-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
73230-12320-05 note Belt Assy, Front Seat Inner, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
73230-12320-06 note Belt Assy, Front Seat Inner, LH
1989-08 → 1991-04 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
73230-12321-03 note Belt Assy, Front Seat Inner, LH
1991-04 → 1992-11 ended
AE92,CE90,EE90 —
73230-12321-04 note Belt Assy, Front Seat Inner, LH
1991-04 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
73230-12321-06 note Belt Assy, Front Seat Inner, LH
1991-04 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
73256 — Knob, Shoulder Belt Anchor Adjust
73256-12010-03 note Knob, Shoulder Belt Anchor Adjust
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
73256-12010-04 note Knob, Shoulder Belt Anchor Adjust
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
73256-12010-04 note Knob, Shoulder Belt Anchor Adjust
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
73256-12010-05 note Knob, Shoulder Belt Anchor Adjust
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
73256-12010-06 note Knob, Shoulder Belt Anchor Adjust
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
