Toyota Corolla HB
1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe
Discontinued model
Data version 1993-01

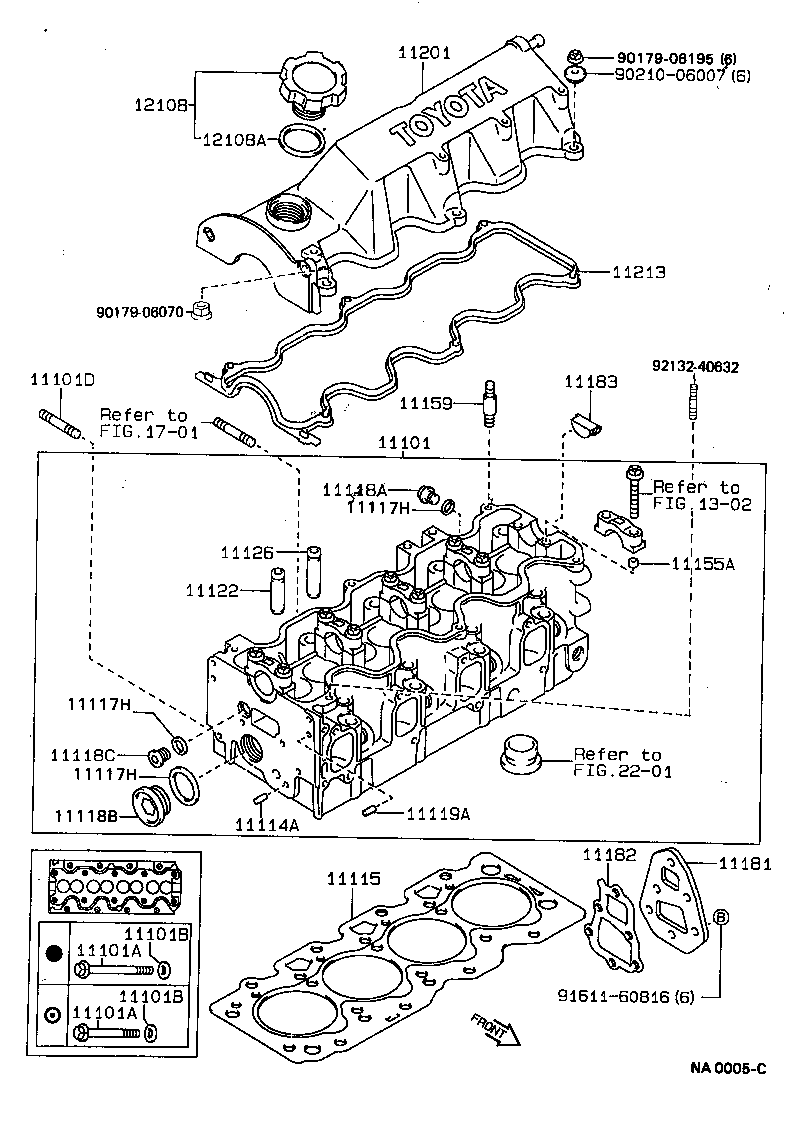

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101 — Head Sub-assy, Cylinder | ||||
| 11101-16030 |
Head Sub-assy, Cylinder
1987-05 → 1989-08
ended
|
4AGE AE92 | — | |
| 11101-16110 |
Head Sub-assy, Cylinder
1989-08 → 1992-11
ended
|
4AGE AE92 | — | |
| 11101-19156 |
Head Sub-assy, Cylinder
1987-05 → 1992-06
ended
|
2E EE90 | — | |
| 11101-19166 |
Head Sub-assy, Cylinder
1989-08 → 1992-06
ended
|
2EE EE90 | — | |
| 11101-19225 |
Head Sub-assy, Cylinder
1987-05 → 1992-06
ended
|
4AF AE92 | — | |
| 11101-19235 note |
Head Sub-assy, Cylinder
1987-05 → 1989-11
ended
|
4AF AE92 | — | |
| 11101-19245 note |
Head Sub-assy, Cylinder
1987-05 → 1987-08
ended
|
4AF AE92 | — | |
| 11101-19245 note |
Head Sub-assy, Cylinder
1987-10 → 1989-08
ended
|
4AF AE92 | — | |
| 11101-19265 |
Head Sub-assy, Cylinder
1989-08 → 1992-06
ended
|
4AFE AE92 | — | |
| 11101-64060 |
Head Sub-assy, Cylinder
1987-05 → 1989-01
ended
|
1C CE90 | — | |
| 11101-64061 |
Head Sub-assy, Cylinder
1989-01 → 1989-08
ended
|
1C CE90 | — | |
| 11101-64141 |
Head Sub-assy, Cylinder
1989-08 → 1992-06
ended
|
1C CE90 | — | |
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90105-09002 |
Bolt(FOR CYLINDER HEAD SET)
1987-05 → 1992-06
ended
|
2E# EE90 | — | |
| 90105-11018 note |
Bolt(FOR CYLINDER HEAD SET)
1987-05 → 1990-02
ended
|
1C CE90 | — | |
| 90105-11019 note |
Bolt(FOR CYLINDER HEAD SET)
1987-05 → 1990-02
ended
|
1C CE90 | — | |
| 90109-10058 note |
Bolt(FOR CYLINDER HEAD SET)
1987-05 → 1992-11
ended
|
4AF#,4AGE AE92 | — | |
| 90109-10059 note |
Bolt(FOR CYLINDER HEAD SET)
1987-05 → 1992-11
ended
|
4AF#,4AGE AE92 | — | |
| 90910-02097 note |
Bolt(FOR CYLINDER HEAD SET)
1989-08 → 1992-06
ended
|
1C CE90 | — | |
| 90910-02099 note |
Bolt(FOR CYLINDER HEAD SET)
1989-08 → 1992-06
ended
|
1C CE90 | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-09015 |
Washer, Plate(FOR CYLINDER HEAD SET)
1987-05 → 1992-06
ended
|
2E# EE90 | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
1987-05 → 1992-11
ended
|
4AF#,4AGE AE92 | — | |
| 90201-12222 |
Washer, Plate(FOR CYLINDER HEAD SET)
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 11101D — Bolt, Stud(FOR WATER OUTLET) | ||||
| 92122-60820 |
Bolt, Stud(FOR WATER OUTLET)
1987-05 → 1989-05
ended
|
1C CE90 | — | |
| 92122-B0820 |
Bolt, Stud(FOR WATER OUTLET)
1989-08 → 1992-06
ended
|
1C CE90 | — | |
| 11114A — Pin, Straight | ||||
| 90250-06068 note |
Pin, Straight
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 11115 — Gasket, Cylinder Head | ||||
| 11115-11010 note |
Gasket, Cylinder Head
1987-05 → 1992-06
ended
|
2E# EE90 | — | |
| 11115-11030 note |
Gasket, Cylinder Head
1987-07 → 1989-06
ended
|
2E EE90 LHD MTM | — | |
| 11115-16070 note |
Gasket, Cylinder Head
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 11115-16081 |
Gasket, Cylinder Head
1987-05 → 1988-09
ended
|
4AF AE92 | — | |
| 11115-16082 |
Gasket, Cylinder Head
1988-09 → 1992-06
ended
|
4AF# AE92 | — | |
| 11115-64070 |
Gasket, Cylinder Head
1987-05 → 1989-05
ended
|
1C CE90 | — | |
| 11115-64110 |
Gasket, Cylinder Head
1989-05 → 1992-06
ended
|
1C CE90 | — | |
| 11117H — Gasket(FOR WATER HOLE) | ||||
| 90430-10204 note |
Gasket(FOR WATER HOLE)
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 90430-12010 note |
Gasket(FOR WATER HOLE)
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 90430-24007 note |
Gasket(FOR WATER HOLE)
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 90430-33133 note |
Gasket(FOR WATER HOLE)
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 90430-33133 note |
Gasket(FOR WATER HOLE)
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 11118A — Plug, Straight, NO.1 | ||||
| 90341-10005 |
Plug, Straight, NO.1
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 11118B — Plug, Straight, NO.2 | ||||
| 90341-32070 |
Plug, Straight, NO.2
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 11118C — Plug, Straight, NO.3 | ||||
| 90341-12013 |
Plug, Straight, NO.3
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 11119A — Pin, Straight, NO.1 | ||||
| 90250-06068 note |
Pin, Straight, NO.1
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 11122 — Bush, Intake Valve Guide | ||||
| 11122-10040 note |
Bush, Intake Valve Guide
1987-05 → 1992-06
ended
|
2E# EE90 | — | |
| 11122-15030 note |
Bush, Intake Valve Guide
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 11122-16020 note |
Bush, Intake Valve Guide
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 11122-64010 note |
Bush, Intake Valve Guide
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 11123-10040 note |
Bush, Intake Valve Guide
1987-05 → 1992-06
ended
|
2E# EE90 | — | |
| 11123-15030 note |
Bush, Intake Valve Guide
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 11123-16020 note |
Bush, Intake Valve Guide
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 11123-64010 note |
Bush, Intake Valve Guide
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 11126 — Bush, Exhaust Valve Guide | ||||
| 11122-10040 note |
Bush, Exhaust Valve Guide
1987-05 → 1992-06
ended
|
2E# EE90 | — | |
| 11122-15030 note |
Bush, Exhaust Valve Guide
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 11122-16020 note |
Bush, Exhaust Valve Guide
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 11123-10040 note |
Bush, Exhaust Valve Guide
1987-05 → 1992-06
ended
|
2E# EE90 | — | |
| 11123-15030 note |
Bush, Exhaust Valve Guide
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 11123-16020 note |
Bush, Exhaust Valve Guide
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 11126-64010 note |
Bush, Exhaust Valve Guide
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 11127-64010 note |
Bush, Exhaust Valve Guide
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 11155A — Pin, Ring W/Head | ||||
| 90253-09001 |
Pin, Ring W/Head
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 90253-09001 |
Pin, Ring W/Head
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 90253-11021 |
Pin, Ring W/Head
1987-05 → 1992-06
ended
|
2E# EE90 | — | |
| 90253-11021 |
Pin, Ring W/Head
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 11159 — Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90116-06023 |
Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP)
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 11181 — Plate, Cylinder Head, Rear | ||||
| 11181-16130 |
Plate, Cylinder Head, Rear
1987-05 → 1989-03
ended
|
4AGE AE92 | — | |
| 11181-16140 |
Plate, Cylinder Head, Rear
1989-03 → 1992-11
ended
|
4AGE AE92 | — | |
| 11181-64010 |
Plate, Cylinder Head, Rear
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 11182 — Gasket, Cylinder Head Rear Plate | ||||
| 11182-16010 |
Gasket, Cylinder Head Rear Plate
1987-05 → 1989-03
ended
|
4AGE AE92 | — | |
| 11182-16020 |
Gasket, Cylinder Head Rear Plate
1989-03 → 1992-11
ended
|
4AGE AE92 | — | |
| 11182-64010 |
Gasket, Cylinder Head Rear Plate
1987-05 → 1989-03
ended
|
1C CE90 | — | |
| 11182-64020 |
Gasket, Cylinder Head Rear Plate
1989-03 → 1992-06
ended
|
1C CE90 | — | |
| 11183 — Plug, Semicircular | ||||
| 11183-15020 |
Plug, Semicircular
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 11183-64010 |
Plug, Semicircular
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 11201 — Cover Sub-assy, Cylinder Head | ||||
| 11201-10010 |
Cover Sub-assy, Cylinder Head
1987-05 → 1992-06
ended
|
2E# EE90 | — | |
| 11201-15900 |
Cover Sub-assy, Cylinder Head
1987-05 → 1987-11
ended
|
4AF AE92 | — | |
| 11201-64050 |
Cover Sub-assy, Cylinder Head
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 11210-15050 |
Cover Sub-assy, Cylinder Head
1990-06 → 1992-06
ended
|
4AF AE92 | — | |
| 11210-16100 |
Cover Sub-assy, Cylinder Head
1990-06 → 1992-06
ended
|
4AFE AE92 | — | |
| 11210-16100 |
Cover Sub-assy, Cylinder Head
1987-11 → 1990-06
ended
|
4AF# AE92 | — | |
| 11210-16110 note |
Cover Sub-assy, Cylinder Head
1988-10 → 1989-05
ended
|
4AGE AE92 | — | |
| 11210-16140 note |
Cover Sub-assy, Cylinder Head
1987-05 → 1988-10
ended
|
4AGE AE92 | — | |
| 11210-16160 note |
Cover Sub-assy, Cylinder Head
1989-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 11212-16010 note |
Cover Sub-assy, Cylinder Head
1987-05 → 1988-10
ended
|
4AGE AE92 | — | |
| 11212-16050 note |
Cover Sub-assy, Cylinder Head
1988-10 → 1992-11
ended
|
4AGE AE92 | — | |
| 11213 — Gasket, Cylinder Head Cover | ||||
| 11213-10010 |
Gasket, Cylinder Head Cover
1987-05 → 1991-06
ended
|
2E# EE90 | — | |
| 11213-10011 |
Gasket, Cylinder Head Cover
1991-06 → 1992-06
ended
|
2E# EE90 | — | |
| 11213-15050 |
Gasket, Cylinder Head Cover
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 11213-16010 |
Gasket, Cylinder Head Cover
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 11213-64020 |
Gasket, Cylinder Head Cover
1987-05 → 1991-01
ended
|
1C CE90 | — | |
| 11213-64040 |
Gasket, Cylinder Head Cover
1991-01 → 1992-06
ended
|
1C CE90 | — | |
| 12108 — Cap Sub-assy, Oil Filler | ||||
| 12180-11020 |
Cap Sub-assy, Oil Filler
1987-08 → 1991-03
ended
|
2E# EE90 | — | |
| 12180-11021 |
Cap Sub-assy, Oil Filler
1991-03 → 1992-06
ended
|
2E# EE90 | — | |
| 12180-13030 |
Cap Sub-assy, Oil Filler
1987-05 → 1992-11
ended
|
1C CE90 | — | |
| 12180-13030 |
Cap Sub-assy, Oil Filler
1987-05 → 1992-11
ended
|
4AFE,4AGE AE92 | — | |
| 12180-61010 |
Cap Sub-assy, Oil Filler
1987-05 → 1987-08
ended
|
2E EE90 | — | |
| 12180-62010 |
Cap Sub-assy, Oil Filler
1987-05 → 1991-07
ended
|
4AF AE92 | — | |
| 12180-62011 |
Cap Sub-assy, Oil Filler
1991-07 → 1992-06
ended
|
4AF AE92 | — | |
| 12108A — Gasket(FOR OIL FILLER CAP) | ||||
| 12195-71020 |
Gasket(FOR OIL FILLER CAP)
1987-05 → 1992-06
ended
|
2E# EE90 | — | |
| 90430-37140 |
Gasket(FOR OIL FILLER CAP)
1987-05 → 1992-11
ended
|
1C CE90 | — | |
| 90430-37140 |
Gasket(FOR OIL FILLER CAP)
1987-05 → 1992-11
ended
|
4AF#,4AGE AE92 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
