Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

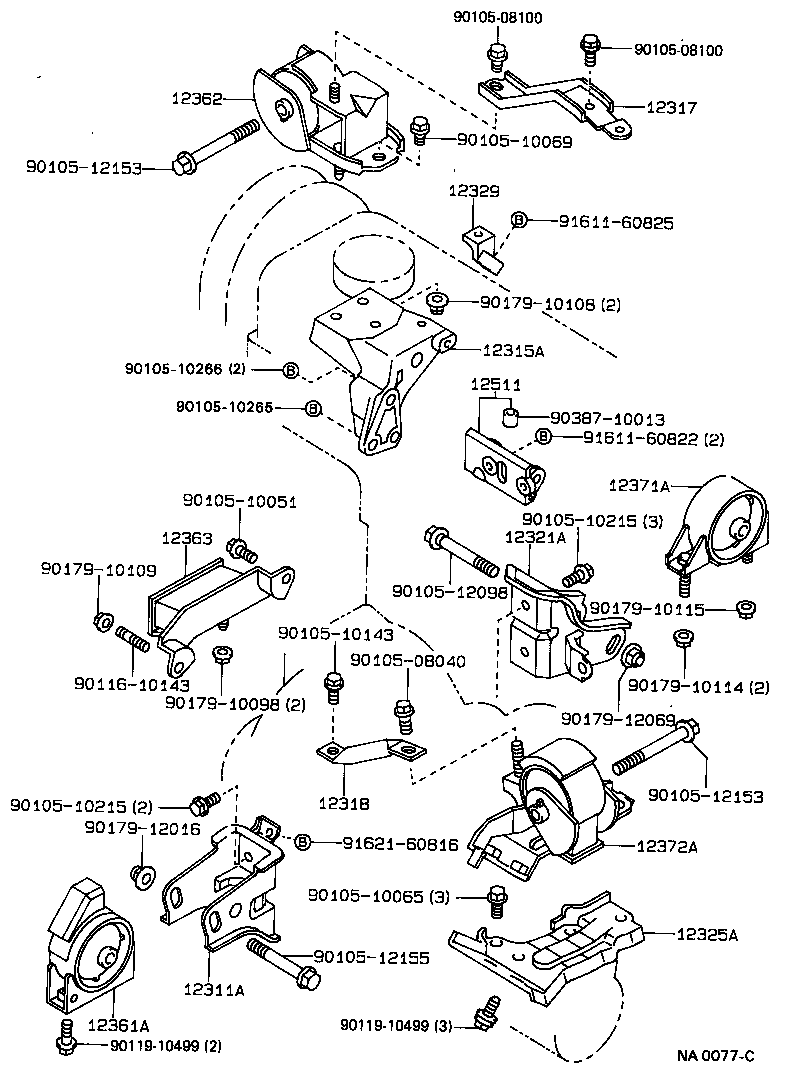

Exploded illustration NA0077C 9010508100 — not listed in this catalogue 9010508100 — not listed in this catalogue 12362 — INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) (9 parts) 12317 — STAY, ENGINE MOUNTING, RH (5 parts) 9010510069 — not listed in this catalogue 9010512153 — not listed in this catalogue 12329 — SUPPORT, ENGINE MOUNTING STAY (2 parts) 9161160825 — not listed in this catalogue 9017910108 — not listed in this catalogue 12315A — BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) (6 parts) 9010510266 — not listed in this catalogue 12511 — BRACKET, ALTERNATOR, NO.1 (6 parts) 9010510265 — not listed in this catalogue 9038710013 — not listed in this catalogue 9161160822 — not listed in this catalogue 12371A — INSULATOR, ENGINE MOUNTING, REAR (5 parts) 9010510051 — not listed in this catalogue 9010510215 — not listed in this catalogue 12321A — BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) (4 parts) 12363 — INSULATOR, ENGINE MOUNTING, CENTER (4 parts) 9017910109 — not listed in this catalogue 9010512098 — not listed in this catalogue 9017910115 — not listed in this catalogue 9010510143 — not listed in this catalogue 9010508040 — not listed in this catalogue 9011610143 — not listed in this catalogue 9017910114 — not listed in this catalogue 9017910098 — not listed in this catalogue 9017912069 — not listed in this catalogue 9010512153 — not listed in this catalogue 12318 — STAY, ENGINE MOUNTING, LH (3 parts) 9010510215 — not listed in this catalogue 9017912016 — not listed in this catalogue 9162160816 — not listed in this catalogue 12372A — INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (5 parts) 9010510065 — not listed in this catalogue 12325A — BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) (4 parts) 9010512155 — not listed in this catalogue 12311A — BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) (4 parts) 12361A — INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) (4 parts) 9011910499 — not listed in this catalogue 9011910499 — not listed in this catalogue
NA0077C · 13 callouts, 29 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
61 parts on this figure
Part number Description Fitment Price
12311A — Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12311-11050 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1987-05 → 1992-06 ended
2E# EE90 3FC —
12311-11060 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1987-05 → 1992-06 ended
2E# EE90 MTM —
12311-16040 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1987-05 → 1992-11 ended
4AF#,4AGE AE92 —
12311-64090 Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1987-05 → 1992-06 ended
1C CE90 —
12315A — Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12315-11020 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1987-05 → 1989-08 ended
2E EE90 —
12315-11030 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1989-08 → 1992-06 ended
2E# EE90 —
12315-15070 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1987-05 → 1992-06 ended
4AF# AE92 —
12315-16040 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1987-05 → 1992-11 ended
4AGE AE92 —
12315-64040 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1987-05 → 1989-05 ended
1C CE90 —
12315-64050 Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1989-05 → 1992-06 ended
1C CE90 —
12317 — Stay, Engine Mounting, RH
12317-11010 Stay, Engine Mounting, RH
1987-05 → 1989-08 ended
2E EE90 —
12317-11030 Stay, Engine Mounting, RH
1989-08 → 1992-06 ended
2E EE90 —
12317-15010 Stay, Engine Mounting, RH
1987-05 → 1989-08 ended
4AF AE92 —
12317-15020 Stay, Engine Mounting, RH
1989-08 → 1992-06 ended
4AF# AE92 —
12317-16010 Stay, Engine Mounting, RH
1987-05 → 1992-11 ended
4AGE AE92 —
12318 — Stay, Engine Mounting, LH
12318-11010 Stay, Engine Mounting, LH
1987-05 → 1992-06 ended
2E# EE90 MTM —
12318-11020 Stay, Engine Mounting, LH
1987-05 → 1992-06 ended
2E# EE90 3FC —
12318-16010 Stay, Engine Mounting, LH
1987-05 → 1992-11 ended
4AF#,4AGE AE92 —
12321A — Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12321-11060 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1987-05 → 1992-06 ended
2E# EE90 MTM —
12321-15050 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1987-05 → 1992-11 ended
4AF#,4AGE AE92 —
12321-15060 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1987-05 → 1992-06 ended
2E# EE90 3FC —
12321-64140 Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
1987-05 → 1992-06 ended
1C CE90 —
12325A — Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12325-11050 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-05 → 1992-06 ended
2E# EE90 MTM —
12325-15050 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-05 → 1992-06 ended
2E# EE90 3FC —
12325-16060 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-05 → 1992-11 ended
4AF#,4AGE AE92 —
12325-64010 Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-05 → 1992-06 ended
1C CE90 —
12329 — Support, Engine Mounting Stay
12329-11010 Support, Engine Mounting Stay
1987-05 → 1992-06 ended
2E EE90;2EE EE90 5D +1 —
12329-15010 Support, Engine Mounting Stay
1987-05 → 1992-06 ended
4AF# AE92 —
12361A — Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12361-16040 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1987-05 → 1992-11 ended
4AF#,4AGE AE92 —
12361-16040 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1987-05 → 1992-11 ended
2E# EE90 MTM —
12361-16090 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1987-05 → 1992-06 ended
2E# EE90 3FC —
12361-64130 Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
1987-05 → 1992-06 ended
1C CE90 —
12362 — Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12362-11070 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1987-05 → 1989-08 ended
2E EE90 —
12362-11100 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1989-08 → 1992-06 ended
2E EE90 —
12362-11130 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1989-08 → 1992-06 ended
2EE EE90 —
12362-15130 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1987-05 → 1989-08 ended
4AF AE92 —
12362-15160 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1989-08 → 1992-06 ended
4AF# AE92 —
12362-16070 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1987-05 → 1989-08 ended
4AGE AE92 —
12362-16150 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1989-08 → 1992-11 ended
4AGE AE92 —
12362-64060 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1987-05 → 1989-08 ended
1C CE90 —
12362-64120 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
1989-08 → 1992-06 ended
1C CE90 —
12363 — Insulator, Engine Mounting, Center
12363-11010 Insulator, Engine Mounting, Center
1987-05 → 1992-06 ended
2E# EE90 —
12363-15020 Insulator, Engine Mounting, Center
1987-05 → 1992-11 ended
4AF#,4AGE AE92 —
12363-64020 Insulator, Engine Mounting, Center
1987-05 → 1989-08 ended
1C CE90 —
12363-64030 Insulator, Engine Mounting, Center
1989-08 → 1992-06 ended
1C CE90 —
12371A — Insulator, Engine Mounting, Rear
12371-11210 Insulator, Engine Mounting, Rear
1987-05 → 1992-06 ended
2E# EE90 MTM —
12371-15200 Insulator, Engine Mounting, Rear
1987-05 → 1989-08 ended
4A# AE92 —
12371-15230 Insulator, Engine Mounting, Rear
1987-05 → 1992-06 ended
2E# EE90 3FC —
12371-16190 Insulator, Engine Mounting, Rear
1989-08 → 1992-11 ended
4AF#,4AGE AE92 —
12371-64120 Insulator, Engine Mounting, Rear
1987-05 → 1992-06 ended
1C CE90 —
12372A — Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12372-15110 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-05 → 1992-06 ended
4AF# AE92 —
12372-15110 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-05 → 1992-06 ended
2E# EE90 —
12372-16060 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-05 → 1992-11 ended
4AGE AE92 —
12372-64080 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1987-05 → 1989-08 ended
1C CE90 —
12372-64100 Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
1989-08 → 1992-06 ended
1C CE90 —
12511 — Bracket, Alternator, NO.1
12511-11010 Bracket, Alternator, NO.1
1987-05 → 1989-08 ended
2E EE90 —
12511-11010 Bracket, Alternator, NO.1
1989-08 → 1989-12 ended
2E# EE90 —
12511-11020 Bracket, Alternator, NO.1
1989-12 → 1992-06 ended
2E# EE90 —
12511-15040 Bracket, Alternator, NO.1
1987-05 → 1992-06 ended
4AF# AE92 —
12511-16030 Bracket, Alternator, NO.1
1987-05 → 1992-11 ended
4AGE AE92 —
12511-64020 Bracket, Alternator, NO.1
1987-05 → 1992-06 ended
1C CE90 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
