Toyota Corolla HB
1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe
Discontinued model
Data version 1993-01

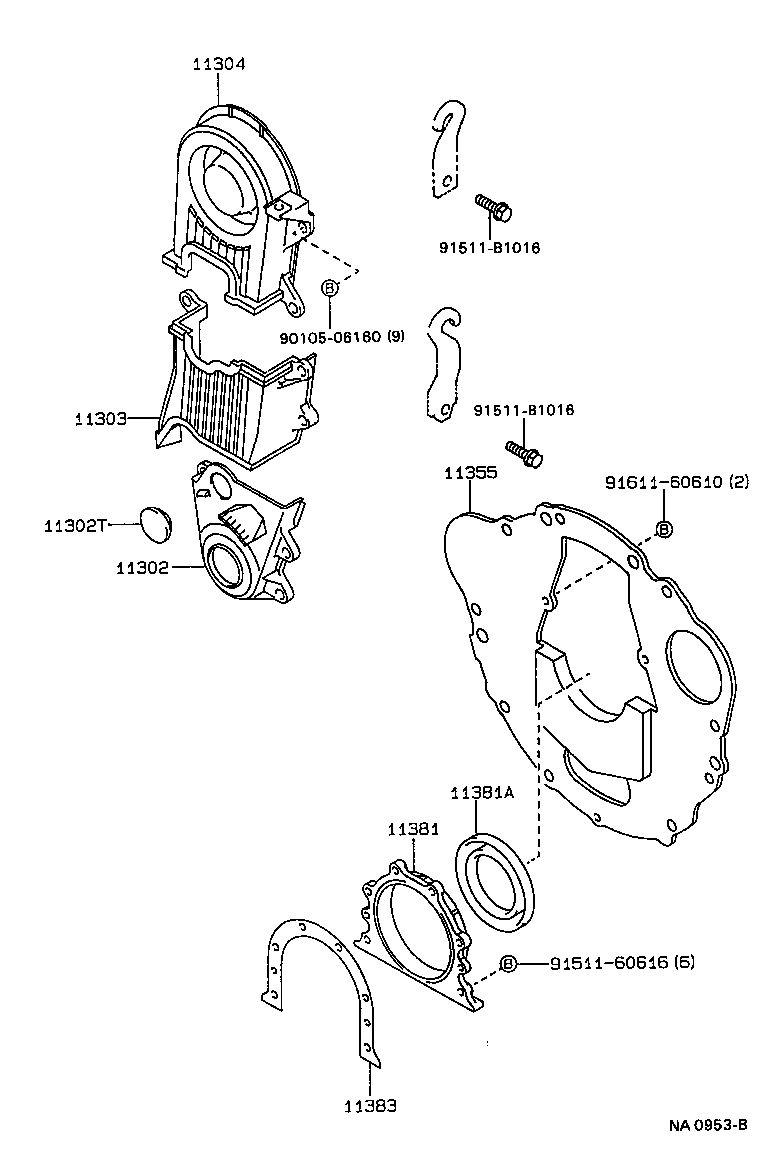

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11302 — Cover Sub-assy, Timing Chain OR Belt | ||||
| 11302-11041 |
Cover Sub-assy, Timing Chain OR Belt
1987-05 → 1987-08
ended
|
2E EE90 | — | |
| 11302-11042 |
Cover Sub-assy, Timing Chain OR Belt
1987-08 → 1992-06
ended
|
2E# EE90 | — | |
| 11302-15040 |
Cover Sub-assy, Timing Chain OR Belt
1987-05 → 1987-11
ended
|
4AF AE92 | — | |
| 11302-15041 |
Cover Sub-assy, Timing Chain OR Belt
1987-11 → 1992-06
ended
|
4AF# AE92 | — | |
| 11302T — Plug, Hole | ||||
| 90950-01391 |
Plug, Hole
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 11303 — Cover Sub-assy, Crankshaft Gear OR Pulley | ||||
| 11303-15040 |
Cover Sub-assy, Crankshaft Gear OR Pulley
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 11304 — Cover, Timing Chain OR Belt, NO.2 | ||||
| 11304-15020 |
Cover, Timing Chain OR Belt, NO.2
1987-05 → 1992-06
ended
|
4AF# AE92 | — | |
| 11355 — Plate, Rear End | ||||
| 11355-10011 |
Plate, Rear End
1987-05 → 1992-06
ended
|
2E# EE90 MTM | — | |
| 11355-11011 |
Plate, Rear End
1987-05 → 1992-06
ended
|
2E# EE90 3FC | — | |
| 11355-15060 |
Plate, Rear End
1987-05 → 1992-11
ended
|
4AGE AE92 | — | |
| 11355-15070 |
Plate, Rear End
1987-05 → 1992-06
ended
|
4AF AE92;4AFE AE92 GLI,XLI | — | |
| 11355-16010 |
Plate, Rear End
1989-08 → 1992-05
ended
|
4AFE AE92 SR5 | — | |
| 11355-64032 |
Plate, Rear End
1987-05 → 1989-04
ended
|
1C CE90 | — | |
| 11355-64032 |
Plate, Rear End
1989-08 → 1989-10
ended
|
1C CE90 | — | |
| 11355-64050 |
Plate, Rear End
1989-04 → 1989-08
ended
|
1C CE90 | — | |
| 11355-64050 |
Plate, Rear End
1989-10 → 1991-10
ended
|
1C CE90 | — | |
| 11355-64051 |
Plate, Rear End
1991-10 → 1992-06
ended
|
1C CE90 | — | |
| 11381 — Retainer, Engine Rear Oil Seal | ||||
| 11381-10020 |
Retainer, Engine Rear Oil Seal
1987-05 → 1992-06
ended
|
2E# EE90 | — | |
| 11381-15010 |
Retainer, Engine Rear Oil Seal
1987-05 → 1992-11
ended
|
4AF#,4AGE AE92 | — | |
| 11381-64012 |
Retainer, Engine Rear Oil Seal
1987-05 → 1992-06
ended
|
1C CE90 | — | |
| 11381A — Seal, Engine Rear Oil | ||||
| 90311-70004 |
Seal, Engine Rear Oil
1987-05 → 1991-06
ended
|
4AF#,4AGE AE92 | — | |
| 90311-70007 |
Seal, Engine Rear Oil
1991-06 → 1992-11
ended
|
4AF#,4AGE AE92 | — | |
| 90311-75004 |
Seal, Engine Rear Oil
1987-05 → 1989-05
ended
|
2E EE90 | — | |
| 90311-75004 |
Seal, Engine Rear Oil
1989-05 → 1989-08
ended
|
2E EE90 | — | |
| 90311-75004 |
Seal, Engine Rear Oil
1989-08 → 1990-10
ended
|
2E# EE90 | — | |
| 90311-75009 |
Seal, Engine Rear Oil
1990-10 → 1992-06
ended
|
2E# EE90 | — | |
| 90311-90003 |
Seal, Engine Rear Oil
1987-05 → 1990-02
ended
|
1C CE90 | — | |
| 90311-90005 |
Seal, Engine Rear Oil
1990-02 → 1990-11
ended
|
1C CE90 | — | |
| 90311-90005 |
Seal, Engine Rear Oil
1990-11 → 1992-06
ended
|
1C CE90 | — | |
| 11383 — Gasket, Engine Rear Oil Seal Retainer | ||||
| 11383-15010 |
Gasket, Engine Rear Oil Seal Retainer
1987-05 → 1989-08
ended
|
4A# AE92 | — | |
| 11383-15010 |
Gasket, Engine Rear Oil Seal Retainer
1989-08 → 1989-12
ended
|
4AF#,4AGE AE92 | — | |
| 11383-15011 |
Gasket, Engine Rear Oil Seal Retainer
1989-12 → 1991-06
ended
|
4AF#,4AGE AE92 | — | |
| 11383-15011 |
Gasket, Engine Rear Oil Seal Retainer
1991-06 → 1992-05
ended
|
4AF#,4AGE AE92 | — | |
| 11383-16010 |
Gasket, Engine Rear Oil Seal Retainer
1992-05 → 1992-11
ended
|
4AF#,4AGE AE92 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
