Toyota Corolla HB
1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe
Discontinued model
Data version 1993-01

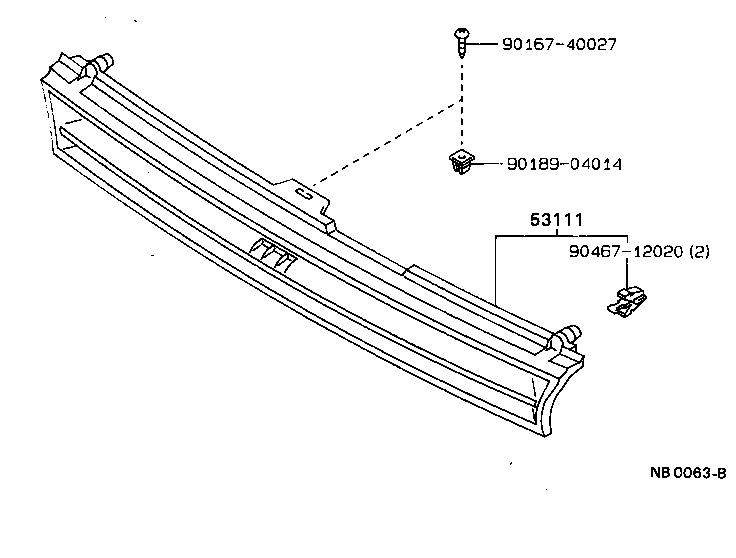

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53111 — Grille, Radiator | ||||
| 53101-12660 |
Grille, Radiator
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 53101-12710-02 note |
Grille, Radiator
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 GL,GTI,XL | — | |
| 53101-12710-02 note |
Grille, Radiator
1989-08 → 1992-11
ended
|
AE92 GTI | — | |
| 53101-12710-03 note |
Grille, Radiator
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 GL,GTI,XL | — | |
| 53101-12710-03 note |
Grille, Radiator
1989-08 → 1991-06
ended
|
AE92 GTI | — | |
| 53101-12710-04 note |
Grille, Radiator
1987-05 → 1989-05
ended
|
AE92,CE90,EE90 GL,GTI,XL | — | |
| 53101-12710-07 note |
Grille, Radiator
1989-08 → 1992-11
ended
|
AE92 GTI | — | |
| 53101-12710-08 note |
Grille, Radiator
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 GL,GTI,XL | — | |
| 53101-12710-08 note |
Grille, Radiator
1989-08 → 1992-11
ended
|
AE92 GTI | — | |
| 53101-12710-14 note |
Grille, Radiator
1989-08 → 1991-08
ended
|
AE92 GTI | — | |
| 53101-12710-B0 note |
Grille, Radiator
1991-06 → 1992-11
ended
|
AE92 GTI | — | |
| 53101-12710-J0 note |
Grille, Radiator
1991-08 → 1992-11
ended
|
AE92 GTI | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
