Toyota Corolla HB
1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe
Discontinued model
Data version 1993-01

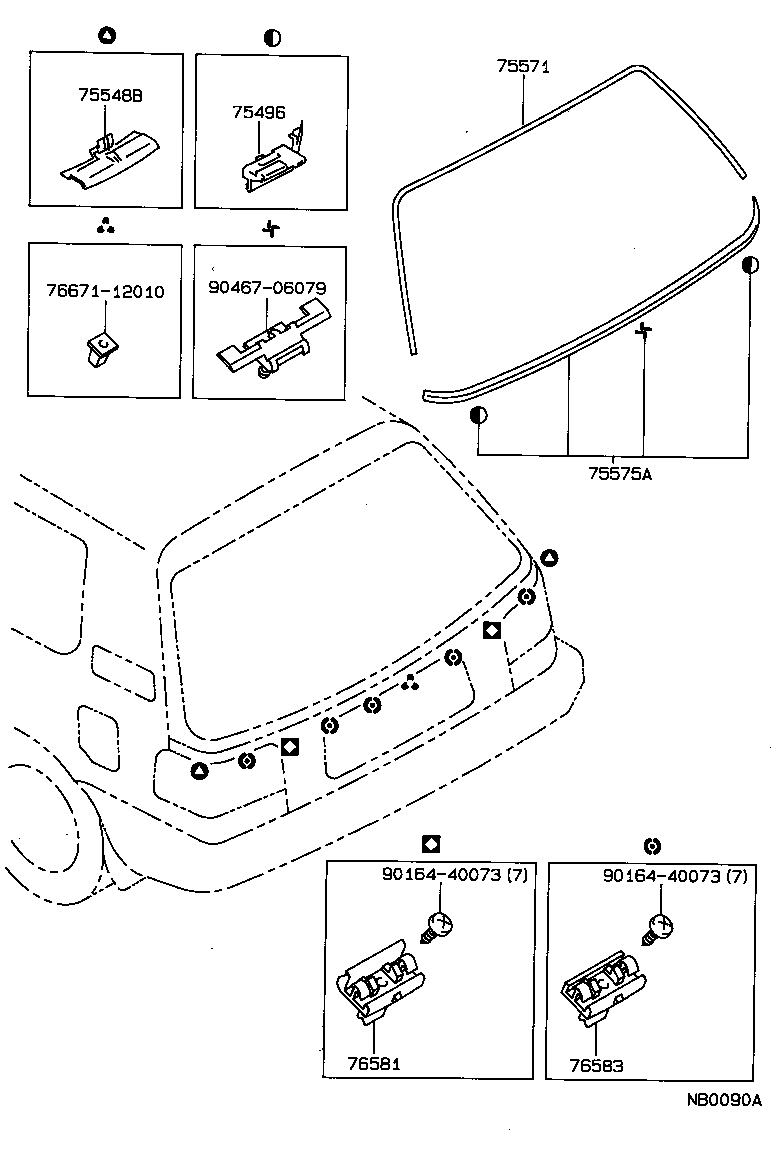

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 75496 — Clip, Back Window Outside Moulding, NO.1 | ||||
| 75496-12010 note |
Clip, Back Window Outside Moulding, NO.1
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 75497-12010 note |
Clip, Back Window Outside Moulding, NO.1
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 76671-12010 |
Clip, Back Window Outside Moulding, NO.1
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 3D | — | |
| 75548B — Fastener, Back Window Outside Moulding | ||||
| 75548-12100 |
Fastener, Back Window Outside Moulding
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 75571 — Moulding, Back Window, Outside Upper | ||||
| 75571-12410 |
Moulding, Back Window, Outside Upper
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 75575A — Moulding, Back Window, Outside Lower | ||||
| 75507-12030 |
Moulding, Back Window, Outside Lower
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 76581 — Retainer, Back Window Outside Moulding | ||||
| 76581-12030 |
Retainer, Back Window Outside Moulding
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 76583 — Retainer, Back Window Outside Lower Moulding, RH | ||||
| 76583-12020 |
Retainer, Back Window Outside Lower Moulding, RH
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
