Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

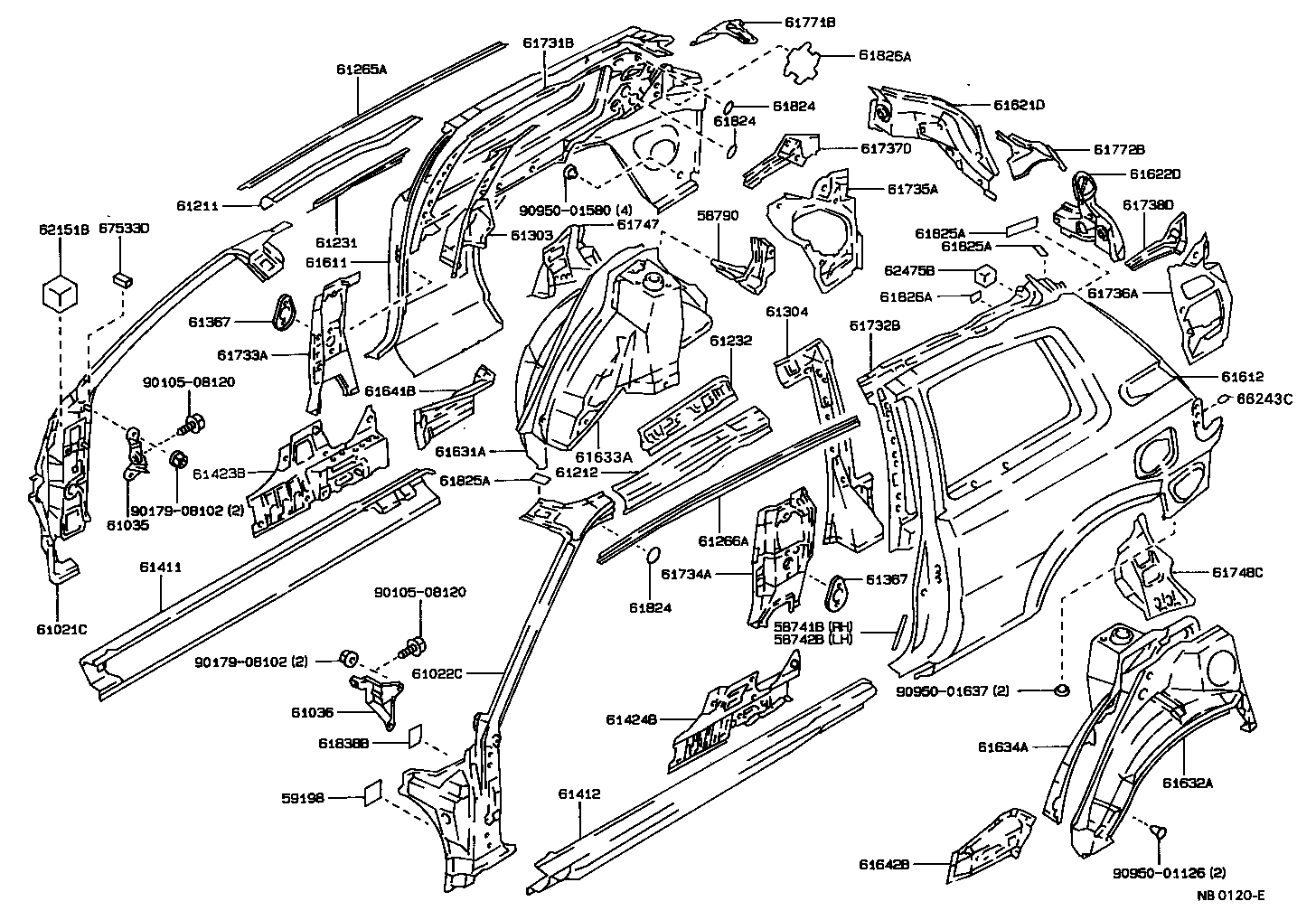

Exploded illustration NB0120E 61771B — FRAME, BACK DOOR OPENING UPPER CORNER, RH (1 parts) 61731B — PANEL, ROOF SIDE, INNER RH (2 parts) 61826A — PLATE, NOISE CONTROL, NO.3 (13 parts) 61265A — CHANNEL, ROOF DRIP SIDE, CENTER RH (2 parts) 61621D — TROUGH, BACK DOOR OPENING, RH (2 parts) 61824 — PLATE, NOISE CONTROL, NO.1 (4 parts) 61824 — PLATE, NOISE CONTROL, NO.1 (4 parts) 61737D — REINFORCEMENT, ROOF SIDE, INNER RH (1 parts) 61772B — FRAME, BACK DOOR OPENING UPPER CORNER, LH (1 parts) 61622D — TROUGH, BACK DOOR OPENING, LH (3 parts) 61735A — PANEL, ROOF SIDE, INNER REAR RH (3 parts) 61738D — REINFORCEMENT, ROOF SIDE, INNER LH (1 parts) 61211 — RAIL, ROOF SIDE, OUTER RH (2 parts) 9095001580 — not listed in this catalogue 58790 — CARRIER ASSY, JACK (1 parts) 61747 — BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH (2 parts) 67533D — PAD, FRONT DOOR LOWER FRAME GARNISH, RH (1 parts) 62151B — PAD, COWL SIDE SILENCER (4 parts) 61825A — PLATE, NOISE CONTROL, NO.2 (6 parts) 61303 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH (2 parts) 61231 — RAIL, ROOF SIDE, INNER RH (2 parts) 61825A — PLATE, NOISE CONTROL, NO.2 (6 parts) 61611 — PANEL, QUARTER, RH (5 parts) 62475B — SEAL, ROOF SIDE, INNER (1 parts) 61736A — PANEL, ROOF SIDE, INNER REAR LH (3 parts) 61826A — PLATE, NOISE CONTROL, NO.3 (13 parts) 61304 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH (2 parts) 61367 — REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER (1 parts) 61732B — PANEL, ROOF SIDE, INNER LH (2 parts) 61232 — RAIL, ROOF SIDE, INNER LH (2 parts) 61733A — PANEL, ROOF SIDE, INNER FRONT RH (1 parts) 61612 — PANEL, QUARTER, LH (6 parts) 9010508120 — not listed in this catalogue 61641B — GUSSET, QUARTER WHEEL HOUSE, RH (2 parts) 66243C — PROTECTOR, REAR BODY, NO.1 (3 parts) 61631A — PANEL, QUARTER WHEEL HOUSE, OUTER RH (1 parts) 61633A — PANEL, QUARTER WHEEL HOUSE, INNER RH (1 parts) 61212 — RAIL, ROOF SIDE, OUTER LH (2 parts) 61423B — REINFORCEMENT, ROCKER PANEL, NO.3 RH (1 parts) 61825A — PLATE, NOISE CONTROL, NO.2 (6 parts) 9017908102 — not listed in this catalogue 61035 — BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH (1 parts) 61266A — CHANNEL, ROOF DRIP SIDE, CENTER LH (2 parts) 61411 — PANEL, ROCKER, OUTER RH (5 parts) 61748C — BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH (2 parts) 61734A — PANEL, ROOF SIDE, INNER FRONT LH (1 parts) 61367 — REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER (1 parts) 9010508120 — not listed in this catalogue 61824 — PLATE, NOISE CONTROL, NO.1 (4 parts) 58741B — PROTECTOR, QUARTER PANEL, RH (3 parts) 61021C — PILLAR SUB-ASSY, FRONT BODY, RH (2 parts) 58742B — PROTECTOR, QUARTER PANEL, LH (3 parts) 9017908102 — not listed in this catalogue 61022C — PILLAR SUB-ASSY, FRONT BODY, LH (2 parts) 9095001637 — not listed in this catalogue 61036 — BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH (1 parts) 61424B — REINFORCEMENT, ROCKER PANEL, NO.3 LH (1 parts) 61838B — PLATE, NOISE CONTROL, NO.5 (1 parts) 61634A — PANEL, QUARTER WHEEL HOUSE, INNER LH (1 parts) 61632A — PANEL, QUARTER WHEEL HOUSE, OUTER LH (1 parts) 61412 — PANEL, ROCKER, OUTER LH (5 parts) 59198 — SEAL, NOISE SHUTTER (1 parts) 61642B — GUSSET, QUARTER WHEEL HOUSE, LH (2 parts) 9095001126 — not listed in this catalogue
NB0120E · 57 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
120 parts on this figure
Part number Description Fitment Price
58741B — Protector, Quarter Panel, RH
58741-12040 Protector, Quarter Panel, RH
1988-08 → 1992-06 ended
AE92,CE90,EE90 5D —
58741-12050 Protector, Quarter Panel, RH
1988-08 → 1992-11 ended
AE92,CE90,EE90 3D —
58741-12060 Protector, Quarter Panel, RH
1987-10 → 1988-08 ended
AE92,CE90,EE90 —
58742B — Protector, Quarter Panel, LH
58741-12060 Protector, Quarter Panel, LH
1987-10 → 1988-08 ended
AE92,CE90,EE90 —
58742-12040 Protector, Quarter Panel, LH
1988-08 → 1992-06 ended
AE92,CE90,EE90 5D —
58742-12050 Protector, Quarter Panel, LH
1988-08 → 1992-11 ended
AE92,CE90,EE90 3D —
58790 — Carrier Assy, Jack
58790-12050 Carrier Assy, Jack
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
59198 — Seal, Noise Shutter
59198-12010 Seal, Noise Shutter
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
61021C — Pillar Sub-assy, Front Body, RH
61021-12640 Pillar Sub-assy, Front Body, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
61021-12780 Pillar Sub-assy, Front Body, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
61022C — Pillar Sub-assy, Front Body, LH
61022-12650 Pillar Sub-assy, Front Body, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
61022-12790 Pillar Sub-assy, Front Body, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
61035 — Bracket Sub-assy, Instrument Panel TO Cowl Side, RH
61035-12040 Bracket Sub-assy, Instrument Panel TO Cowl Side, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
61036 — Bracket Sub-assy, Instrument Panel TO Cowl Side, LH
61036-12040 Bracket Sub-assy, Instrument Panel TO Cowl Side, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
61211 — Rail, Roof Side, Outer RH
61211-12240 Rail, Roof Side, Outer RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
61211-12250 Rail, Roof Side, Outer RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
61212 — Rail, Roof Side, Outer LH
61212-12240 Rail, Roof Side, Outer LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
61212-12250 Rail, Roof Side, Outer LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
61231 — Rail, Roof Side, Inner RH
61231-12470 Rail, Roof Side, Inner RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
61231-12490 Rail, Roof Side, Inner RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
61232 — Rail, Roof Side, Inner LH
61232-12390 Rail, Roof Side, Inner LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
61232-12400 Rail, Roof Side, Inner LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
61265A — Channel, Roof Drip Side, Center RH
61265-12130 Channel, Roof Drip Side, Center RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
61265-12140 Channel, Roof Drip Side, Center RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
61266A — Channel, Roof Drip Side, Center LH
61266-12130 Channel, Roof Drip Side, Center LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
61266-12140 Channel, Roof Drip Side, Center LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
61303 — Reinforce Sub-assy, Center Body Pillar, Upper RH
61303-12070 Reinforce Sub-assy, Center Body Pillar, Upper RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
61303-12090 note Reinforce Sub-assy, Center Body Pillar, Upper RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D (GL,GLI,GTI,SR5,XL,XLI) —
61304 — Reinforce Sub-assy, Center Body Pillar, Upper LH
61304-12060 Reinforce Sub-assy, Center Body Pillar, Upper LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
61304-12080 note Reinforce Sub-assy, Center Body Pillar, Upper LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D (GL,GLI,GTI,SR5,XL,XLI) —
61367 — Reinforcement, Belt Anchor TO Center Pillar, Lower
61367-14010 Reinforcement, Belt Anchor TO Center Pillar, Lower
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
61411 — Panel, Rocker, Outer RH
61411-12370 Panel, Rocker, Outer RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
61411-12380 Panel, Rocker, Outer RH
1987-05 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,SR5,STD,XL,XLI) —
61411-12390 note Panel, Rocker, Outer RH
1988-12 → 1989-08 ended
AE92 3D XL —
61411-12390 Panel, Rocker, Outer RH
1987-05 → 1992-11 ended
AE92 GTI —
61411-12390 note Panel, Rocker, Outer RH
1989-08 → 1992-05 ended
AE92 SR5 —
61412 — Panel, Rocker, Outer LH
61412-12360 Panel, Rocker, Outer LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
61412-12370 Panel, Rocker, Outer LH
1987-05 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,SR5,STD,XL,XLI) —
61412-12380 note Panel, Rocker, Outer LH
1988-12 → 1989-08 ended
AE92 3D XL —
61412-12380 note Panel, Rocker, Outer LH
1989-08 → 1992-05 ended
AE92 SR5 —
61412-12380 Panel, Rocker, Outer LH
1987-05 → 1992-11 ended
AE92 GTI —
61423B — Reinforcement, Rocker Panel, NO.3 RH
61423-12040 Reinforcement, Rocker Panel, NO.3 RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
61424B — Reinforcement, Rocker Panel, NO.3 LH
61424-12030 Reinforcement, Rocker Panel, NO.3 LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
61611 — Panel, Quarter, RH
61611-12925 Panel, Quarter, RH
1987-05 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,SR5,STD,XL,XLI) —
61611-12926 Panel, Quarter, RH
1987-05 → 1992-11 ended
AE92 GTI —
61611-12926 note Panel, Quarter, RH
1989-08 → 1992-05 ended
AE92 SR5 —
61611-12926 note Panel, Quarter, RH
1988-12 → 1989-08 ended
AE92 3D XL —
61611-12927 Panel, Quarter, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
61612 — Panel, Quarter, LH
61612-12909 Panel, Quarter, LH
1987-05 → 1992-05 ended
CE90,EE90 STD —
61612-12910 Panel, Quarter, LH
1987-05 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,SR5,XL,XLI) —
61612-12912 note Panel, Quarter, LH
1988-12 → 1989-08 ended
AE92 3D XL —
61612-12912 note Panel, Quarter, LH
1989-08 → 1992-05 ended
AE92 SR5 —
61612-12912 Panel, Quarter, LH
1987-05 → 1992-11 ended
AE92 GTI —
61612-12915 Panel, Quarter, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
61621D — Trough, Back Door Opening, RH
61621-12901 Trough, Back Door Opening, RH
1987-05 → 1989-10 ended
AE92,CE90,EE90 —
61621-12905 Trough, Back Door Opening, RH
1989-10 → 1992-11 ended
AE92,CE90,EE90 —
61622D — Trough, Back Door Opening, LH
61622-12901 Trough, Back Door Opening, LH
1987-05 → 1989-08 ended
CE90 3D;AE92,EE90 —
61622-12901 Trough, Back Door Opening, LH
1989-08 → 1989-10 ended
AE92,CE90,EE90 —
61622-12905 Trough, Back Door Opening, LH
1989-10 → 1992-11 ended
AE92,CE90,EE90 —
61631A — Panel, Quarter Wheel House, Outer RH
61631-12230 Panel, Quarter Wheel House, Outer RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
61632A — Panel, Quarter Wheel House, Outer LH
61632-12230 Panel, Quarter Wheel House, Outer LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
61633A — Panel, Quarter Wheel House, Inner RH
61607-12210 Panel, Quarter Wheel House, Inner RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
61634A — Panel, Quarter Wheel House, Inner LH
61608-12220 Panel, Quarter Wheel House, Inner LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
61641B — Gusset, Quarter Wheel House, RH
61641-12040 Gusset, Quarter Wheel House, RH
1987-05 → 1992-06 ended
AE92 SR5;EE90 STD EFI;AE92,CE90,EE90 +1 —
61641-12050 Gusset, Quarter Wheel House, RH
1987-05 → 1992-11 ended
EE90 3D CBR;EE90 3D +3 —
61642B — Gusset, Quarter Wheel House, LH
61642-12040 Gusset, Quarter Wheel House, LH
1987-05 → 1992-06 ended
AE92 SR5;EE90 STD EFI;AE92,CE90,EE90 +1 —
61642-12050 Gusset, Quarter Wheel House, LH
1987-05 → 1992-11 ended
EE90 3D CBR;EE90 3D +3 —
61731B — Panel, Roof Side, Inner RH
61731-12907 Panel, Roof Side, Inner RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
61731-12909 Panel, Roof Side, Inner RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
61732B — Panel, Roof Side, Inner LH
61732-12907 Panel, Roof Side, Inner LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
61732-12909 Panel, Roof Side, Inner LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
61733A — Panel, Roof Side, Inner Front RH
61733-12130 Panel, Roof Side, Inner Front RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
61734A — Panel, Roof Side, Inner Front LH
61734-12130 Panel, Roof Side, Inner Front LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
61735A — Panel, Roof Side, Inner Rear RH
61735-12270 Panel, Roof Side, Inner Rear RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
61735-12270 Panel, Roof Side, Inner Rear RH
1989-08 → 1989-10 ended
AE92,CE90,EE90 —
61735-12271 Panel, Roof Side, Inner Rear RH
1989-10 → 1992-11 ended
AE92,CE90,EE90 —
61736A — Panel, Roof Side, Inner Rear LH
61736-12240 Panel, Roof Side, Inner Rear LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
61736-12240 Panel, Roof Side, Inner Rear LH
1989-08 → 1989-10 ended
AE92,CE90,EE90 —
61736-12241 Panel, Roof Side, Inner Rear LH
1989-10 → 1992-11 ended
AE92,CE90,EE90 —
61737D — Reinforcement, Roof Side, Inner RH
61737-12100 Reinforcement, Roof Side, Inner RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
61738D — Reinforcement, Roof Side, Inner LH
61738-12110 Reinforcement, Roof Side, Inner LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
61747 — Brace, Roof Side Inner TO Wheel House, RH
61747-12120 Brace, Roof Side Inner TO Wheel House, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
61747-12130 Brace, Roof Side Inner TO Wheel House, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
61748C — Brace, Roof Side Inner TO Wheel House, LH
61748-12120 Brace, Roof Side Inner TO Wheel House, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
61748-12130 Brace, Roof Side Inner TO Wheel House, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
61771B — Frame, Back Door Opening Upper Corner, RH
61771-12010 Frame, Back Door Opening Upper Corner, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
61772B — Frame, Back Door Opening Upper Corner, LH
61772-12010 Frame, Back Door Opening Upper Corner, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
61824 — Plate, Noise Control, NO.1
61824-12020 note Plate, Noise Control, NO.1
1987-05 → 1988-08 ended
AE92,CE90,EE90 —
61824-12020 note Plate, Noise Control, NO.1
1987-05 → 1989-05 ended
AE92,CE90,EE90 —
61824-12040 Plate, Noise Control, NO.1
1989-05 → 1992-11 ended
AE92,CE90,EE90 —
61824-12040 Plate, Noise Control, NO.1
1988-08 → 1992-11 ended
AE92,CE90,EE90 —
61825A — Plate, Noise Control, NO.2
61825-12010 note Plate, Noise Control, NO.2
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
61825-12010 note Plate, Noise Control, NO.2
1989-08 → 1990-08 ended
AE92,CE90;EE90 3D CBR;EE90 LHD +3 —
61825-12010 Plate, Noise Control, NO.2
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
61825-12010 note Plate, Noise Control, NO.2
1990-08 → 1992-11 ended
AE92,CE90,EE90 —
61825-12020 note Plate, Noise Control, NO.2
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
61825-12020 note Plate, Noise Control, NO.2
1989-08 → 1992-11 ended
AE92,CE90,EE90 —
61826A — Plate, Noise Control, NO.3
61826-12020 note Plate, Noise Control, NO.3
1990-08 → 1992-11 ended
AE92,CE90,EE90 —
61826-12020 Plate, Noise Control, NO.3
1990-08 → 1992-11 ended
EE90 LHD 5D;EE90 3D +2 —
61826-12020 Plate, Noise Control, NO.3
1990-08 → 1992-11 ended
CE90,EE90 STD (CBR,DSL) —
61826-12020 Plate, Noise Control, NO.3
1989-08 → 1990-08 ended
AE92,CE90,EE90 —
61826-12020 Plate, Noise Control, NO.3
1987-05 → 1989-08 ended
AE92,CE90,EE90 GL,GTI,XL —
61826-12020 Plate, Noise Control, NO.3
1987-05 → 1989-08 ended
CE90,EE90 STD —
61826-12020 note Plate, Noise Control, NO.3
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
61826-12030 note Plate, Noise Control, NO.3
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
61826-12030 Plate, Noise Control, NO.3
1989-08 → 1992-06 ended
AE92 SR5;EE90 3FC EFI —
61826-12030 note Plate, Noise Control, NO.3
1989-08 → 1992-11 ended
AE92,CE90,EE90 —
61826-12030 Plate, Noise Control, NO.3
1990-08 → 1992-11 ended
EE90 RHD 5D —
61826-12030 Plate, Noise Control, NO.3
1990-08 → 1992-11 ended
EE90 MTM XLI;EE90 3D +5 —
61826-12030 note Plate, Noise Control, NO.3
1987-05 → 1990-08 ended
AE92,CE90,EE90 GL,GLI,GTI,XL,XLI —
61838B — Plate, Noise Control, NO.5
61838-12010 Plate, Noise Control, NO.5
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
62151B — Pad, Cowl Side Silencer
62151-12100 Pad, Cowl Side Silencer
1987-05 → 1991-06 ended
AE92,CE90,EE90 —
62151-12100 Pad, Cowl Side Silencer
1991-06 → 1992-11 ended
AE92,CE90,EE90 3D —
62151-12100 note Pad, Cowl Side Silencer
1991-06 → 1992-11 ended
AE92,CE90,EE90 5D —
62151-12130 note Pad, Cowl Side Silencer
1991-06 → 1992-06 ended
AE92,CE90,EE90 5D —
62475B — Seal, Roof Side, Inner
62475-12040 Seal, Roof Side, Inner
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
66243C — Protector, Rear Body, NO.1
66243-20010 Protector, Rear Body, NO.1
1989-05 → 1989-08 ended
AE92,CE90,EE90 —
66243-20010 Protector, Rear Body, NO.1
1989-08 → 1989-09 ended
EE90 CBR;EE90 XLI;AE92,CE90 GLI,GTI,STD,XL,XLI —
66243-20010 Protector, Rear Body, NO.1
1989-09 → 1992-11 ended
EE90 CBR;EE90 XLI;AE92,CE90 GLI,GTI,STD,XL,XLI —
67533D — Pad, Front Door Lower Frame Garnish, RH
67533-12010 Pad, Front Door Lower Frame Garnish, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
