Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

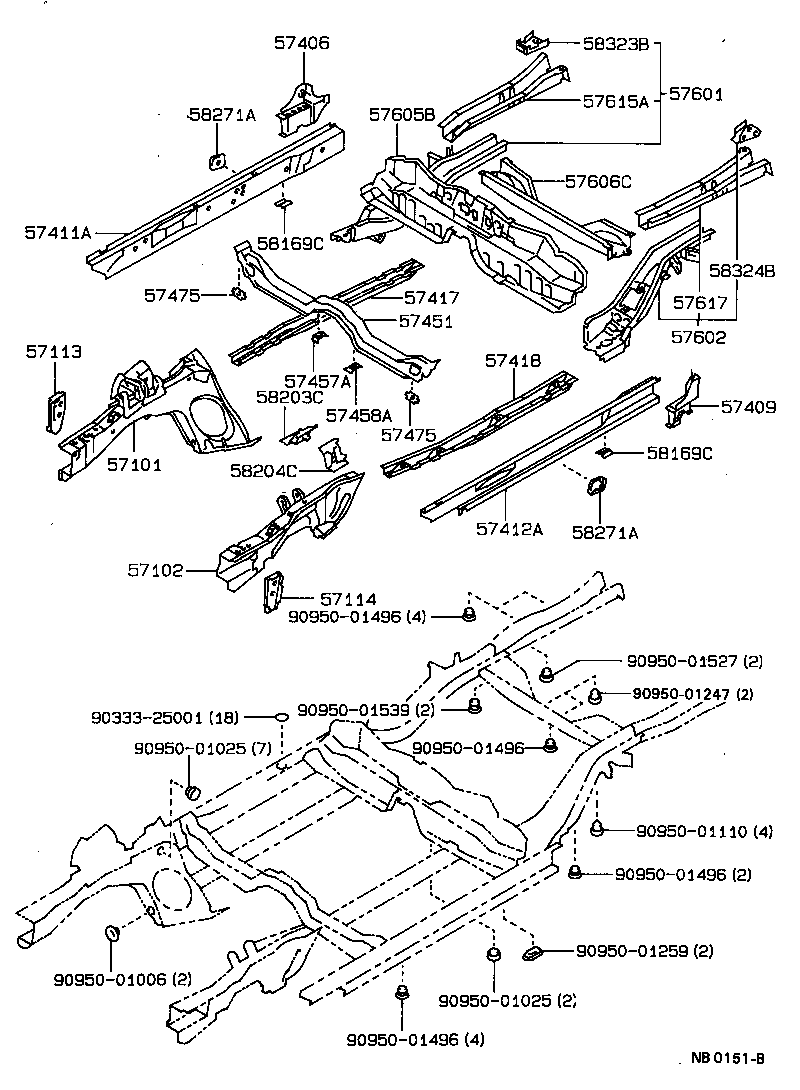

Exploded illustration NB0151B 57406 — MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH (1 parts) 58323B — REINFORCE, REAR BUMPER ARM SUPPORT, RH (3 parts) 57601 — MEMBER SUB-ASSY, REAR FLOOR SIDE, RH (5 parts) 57615A — MEMBER, REAR FLOOR SIDE, REAR RH (3 parts) 58271A — REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 (1 parts) 57605B — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 (2 parts) 57606C — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 (2 parts) 57411A — MEMBER, FLOOR SIDE, INNER RH (2 parts) 58169C — PATCH, FRONT FLOOR REAR (2 parts) 58324B — REINFORCE, REAR BUMPER ARM SUPPORT, LH (3 parts) 57475 — PLATE, FRONT FLOOR CROSSMEMBER (1 parts) 57417 — REINFORCEMENT, FRONT FLOOR UNDER, RH (1 parts) 57617 — MEMBER, REAR FLOOR SIDE, REAR LH (3 parts) 57451 — MEMBER, FRONT FLOOR CROSS (2 parts) 57602 — MEMBER SUB-ASSY, REAR FLOOR SIDE, LH (3 parts) 57113 — EXTENSION, FRONT SIDE MEMBER, RH (1 parts) 57418 — REINFORCEMENT, FRONT FLOOR UNDER, LH (1 parts) 57457A — PLATE, FRONT FLOOR CROSSMEMBER, NO.2 RH (1 parts) 58203C — BRACKET SUB-ASSY, EXHAUST PIPE MOUNTING (1 parts) 57409 — MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH (1 parts) 57458A — PLATE, FRONT FLOOR CROSSMEMBER, NO.2 LH (1 parts) 57475 — PLATE, FRONT FLOOR CROSSMEMBER (1 parts) 58169C — PATCH, FRONT FLOOR REAR (2 parts) 57101 — MEMBER SUB-ASSY, FRONT SIDE, RH (7 parts) 58204C — BRACKET SUB-ASSY, EXHAUST PIPE MOUNTING, LH (1 parts) 57412A — MEMBER, FLOOR SIDE, INNER LH (2 parts) 58271A — REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 (1 parts) 57102 — MEMBER SUB-ASSY, FRONT SIDE, LH (4 parts) 57114 — EXTENSION, FRONT SIDE MEMBER, LH (1 parts) 9095001496 — not listed in this catalogue 9095001527 — not listed in this catalogue 9095001247 — not listed in this catalogue 9095001539 — not listed in this catalogue 9033325001 — not listed in this catalogue 9095001025 — not listed in this catalogue 9095001496 — not listed in this catalogue 9095001110 — not listed in this catalogue 9095001496 — not listed in this catalogue 9095001259 — not listed in this catalogue 9095001006 — not listed in this catalogue 9095001025 — not listed in this catalogue 9095001496 — not listed in this catalogue
NB0151B · 29 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
55 parts on this figure
Part number Description Fitment Price
57101 — Member Sub-assy, Front Side, RH
57101-12340 Member Sub-assy, Front Side, RH
1987-05 → 1988-05 ended
AE92 —
57101-12350 Member Sub-assy, Front Side, RH
1987-05 → 1988-05 ended
CE90,EE90 —
57101-12351 Member Sub-assy, Front Side, RH
1989-08 → 1989-10 ended
CE90,EE90 —
57101-12351 Member Sub-assy, Front Side, RH
1988-05 → 1989-08 ended
CE90,EE90 —
57101-12380 Member Sub-assy, Front Side, RH
1988-05 → 1992-11 ended
AE92 —
57101-12390 note Member Sub-assy, Front Side, RH
1989-08 → 1992-11 ended
AE92 LHD GTI —
57101-12430 Member Sub-assy, Front Side, RH
1989-10 → 1992-06 ended
CE90,EE90 —
57102 — Member Sub-assy, Front Side, LH
57102-12360 Member Sub-assy, Front Side, LH
1988-05 → 1992-11 ended
AE92,EE90 —
57102-12370 Member Sub-assy, Front Side, LH
1987-05 → 1988-05 ended
AE92,EE90 —
57102-12380 Member Sub-assy, Front Side, LH
1987-05 → 1988-05 ended
CE90 —
57102-12381 Member Sub-assy, Front Side, LH
1988-05 → 1992-06 ended
CE90 —
57113 — Extension, Front Side Member, RH
57113-12110 Extension, Front Side Member, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
57114 — Extension, Front Side Member, LH
57114-12110 Extension, Front Side Member, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
57406 — Member Sub-assy, Main Floor Side, RH
57406-12010 Member Sub-assy, Main Floor Side, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
57409 — Member Sub-assy, Main Floor Side, LH
57409-12010 Member Sub-assy, Main Floor Side, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
57411A — Member, Floor Side, Inner RH
57411-12160 Member, Floor Side, Inner RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
57411-12180 Member, Floor Side, Inner RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
57412A — Member, Floor Side, Inner LH
57412-12160 Member, Floor Side, Inner LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
57412-12180 Member, Floor Side, Inner LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
57417 — Reinforcement, Front Floor Under, RH
57417-12080 Reinforcement, Front Floor Under, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
57418 — Reinforcement, Front Floor Under, LH
57418-12040 Reinforcement, Front Floor Under, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
57451 — Member, Front Floor Cross
57451-12110 Member, Front Floor Cross
1987-05 → 1989-05 ended
AE92,CE90,EE90 —
57451-12111 Member, Front Floor Cross
1989-05 → 1992-11 ended
AE92,CE90,EE90 —
57457A — Plate, Front Floor Crossmember, NO.2 RH
57457-12020 Plate, Front Floor Crossmember, NO.2 RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
57458A — Plate, Front Floor Crossmember, NO.2 LH
57458-12020 Plate, Front Floor Crossmember, NO.2 LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
57475 — Plate, Front Floor Crossmember
57475-32010 Plate, Front Floor Crossmember
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
57601 — Member Sub-assy, Rear Floor Side, RH
57601-12560 Member Sub-assy, Rear Floor Side, RH
1987-05 → 1989-05 ended
AE92,CE90,EE90 —
57601-12570 note Member Sub-assy, Rear Floor Side, RH
1987-05 → 1989-05 ended
AE92 LHD EFI —
57601-12570 note Member Sub-assy, Rear Floor Side, RH
1987-05 → 1989-05 ended
AE92,EE90 LHD MTM CBR —
57601-12790 Member Sub-assy, Rear Floor Side, RH
1989-05 → 1989-10 ended
AE92 GTI;AE92,CE90,EE90 CBR,DSL —
57601-12790 Member Sub-assy, Rear Floor Side, RH
1989-10 → 1992-11 ended
AE92,CE90,EE90 —
57602 — Member Sub-assy, Rear Floor Side, LH
57602-12470 Member Sub-assy, Rear Floor Side, LH
1987-05 → 1989-05 ended
AE92,CE90,EE90 —
57602-12660 Member Sub-assy, Rear Floor Side, LH
1989-05 → 1989-10 ended
AE92 GTI;AE92,CE90,EE90 CBR,DSL —
57602-12660 Member Sub-assy, Rear Floor Side, LH
1989-10 → 1992-11 ended
AE92,CE90,EE90 —
57605B — Member Sub-assy, Rear Floor Cross, NO.1
57605-12120 Member Sub-assy, Rear Floor Cross, NO.1
1987-05 → 1989-10 ended
AE92 GTI;AE92,CE90,EE90 CBR,DSL —
57605-12120 Member Sub-assy, Rear Floor Cross, NO.1
1989-10 → 1992-11 ended
AE92,CE90,EE90 —
57606C — Member Sub-assy, Rear Floor Cross, NO.2
57606-12100 Member Sub-assy, Rear Floor Cross, NO.2
1987-05 → 1989-10 ended
AE92 GTI;AE92,CE90,EE90 CBR,DSL —
57606-12100 Member Sub-assy, Rear Floor Cross, NO.2
1989-10 → 1992-11 ended
AE92,CE90,EE90 —
57615A — Member, Rear Floor Side, Rear RH
57615-12060 Member, Rear Floor Side, Rear RH
1987-05 → 1989-05 ended
AE92,CE90,EE90 —
57615-12090 Member, Rear Floor Side, Rear RH
1989-05 → 1989-10 ended
AE92 GTI;AE92,CE90,EE90 CBR,DSL —
57615-12090 Member, Rear Floor Side, Rear RH
1989-10 → 1992-11 ended
AE92,CE90,EE90 —
57617 — Member, Rear Floor Side, Rear LH
57616-12060 Member, Rear Floor Side, Rear LH
1987-05 → 1989-05 ended
AE92,CE90,EE90 —
57616-12090 Member, Rear Floor Side, Rear LH
1989-05 → 1989-10 ended
AE92 GTI;AE92,CE90,EE90 CBR,DSL —
57616-12090 Member, Rear Floor Side, Rear LH
1989-10 → 1992-11 ended
AE92,CE90,EE90 —
58169C — Patch, Front Floor Rear
58169-12010 Patch, Front Floor Rear
1987-05 → 1988-09 ended
AE92,CE90,EE90 3D —
58169-12010 Patch, Front Floor Rear
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
58203C — Bracket Sub-assy, Exhaust Pipe Mounting
58203-12030 Bracket Sub-assy, Exhaust Pipe Mounting
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58204C — Bracket Sub-assy, Exhaust Pipe Mounting, LH
58204-12010 Bracket Sub-assy, Exhaust Pipe Mounting, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58271A — Reinforcement, Belt Anchor TO Floor Pan, NO.3
58271-12050 Reinforcement, Belt Anchor TO Floor Pan, NO.3
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58323B — Reinforce, Rear Bumper Arm Support, RH
58323-12020 Reinforce, Rear Bumper Arm Support, RH
1987-05 → 1989-05 ended
AE92,CE90,EE90 —
58323-12070 Reinforce, Rear Bumper Arm Support, RH
1989-05 → 1989-10 ended
AE92 GTI;AE92,CE90,EE90 CBR,DSL —
58323-12070 Reinforce, Rear Bumper Arm Support, RH
1989-10 → 1992-11 ended
AE92,CE90,EE90 —
58324B — Reinforce, Rear Bumper Arm Support, LH
58323-12020 Reinforce, Rear Bumper Arm Support, LH
1987-05 → 1989-05 ended
AE92,CE90,EE90 —
58323-12070 Reinforce, Rear Bumper Arm Support, LH
1989-05 → 1989-10 ended
AE92 GTI;AE92,CE90,EE90 CBR,DSL —
58323-12070 Reinforce, Rear Bumper Arm Support, LH
1989-10 → 1992-11 ended
AE92,CE90,EE90 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
