Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

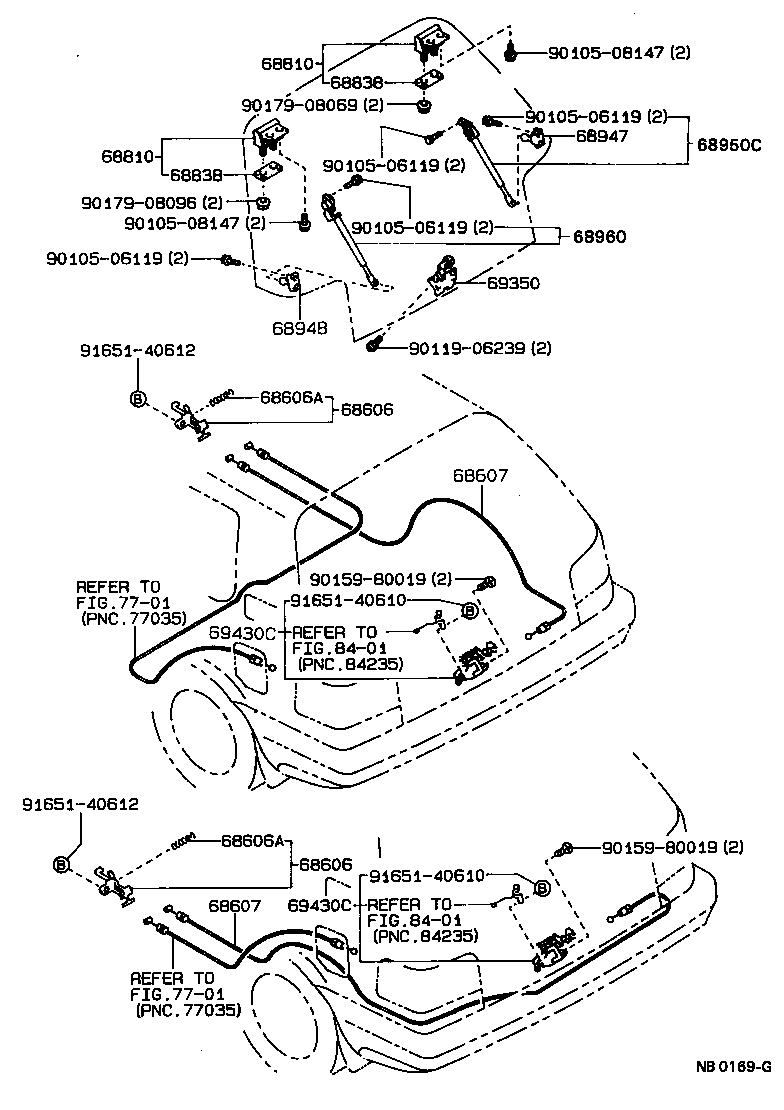

Exploded illustration NB0169G 9010508147 — not listed in this catalogue 68810 — HINGE ASSY, BACK DOOR, UPPER (2 parts) 68838 — PAD, BACK DOOR HINGE, NO.1 (2 parts) 9017908069 — not listed in this catalogue 9010506119 — not listed in this catalogue 68947 — BRACKET, BACK DOOR DAMPER STAY, LOWER RH (1 parts) 68950C — STAY ASSY, BACK DOOR, RH (14 parts) 68810 — HINGE ASSY, BACK DOOR, UPPER (2 parts) 9010506119 — not listed in this catalogue 68838 — PAD, BACK DOOR HINGE, NO.1 (2 parts) 9017908096 — not listed in this catalogue 9010508147 — not listed in this catalogue 9010506119 — not listed in this catalogue 68960 — STAY ASSY, BACK DOOR, LH (14 parts) 9010506119 — not listed in this catalogue 69350 — LOCK ASSY, BACK DOOR (1 parts) 68948 — BRACKET, BACK DOOR DAMPER STAY, LOWER LH (1 parts) 9011906239 — not listed in this catalogue 9165140612 — not listed in this catalogue 68606A — SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER) (2 parts) 68606 — LEVER SUB-ASSY, BACK DOOR LOCK OPEN (2 parts) 68607 — CABLE SUB-ASSY, BACK DOOR LOCK CONTROL (2 parts) 9015980019 — not listed in this catalogue 9165140610 — not listed in this catalogue 7701 — not listed in this catalogue 69430C — STRIKER ASSY, BACK DOOR LOCK (2 parts) 8401 — not listed in this catalogue 9165140612 — not listed in this catalogue 68606A — SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER) (2 parts) 9015980019 — not listed in this catalogue 68606 — LEVER SUB-ASSY, BACK DOOR LOCK OPEN (2 parts) 9165140610 — not listed in this catalogue 69430C — STRIKER ASSY, BACK DOOR LOCK (2 parts) 68607 — CABLE SUB-ASSY, BACK DOOR LOCK CONTROL (2 parts) 8401 — not listed in this catalogue 7701 — not listed in this catalogue
NB0169G · 17 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
68606 — Lever Sub-assy, Back Door Lock Open
64606-12050 Lever Sub-assy, Back Door Lock Open
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD (GL,GLI,GTI,SR5,XL,XLI) —
64606-12060 Lever Sub-assy, Back Door Lock Open
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
68606A — Spring, Tension(FOR BACK DOOR LOCK OPEN LEVER)
90506-09034 Spring, Tension(FOR BACK DOOR LOCK OPEN LEVER)
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
90506-09034 Spring, Tension(FOR BACK DOOR LOCK OPEN LEVER)
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD (GL,GLI,GTI,SR5,XL,XLI) —
68607 — Cable Sub-assy, Back Door Lock Control
64607-12530 Cable Sub-assy, Back Door Lock Control
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
64607-12540 Cable Sub-assy, Back Door Lock Control
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD (GL,GLI,GTI,SR5,XL,XLI) —
68810 — Hinge Assy, Back Door, Upper
68801-12040 Hinge Assy, Back Door, Upper
1987-05 → 1988-08 ended
AE92,CE90,EE90 —
68801-12041 Hinge Assy, Back Door, Upper
1988-08 → 1992-11 ended
AE92,CE90,EE90 —
68838 — Pad, Back Door Hinge, NO.1
68838-10010 Pad, Back Door Hinge, NO.1
1987-05 → 1988-08 ended
AE92,CE90,EE90 —
68838-10011 Pad, Back Door Hinge, NO.1
1988-08 → 1992-11 ended
AE92,CE90,EE90 —
68947 — Bracket, Back Door Damper Stay, Lower RH
68947-12010 Bracket, Back Door Damper Stay, Lower RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
68948 — Bracket, Back Door Damper Stay, Lower LH
68948-12010 Bracket, Back Door Damper Stay, Lower LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
68950C — Stay Assy, Back Door, RH
68950-19605 Stay Assy, Back Door, RH
1987-05 → 1988-08 ended
AE92,CE90,EE90 CBR,DSL —
68950-19606 Stay Assy, Back Door, RH
1988-08 → 1991-06 ended
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI —
68950-19615 Stay Assy, Back Door, RH
1987-05 → 1988-08 ended
AE92 EFI —
68950-19615 note Stay Assy, Back Door, RH
1987-05 → 1988-08 ended
CE90,EE90 STD —
68950-19615 note Stay Assy, Back Door, RH
1987-05 → 1988-08 ended
AE92,CE90,EE90 GL,XL —
68950-19616 note Stay Assy, Back Door, RH
1989-08 → 1991-06 ended
EE90 5D GL;EE90 3FC +2 —
68950-19616 note Stay Assy, Back Door, RH
1989-08 → 1991-06 ended
AE92,CE90,EE90 3D MTM (GL,SR5,STD) —
68950-19616 note Stay Assy, Back Door, RH
1988-08 → 1989-08 ended
AE92,CE90,EE90 GL,XL —
68950-19616 note Stay Assy, Back Door, RH
1988-08 → 1989-08 ended
CE90,EE90 STD —
68950-19616 Stay Assy, Back Door, RH
1988-08 → 1991-06 ended
AE92 GTI —
68950-19805 Stay Assy, Back Door, RH
1991-06 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI —
68950-19815 note Stay Assy, Back Door, RH
1991-06 → 1992-05 ended
AE92,CE90,EE90 3D MTM (GL,SR5,STD) —
68950-19815 note Stay Assy, Back Door, RH
1991-06 → 1992-06 ended
EE90 5D GL;EE90 3FC +2 —
68950-19815 Stay Assy, Back Door, RH
1991-06 → 1992-11 ended
AE92 GTI —
68960 — Stay Assy, Back Door, LH
68960-19295 Stay Assy, Back Door, LH
1987-05 → 1988-08 ended
AE92,CE90,EE90 CBR,DSL —
68960-19296 Stay Assy, Back Door, LH
1988-08 → 1991-06 ended
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI —
68960-19305 Stay Assy, Back Door, LH
1987-05 → 1988-08 ended
AE92 EFI —
68960-19305 note Stay Assy, Back Door, LH
1987-05 → 1988-08 ended
CE90,EE90 STD —
68960-19305 note Stay Assy, Back Door, LH
1987-05 → 1988-08 ended
AE92,CE90,EE90 GL,XL —
68960-19306 note Stay Assy, Back Door, LH
1988-08 → 1989-08 ended
AE92,CE90,EE90 GL,XL —
68960-19306 note Stay Assy, Back Door, LH
1989-08 → 1991-06 ended
EE90 5D GL;EE90 3FC +2 —
68960-19306 note Stay Assy, Back Door, LH
1989-08 → 1991-06 ended
AE92,CE90,EE90 3D MTM (GL,SR5,STD) —
68960-19306 Stay Assy, Back Door, LH
1988-08 → 1991-06 ended
AE92 GTI —
68960-19306 note Stay Assy, Back Door, LH
1988-08 → 1989-08 ended
CE90,EE90 STD —
68960-19495 Stay Assy, Back Door, LH
1991-06 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI —
68960-19505 note Stay Assy, Back Door, LH
1991-06 → 1992-05 ended
AE92,CE90,EE90 3D MTM (GL,SR5,STD) —
68960-19505 note Stay Assy, Back Door, LH
1991-06 → 1992-06 ended
EE90 5D GL;EE90 3FC +2 —
68960-19505 Stay Assy, Back Door, LH
1991-06 → 1992-11 ended
AE92 GTI —
69350 — Lock Assy, Back Door
69350-12130 Lock Assy, Back Door
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
69430C — Striker Assy, Back Door Lock
69430-12240 Striker Assy, Back Door Lock
1987-05 → 1992-11 ended
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI —
69430-16110 Striker Assy, Back Door Lock
1987-05 → 1992-05 ended
CE90,EE90 STD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
